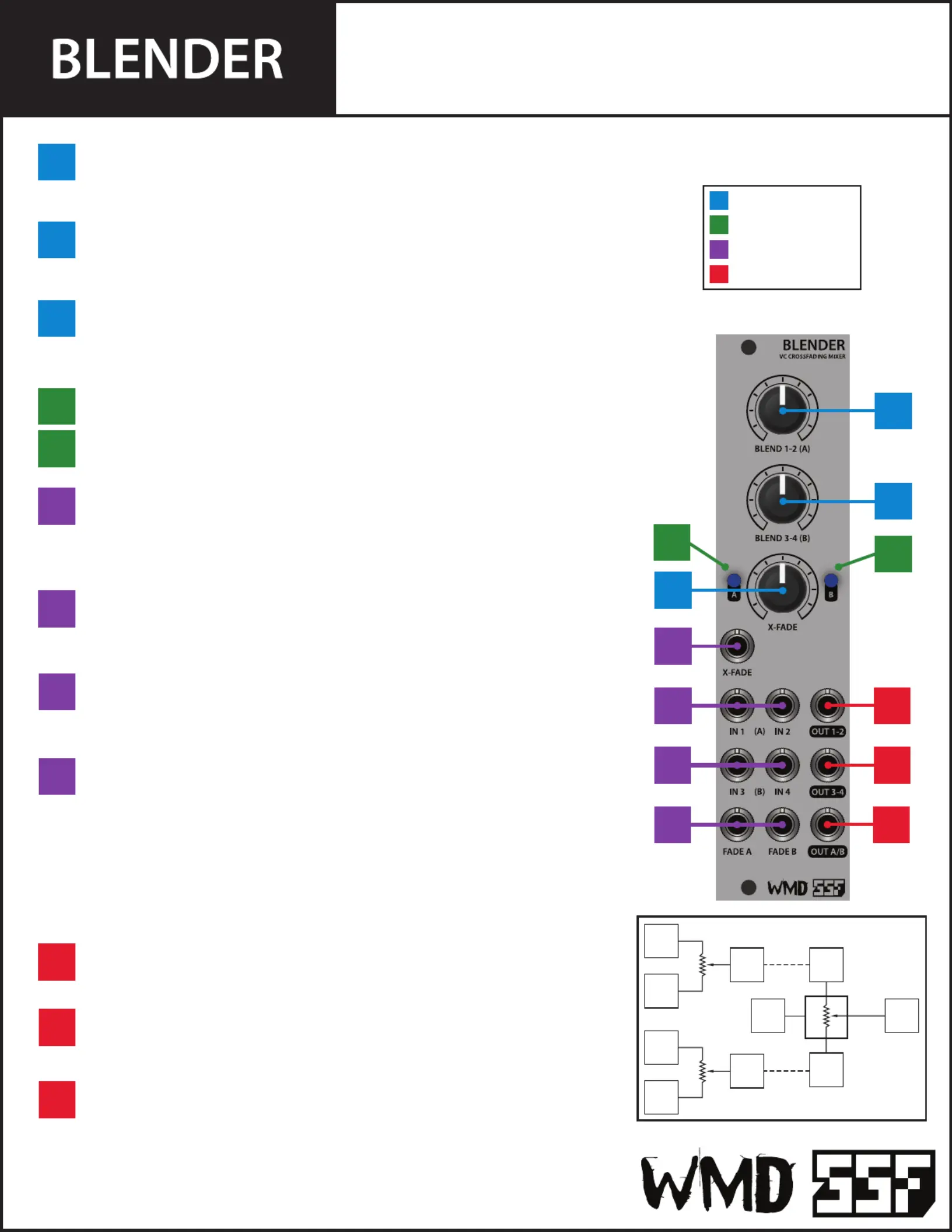

INPUT 1-2 BLEND CONTROL

Manual cross-fader for input channels 1 and 2. When signals are applied to both inputs 1

and 2, use this control to smoothly blend between the two signals. This control works as a

full range attenuator if only one of the inputs is occupied.

INPUT 3-4 BLEND CONTROL

Manual cross-fader for input channels 3 and 4. When signals are applied to both

inputs 3 and 4, use this control to smoothly blend between the two signals. This

control works as a full range attenuator if only one of the inputs is occupied.

X-FADE A/B BLEND & OFFSET

This is the manual control for the voltage controlled cross-fader. Use this control to smoothly

blend signals applied or normalized (see inputs below) to the A and B inputs.

This control is also used as an when control voltage (CV) is applied to the X-FADE input.oset

BLENDER is a four channel mixer and voltage controlled cross-fader. BLENDER simplies mixing

audio and control voltages (CV) by incorporating a single control to blend two signals at a time -

also known as a cross-fader. Two manual cross-faders and a single voltage controlled master

cross-fader are provided. Use BLENDER as a main mixer or as a dynamic control for creating

complex control voltages and waveforms from your signal generators.

X-FADE CV INPUT

This input is for the A/B CROSS-FADER with bipolar or unipolar control modulating

voltages.

Use the X-FADE control to tailor the . Center position is sucient oset of modulation

for symmetrical fading between A and B with a bipolar signal.

CHANNEL (A) LED

Indicates amplitude of the signal applied to channel A.

CHANNEL (B) LED

Indicates amplitude of the signal applied to channel B.

OUTPUT 1-2

This is the for signals processed through INPUTS 1-2 and direct output

BLEND 1-2 control

INPUTS 1 & 2 (A)

These are the signal inputs associated with the BLEND 1-2 control. Signals applied here

are processed through the BLEND 1-2 control and sent to the OUT 1-2 jack. Signals

mixed through these inputs are also normalized to FADE input A.

OUTPUT 3-4

This is the for signals processed through INPUTS 3-4 and direct output

BLEND 3-4 control

OUT

PANEL CONTROL

LED INDICATOR

INPUT

OUTPUT

COLOR KEY LEGEND

B3-4

XCV

IN1-2

(A)

IN3-4

(B)

FADE

A-B

3-4

OUT

1-2

OUT

IN1-2

(A)

INPUTS 3 & 4 (B)

These are the signal inputs associated with the BLEND 3-4 control. Signals applied here

are processed through the BLEND 3-4 control and sent to the OUT 3-4 jack. Signals

mixed through at these inputs are also normalized to FADE input B.

IN3-4

(B)

FADE A-B INPUTS

These are the DC coupled signal inputs associated with the X-FADE control and X-FADE

control voltage (CV) input. Signals applied here are processed through the voltage

controlled cross-fader and sent to the OUT A/B jack. When nothing is applied to these

inputs, the signals from inputs 1-2 are normalized to the A input 3-4 are normalized and

to the B input. Therefore, these normalizations serve to cross-fade the blended signals

from the 1-2 & 3-4 inputs by default.

Patching a signal into either A or B input will break the normalization associated with

that input, respectively and process the patched signal through the voltage controlled

cross-fader.

FADE

A-B

1-2

OUT

3-4

OUT

A/B

OUT OUTPUT A/B

This is the for signals processed through INPUTS direct and main output

A-B and processed by X-FADE CV and X-FADE BLEND control.

IN 1

IN 2

IN 3

IN 4

OUT

1-2

OUT

3-4

X-FADE

IN A

IN B

OUT

A/B

BLEND 1-2

BLEND 3-4

X-FADE

SIGNAL PATH DIAGRAM
