18Gbps 4K HDR HDBaseT Extender with

HDCP 2.2 and 2-way PoH

EX-35-H2

Quickstart Guide

EX-35-H2 Quickstart Guide | 190509

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

Identifying Product Versions

This product was released in 2 different versions which contain different chassis designs and feature sets. The differences are identied throughout this

document in order to make installation and use easier.

Versions can be identied by a v# after the model number on the product chassis model number sticker. Note that version 1 of this product may not contain a

v1 after the product while all version 2s will contain a v2 after the model number.

Operational Differences

Feature Version 1 Version 2

RS-232 Mode Switch Yes No – Changes made this switch unnecessary

3840x2160p @60Hz 10bit 4:2:0 HDR

4096x2160p @60Hz 8bit 4:4:4

Not Supported on Category Cable (HDBaseT) Supported on Category Cable (HDBaseT)

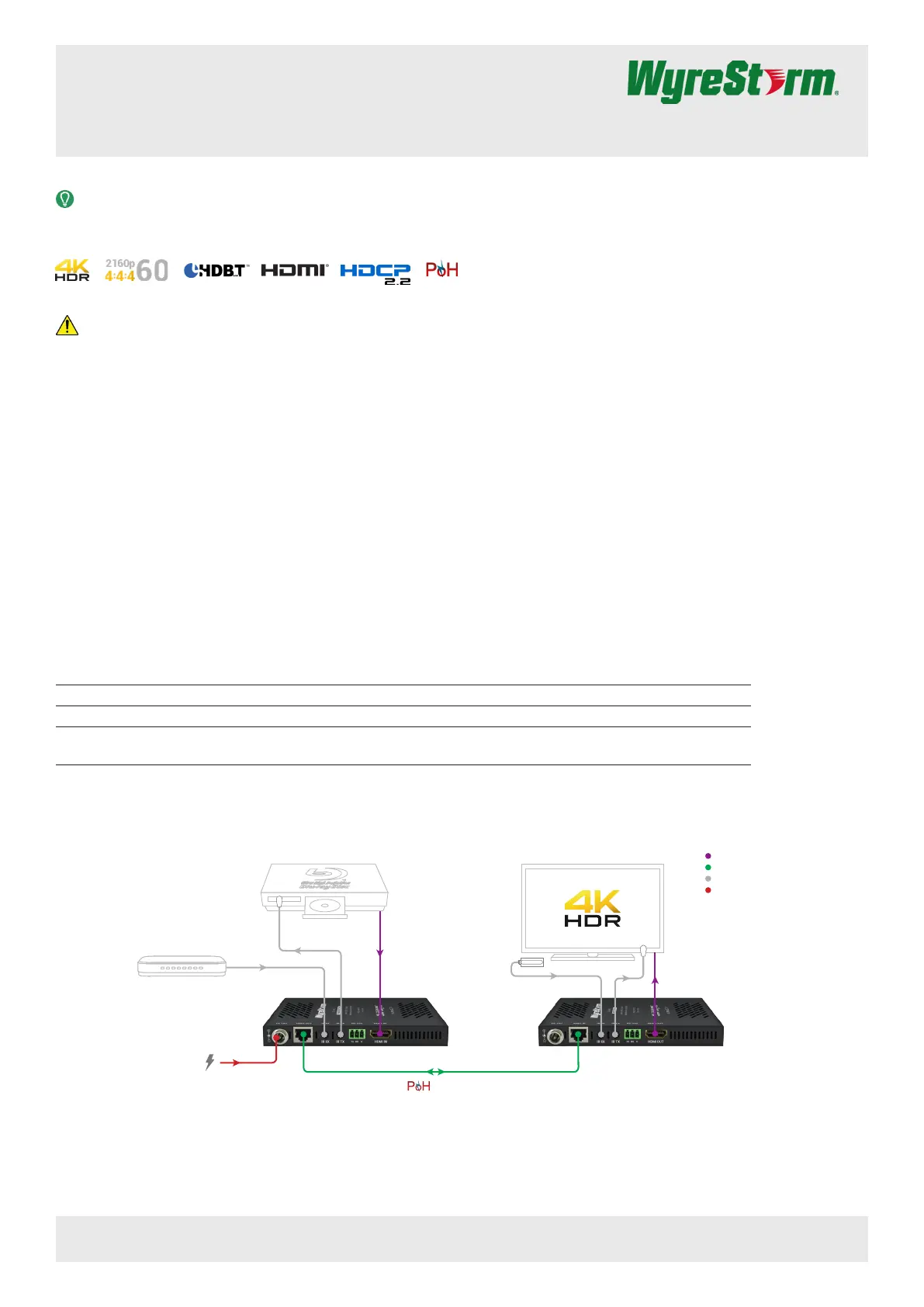

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• This product was released in 2 different versions which contain different

chassis designs and feature sets.

• See Identifying Product Versions for details.

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x EX-35-H2 Transmitter

1x EX-35-H2 Receiver

1x 18V DC 1A Power Supply (US/UK/EU)

2x 3-pin Screw Down Phoenix Connectors

1x IR Emitter

1x IR Receiver

4x Mounting Brackets (2x for TX | 2x for RX)

1x Quickstart Guide (this document)

HDMI

IR Emitter

IR Receiver

18V DC 1A

Power Supply

IR to Control System

CAB-IR-LINK (Sold Separately)

EX-35-H2 Transmitter (TX) EX-35-H2 Receiver (RX)

4K/UHD HDMI Source 4K/UHD HDMI Display

KEY

HDMI

HDBaseT Cat6/7

IR TX and RX

Power

HDBaseT

Cat5e/6/6a/7

Note: Extender set may be powered

by either the TX or RX. Only one

power supply is required.

Front Panel (TX/RX) Rear Panel (TX/RX)

Power LED

Solid: The receiver is powered On

Off: The receiver is powered Off

Status LED

Flashing: The receiver is operating normally.

Off: The receiver is Not operating normally.

HDCP LED

Solid: HDCP content is present.

Flashing: HDCP content is not present.

Off: No signal.

LINK LED

Solid: Link to receiver has been established.

Flashing: Link to receiver has not been

established.

RS-232 Mode

Version 1 Only

Switches the mode for the RS-232 port.

Normal: RS-232 HDBaseT pass-through.

Update: RS-232 rmware update.

Power In

5.5mm Screw Down Barrel Jack

Connect to the included 18V DC 1A power

supply. to the transmitter. A power supply

is not required on the receiver as it will be

powered using PoH.

See Power Supply Wiring for important

information.

HDBT In

HDBT Out

8-pin RJ-45 female

Connect the transmitters HDBT Out to

receivers HDBT In.

IR TX

IR RX

IR TX - 3.5mm (1/8in) Mono Jack: Connect

to the supplied IR emitter to control a local

device from the remote display location via

HDBaseT.

IR RX - 3.5mm (1/8in) Stereo Jack: Connect

to the supplied IR receiver to send IR to the

remote display location via HDBaseT.

See IR TX/RX Guidelines for more

information.

RS-232 1x RS-232: 3-pin Phoenix

HDMI In

HDMI Out

19-pin type A HDMI female

Supports HDMI and DVI/D with adapter

EX-35-H2 Quickstart Guide | 190509

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

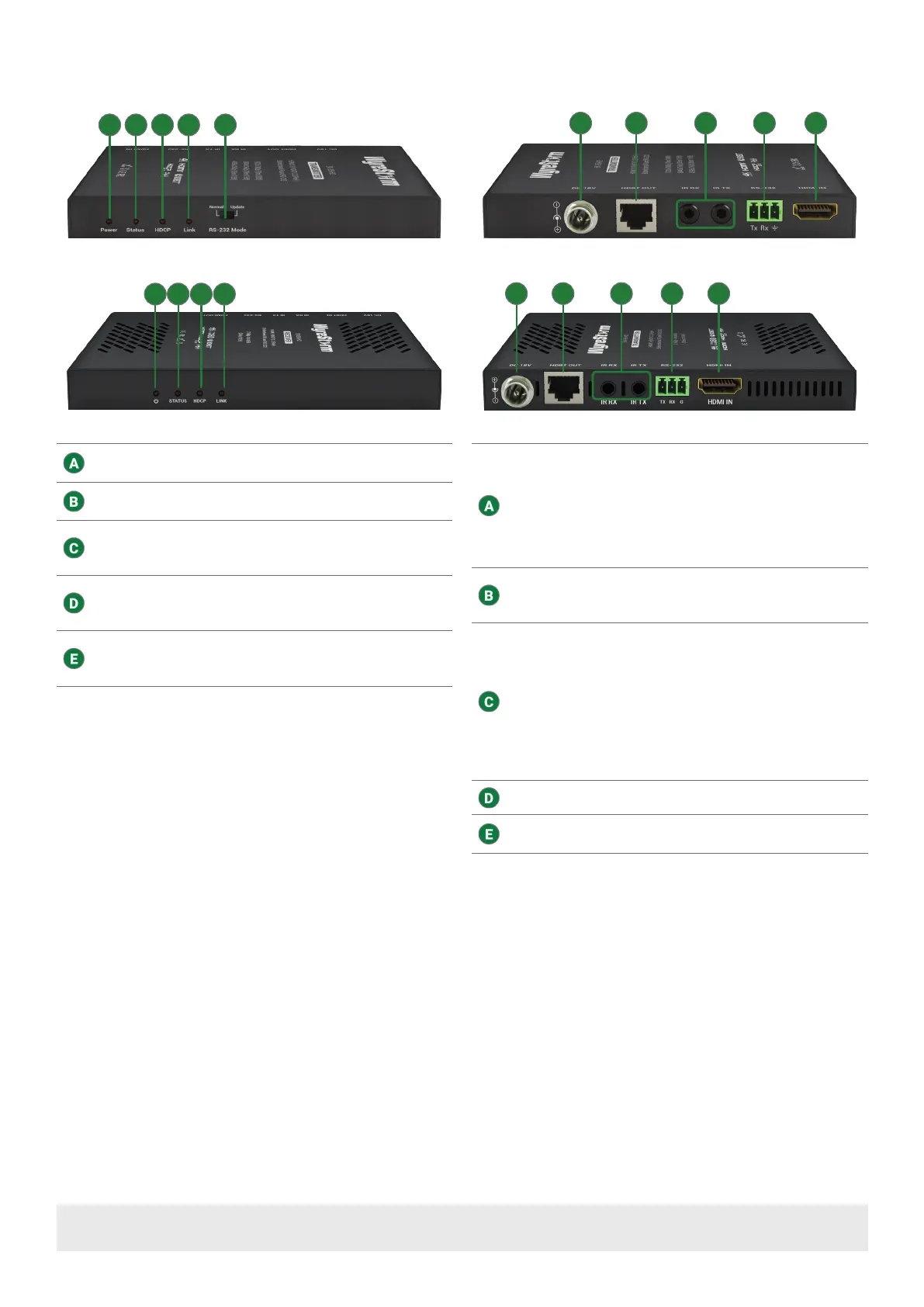

C D

Version 2 Front Panel

A B C D E

Version 1 Front Panel

Version 2 Rear Panel

A B C D E

Version 1 Rear Panel

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	Audio/video konverter
Model:	EX-35-H2
Type:	AV sender & modtager
Bredde:	140 mm
Dybde:	90.2 mm
Højde:	17 mm
Vægt:	360 g
Produktfarve:	Sort
Kontroltype:	Trådløs
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	2.0 kanaler
Certificering:	CE \| FCC \| RoHS \| RCM
Strømforbrug (maks.):	8.88 W
Bæredygtighedscertifikater:	RoHS
Plug and play:	Ja
Indgangsstrøm:	1 A
Driftsspænding:	18 V
Maksimal overførselsafstand:	70 m
HDMI-version:	2.0
Strøm over Ethernet (PoE):	Ja
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	1
Stativ-montering:	Ja
HDCP-version:	2.2
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
HDBaseT-port:	Ja
Understøttede kabeltyper:	Cat6, Cat6a, Cat7, HDMI
Båndbredde:	9.2 Gbit/sek.
RJ-45 udgangs-porte:	1
Udvidet display identifikationsdata (EDID):	Ja
HDCP & EDID bypass:	Ja
IR pass-through:	Ja
RS-232 gennemgang:	Ja
HDCP gennemgang:	Ja
