4K UHD HDBaseT™ Receiver with Bidirectional IR,
RS-232 and PoH (4K: 35m/115ft | 1080p: 70m/230ft)
RX-35-POH
Quickstart Guide
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
RX-35-POH Quickstart Guide | 201112
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email: support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.
Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document versions,
additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x RX-35-POH Receiver
1x 12V 2A Power Adaptor (US, UK, EU, AU)
1x IR Emitter
1x IR Receiver
2x Mounting Brackets
1x 3 Pin Phoenix Male Connector
1x Quickstart Guide (this document)
RX-35-POH
HDR Display
HDMI
IR RX IR TX
12V DC 2A
Power Supply
KEY
HDMI
HDBaseT
HDBaseT Cat5e/6/6a
Control
Power
TX-35-IW
TS-280-US
Laptop
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
RX-35-POH Quickstart Guide | 201112
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email: support@wyrestorm.com
2 of 4

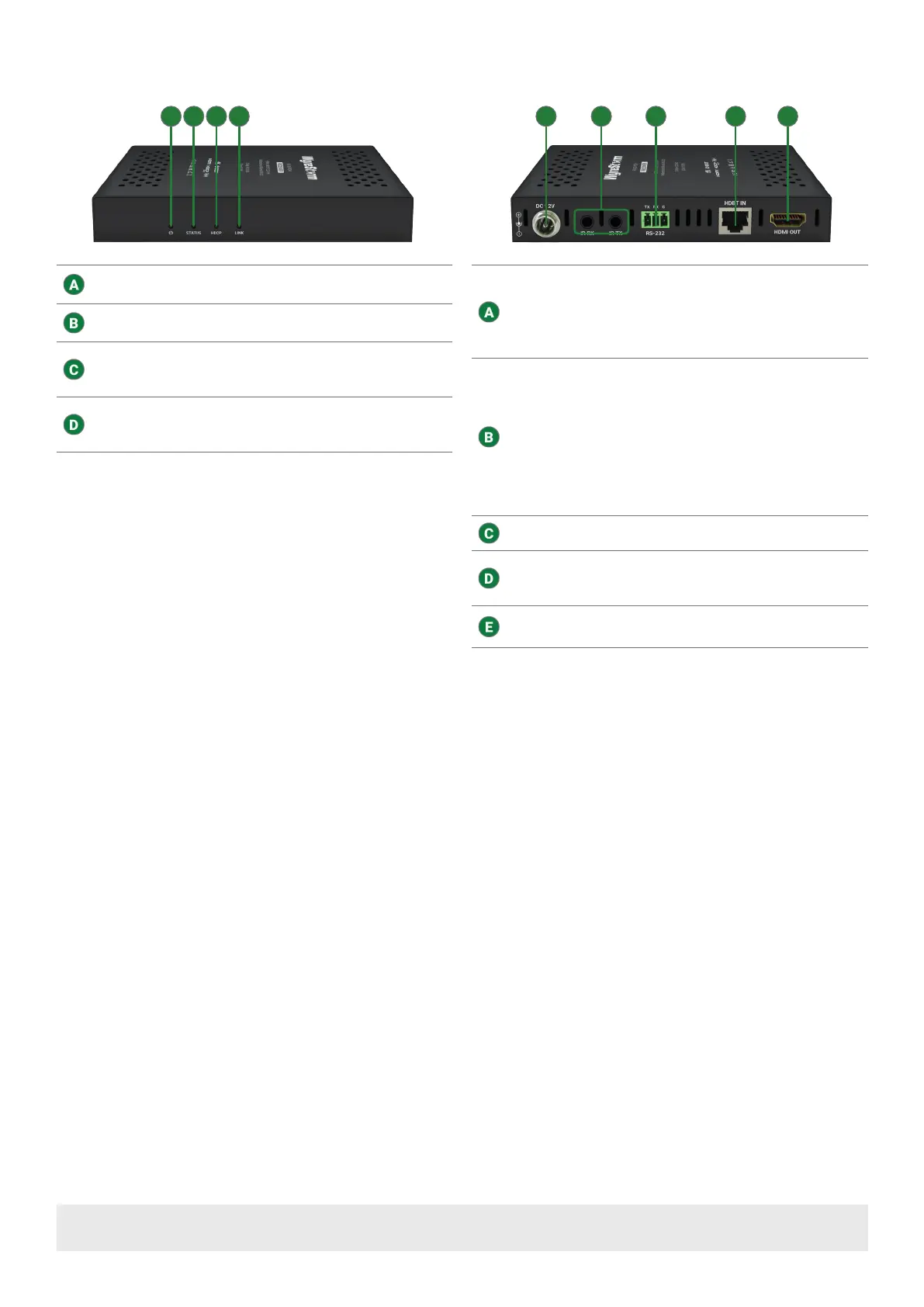

Front Panel Rear Panel
Power LED
Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED
Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power Input
5.5mm Screw Down Barrel Jack
Connect to the included 12V DC 2A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
IR TX
IR RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See IR TX/RX Guidelines for more
information.
RS-232
1x RS-232: 3-pin Phoenix
HDBT In
8-pin RJ-45 female
Connect the matrix HDBT Out to
receivers HDBT In.
HDMI Out
19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
A
CB
D
A
CB
D E
