Side 1/4

IMPORTANT! Installation Requirements

• Visit the NetworkHD product pages download section at wyrestorm.

com to check for the latest rmware, document versions, and WyreStorm

Management Suite conguration tools.

• Install the latest rmware onto all encoders and decoders using the

Maintenance Tool found in the Management Suite and via the NHD-000-

CTL web interface. Full rmware update instructions are included with the

rmware download.

• NetworkHD requires a Layer 2+ or Layer 3 managed switch network with

support for Multicast & IGMP snooping enabled.

• WyreStorm highly recommends using network switches listed in the

NetworkHD Switch Recommendation Guide. These switches have been

veried by WyreStorm to meet the requirements of a NetworkHD system.

• Congure all network switches to the exact specication of the guides at

wyrestorm.com prior to connecting any NetworkHD devices.

• NetworkHD uses stateless address autoconguration (auto-IP) to assign

link-local IP addresses in the range of 169.254.x.x to encoders and

decoders out of the box. Your PC must be set to an address in this range in

order to discover the encoders, decoders and NHD-000-CTL.

• WyreStorm recommends the use of the NHD-000-RACK4 for installations

containing multiple NetworkHD devices. Use of this product provides an

enclosure to mount and secure all NetworkHD devices in a standard 19-

inch rack frame (EIA-310).

NHD-400-TX-IW Quickstart Guide | 190115

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

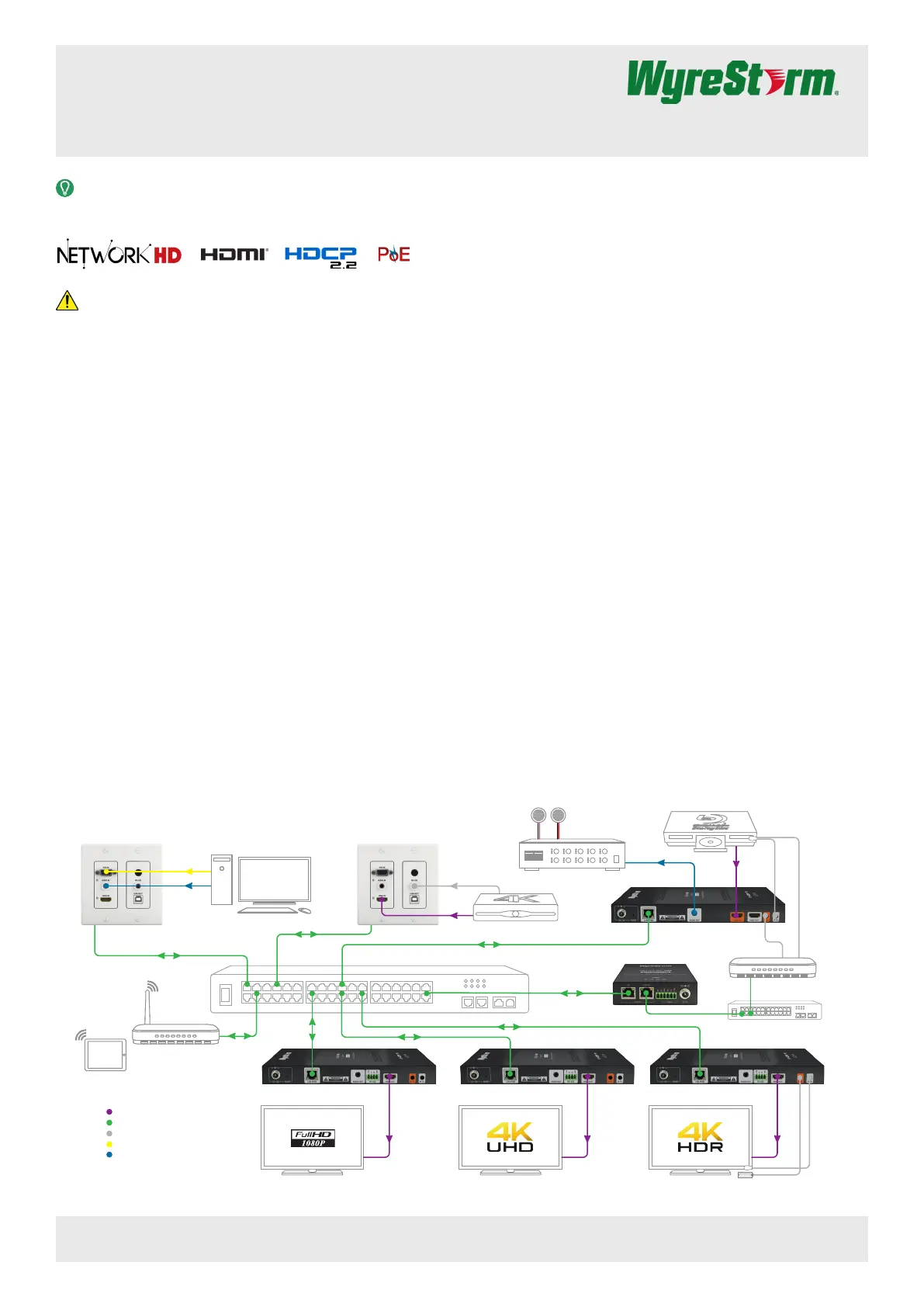

Basic Wiring Diagram

Wifi Router

Control

System

Personal Computer

Analog

Video

Analog

Audio

Analog Audio

HDMI

NHD-400-RX NHD-400-RX NHD-400-RX

iPad with

NetworkHD Touch™

UHD Blu-ray Player

NHD-000-CTL

Key

Digital Video/DVI/HDMI

Ethernet

Control

Analog Video

Analog Audio

NHD-400-TX-IW NHD-400-TX-IW

NHD-400-TX

UHD Satellite Box

RS-232

Audio Distribution

Amplifier

400 Series In-Wall 4K AV over IP JPEG 2000 Encoder

NHD-400-TX-IW

Quickstart Guide

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

Box Contents

1x NHD-400-TX-IW Encoder

1x 12V DC Power Supply (US | UK | EU)

1x 2-Pin Terminal Block

1x 3.5mm Stereo TRS Plug to 3-pin Terminal Block RS-232 Adapter

1x White Decorative Plate with 4 Screws

1x Quick Start Guide (This Document)

Additional Information

More information and required software can be found within the Download

section of the product page on wyrestorm.com.

• Management Suite v1.4 or Higher

• NetworkHD Switch Recommendations

• NetworkHD Switch Mapping Worksheet

• NetworkHD Switch Conguration Guides

• NetworkHD Touch Installation Guide

• NetworkHD Touch User Guide

• Drivers for Popular Control Systems

NHD-400-TX-IW Quickstart Guide | 190115

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

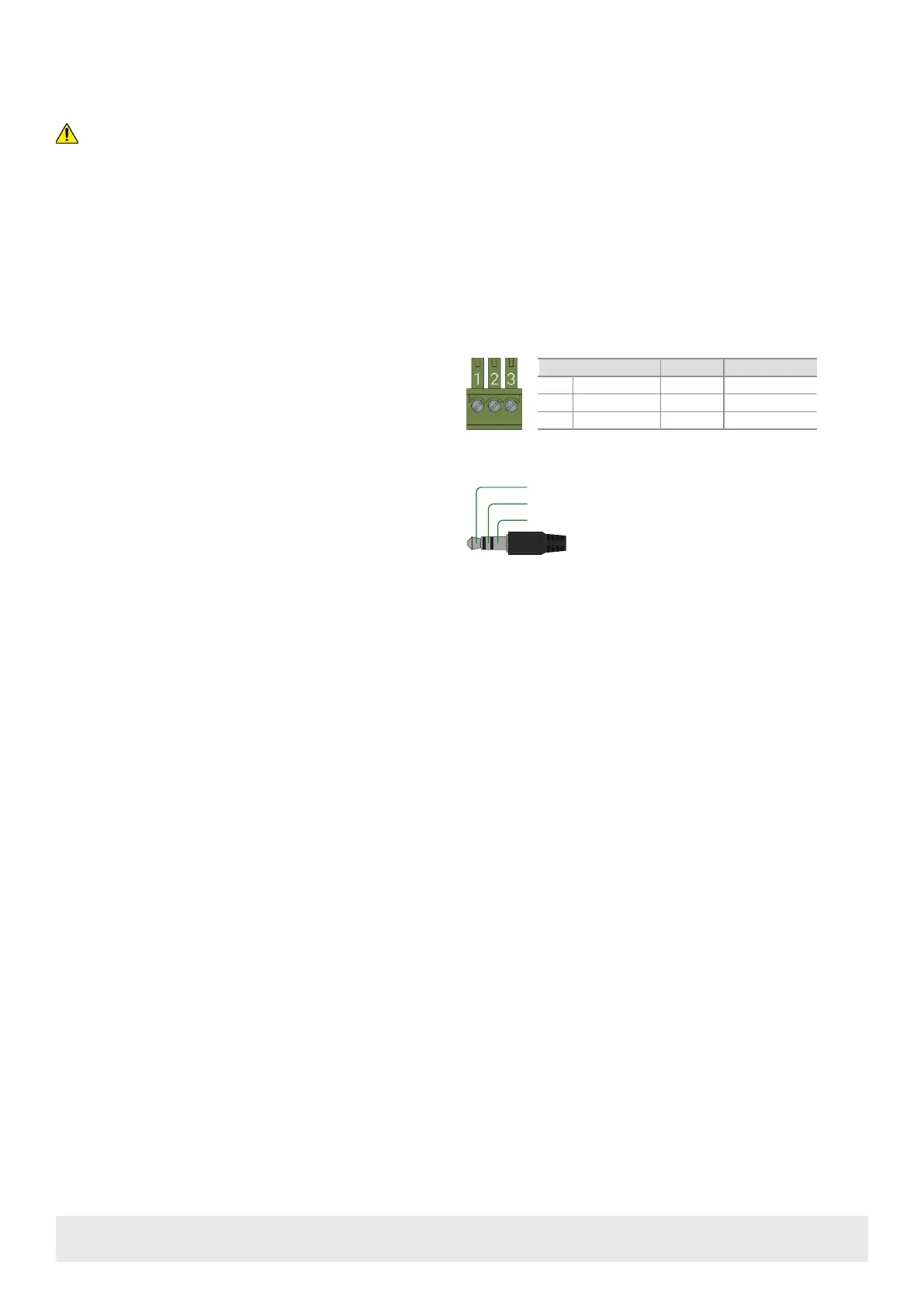

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on signal

transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.

• WyreStorm recommends using pre-terminated HDMI and DP cables due to the complexity of these connector types. Using pre-terminated cables will ensure

that these connections are accurate and will not interfere with the performance of the product.

LAN Port Wiring

The NetworkHD 400 Series LAN port is a 1GbE link for connection to a 1000BASE-T Ethernet device port. Refer to IEEE 802.3ab for ocial guidance on the

Ethernet link. Cables must be tested to 100MHz across the entire link. 1000BASE-T uses the IEC 60603-7 8P8C modular connector.

Audio Wiring

The audio connections use a 3.5mm (1/8in) TRS Stereo Jack.

Tip:

Ring:

Left Channel

Right Channel

Sleeve: Ground (GND)

RS-232 Wiring

The NHD-400-TX-IW uses a 3-pin Terminal Block to 3.5mm Stereo TRS

adapter with no hardware ow control. Most control systems and computers

are DTE where pin 2 is RX, this can vary from device to device. Refer to the

documentation for the connected device for pin functionally to ensure that the

correct connections can be made.

Pinouts for Terminal Block on Adapter

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	Server
Model:	NHD-400-TX-IW
Bredde:	91 mm
Dybde:	45.5 mm
Højde:	107.2 mm
Vægt:	370 g
Produktfarve:	Hvid
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal USB 2.0-porte:	1
Driftstemperatur (T-T):	0 - 45 °C
DC-in-stik:	Ja
LED-indikatorer:	Ja
Maksimal videoopløsning:	3840 x 2160 pixel
Bevægelse JPEG-billedhastighed:	2000 fps
Maksimum billedhastighed:	60 fps
Antal VGA-porte (D-sub):	1
RS-232-porte:	1
PTZ-kontrol:	Ingen
Antal HDMI-indgangsporte:	1
