Side 1/2

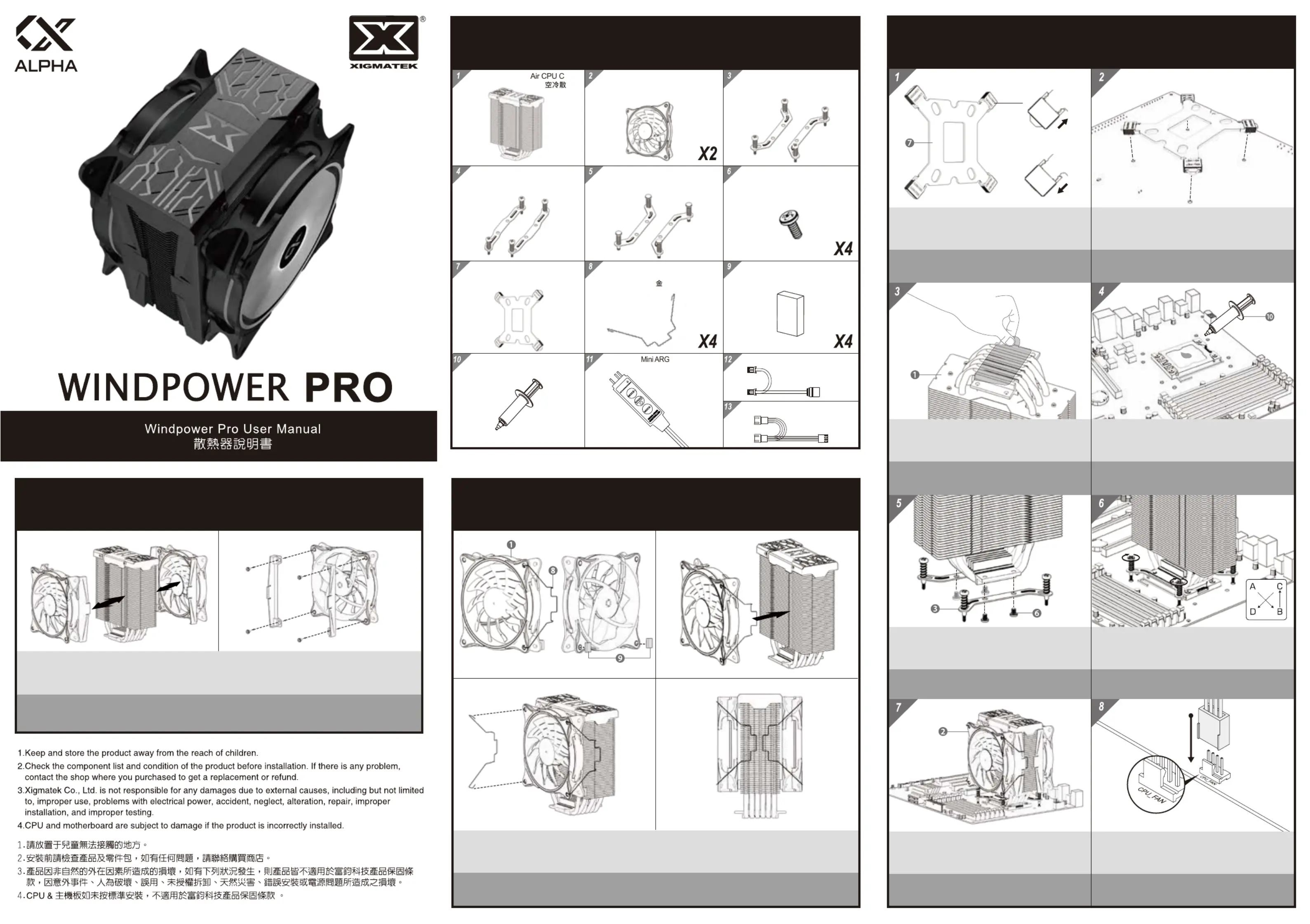

• Insert screw bolts to Intel LGA1700/1200/115x

backplate mounting holes.

• Install screw bolt washers to lock the screw bolts &

backplate.

For LGA 1700 socket

• Make sure the screw bolt is lock in on the backplate.

• Install the backplate to motherboard.

• 安裝螺桿對準後插入

Intel LGA1700/1200/115x

強化背

板孔位

• 安裝強化背板絕緣墊片，套上螺桿後壓緊

• 請確認螺桿有正確鎖定在強化背板上

• 安裝強化背板對準主機板安裝孔

• Connect cooling fan 4Pin PWM connector to motherboard

CPU Fan socket.

• 安裝散熱風扇

• 請黏貼風扇扣具墊片在風扇底部兩個螺絲孔位，此墊片用於風扇上方有接觸

RGB上蓋時的狀況

• 使用鐵絲風扇扣具安裝風扇，重覆相同步驟完成另一側風扇安裝

• 安裝散熱器底座固定支架Intel

• 連接散熱風扇

4Pin PWM CPU Fan接頭到主機板孔位

• 安裝散熱器對準背板螺桿後放置在

CPU上

• 使用彈簧螺母完成散熱器及主機板的安裝

•

CPU表面擠適量散熱膏，塗抹均勻

• Align the Intel cooler base mounting brackets to backplate

screw bolts, then place the air cooler on the CPU carefully.

• Using spring screw nuts to complete the air cooler and

motherboard installation.

• 移除散熱器底座保護膜

• Install the Intel cooler base mounting brackets.

• Remove cooler base protective film. • Clean the CPU surface.

• Stick the fan clip cushion pad the bottom of cooling fan screw holes, this only apply when top of the fan is

touching the top RGB cover.

• Clip the cooling fan to the heatsink repeat again for second fan to complete the dual fan installation.，

• 安裝散熱器時請移除雙風扇確保安裝過程中沒有任何零件干涉

• 如果因外觀需求或特殊主板零件干涉問題，您可以使用

Cooling Fan Installation B 方案

• Please remove the dual fan before cooler installation, so there is no interference during installation.

• If you like to adjust the fan position for aesthetic purpose or avoid cooling fan touching the component

with special design motherboard, please use Cooling Fan Installation B.

Intel LGA 1700/1200/115x

• Install cooling fan using included fan clips.

屬風扇安裝鐵絲扣

Metal Wire Fan

Mounting Clips

AMD

散熱器底座固定支架

AMD Cooler Base

Mounting Bracket

Intel

散熱器底座固定支架

Intel 1700/1200/115x

Cooler Base Mounting Bracket

120mm RGB

幻彩

LED PWM

風扇

120mm RGB Rainbow

LED PWM Fan

Intel/AMD

固定支架螺絲

Intel/AMD

Mounting Bracket Screw

Intel 2011/2066

散熱器底座固定支架

Intel 2011/2066

Cooler Base Mounting Bracket

風扇扣具墊片

Fan Clip Cusion Pad

散熱膏

Thermal Paste

PWM Cable/PWM風扇線

ARGB主板同步線

ARGB Fan Cable

迷你 ARGB 控制器

B LED Controller

Intel

金屬強化背板

Intel

Reinforced Matel Backplate

LGA17XX

LGA115X

For LGA 115x/1200 socket

LGA17XX

LGA115X

熱器

ooler

Windpower Pro Accessories

Cooling Fan Installation BCooling Fan Installation A

• 安裝散熱風扇

• 連接散熱風扇

4Pin PWM

接頭到主機板

CPU Fan

孔位

• 移除散熱器底座保護膜

• CPU清潔表面

• CPU表面擠適量散熱膏，塗抹均勻

• Remove cooler base protective film.

• Clean the CPU surface.

• Apply and spread the thermal paste to CPU evenly.

•

請確認將線材連接散熱器的插座請確認主機板或風扇控制盒是主機板同步認證ARGB ARGB • ARGB

AMD AM3/AM4/AM5

• Make sure the ARGB cable included is connect to

ARGB socket

• Please make sure the motherboard or fan control

box are ARGB MB SYNC certified

•

請確認將線材連接散熱器的插座PWM PWM

• LED LED請確認將上蓋燈板線材連接主風扇的上蓋插座

•

Install the Intel cooler base mounting brackets.

•

Install cooling fan using included fan clips.

•

Connect cooling fan 4Pin PWM connector to motherboard

CPU Fan socket.

• 安裝Intel 2011/2066散熱器底座固定支架

• Install the Intel 2011/2066 cooler base mounting

brackets.

• 清潔表面CPU

•

CPU表面擠適量散熱膏，塗抹均勻

• Clean the CPU surface.

• Apply and spread the thermal paste to CPU evenly.

• 移除散熱器底座保護膜

• Remove cooler base protective film.

• 安裝散熱風扇

• Install cooling fan using included fan clips.

• 連接散熱風扇街頭到主機板孔位4Pin PWM CPU Fan

• 安裝

AMD散熱器底座固定支架

• Install the AMD cooler base mounting brackets.

• Make sure the PWM cable included is connect to

PWM socket

• Make sure the Top Cover LED cable is connect to

main fan Top Cover LED socket

•

Connect cooling Fan 4Pin PWM connector to motherboard

CPU Fan socket.

• 安裝散熱器對準背板螺桿後放置在

CPU

上

• 使用彈簧螺絲完成散熱器及主機板的安裝

• Align the AMD cooler base mounting brackets to backplate

screw bolts, then place the air cooler on the CPU carefully.

• Using spring screw nuts to complete the air cooler and

motherboard installation.

• 安裝散熱器對準背板螺桿後放置在上CPU

• 使用彈簧螺絲完成散熱器及主機板的安裝

•

Align the Intel

2011/2066

cooler base mounting brackets to

backplate screw bolts, then place the air cooler on the

CPU

carefully.

•

Using spring screw pillar to complete the air cooler and

motherboard installation.

Intel LGA 2011/2066

www.xigmatek.com

E-mail: sales@xigmatek.com

is Registered Trademark of Xigmatek Co., LTD.

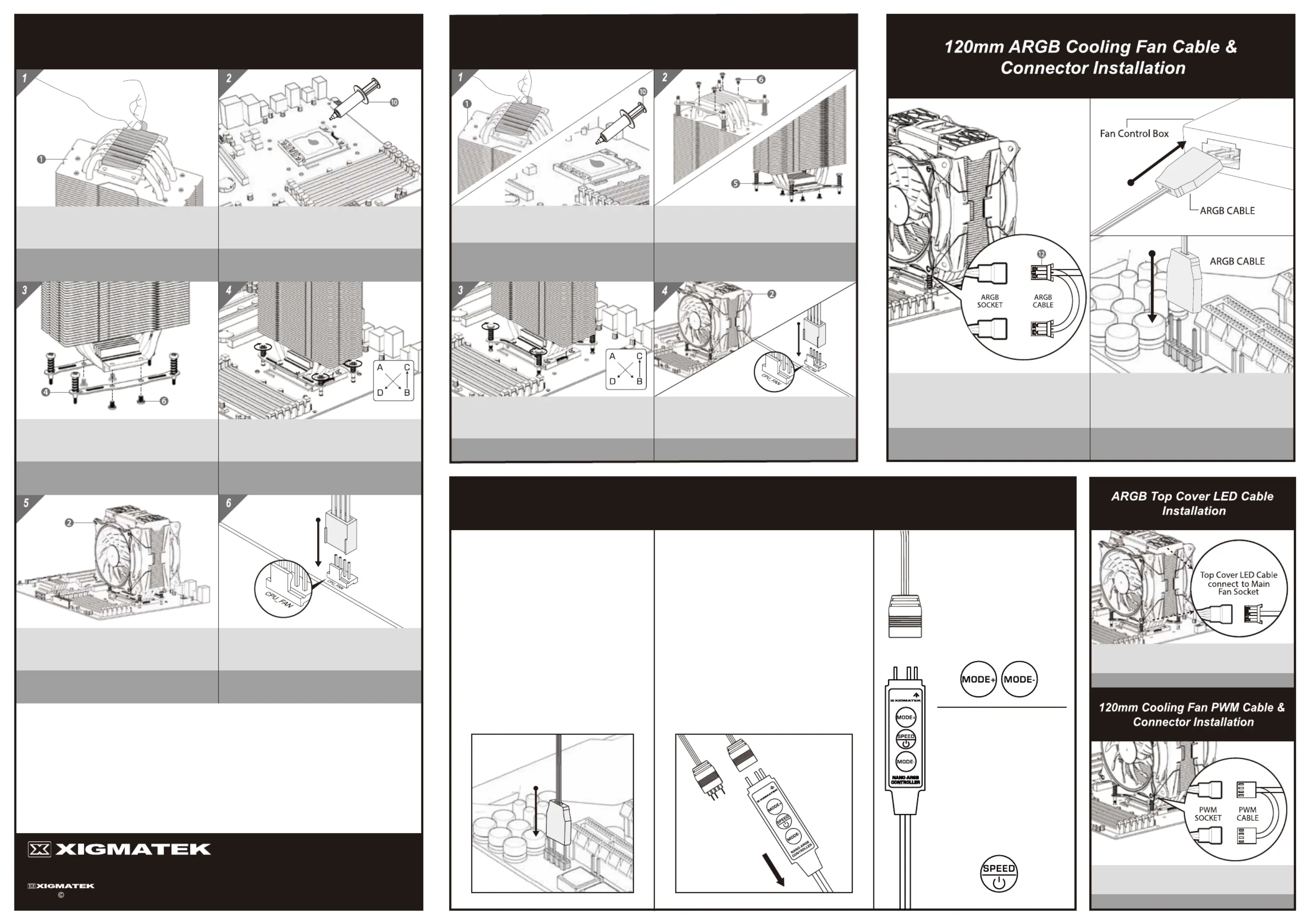

ARGB Connector Instruction & Mini ARGB LED Controller Instruction

ARGB連接使用說明 & 迷你ARGB控制器使用說明

● Mini ARGB LED Controller Mode

Please connect the 3pin ARGB

connector to Mini ARGB LED

Controller, plug and play.

● 迷你控制器模式ARGB

將連接頭插入迷你控3pin ARGB

制器並運作

● ARGB Mother SYNC Mode

Please connect the 3pin ARGB

connector to ARGB Motherboard,

plug and auto switch to ARGB

Motherboard SYNC mode.

● 主機板同步模式ARGB

將插入至主機板3pin ARGB

ARGB 針腳並自動同步模式

LED Speed:

Click to Switch LED Speed.

單擊切換 LED 速度

LED Display Mode :

Click MODE+ or MODE-

Button to Switch Different

LED Display

單擊MODE+或MODE-切

換LED模式

LED ON/OFF:

Click and Hold More Than

3 Seconds for LED On or Off.

長按三秒關或關LED

SATA(To PSU)

連接電源供應器SATA
