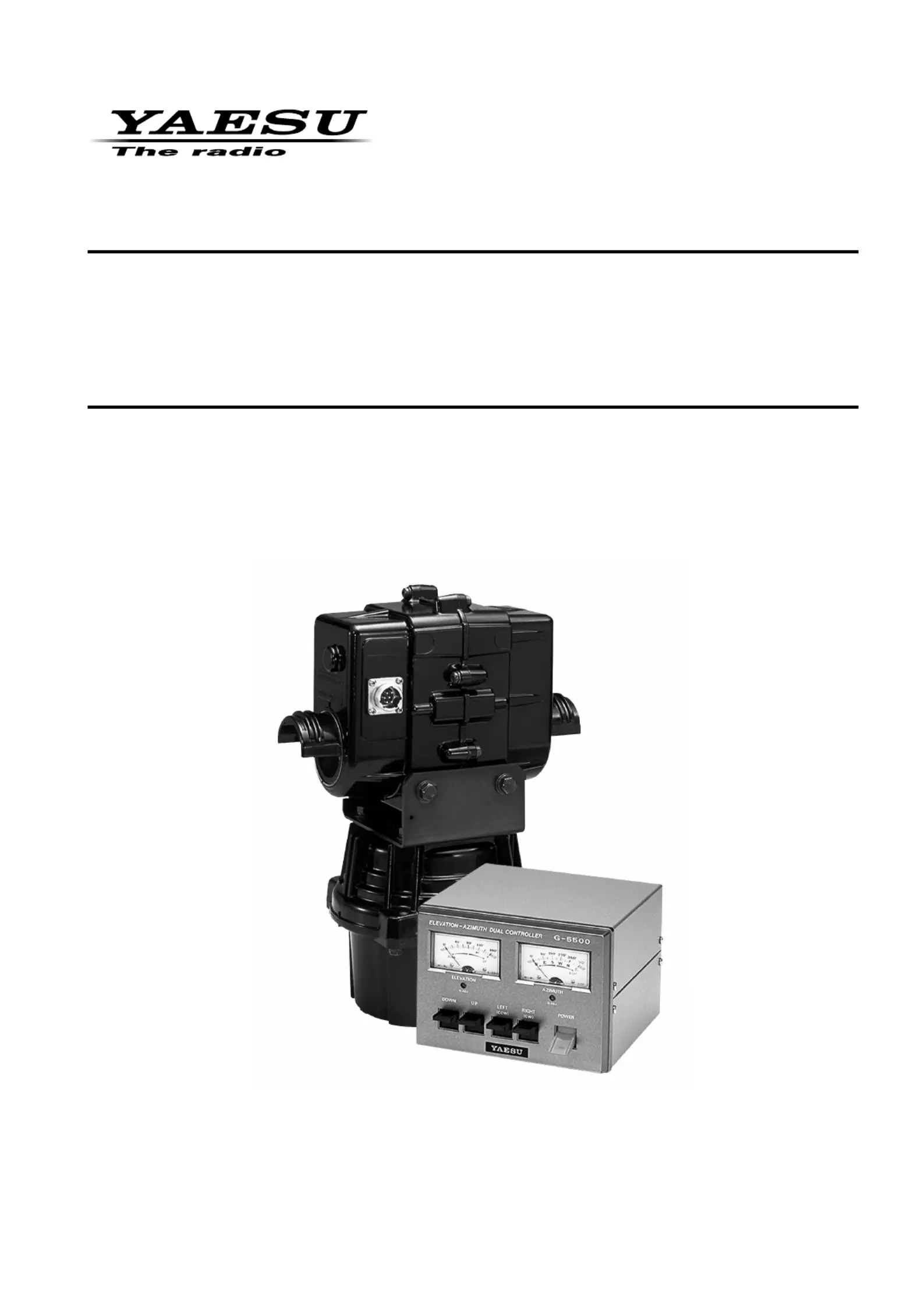

G-5500DC

Instruction Manual

The Yaesu G-5500DC provide 450° azimuth and 180° elevation control of medium- and large-size

unidirectional satellite antenna arrays under remote control from the station operating position. The

rotators may be mounted together on a mast, or independently with the azimuth rotator inside a tower

and the elevation rotator on the must.

The controller unit is a handsomely-styled desktop unit with dual meters and direction controls for az-

imuth, in compass direction and degrees; and elevation, from 0° to 180°. An External Control jack is

provided on the rear of the controller for interfacing via D-to-A converters to an external microcomput-

er or other display/controller.

Please read this manual carefully before installing the rotators.

SPECIFICATIONS

Voltage requirement: 110-120 or 200-240 VAC

Motor voltage: 22 VDC

Rotation time (approx.): Elevation (180°): 65 sec. ± 20%

Azimuth (360°): 60 sec. ± 20%

Maximum continuous operation: 3 minutes

Rotation torque: Elevation: 12 kg-m (88 ft-lbs)

Azimuth: 6 kg-m (44 ft-lbs)

Braking torque: Elevation: 40 kg-m (289 ft-lbs)

Azimuth: 40 kg-m (289 ft-lbs)

Vertical load: 200 kg (440 lbs)

Pointing accuracy: ±4 percent

Wind surface area: 1 m

Mast diameter: 38-63 mm (1-1/2 to 2-1/2 inches)

Boom diameter: 32-43mm (1-1/4 to 1-5/8 inches)

Weight (approx.): Rotators: 8 kg (17.7 lbs)

Controller: 3 kg (6.6 lbs)

UNPACKING & INSPECTION

When unpacking the rotator conrm the presence of the following items:

Elevation Rotator Unit.......................................1

Azimuth Rotator Unit 1 ........................................

Controller Unit...................................................1

Mast Clamp (pair) 2 .............................................

Pipe clamp 2 ........................................................

U Bracket 1 ..........................................................

M8 x 16 Hex. Bolt 4 .............................................

M8 x 25 Hex. Bolt 8 .............................................

M8 x 70 Hex. Bolt 4 .............................................

M8 x 95 Hex. Socket Bolt 1 .................................

U-Bolt................................................................2

6mm Spring Washer 4 .........................................

6mm Flat Washer 4 .............................................

8mm Spring Washer 18 .......................................

8mm Flat Washer 12 ...........................................

M8 Square Nut 1 .................................................

M8 Hex. Nut......................................................4

M6 Hex. Nut......................................................4

8-pin DIN Plug 1 ..................................................

7-pin Round Plug (with Rubber Boot) 2 ...............

Spare Fuse (117V: 2A, 220V: 1A) 1 ....................

Spare Fuse (3A) 2 ...............................................

Spare Fuse (0.5A) 1 ............................................

Instruction Manual 1 ............................................

If any of these items are missing or appear to

be damaged, save the carton and packing ma-

terial and notify the shipping company (or deal-

er, if purchased directly at his shop).

Before proceeding with installation, conrm that

the AC voltage label on the rear of the Con-

troller matches your local line voltage: either

“117V” for 110 to 120 VAC, or “220V” for 220 to

240 VAC. If the labeled voltage range does not

match, return the controller to the dealer from

whom you purchased it (different power trans-

formers are installed for the different voltage

ranges).

Note that cable is not included with the rota-

tor, as the length must be determined case-by-

case. Contact your Yaesu dealer to obtain the

length of cable your installation requires. For

runs of over 100 feet, use #18 AWG instead of

#20 AWG.
