Acclaim Portable Lectern Sound System Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

MADE IN USA

SIX YEAR WARRANTY

A Message from the President

Congratulations on purchasing an Anchor Audio sound system, the choice

of thousands of satisﬁed customers including the White House, prestigious

universities, school districts nationwide, police and ﬁre departments, and all

branches of the U.S. military. Our products are made of the ﬁnest materials

and built with pride in the U.S.

We’ve incorporated the latest technology into your sound system yet kept

it simple to use. Just take a few minutes to review this manual to ensure

the maximum enjoyment of your Anchor system. Or, you can view a

demonstration video complete with a trouble shooting section at

www.anchoraudio.com.

Feel free to call our friendly customer support staff at 1-800-ANCHOR1

Monday thru Friday between 7:00am and 5:00pm Paciﬁc Standard Time

with any questions. We love to hear from our customers.

Janet Jacobs, President

on behalf of all Anchor employees

GETTING STARTED

Please check your new unit carefully for any

damage which may have occurred during shipment.

Each Anchor product is carefully inspected at the

factory and packed in specially designed boxes for

safe transport.

Notify the freight carrier immediately of any damage

to the shipping box or product. Repack the unit

in the original box and wait for inspection by the

carrier’s claim agent. Notify your dealer of the

pending freight claim.

NOTE: All damage claims must be made with freight carrier!

RETURNING SYSTEMS FOR SERVICE

OR REPAIR

For service or repair, please contact the dealer

you purchased your system from or Anchor Audio

Customer Service at 800.262.4671 to obtain a

(Return Authorization)

number. You may

also complete an online RA request form at

www.anchoraudio.com. All shipments to Anchor

Audio must include a RA number and must be

shipped prepaid. C.O.D. shipments will be refused

and returned at your expense.

IMPORTANT: Save the shipping box & packing materials,

they were specially designed to ship your unit!

WARRANTY REGISTRATION

Visit our website at www.anchoraudio.com and

select “Warranty Registration.” Complete the online

form to activate the six-year limited warranty on

your Acclaim Portable Lectern and two-year limited

warranty for the microphones.

GETTING STARTED 1

.....................................................................................................................................

ACCLAIM LECTERN BASIC SYSTEM OPERATION 2

..........................................................................................

OPERATING THE BUILT-IN UHF WIRELESS RECEIVER 3 ....................................................................................

OPERATING THE WIRELESS MICROPHONE / TRANSMITTER ..........................................................................

CARING FOR YOUR BUILT-IN BATTERIES 5

......................................................................................................

HAVING TROUBLE WITH YOUR SOUND SYSTEM? .........................................................................................

ACCLAIM SOUND SYSTEM TECHNICAL SPECIFICATIONS 6

..............................................................................

CONTENTS

100-0163-000/C - 1/11

MADE IN USA

SIX YEAR WARRANTY

Acclaim Portable Lectern Sound System Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

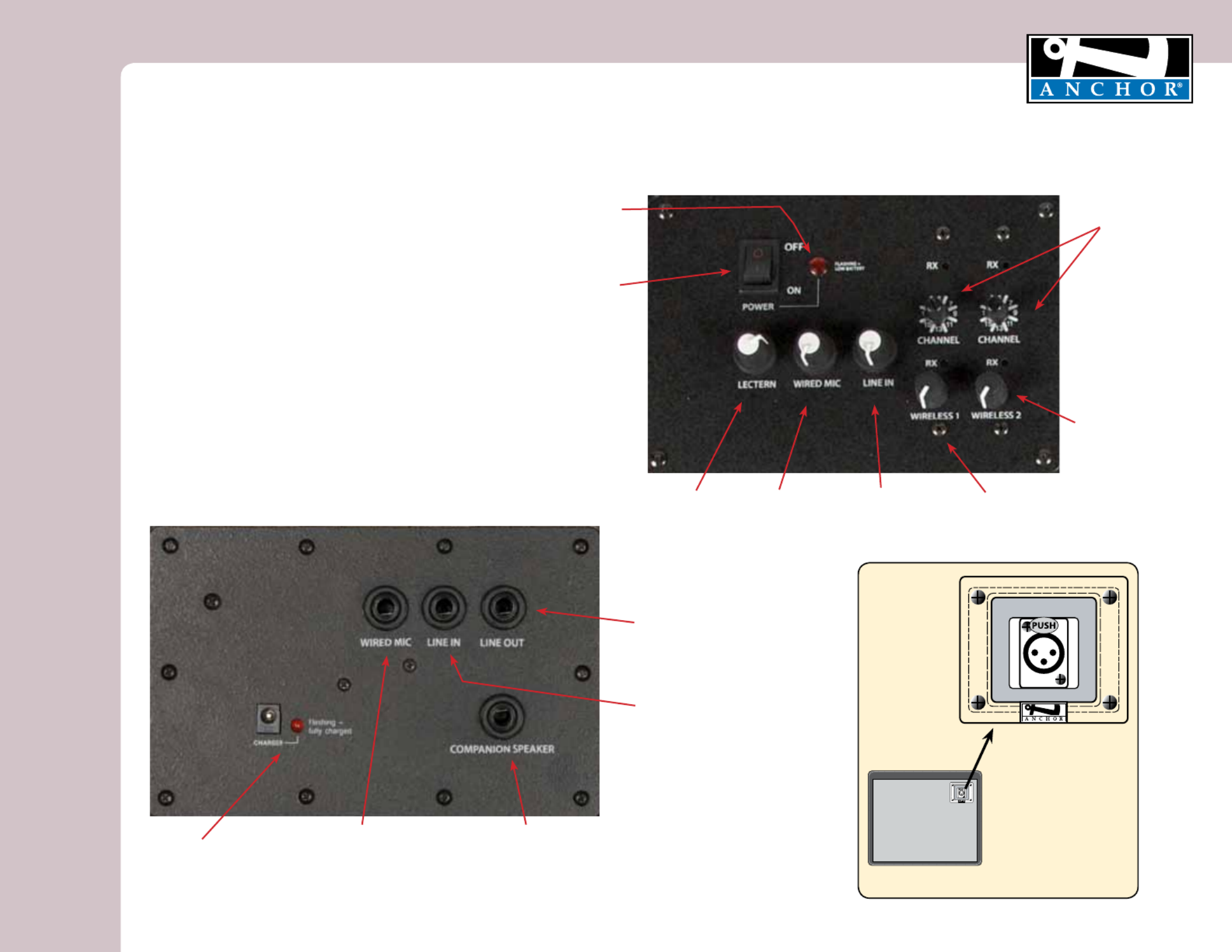

TOP PANEL OF ACL-7500U2

BACK PANEL OF ACL-7500U2

BASIC SYSTEM OPERATION

NOTE: Fully Charge Batteries Before First Use!

IMPORTANT: Make all connections with shielded cables to avoid

hum, buzzing or interference.

1. Set all Input Level Controls to minimum & Tones Controls

to ﬂat

(the middle setting)

before turning your system on

2. Plug lectern gooseneck microphone into the Lectern Mic

Jack located on the tabletop

3. Switch POWER to ON, the BATTERY LED will light

4. Slowly increase the Level Control for the input jacks used

to the desired volume

5. Adjust BASS & TREBLE controls to desired sound quality

AUXILIARY MICROPHONE

INPUT JACK – XLR

Balanced - low impedance microphones,

powers condenser mics

SPEAKER OUT

OUTPUT JACK – 1/4” PHONE

Balanced - drives an unpowered 2 ohm speaker

in addition to the built-in speakers

LINE IN

INPUT JACK – 1/4” PHONE

Jack may be combined with mic inputs

for a composite output

For playback of tape/CD player or

other audio source

LINE OUT

OUTPUT JACK – 1/4” PHONE

Balanced - provides combined

output of all active system inputs

Record presentation / connect to another

powered sound system

ACCLAIM LECTERN TABLETOP

All Models

LECTERN

MICROPHONE

JACK

FRONT/SPEAKER

LECTERN TOP

CHARGE INDICATOR LIGHT

UHF WIRELESS RECEIVER

Available on selected models only

LINE IN

LEVEL CONTROL

WIRED MIC LEVEL

CONTROL

LOW BATTERY

INDICATOR LIGHT

POWER SWITCH

LECTERN LEVEL

CONTROL

WIRELESS MICROPHONE 1

LEVEL CONTROL

WIRELESS MICROPHONE 2

LEVEL CONTROL
