ZOOM FIRE-36M

Thank you for selecting the ZOOM FIRE-36M. This product is a modiﬁed version of the Modeling Guitar

Ampliﬁer FIRE-36M. It incorporates all the functions of the FIRE-36 and adds built-in mics for picking up the

sound of the speaker, and a set of direct output jacks. This document explains functions and speciﬁcations that

have been added or changed. For information on common functions and speciﬁcations, refer to the supplied

manual of the FIRE-36.

■

FIRE-36M features

In addition to providing equivalent functionality as the FIRE-36, the FIRE-36M offers the following features.

• It incorporates all the functions of the FIRE-36 and adds two built-in mics with dedicated

preampliﬁer for picking up the sound of the speaker. Without the need for cumbersome setup, you

can easily obtain dynamic mic sound (mic 1) and condenser mic sound (mic 2) of the guitar amp.

• RECORDING OUT connectors let you supply the amp signal directly to other equipment. Use the

mic input signals and the line output signal separately, or control the mixing balance between the

three signals for sending to a recorder or other external device.

■

Changes in controls and jacks

The following controls and jacks of the FIRE-36M are different from the FIRE-36.

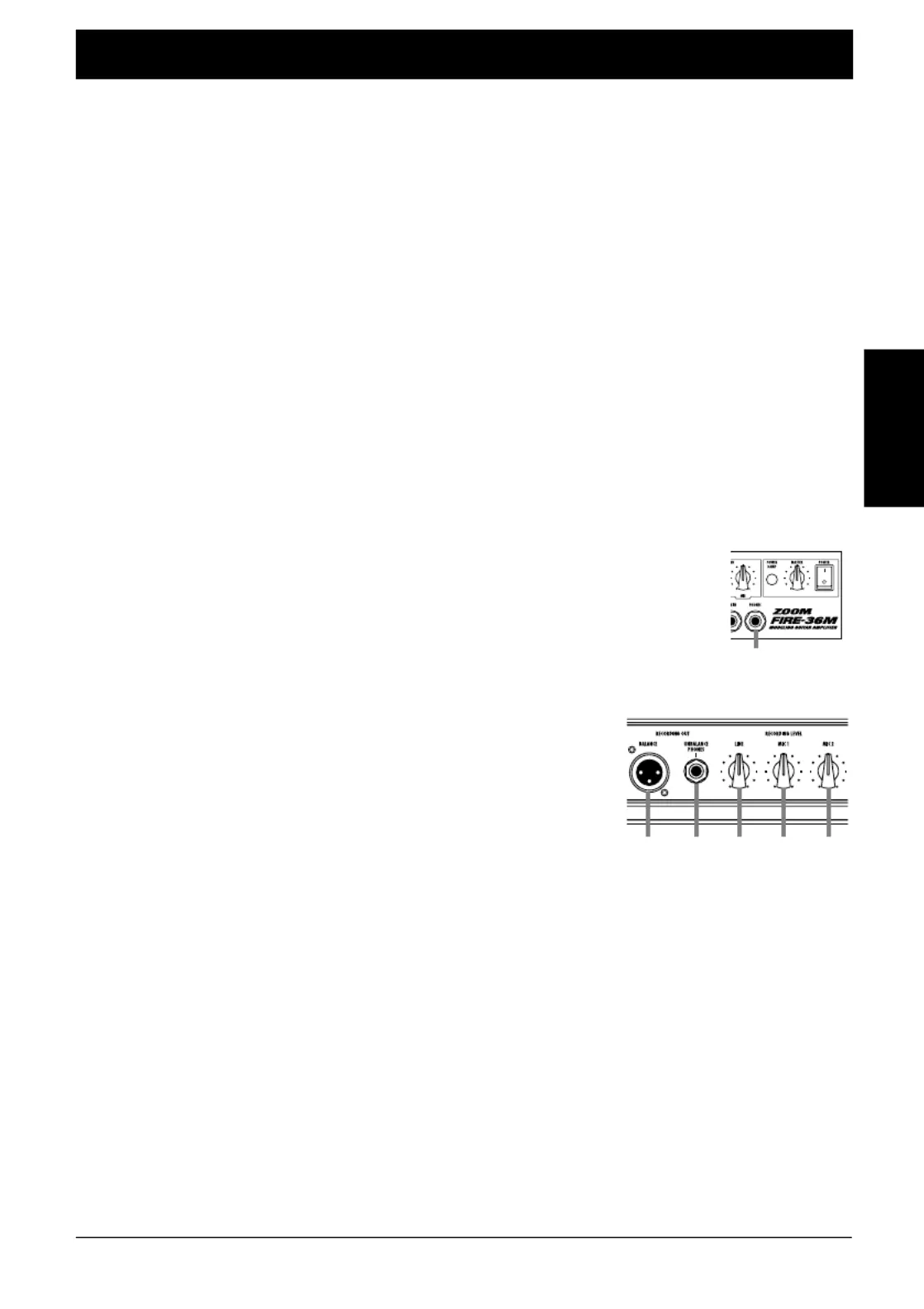

Front panel

(1) [PHONES] jack

A pair of headphones can be connected to this jack. When a plug is inserted here,

the sound from the speaker is automatically cut off.

The FIRE-36 manual states that this jack "can be used to connect a recording device or

a pair of headphones", but in the FIRE-36M, the jack is a dedicated headphone jack.

Rear panel

(1) RECORDING OUT [BALANCE] jack

This is a balanced XLR output jack which can be used to supply a

signal to the balanced input of a recorder or mixer.

(2) RECORDING OUT [UNBALANCE/PHONES] jack

This is an unbalanced TRS phone output jack which can be used to

supply a signal to the unbalanced input of a recorder or mixer. It can

also be used as an additional headphone jack. (The speaker is not cut

off when a plug is inserted here.)

(3) [LINE LEVEL] knob

This control adjusts the line signal level at the RECORDING OUT jacks (1) and (2).

If the knob is turned fully counterclockwise, no line signal is output.

(4) [MIC 1 LEVEL] knob

(5) [MIC 2 LEVEL] knob

These controls adjust the signal level for the dynamic mic sound (mic 1) and condenser mic sound (mic 2).

If the knobs are turned fully counterclockwise, no mic signal is output.

■

Using the signal from the internal mics

The FIRE-36M has two microphones and a dedicated preampliﬁer built into the cabinet to allow direct pickup

of the sound from the loudspeaker. The sound from the mics is mixed with the internal line signal of the

ampliﬁer and supplied directly to the RECORDING OUT jacks.

This section explains how to supply the mic signals to an external recorder or other device via the RECORDING

OUT jacks.

(1)

(1) (2) (3) (4) (5)

ZOOM FIRE-36M Supplemental Manual

English

ZOOM FIRE-36M Supplemental Manual

ZOOM FIRE-36M

With the level knobs on the rear panel turned fully down, connect the recorder, mixer, or other

external device to the RECORDING OUT jack.

For information on how to connect your instrument and how to use the front panel controls, see the FIRE-

36 manual.

* If you plug a pair of headphones into the [PHONES] jack on the front panel, the speaker is cut off and the

mics will pick up no sound and therefore deliver almost no signal.

Adjust the [MASTER] knob on the FIRE-36M to obtain a suitable volume.

* If the volume setting is too high or too low, the mics will not produce a proper signal. Start with the

[MASTER] knob in the center (12 o'clock) position and make adjustments as required by the playing

environment.

* Depending on the guitar and the ampliﬁer settings, the output from the power ampliﬁer and speaker may

be distorted. The sound picked up by the mics may also be unpleasant in such a case, but this is not a

defect.

Adjust the [LINE LEVEL], [MIC 1 LEVEL] and [MIC 2 LEVEL] knobs to obtain the desired balance

between the line signal and the mic signals.

The controls should be turned up fairly high, but not so high that clipping in the input stage of the

connected equipment occurs.

* The [MIC LEVEL] control has a wide adjustment range to allow for the considerable volume changes of

the speaker. Adjust the control frequently to match the speaker volume.

* Also make input level adjustments at the connected device, as necessary.

■

Troubleshooting

●

No mic signal can be heard

• Is something connected to the front panel [PHONES] jack?

• Are the [MIC 1 LEVEL] and [MIC 2 LEVEL] knobs on the rear panel turned up to an adequate position?

• The mic signal has no effect on the output from the speaker.

●

Mic signal is distorted

• Is the front panel [MASTER] knob turned up too high?

• Has the input level been adjusted properly at the connected device?

• Try adjusting the [MIC 1 LEVEL] and [MIC 2 LEVEL] knobs.

●

Other sound is heard together with the mic signal

The mics also pick up ambient sound. Perform monitoring in a quiet location.

■

Speciﬁcations

Microphone

2 x Omnidirectional condenser microphones

Output

Headphone output

Standard stereo phone jack

80 mW into 32-ohm load

Balanced output

XLR-3-32 jack

Rated output level +4dBm with output load impedance 10 kilohms or more

Unbalanced output

Standard stereo phone jack

Rated output level +4dBm with output load impedance 10 kilohms or more

* 0 dBm = 0.775 Vrms

* Design and speciﬁcations are subject to change without notice.

English

ZOOM FIRE-36M Supplemental Manual
