Outdoor Housing Quick Installation Guide

PACKAGE CONTENTS

The carton should contain the following items:

Housing

Bracket

Screw Pack

If any item is missing or damaged, please contact your local reseller for replacement.

Note:

 The images in this Quick Installation Guide are for reference only. Actual housing and cameras may vary.

 This installation should be completed by a qualified installer and should conform to all local codes and regulations.

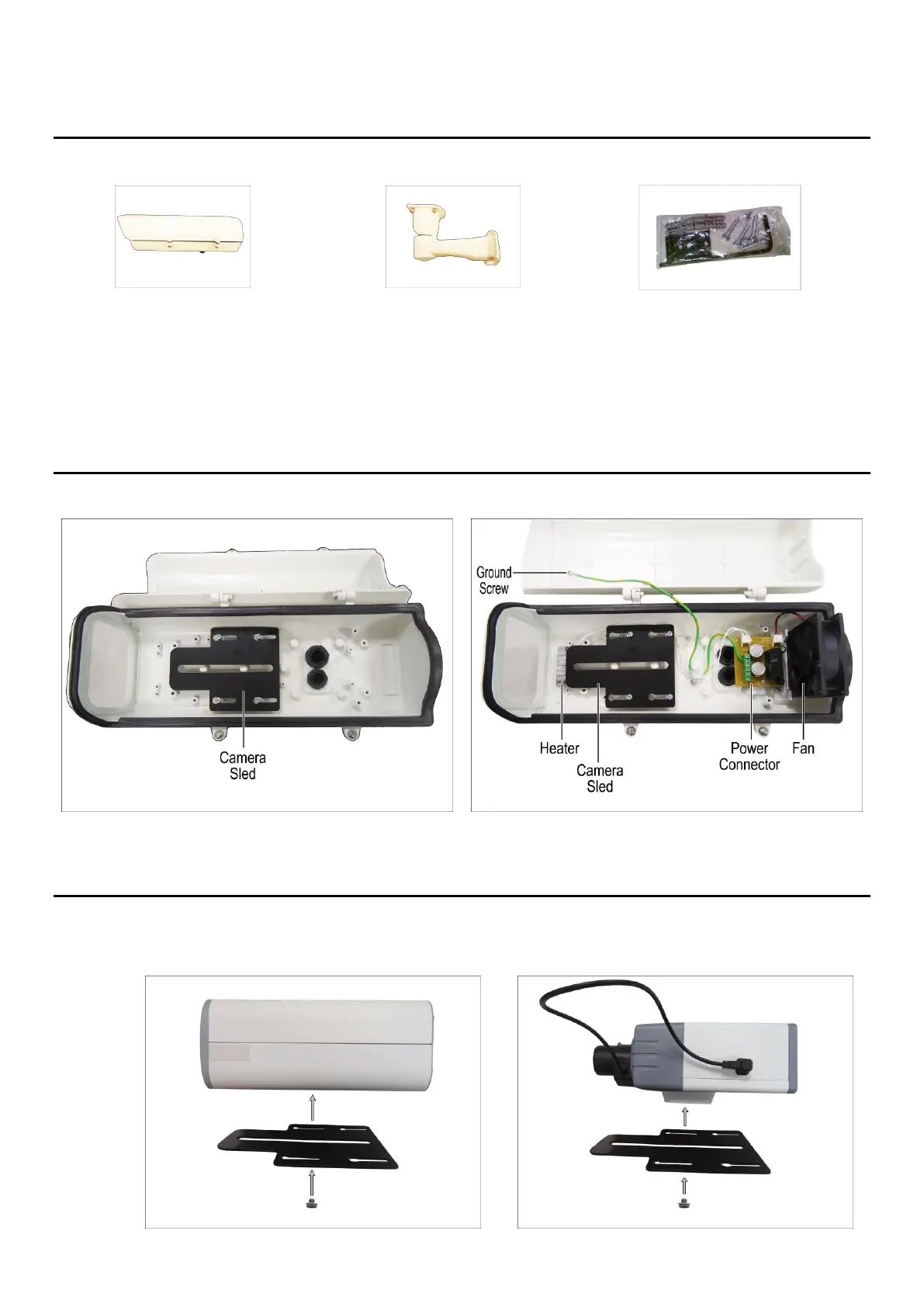

PARTS OVERVIEW

Depending on the model, the housing can either be with or without heater or fan.

Housing Housing with Heater and Fan

MOUNTING THE CAMERA

1. Remove the camera sled from the housing.

2. Mount the camera to the sled using the bundled screw.

- 2 -

3. Attach the camera sled back to the housing, slide and tighten the screws to fix its position.

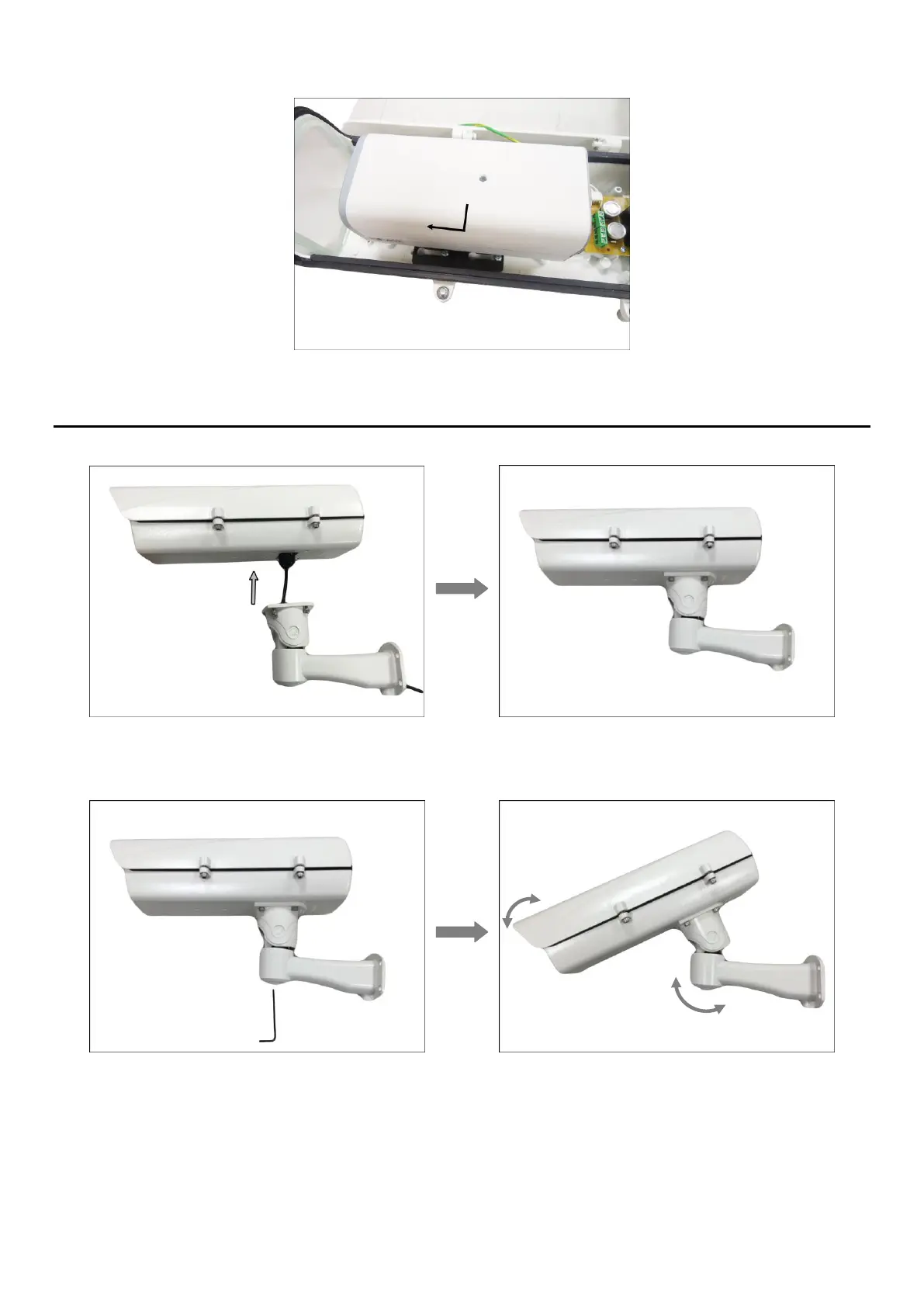

MOUNTING THE HOUSING AND BRACKET

1. Attach the bracket using the bundled allen wrench screwdriver.

2. Loosen the bracket allen screw, adjust the tilt and pan of the housing, then tighten the allen screw to fix its

position.

Note: For detailed installation instructions, please refer to the Installation Guide in our website.
