Quick Installation Guide for PMAX-0810

PMAX-0810 is a mounting accessory converter kit that allows A8x series cameras to be mounted on certain third party mounting

solutions.

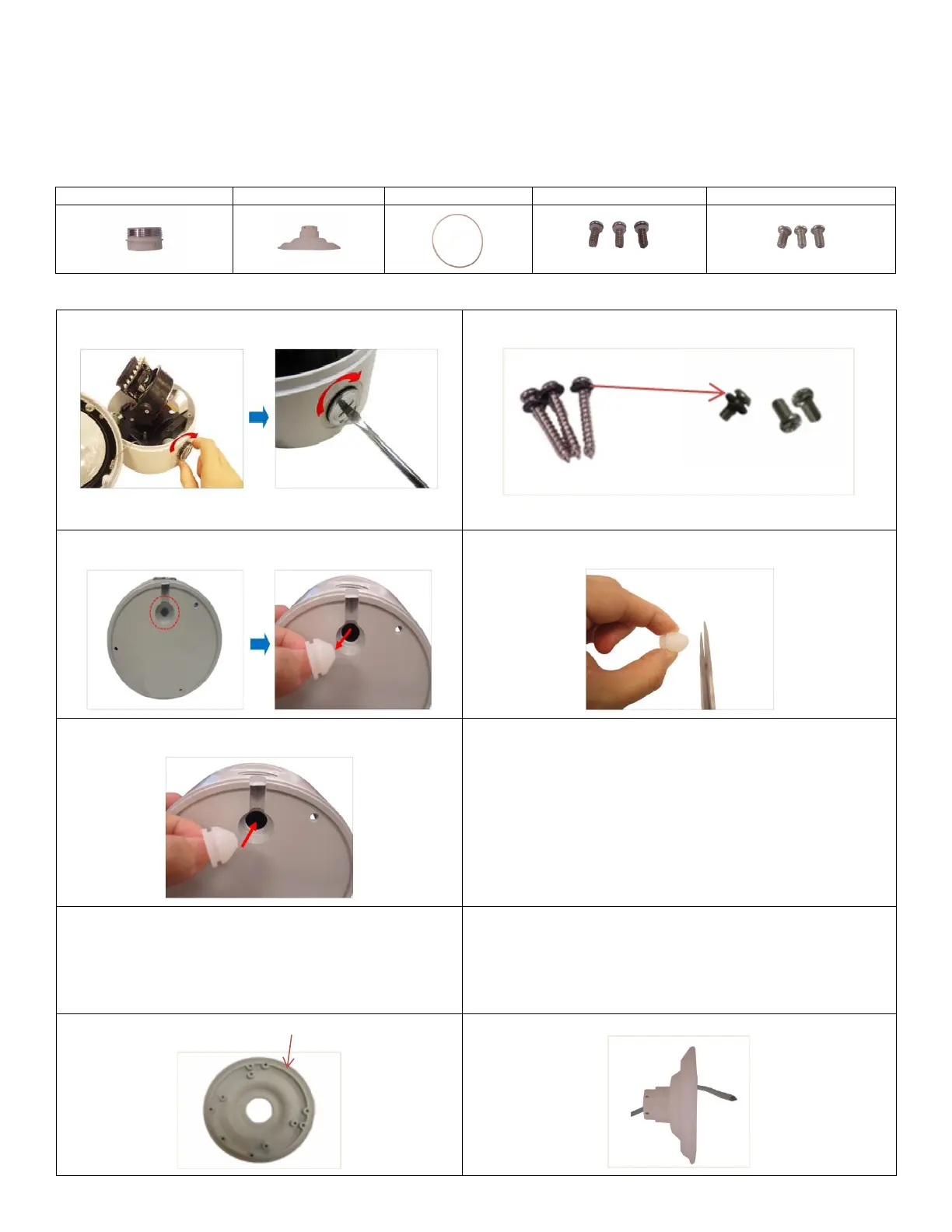

Package Content:

Converter Ring

Mount Kit

Rubber Gasket

Converter Screws

Mount Kit Screws

Installation Instructions:

1. Attach the metal cap that came with the camera on the side

conduit hole.

Note: Ensure the metal cap is tightly secured to avoid

possible water leak.

2. Remove the (3) o-rings from the screws that came with the

camera and put the o-rings on the (3) mount kit screws.

3. Remove the rubber from the bottom cable hole of the

camera.

4. Slightly cut off the tip of the rubber, just enough for the rubber to

expand and let the Ethernet cable to pass through.

5. Insert the rubber back into the camera bottom hole.

6. Install the third party mounting accessory.

Note: Please follow the instructions in the manual for the third

party mounting accessory.

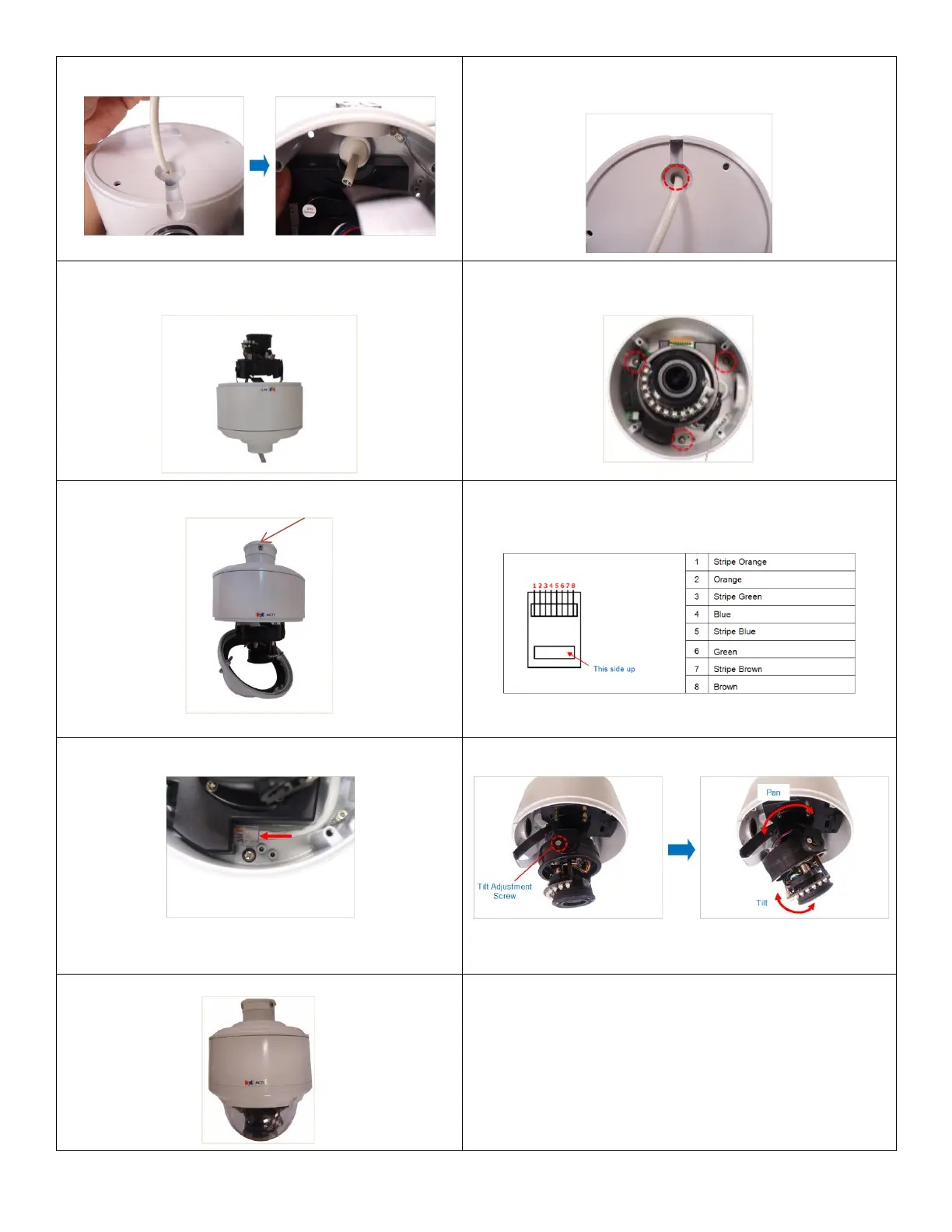

7. Attach the converter ring onto the third party mounting

accessory.

8. Route the cable (without RJ-45 connector) through the third

party mounting accessory.

Note: Make sure there is enough cable length to go through the

mount kit to reach the camera Ethernet port.

9. Place the rubber gasket into the grove going around the

mount kit.

10. Pass the cable through the mount kit.

11. Insert the Ethernet cable without the connector through the

camera rubber.

12. Once the cable length is determined (able to reach camera

Ethernet port), seal the bottom cable hole with silicone to

protect it from water leak.

13. Place the camera on the rubber gasket and make sure the

base screw holes align with the mount kit.

14. Mount the camera onto the mount kit using the mount kit

screws (with camera o-rings) and seal the screws with silicone

to protect it from water leak.

15. Align the screw holes on the mount kit with the converter

ring holes and use the converter screws to secure them.

Note: Try not to twist the cable too much.

16. Attach the RJ-45 connector to the Ethernet cable (see How to

Attach the RJ-45 Connector in camera manual for detailed

information).

17. Connect the Ethernet cable to the Ethernet port of the

camera.

18. Based on the live view, adjust the viewing angle and orientation

of the camera.

Note: Loosen the two tilt adjustment screws and then tilt the

camera to desired angle. Tighten the tilt adjustment

screws to fix the lens position.

19. Attach camera cover.

V.2016.11.16

Produkt Specifikationer

Mærke:	ACTi
Kategori:	Ikke kategoriseret
Model:	PMAX-0810
Type:	Montering
Produktfarve:	Hvid
Kapabilitet:	- A8x
Maksimal vægtkapacitet:	- kg
