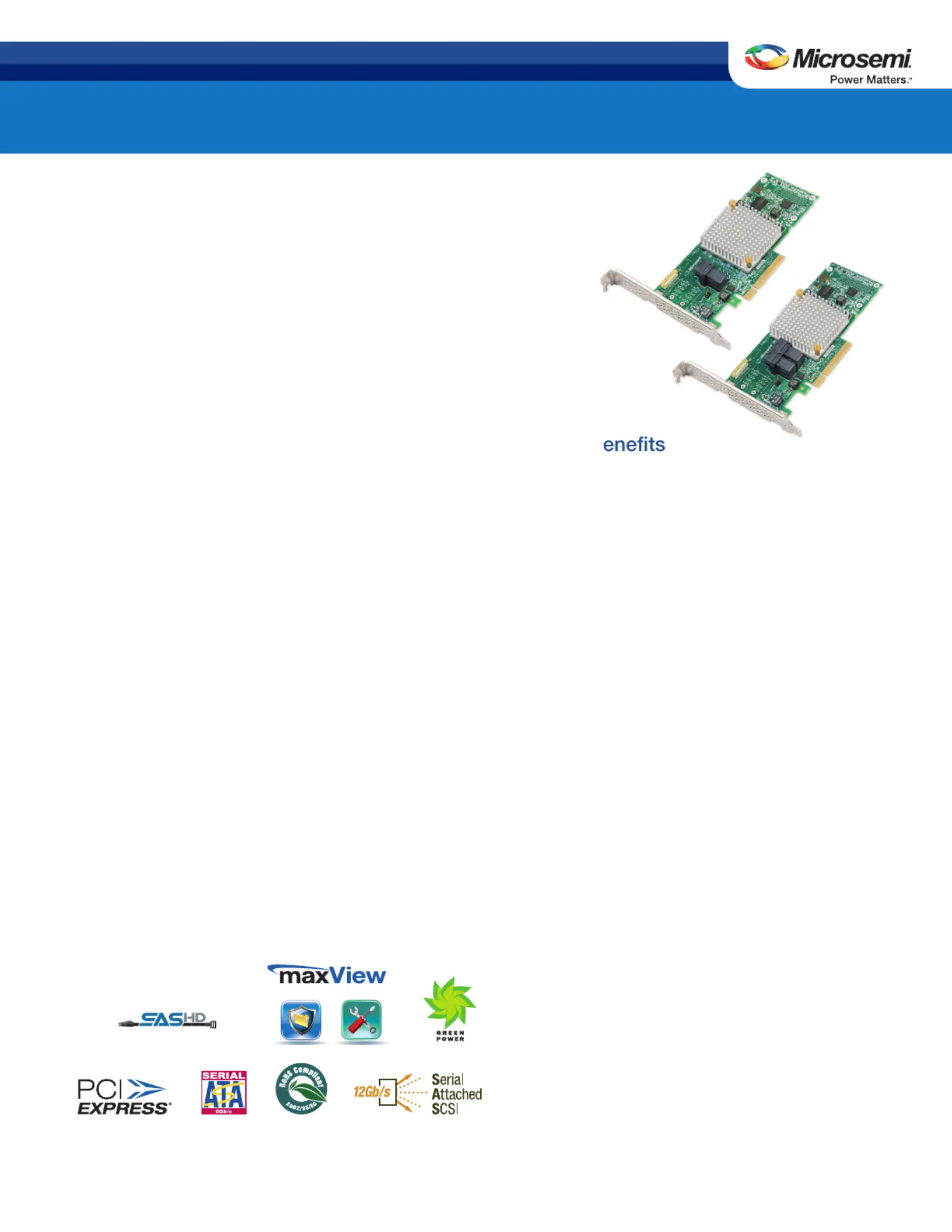

Microsemi Adaptec

Series 8E Family: 8405E, 8805E

Entry-level 12 Gbps PCIe Gen3 SAS/SATA RAID Adapters

• Ideal for entry-level 12 Gbps servers and

workstations for redundant boot support and

I/O intensive applications such as databases or

video editing

• True hardware RAID 0, 1, 10 (also supports

Hybrid RAID)

• Performance acceleration through 512 MB

DDR3 (1600 MHz) cache

Highlights

• 4- and 8-port low-proﬁle MD2 with support for

a maximum of 4 and 8 devices respectively

• Mixed mode RAID adapter and caching HBA

functionality

• 12 Gbps and 6 Gbps compatibility with SAS/

SATA HDD or SSD devices

• 12 Gbps throughput per SAS port using

mini-SAS HD connectors

• Microsemi's 12 Gbps RAID-on-Chip (ROC),

8-lane PCIe Gen3 interface with 12 Gbps

SAS ports to enable a new generation of

performance

• 512 MB DDR3 (1600 MHz) cache

• Up to 500K IOPS

Data center, IT, and general consumer server environments have a broad

range of requirements—from basic connectivity to extreme data storage

capacities. The Series 8E 12 Gbps PCIe Gen3 SAS/SATA RAID adapters

deliver the robustness of hardware RAID in an entry-level solution. They offer

signiﬁcant performance acceleration over other 6Gbps adapter card solutions

through basic RAID 0,1,10 and built-in cache for cost-effective platforms that

don’t require the full performance and capabilities of our standard Series 8

RAID adapters. The 8805E, with eight internal SAS/SATA ports, is ideal for

applications that require more bandwidth. Both models ﬁt the requirements of

industrial PC workstations or entry-level servers. The 8405E and the 8805E

support a maximum of four and eight devices respectively, as neither support

the use of expanders.

Maximum Performance for Entry-Level RAID Adapters

Series 8E RAID adapters can also be coupled with 12 Gbps SSDs, providing

maximum read/write bandwidth and IOPS for the most performance-hungry

applications. The 512 MB DDR3 (1600 MHz) built-in cache (recommended

for read and write-through caching) provides maximum acceleration.

Advanced Data Protection and Ease of Use

Microsemi's Adaptec RAID Code (ARC) delivers maximum reliability with an

industry-leading feature set, including all of the RAID levels the industry has

come to expect, plus unique features like ﬂexible conﬁguration modes for the

adapter, Hybrid RAID, and optimized disk utilization (ODU) where no available

space is wasted. Microsemi's Adaptec maxView provides an HTML5 web

interface that can be used in standard desktops and mobile browsers for all

storage conﬁguration and management needs.

Microsemi Corporation (Nasdaq: MSCC) offers a comprehensive portfolio of semiconductor and system solutions for aerospace

& defense, communications, data center and industrial markets. Products include high-performance and radiation-hardened

analog mixed-signal integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and synchronization

devices and precise time solutions, setting the world’s standard for time; voice processing devices; RF solutions; discrete

components; enterprise storage and communication solutions, security technologies and scalable anti-tamper products;

Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services. Microsemi is

headquartered in Aliso Viejo, California and has approximately 4,800 employees globally. Learn more at www.microsemi.com.

Microsemi Corporate Headquarters

One Enterprise, Aliso Viejo, CA 92656 USA

Within the USA: +1 (800) 713-4113

Outside the USA: +1 (949) 380-6100

Fax: +1 (949) 215-4996

Email: sales.support@microsemi.com

www.microsemi.com

Microsemi and the Microsemi logo are registered

trademarks of Microsemi Corporation. All other

trademarks and service marks are the property

of their respective owners.

Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its products and services for any

particular purpose, nor does Microsemi assume any liability whatsoever arising out of the application or use of any product or circuit. The products sold

hereunder and any other products sold by Microsemi have been subject to limited testing and should not be used in conjunction with mission-critical equipment

or applications. Any performance speciﬁcations are believed to be reliable but are not veriﬁed, and Buyer must conduct and complete all performance and other

testing of the products, alone and together with, or installed in, any end-products. Buyer shall not rely on any data and performance speciﬁcations or parameters

provided by Microsemi. It is the Buyer’s responsibility to independently determine suitability of any products and to test and verify the same. The information

provided by Microsemi hereunder is provided “as is, where is” and with all faults, and the entire risk associated with such information is entirely with the Buyer.

Microsemi does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other IP rights, whether with regard to such information itself

or anything described by such information. Information provided in this document is proprietary to Microsemi, and Microsemi reserves the right to make any

changes to the information in this document or to any products and services at any time without notice.

ESC-2161721. 1.0. 9/16

Microsemi Adaptec

Series 8E Family: 8405E, 8805E

Entry-level 12 Gbps PCIe Gen3 SAS/SATA RAID Adapters

Key software

features

• Flexible conﬁguration: HBA mode and

auto volume mode for automatic

deployment

• Optimized disk utilization (multiple arrays

per disk)

• Support for native 4K sector SAS and

SATA devices in addition to 512-byte

sector devices

• Hybrid RAID 1 and 10

• Quick initialization

• Online capacity expansion

• Copyback hot spare

• Dynamic caching algorithm

• Native command queuing (NCQ)

• Background initialization

• Hot-plug drive support

• RAID level migration

• Hot spares—global, dedicated, and

pooled

• Automatic/manual rebuild of hot

spares

• SES and SAF-TE enclosure

management

• Conﬁgurable stripe size

• S.M.A.R.T. support

• Multiple arrays per disk drive

• Dynamic sector repair

• Staggered drive spin-up

• Bootable array support

• Support for tape devices and autoloaders

• MSI-X support for all device drivers for all

supported operating systems

• Secure boot support for the uEFI host BIOS

• USB image available on

start.microsemi.com to boot maxView GUI from

any USB device for enhanced GUI-based setup

and ofﬂine maintenance

Management

utilities

maxView Storage Manager

• Web-based GUI management utility

• OS support: Windows, Linux, Solaris,

VMware

• Remote conﬁguration, monitoring, and

notiﬁcation

• Remote ﬁrmware updates

• SMI-S support (CIM provider)

• SMTP

ARCCONF

• Command-line interface

• SMI-S support for VMware

BIOS Conﬁguration Utility (CTRL+A)

• Legacy conﬁguration utility

• Flashable BIOS support

uEFI BIOS Conﬁguration Utility

• HII-based conﬁguration utility

• Flashable BIOS support

Event Monitor

• Lightweight event monitoring and logging tool

• Distributes adapter events and notiﬁes user

• VMWare vSphere plugin

Operating

systems

Microsoft Windows, Red Hat Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, FreeBSD, VMware ESXi.

The latest drivers are available at start.microsemi.com.

Dimensions 2.535" H × 6.6" L (64 mm × 167 mm)

Operating

temperature

0 °C to 55 °C (with 200 LFM airﬂow).

Note: This adapter contains a powerful RAID processor that requires adequate airﬂow to operate reliably. Only install this card into server or PC

chassis with

at least 200 LFM airﬂow. Temperature measured 1 inch from RAID adapter.

Operating

current

0.1 A at 3.3 VDC, 1.2 A at 12.0 VDC (8405E, 8805E)

Regulatory

certiﬁcation

CE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental

compliance

RoHS

MTBF 2 million hours at 40 °C

Warranty 3 years

RAID adapter 8405E 8805E

Order number

2293901-R 2294001-R

RAID levels

0,1,10 0,1,10

Ports

4 internal 8 internal

Connectors

1 SFF-8643 2 SFF-8643

Bus interface

8-lane PCIe Gen3 8-lane PCIe Gen3

Processor

12 Gbps RoC 12 Gbps RoC

Cache

512 MB DDR3 (1600 MHz) 512 MB DDR3 (1600 MHz)

Cache protection

No No

Number of supported

devices

4 8

Produkt Specifikationer

Mærke:	Adaptec
Kategori:	Controller
Model:	8805E
Bredde:	167 mm
Højde:	64 mm
Driftstemperatur (T-T):	0 - 55 °C
Intern hukommelse:	512 MB
Certificering:	CE, FCC, UL, C-tick, VCCI, KCC, CNS, RoHS
Harmoniseret systemkode (HS):	84733080
Intern hukommelsestype:	DDR3
Hukommelsesur hastighed:	1600 MHz
Understøttede Windows-operativsystemer:	Ja
Understøttede Linux-operativsystemer:	Ja
Andre understøttede operativsystemer:	FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9
Værtsgrænseflade:	PCI Express x8
Gennemsnitstid mellem fejl (MTBF):	2000000 t
Understøtter S.M.A.R.T.:	Ja
Antal understøttede enheder:	8
Dataoverførselshastighed:	12 Gbit/sek.
PCI Express slots version:	3.0
Understøttede lagerdrev brugerflader:	SAS, Serial ATA
Understøttelse af SSD:	Ja
RAID-niveauer:	0, 1,10
Interne mini-SAS-porte:	2
RAID-niveua migration:	Ja
