Instruments for Sonic Expression

Est.2009

April.2023

USER’S GUIDE . REV01

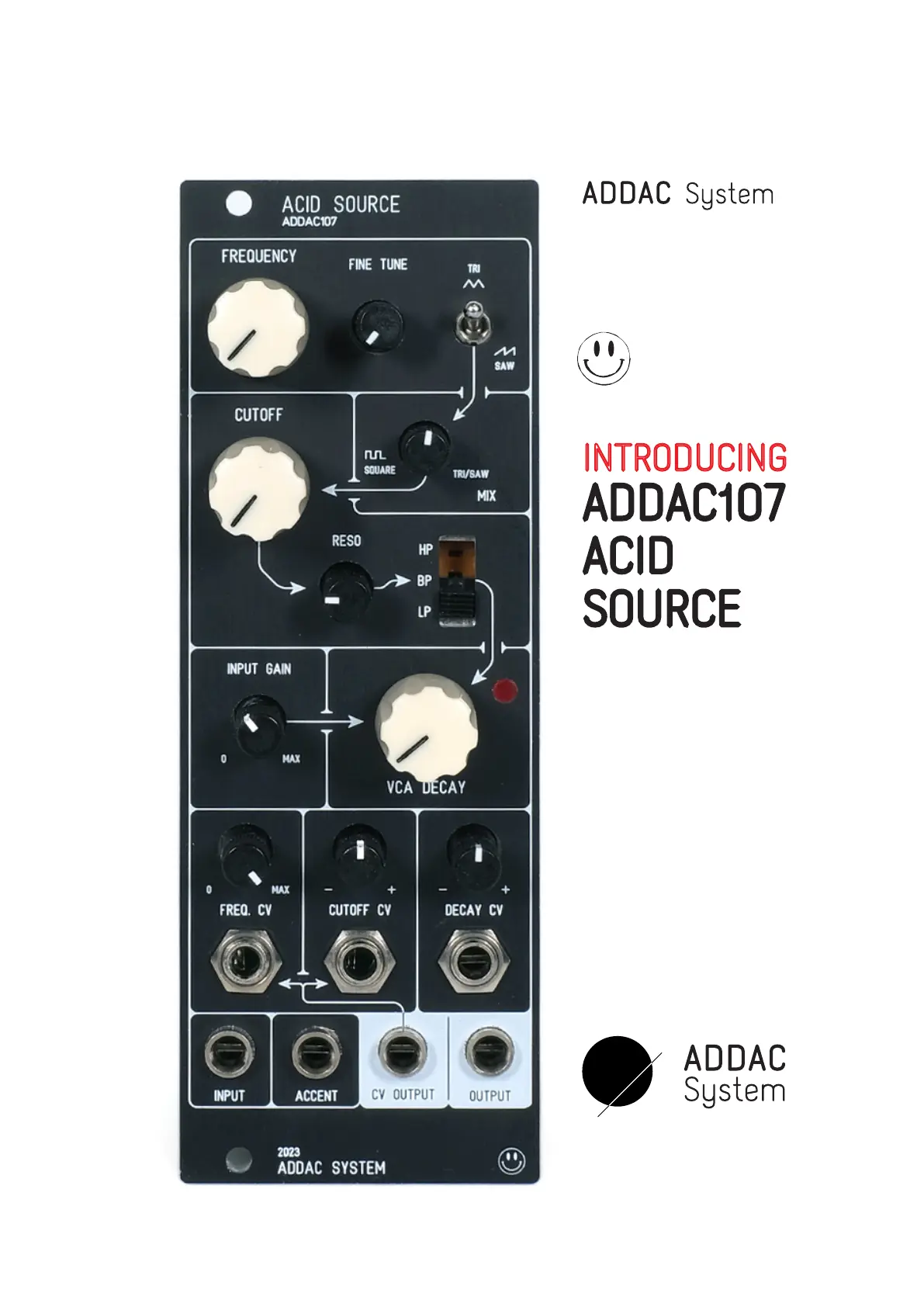

ADDAC107

ACID

SOURCE

INTRODUCING

From Portugal with Love!

ADDAC107 ACID SOURCE USER’S GUIDE

April.2023Revision.01

Welcome to:

page 2ADDAC SYSTEM

DESCRIPTION

We started this module with the idea of developing a

complex drum source however, somewhere along the

process, we noticed how much better it performed as a

synth voice and simply embraced this lucky accident.

It features a VCO with a [FREQUENCY] and [FINE TUNE]

knob plus a dedicated CV Input and Attenuator knob

(tunable over 4 octaves).

The VCO waveform output is achieved by selecting either

a Triangle or Saw through a switch.

the selected waveform can then be mixed/balanced

against the square wave.

The resulting mix is then sent to the Filter.

The Filter features a [CUTOFF] and [RESO] resonance

knob plus a Cutoff CV Input and Attenuverter knob.

A 3 position switch is used to select the filter type:

Highpass, Bandpass or Lowpass.

The resulting output is then sent to the VCA.

The VCA features an Input with [INPUT GAIN] knob which

at maximum can amplify the incoming signal by a factor

of 2. This is a very important control (more about it in the

next page). It accepts any signal Trigger, Gate or CV.

Whatever input is plugged in the signal is then fed

through an AD with a very short attack and controllable

decay through the [VCA DECAY] knob plus the CV Input

and Attenuverter knob.

The resulting slewed signal is then used to control the

VCA gain. This signal is also sent to the CV OUTPUT as

well as the LED monitor.

The Accent input adds to the Input signal creating a

different amplitude output

The CV OUTPUT is also normalled to the Frequency and

Cutoff inputs.

This module will also be available as a full DIY kit. Tech Specs:

9HP

4 cm deep

80mA +12V

80mA -12V
