USER’S GUIDE . REV01

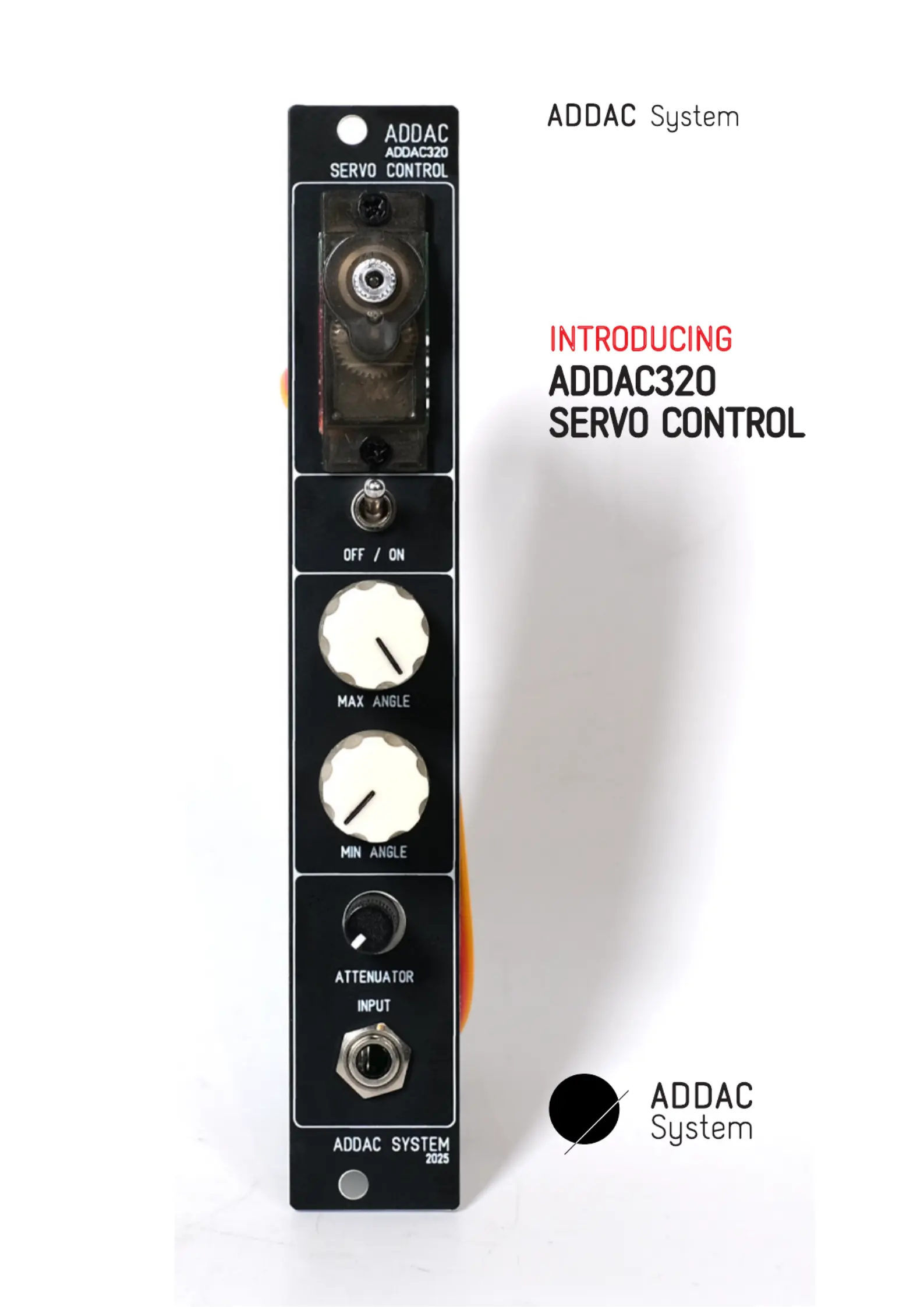

ADDAC320
SERVO CONTROL
INTRODUCING
From Portugal with Love!
Instruments for Sonic Expression
Est.2009
SERVO CONTROL USER’S GUIDE
April.2025Revision.01
Welcome to:
page 2ADDAC SYSTEM
WELCOME
At ADDAC we always admired the geniality of Neil Young’s Whizzer, way ahead
of it’s time, a great example how great ingenuity and engineering can come
together to make something great.
Inspired by it’s motor controlled method we created a 4HP solution to control
any knob that doesn’t have a CV input, while also possible to use for other gear
as well (within certain distance constraints).
We use a Servo motor which is a specific type of motor that can be digitally
controlled to go to a precise angle. This motor is controlled by a microcontrol-
ler that also receives an incoming CV voltage from 0 to +5v and lineary
converts this voltage range to the 270 degree Servo motor range.
Using a spring wire and metal couplers the motor shaft is then attached to the
target knob to be controlled which will turn as the Servo turns.
Two other knobs [MAXIMUM ANGLE] & [MINIMUM ANGLE] further allow to control
the “sweet spot” of the target knob, setting a smaller Servo range.
Raising the [MIN ANGLE] knob above the [MAX ANGLE] knob inverts the Servo
range.

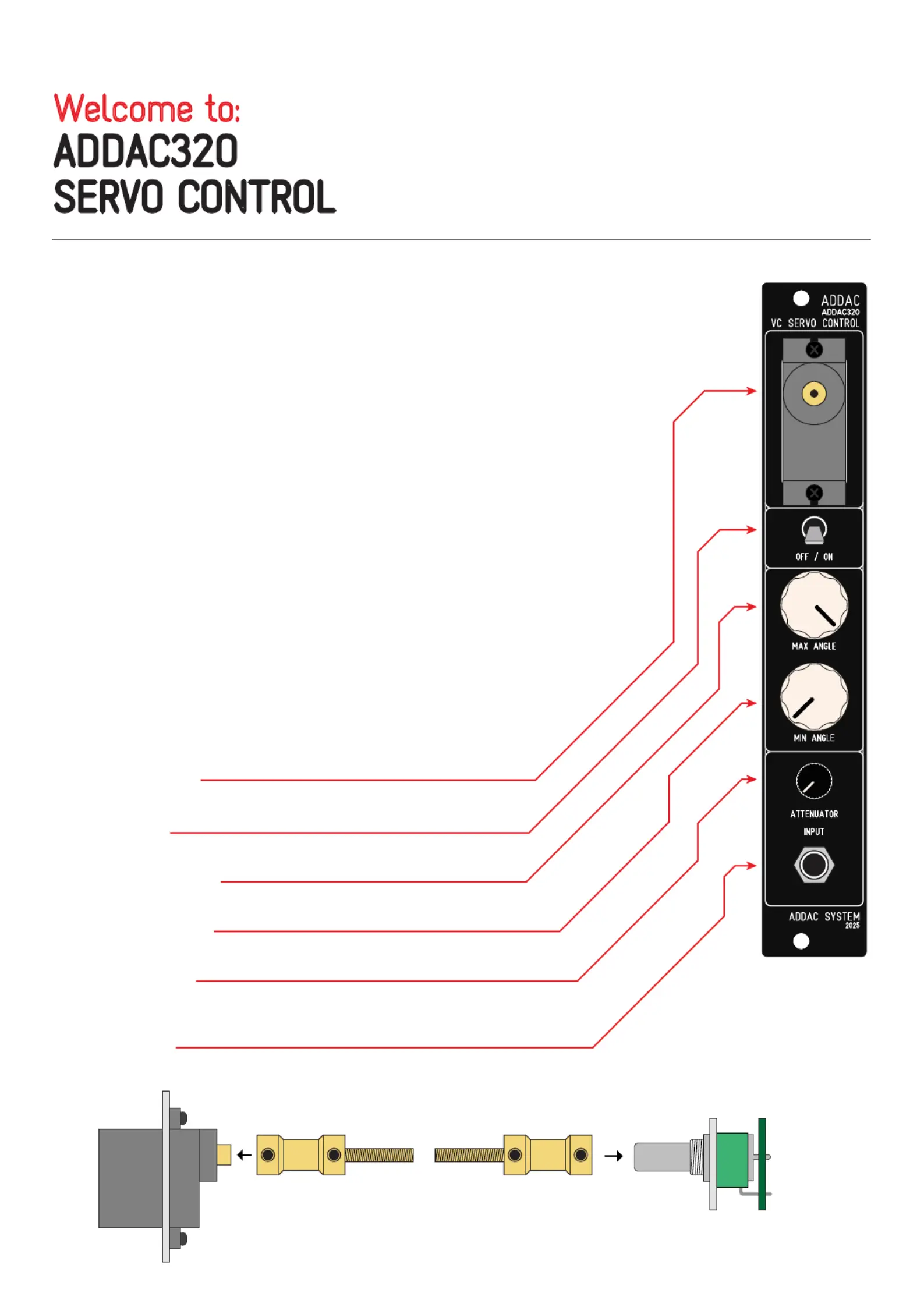

SERVO MOTOR
270 degree micro servo motor with metal gears
OFF / ON
Turns the servo operation OFF/ON
MAXIMUM ANGLE
Sets the minimum angle of the Servo Range
MINIMUM ANGLE
Sets the maximum angle of the Servo Range
ATTENUATOR
When no CV is plugged in works as a manual Servo control,
If a CV input is used then it attenuates the incoming CV.
CV INPUT
CV input 0 to +10
Tech Specs:
4HP
4.5cm deep
Up to 300mA +12V
0mA -12V
