Instruments for Sonic Expression

Est.2009

August.2022

USER’S GUIDE . REV01

ADDAC710

BALANCED

OUTPUTS

INTRODUCING

From Portugal with Love!

ADDAC710 BALANCED OUTPUTS USER’S GUIDE

August.2022Revision.01

Welcome to:

page 2ADDAC SYSTEM

DESCRIPTION

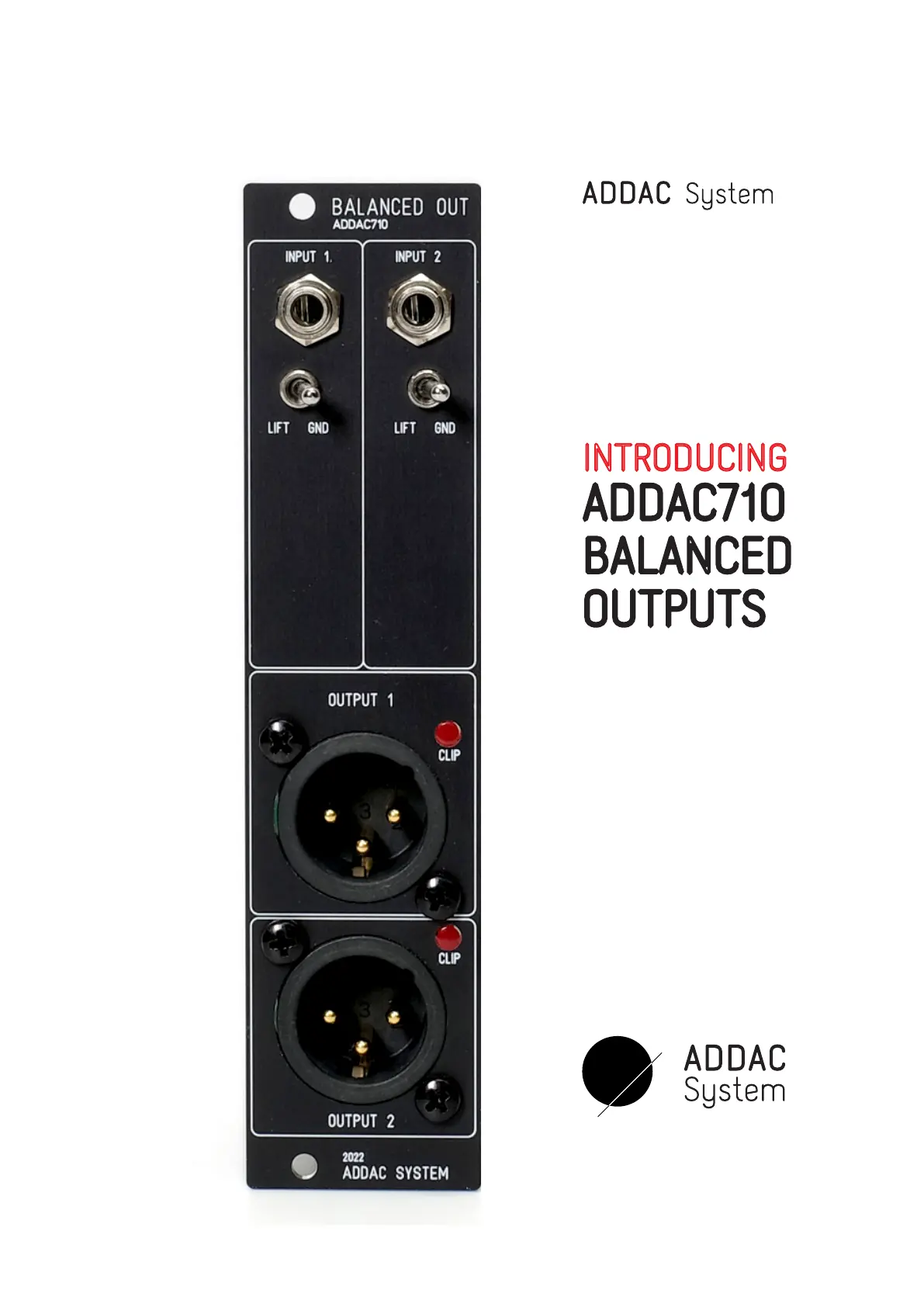

ADDAC710 is a dual channel Isolated DI box and is all

about keeping the sound coming from your Modular free

from any undesired noisy interferences, making sure that

what you’re getting from your outputs is what your

Modular is actually producing. It provides galvanic

electrical isolation between the Modular system and

external sources preventing impedance mismatch and

ground loop induced hum.

ADDAC’s 710 circuit is designed around a unity 1:1 type

Low-cost Audio Transformer operating in the 20 Hz to 20

KHz range, this impedance matching transformer provides

two fully balanced outputs (via XLR connectors).

ADDAC710 is a low-cost alternative to our ADDAC800X

High-End Outputs module, we redesigned the original

circuit using a smaller low-cost transformer that also

reduced it’s depth allowing it to fit shallow Eurorack

cases.

There are two independent channels on the module with:

Audio Input

LIFT/FLOAT/GND toggle switch

Signal overload warning led

XLR Output

The LIFT/FLOAT/GND 3-way switch lets you choose

between lift, ground or floating ground.

In the LIFT position (left) the module circuit will be

“lifted” to ground through a 100R resistor and a 10nF

capacitor.

In the FLOAT position (middle) Ground will not be shared

leaving ins and outs grounds completely apart from each

other fully isolating both signals.

in the GND position (right) Ground will be shared between

inputs and outputs, here no isolation is used.

Any of these three positions may be the best form of

avoiding ground loops or any other undesired interference

occurring between your modular and the sound system

you’re plugging it into.

Try out which one of these options will work best in any

given situation.

This module will also be available as a full DIY kit..

Tech Specs:

6HP

4 cm deep

40mA +12V

40mA -12V

Produkt Specifikationer
