Side 1/2

ADAM-3017 Startup Manual 1

ADAM-3017 is an external powered signal conditioner

for powering IEPE sensors that is easy to integrate into

any measurement chain. Simply connect a cable from the

sensor to the input and a cable from the data acquisition

system to the output.

• IEPE current support: 4, 6, 10 mA

• Signal ampliﬁcation of 1x, 10x, and 100x

• LED indicator for sensor open, short and normal

ADAM-3017-AE External Powered IEPE Signal

Conditioner

968AG00014 BNC to terminal block adaptor

ADAM-3017

External Powered IEPE Signal Conditioner

Startup Manual

Integrated Electronic Piezoelectric Excita-

tion (IEPE) Signal Conditioning

• Channels:1

• IEPE Current : 0, 4, 6, or 10 mA ± 5%

• Gain: 1, 10, or 100 (for AC signal)

• Gain accuracy: < ±2% for all gain settings

• Couple: DC or AC

• Input voltage: 4 ~ 24 V (normal operation)

• Ampliﬁer output voltage: 4 ~ 24 V (normal operation)

• Compliance: > 24 V

• Upper cut-off frequency (for all couple settings)

x1, x10 gain (-5%): 100 kHz

x100 gain (-15%): 50 kHz

• Lower cut-off frequency (-5%, 1 M load, for all gain Ω

settings)

DC couple : DC

AC couple (1 μF): 1.77 Hz

AC couple (47 μF): 0.038 Hz

• Discharge time constant (1 M load, for all gain settings) Ω

DC couple: 0 second

AC couple (1 μF): > 0.3 seconds

AC couple (47 μF): > 13 seconds

• DC offset: < ±30 mV

Isolation Protection

• Input/Output to Power: 2,500 V

Power Requirements

• Supply voltage : +24 V

± 10%

• Current consumption:

35 mA typical

45 mA max. (with 0 mA IEPE current)

Environmental

• Operating temperature: 0 to 60 °C (32 to 140 °F)

• Storage temperature: -20 to 70 °C (-4 to 158 °F)

• Storage humidity: 5 to 95% RH, non-condensing

Overview

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the ADAM-3017.

Part No. 2001301700

Printed in Taiwan

1st Edition

Aug 2017

Specications

Features

Ordering Information

Accessories

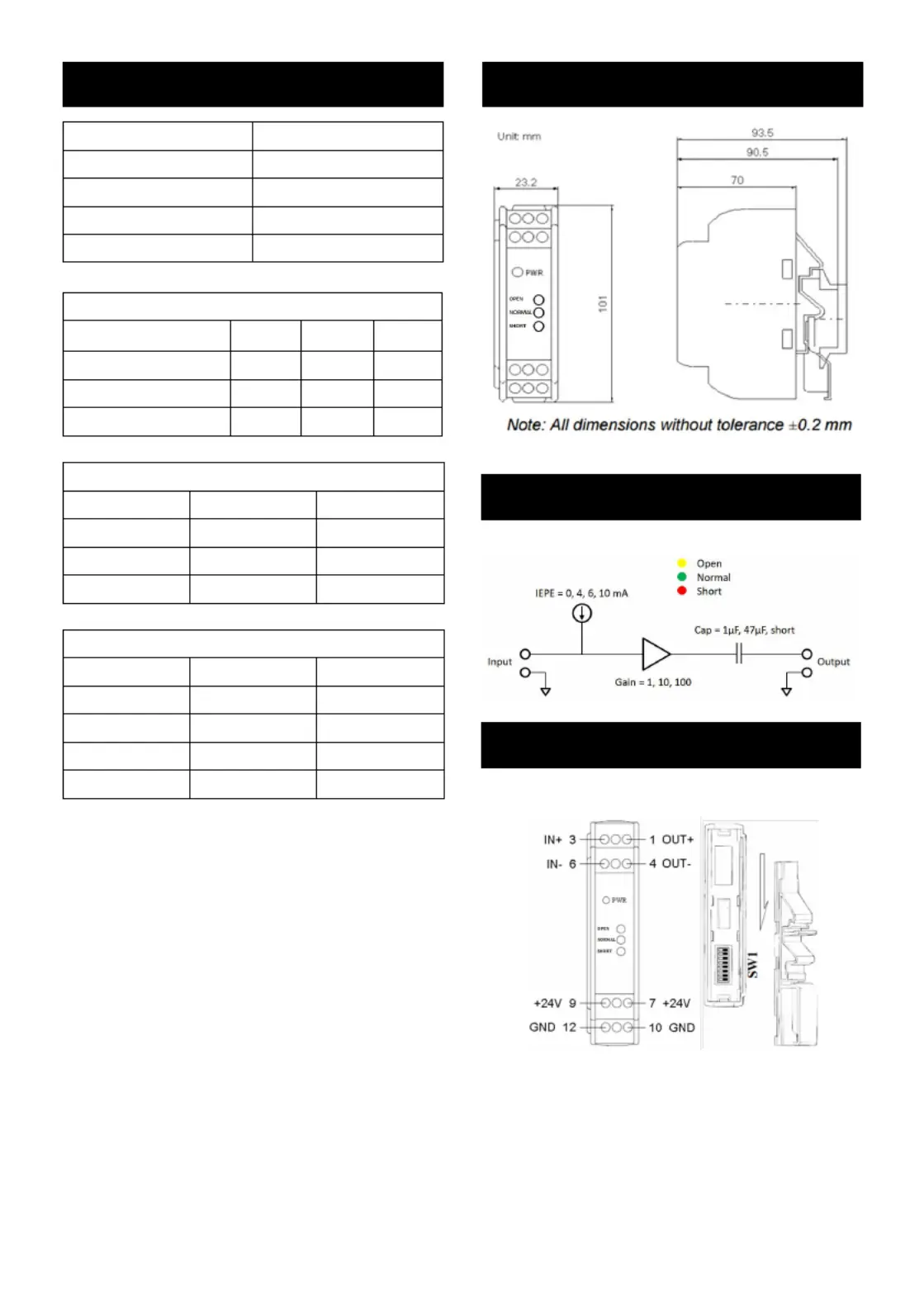

2 ADAM-3017 Startup Manual

LED Indicator Description

PWR 24 V Power

Open (Yellow) Sensor Open (> 25 V)

Normal (Green) Normal Operation

Short (Red) Sensor Short (< 1 V)

DC/AC Couple Setting (SW1)

Couple 1 2 3

DC Couple ON OFF OFF

*AC Couple (1 μF) OFF ON OFF

AC Couple (47 μF) OFF OFF ON

Gain Setting (SW1)

Gain 5 6

*1 ON ON

10 OFF ON

100 ON OFF

IEPE Setting (SW1)

Current 7 8

0 mA OFF OFF

* 4 mA ON OFF

6 mA OFF ON

10 mA ON ON

* Default setting

Dimensions LED Indicators and Switch setting

Function Block Diagram

Terminal Wiring Diagram
