Startup Manual 1

Packing List

Before installation, make sure that you have

received the following:

• ADAM-3617 Product

• ADAM-3617 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Analog Input Channels: 4 differential

• Input Type: V, mA

• Voltage/Current Range ±10V, ±2.5V, 0~20mA,

4~20 mA

• Resolution 16-bit

• Accuracy ±0.1% or better of

FSR(Voltage)

±0.2% or better of

FSR(Current)

• Isolation Voltage 2000 V

• Burn-out Detection Yes(Current-only)

• Power Consumption 1w

• Operation Temp. -40 ~ 70°C

• Warranty 2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3617

Part No: 2003A61700 1st Edition

January 2016

STARTUP MANUAL

ADAM-3617

4-ch Analog Input Module

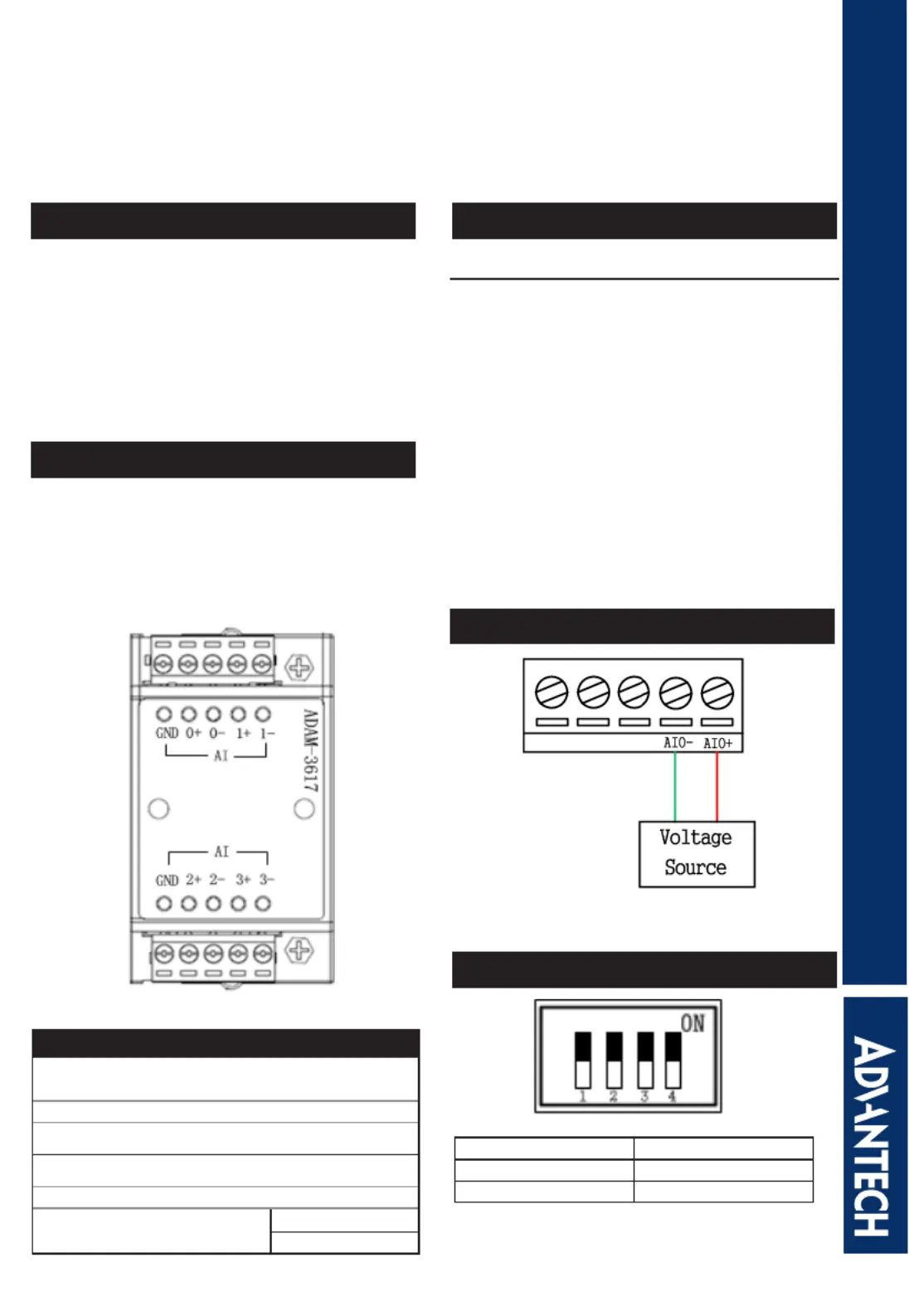

Application Wiring

Overview

As ADAM-3600 Extension I/O, ADAM-3617 is a

16-bit analog input module that provides 4-chs

of voltage and current signal acquisition. This

module is extremely cost-effective solution for

industrial measurement and monitoring applica-

tions.

Caution:

When connecting jumpers or installing the card, you should disconnect the power to prevent surges

damaging sensitive electronic components.

Switch Description

SW1 Status Description

OFF(Default) Voltage Input

ON Current Input

2 Startup Manual

Installation

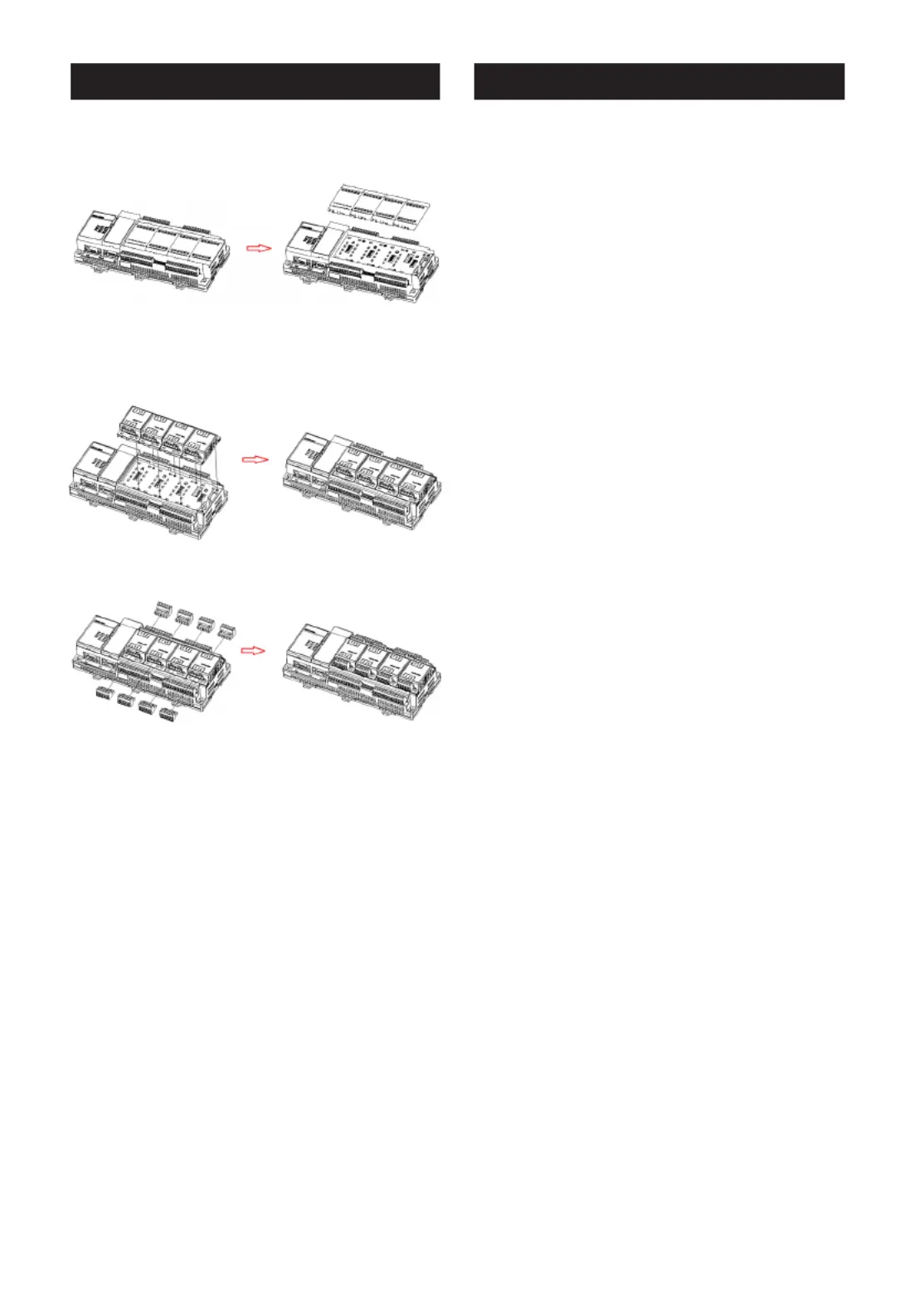

1. Remove the cover of extension slot on the

ADAM-3600-C

2. Install ADAM-3617 on the extension slot, please

note that the connector must be perfectly match,

and then fix the two screws.

3. Fix the terminal block

Software and User Manual

The TagLink Studio is for completing ADAM-

3600 and its extension I/O configuration and

management. The PC operation system is

Windows XP/Windows 7. The software installa-

tion package as well as user’s manual can be

acquired from the following path: http://www.

advantech.com/
