Startup Manual 1

Packing List

Before installation, make sure that you have

received the following:

• ADAM-3651 Product

• ADAM-3651 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Digital Input Channels: 8 differential

• Input Type: Sink(Wet contact)/Counter

• Wet Contact Input: Logic Level 0: 0 ~ +5 V

Logic Level 1: +11~30 V

• Rated Voltage: 12/24 V

• Rated Input Current: >5mA@12 V

>10mA@24 V

• Pulse Input Frequency 150Hz

• Over Voltage Protection: +40 V

• Isolation Voltage: 2,000 V

• Power Consumption: 1 w

• Operating Temp.: -40 ~ 70°C

• Warranty: 2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3651.

Part No: 2003A65100 1st Edition

October 2015

STARTUP MANUAL

ADAM-3651

8-ch Digital Input Module

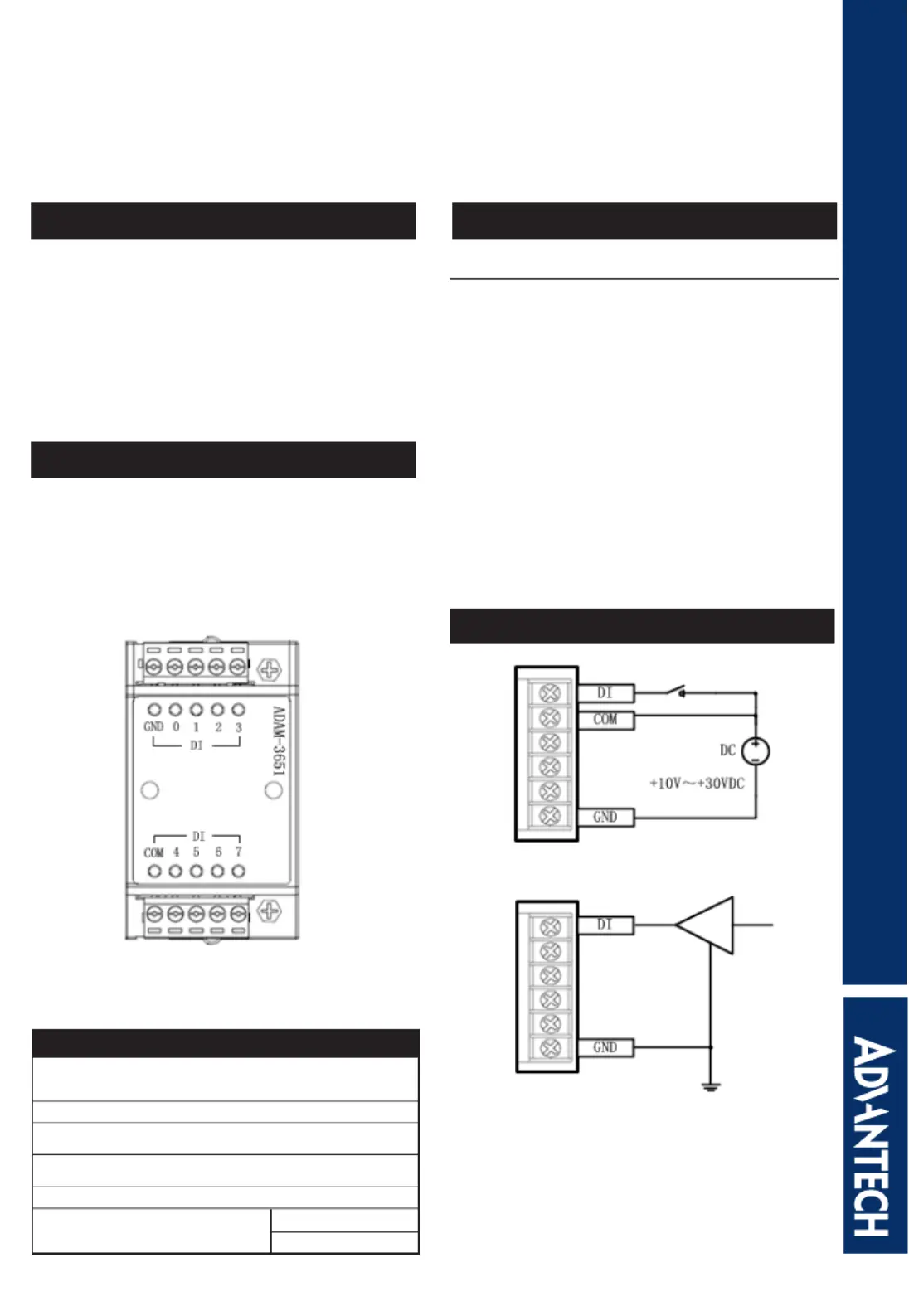

Application Wiring

Overview

The ADAM-3651 provides 8-ch isolated digital

input for users to determine the state of limit

switches or receive remote digital signals. This

module can be used with ADAM-3600 Series In-

telligent remote terminal unit, with wide tempera-

ture range and wireless function

Caution:

When connecting jumpers or installing the card, you should disconnect the power to prevent surges

damaging sensitive electronic components.

2 Startup Manual

Installation

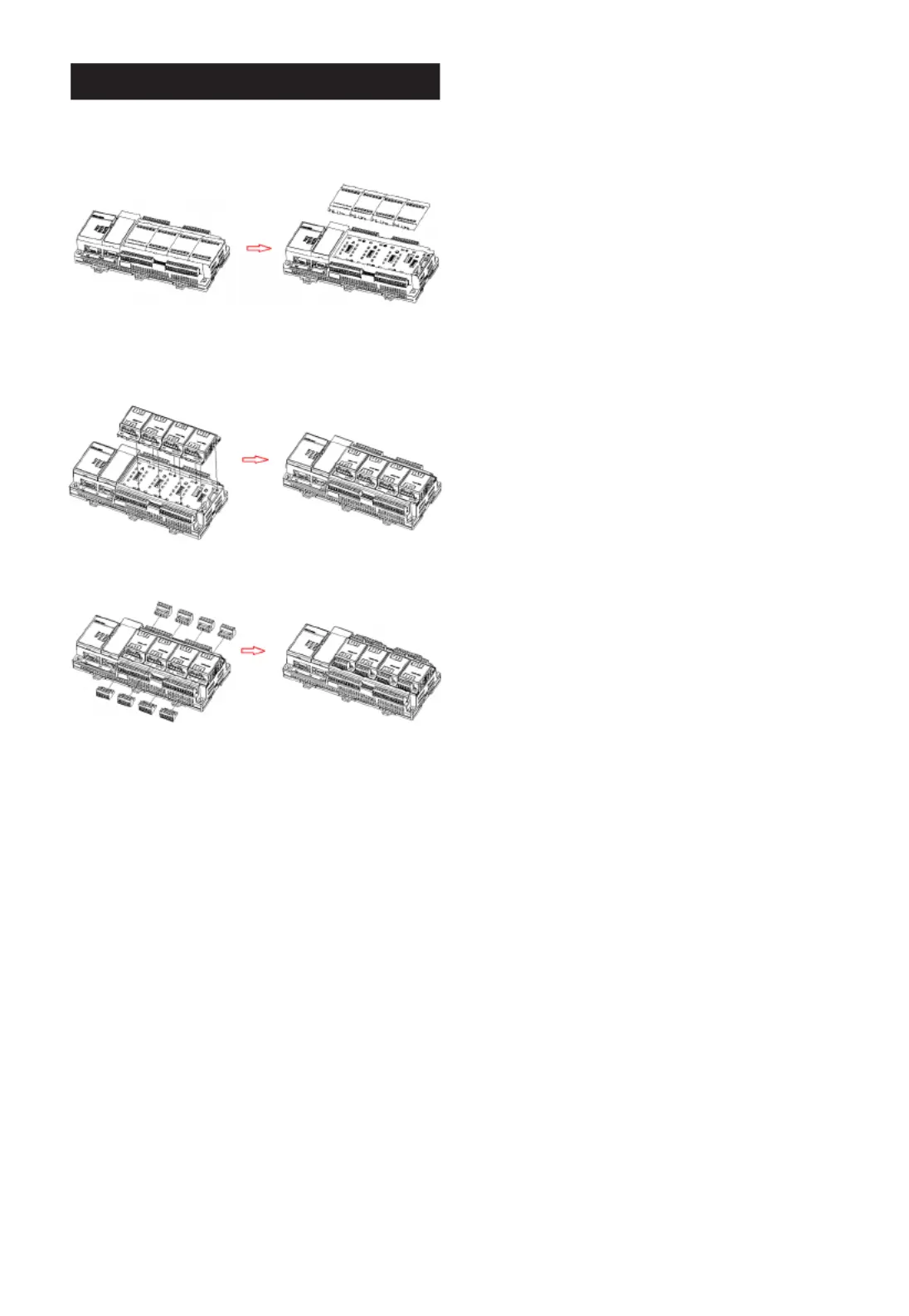

1. Remove the cover of extension slot on the

ADAM-3600

2. Install ADAM-3651 on the extension slot, please

note that the connector must be perfectly match,

and then fix the two screws.

3. Fix the terminal block

Produkt Specifikationer
