ADAM-4510_4510S_4520 Startup Manual 1

Before you begin installing your module, make sure that the

following materials have been included:

• 1 x ADAM-4510, 4510S, 4520

• 1 x DIN-rail mounting bracket (attached to module)

• 1 x ADAM-4510/4510S/4520 Startup Manual

• 1 x Panel mounting bracket

If any of the above items are missing or damaged, please

contact your distributor or sales representative immediately.

CE Notication

ADAM-4510, 4510S and 4520 developed by Advan-

tech Co., Ltd. has passed the CE test for environmental

specications.Thetestconditionsforpassingincludingthe

equipment being operated within an industrial enclosure.

Therefore,inordertoprotecttheADAMmodulefrombeing

damaged by ESD, we strongly recommend that the use of

CE-compliant industrial enclosure products.

• Automatic internal RS-485 bus supervision

• NoexternalowcontrolsignalsforRS-485

• Minimum 3000 V

isolation (4510S/4520)

• TransientsuppressiononRS-485datalines

• Baudrate up to 115.2 kbps

• Networking up to 4000 feet (1200 m)

• Reserved space for termination resistors

• Poweranddataowindicatorfortroubleshooting

• Power requirement: +10 to +30 V

• Mounts easily on DIN-rail or panel

ADAM-4510 RS-422/RS-485 Repeater

ADAM-4510S Isolated RS-422/485 Repeater

ADAM-4520 Isolated RS-232 to RS-422/485 Converter

Startup Manual

ADAM-4520 transparently converts RS-232 signals into

RS-422orRS-485.ADAM-4510/4510Sampliesexisting

RS-485 signals.

Intelligent RS-485 Control

ADAM-4510, 4510S, and 4520 automatically senses the di-

rectionofthedataowandswitchestransmissiondirection.

Isolation (ADAM-4510S/4520 only)

ADAM-4510S and 4520’s Opto-isolators provide 3000 V

isolation to protect the host computer from ground loops

and voltage spikes.

Surge Protection

ADAM-4510/4510Sand4520o󰀨erinternalsurge-protection

on their data lines. Internal high speed transient suppres-

sors on each data line protect the modules from dangerous

voltages levels or spikes.

Common

• Power Requirements: Unregulated +10 to +30 V

• Case: ABS+PC with captive mounting hardware

• Accessories (supplied): DIN-rail mounting adapter,

panel mounting bracket

• Plug-in screw terminal wiring: Accepts AWG 1-#12 to

#22 (0.5 to 2.5 mm)

• Operating Temperature: -10~70°C (14~158° F)

• Storage Temperature: -25 ~ 85°C (-13~185° F)

• Humidity: 5 ~ 95%, non-condensing

ADAM-4510/4510S

• Baudrate (bps): 1200, 2400, 4800, 9600, 19.2 k, 38.4

k, 57.6 k, 115.2 k, RS-422 (switchable)

• Isolation Voltage: 3000 V

(4510S only)

• RS-422/RS-485 Interface: plug-in screw terminal

• Power Consumption:

- ADAM-4510

Typical:1.1W@24V

Max.:1.2W@24V

- ADAM-4510S

Typical:1.5W@24V

Max.:1.6W@24V

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

ThisstartupmanualisforADAM-4510,4510S,4520.

Part No. 2003452014 Edition 9

March 2022

Declaration of Conformity

Overview

Specications

Declaration of Conformity

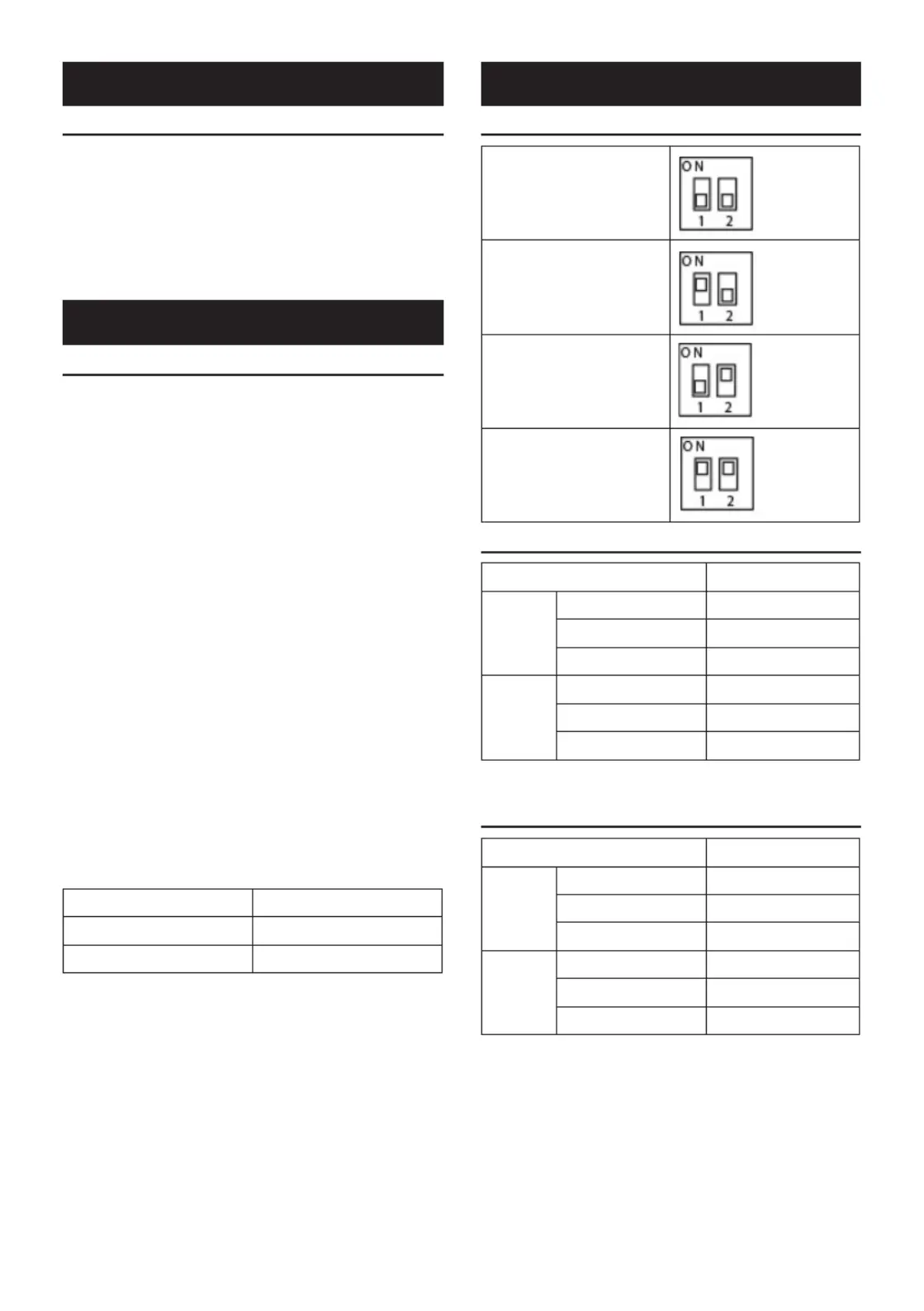

2 ADAM-4510_4510S_4520 Startup Manual

ADAM-4520

• Baudrate (bps): 1200, 2400, 4800, 9600, 19.2 k,

38.4k,57.6k,115.2k,RTScontrolandRS-422mode

(switchable) Isolation Voltage: 3000 V

(4520 only)

• RS-232 Interface: Female DB-9

• RS-422/RS-485 Interface: Plug-in screw terminal

• Power Consumption:

Typical:0.8W@24V

Max.:1W@24V

Intelligent RS-485 Control

DIP switches in the ADAM converter and repeater modules

set the data format (number of bits) and baudrate for the

ADAM network. You need to unpack ADAM module case

to see the switches and jumpers. Your program and the

PC’s serial port should match the setting on the converter

and repeater modules. When you change the setting on the

converter or repeater module, please remember to change

the data format or baudrate for all the connected modules

accordingly.

SW1

Switch 1 controls the data format. Data can be 9, 10, 11

or12bits.Thefactorydefaultis10bits:onestartbit,eight

data bits, no parity bit and one stop bit.

When using the converter in combination with other ADAM

modules, do not change the default setting as ADAM mod-

uleshaveaxeddataformatoftendatabits.Theoptionof

changing to 9, 11 or 12 bits is for use with other modules

thathavedi󰀨erentdataformats.

SW2

Switch2setsthebaudrate.Theoptionsrangefrom1200

bpsto115.2kbps.Thedefaultis9600bps.IftheRS-422

mode is ON, the rate doesn’t need to be set.

Default Settings

Since these modules are not addressable by the host com-

puter, the baud rate and data format must be set using SW1

and SW2 located inside the module.

Thedefaultsettingsare:

Function Setting

Baud rate 9600 bps

Data format 10 bits

Specications (Cont.)

Data Format Settings (SW1)

9 bits

10 bits

(default)

11 bits

12 bits

ADAM-4510/4510S

Data Flow Direction Indicator LED Status

RS-485

Idle Green

DATA0→DATA1 Dark

DATA0←DATA1 Red

RS-422

Idle Green

Tx0→Rx1 Dark

Rx0←Tx1 Green+Red

Refer to: Figure 2 ADAM-4510/4510S Connection Diagram

ADAM-4520

Data Flow Direction Indicator LED Status

RS-485

Idle Green

RS-232→RS-485 Dark

RS-485→RS-232 Red

RS-422

Idle Dark

RS-232→RS-422 Green

RS-422→RS-232 Red

Switch Settings (Cont.)

Switch Setting
