EKI-2701MPI-5G Startup Manual 1
The EKI-2701MPI-5G is a next-generation injector compli-
ant with IEEE 802.3af/at/bt standards. Utilizing Power over
Ethernet (PoE) technology, it delivers both data and power
to Ethernet-enabled devices through a standard CAT6(A)/
CAT7 cable, providing up to 90W.
The EKI-2701MPI-5G allows for exible deployment of
standard and high-powered PD devices, simultaneously
up to 100 meters. It features dual power input options via
a pluggable terminal block or DC jack, and o󰀨ers both
DIN-rail and wall-mounting installation options for added
convenience.
With the EKI-2701MPI-5G, deploying WiFi access points at
a 5Gbps transmission rate can be easy. It supports multi-
data rates of 10M/100M/1000M/2.5G/5G and can provide
up to 90W of PoE power, making it an ideal solution for
high-performance networking needs.
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2701MPI-5G PoE Injector
• 1 x DlN-rail mounting bracket with 3 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2701MPI-5G Startup Manual
• 1 x 120W Power Supply (EKI-2701MPI-5GPS)
If anything is missing or damaged, contact your distributor
or sales representative immediately.
EKI-2701MPI-5G Series
Industrial IEEE 802.3bt Multi Data Rate 90W PoE Injector
Startup Manual
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt,
802.3ab/802.3bz
• LAN:10/100/1000Base-T(X)/2.5G/5G
• TransmissionDistance:Up to 100 m
• TransmissionSpeed:Up to 5Gbps
• Connectors:2 x 10/100/1000Base-T(X)/2.5G/5G (DATA
IN p1-x1 + PoE OUT X1)
• PowerInput:54~57V
DC
• PowerConsumption:Max. 92W (Full PoE Load)
• Dimensions(WxHxD):84 x 80 x 25 mm
• Enclosure:IP40
• OperatingTemperature:
-EKI-2701MPI-5G-AE: -40 ~ 75°C (-40 ~ 167°F)
- EKI-2701MPI-5GPS-A: 0 ~ 40°C (-32 ~ 104°F)
• StorageTemperature:
- EKI-2701MPI-5G-AE: -40 ~ 85°C (-40 ~ 185°F)
- EKI-2701MPI-5GPS-A:-20 ~ 80°C (-4 ~ 176°F)
• OperatingHumidity:5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A
• Warranty:5 years
SpecicationsOverview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://www.advantech.com/support
This manual is for EKI-2701MPI-5G.
Part No. 2049270120 Edition 1
August 2024
PackingList
2 EEKI-2701MPI-5G Startup Manual
The EKI-2701MPI-5G injector supports dual +54~57 V
DC
power inputs. For operation, connecting either power V1
or V2 to the switch is su󰀩cient. If both sets are connected,
it enhances redundancy. In the event of a power resource
failure in one set, it will automatically switch to the other set
of power resources.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC
wires coming loose.
Warning: This product is intended to be supplied by a UL
certied power supply or DC source suitable
for use at a minimum Tma 85 °C whose output
meets ES1 or PS2 is rated 54- 57Vdc, 1.75A
min., if you need further assistance, please
contact Advantech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. The power outlet socket should
have a grounded connection.
Warning: Never open the equipment. For safety reasons,
the equipment should only be opened by a quali-
ed skilled person.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une
source de courant continu adaptée à
une utilisation à au moins Tma 85 °C
dont la sortie satisfait les conditions
ES1 ou PS2 et est évaluée à 54-57Vdc,
1.75 A min-imum. Si vous avez besoin
d’une aide supplémentaire, veuillez
contacter Advantech pour plus
d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de
connecter l’équipement à une prise de
courant. La prise de courant doit avoir une
prise de terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit
être ouvert que par une personne
qualiée.

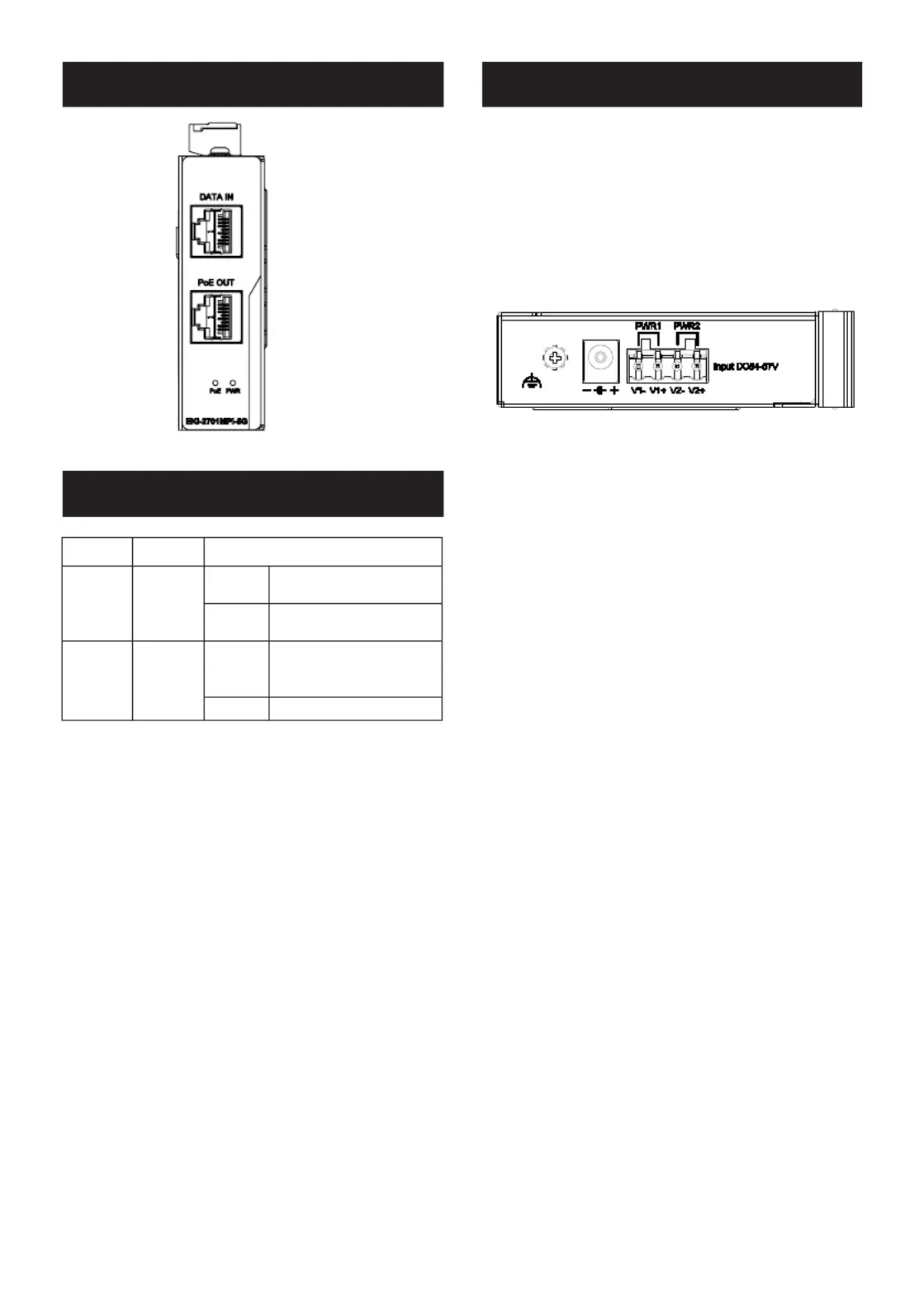

LED DescriptionColor
Power Green
On
Power is being supplied to
power input.
O󰀨
Power is not being sup-
plied to power input.
PoE Green
On
PoE power is being
supplied to the Powered
Device (PD).
O󰀨 No PoE Output

Overview

LEDDenition

PowerConnection
