Side 1/22

ITA-3650 Startup Manual 1

Before you begin installing your IPC, please make sure that

the following items have been shipped:

1. 1 x ITA-3650 series IPC

2. 1 x Accessary box

3. 2 x Mounting brackets

4. 4 x Bottom rubber pads

5. 1x Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note : Acrobat Reader is required to view any PDF

le.Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

ITA-3650 Series Fanless Compact Embedded IPC with Intel 6th &

7th Generation Desktop Processor

Startup Manual

Standard Functions

• Chip and chipset: Intel 6th & 7th Generation Desktop

Processor with H110 or C236 PCH

• BIOS: AMI SPI 64 MB Flash

• Memory: On board 8GB DDR4, optional on board 16G

max to 32GB with SO-DIMM

• Display: Intel HD Graphics 630/610/530/510

• Dual display mode:

- Resolution of single display up to 3840 x 2160 @ 30H

- Resolution of dual display up to 1920 x 1080 @ 60Hz

• Storage: Supports 1 x M-Sata slot and 2 x 2.5” HDD/SSD

• Expansion slot: Supports 1 x Mini PCIe slot

SystemSpecications

• Ethernet: 2 or 6 x 10/100/100M Ethernet

• USB: 2 x USB 2.0, 4 x USB 3.0

• DISPLAY: 1 x VGA, 1 x HDMI

• Serial port: 2 serial ports, with RS-232/422/485; 4 serial

ports only RS-232(ITA-3650-00A1); 8 serial ports, with

RS-232/422/485(ITA-3650N-00A1)

• Digital I/O: 12 GPIs and 12 GPOs(ITA-3650N-00A1)

• Audio: 1 x speaker out (supports 2-ch 4w speaker), 1 x

line in

Mechnical and Environment

• Dimensions (W x H x D):

ITA-3650-00A1: 210 x 76 x 240 mm(8.27’’ x 2.99’’ x 9.45’’)

ITA-3650N-00A1: 210 x 118 x 240 mm(8.27’’ x 4.65’’ x

9.45’’)

• Voltage input: DC 9 ~ 36 V input

• Working temperature:

-25 ~ 60° C (-13 ~ 140° F)

• Weight:

ITA-3650-00A1: 4.03 kg

ITA-3650N-00A1: 4.65 kg

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the ITA-3650 Series.

Part No. 2041365000

Print in China

1st Edition

July 2019

2 ITA-3650 Startup Manual

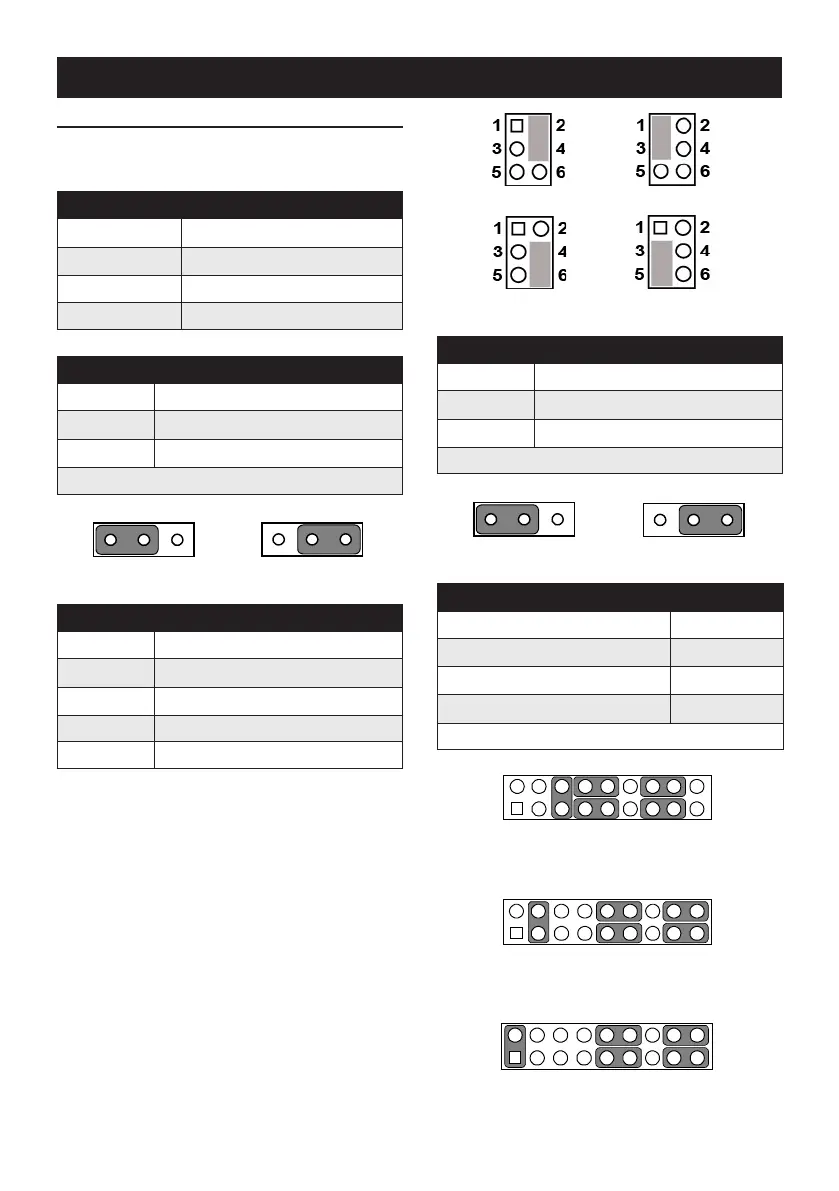

Jumper Setting

The board has a number of jumpers that allow you to con-

gure your system to suit your application.

The table below lists the function of each of the jumpers.

Name/Function

JCOMS1 Clear CMOS setting

VCCGPIO1 GPIO voltage setting

PSON1 Power on mode setting

JSETCOM 1~X COM mode setting

JCOMS1: Clear CMOS Setting

Pins Setting

1-2 Default*

2-3 Clear CMOS setting

* Default setting

VCCGPIO1: GPIO Voltage Setting

Pins Setting

2-4 +V3.3_SB

1-3 +V5_SB (Default)

4-6 +V3.3

3-5 +V5

1 2 3

+V3.3 +V5

PSON1: Power On Mode Setting

Pins Setting

1-2 AT mode

2-3 ATX mode*

* Default setting

JSETCOM 1~X: COM Mode Setting

Pins Setting

(5-6),(7-9),(8-10),(13-15),(14-16) RS232 mode*

(3-4),(9-11),(10-12),(15-17),(16-18) RS422 mode

(1-2),(9-11),(10-12),(15-17),(16-18) RS485 mode

* Default setting

RS-232 Mode

RS-422 Mode

RS-485 Mode

1 2 3

2 4 6 8 10 12 14 16 18

1 3 5 7 9 11 13 15 17

2 4 6 8 10 12 14 16 18

1 3 5 7 9 11 13 15 17

2 4 6 8 10 12 14 16 18

1 3 5 7 9 11 13 15 171 3 5 7 9 11 13 15 17

1 3 5 7 9 11 13 15 17

Jumpers

Default Setting Clear CMOS Setting

AT Mode ATX Mode

+V3.3_SB +V5_SB
