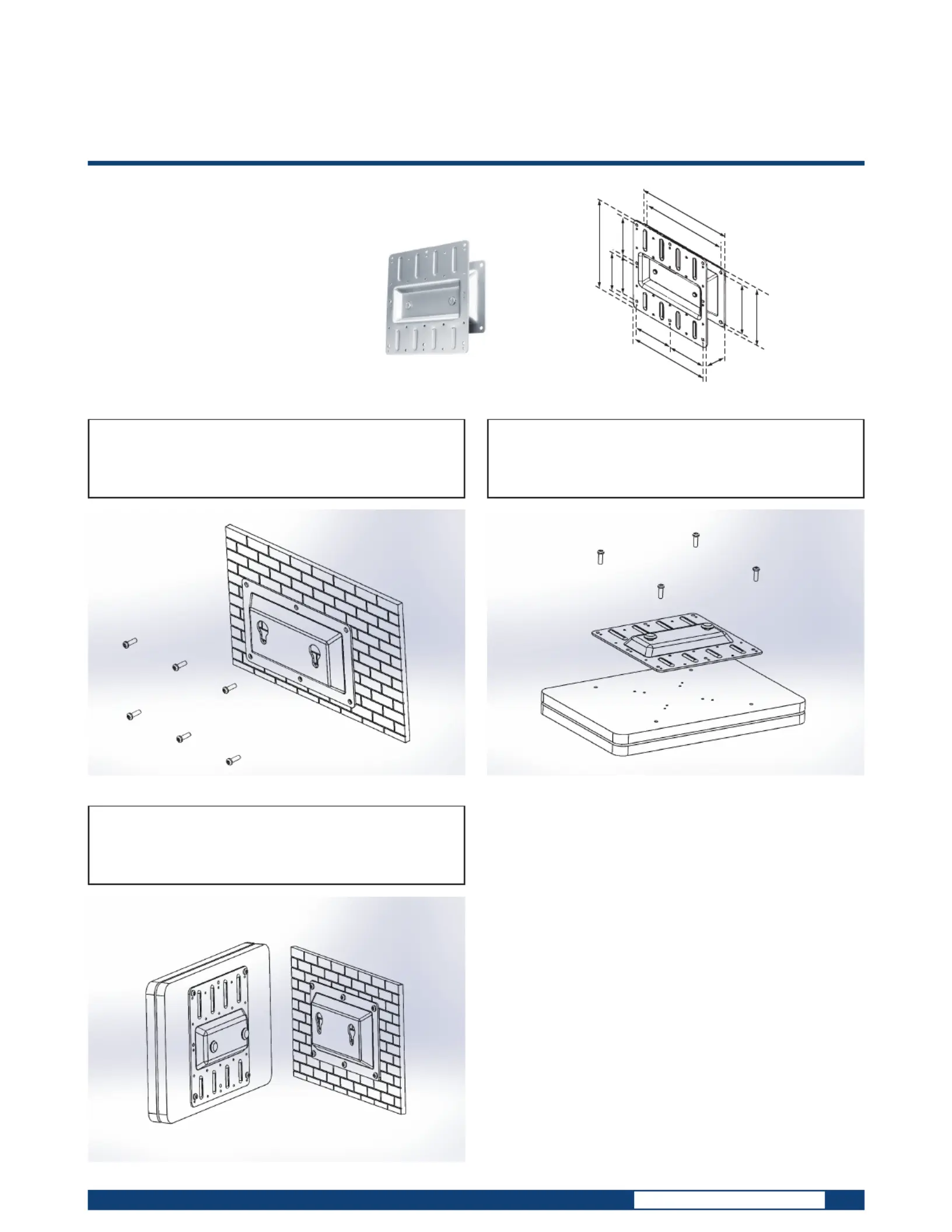

UTC-Wall-Mount Installation Guide
Step 1
Tighten the wall plate on the wall by using four screws.
Step 3
Take the UTC unit with wall mount device plate to slide
into wall mount plate on the wall.
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
UTC-WALL-MOUNT1E
VESA 75/100 mm
Firmly fix to a solid wall
Weight capacity up to 14 kg
Material: Steel
Tilt: 180° up and down
Rotation: 270° for portrait or landscape viewing
Lift: 130.5 mm
For UTC-510/515/520/307/310/315
All product specifications are subject to change without notice. Last updated: 1-Apr-2019
www.advantech.com/products
Online Download
UTC-Wall-Mount Installation Guide
Step 1
Tighten the wall plate on the wall by using six screws.
Step 3
Take the UTC unit with wall mount device plate to hang
into wall mount plate on the wall.
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
UTC-WALL-MOUNT2E
VESA 100/200 mm
Flush fit without movement
Weight capacity up to 35 kg
Material: Steel
Sits: 42.5 mm from the wall
For UTC-532 only
250
230
100 100
220
230
100
100 100
130
150
42.5
