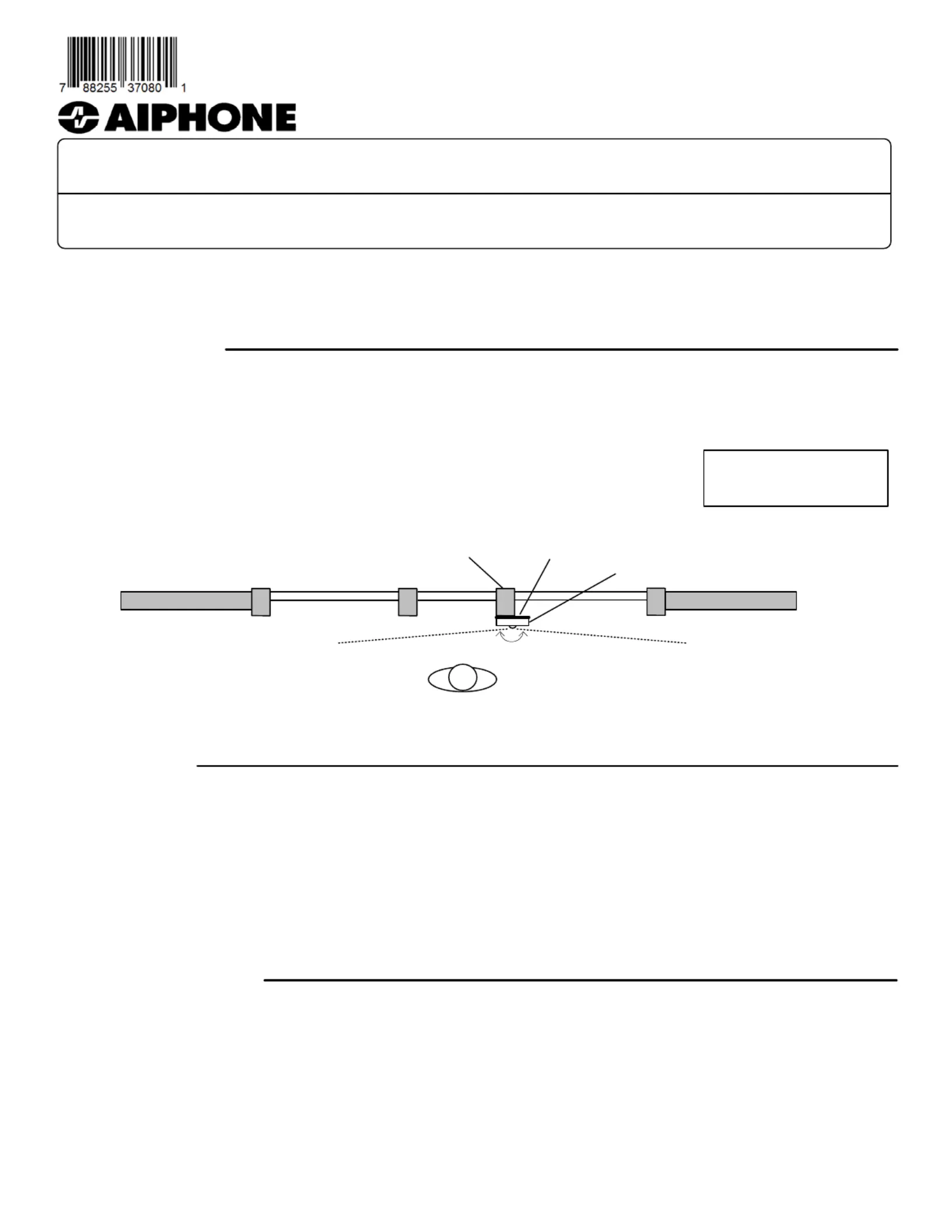

- INSTALLATION INSTRUCTIONS -
The IS-MB is a mullion mounting bracket for installing the IS-DV or IS-IPDV video door station onto a
mullion style door frame. The IS-MB can be installed on either side of the door.
IS-MB
MULLION MOUNTING BRACKET
Aiphone Corporation
www.aiphone.com
tech@aiphone.com
(800) 692-0200
IS-MB Instr.
0518
Door
Door Mullion IS-MB
DESCRIPTION
 Mullion Bracket
 Packet of screws
 Installation Manual
Package Contents
IS-DV / IS-IPDV
Door Station
Visitor
MOUNTING
1. Use template to drill out hole locations on mullion.
2. Run wires through door mullion and out to where door station will be installed.
3. Run wires through cutout of the IS-MB and mount bracket to the door frame.
4. Connect wires to the door station. Do NOT make wiring connections while the system is powered.
5. Secure the door station to the IS-MB bracket.
See back page for template of the IS-MB.
170°
SPECIFICATIONS
Color: Black
Material: Aluminum
Dimensions: 4-3/16" W x 8-½” H
IS-MB
37080 0518
IS-MB TEMPLATE for
RIGHT SIDE MOUNTING
C/L5'0"
MULLION
MULLION
IS-MB TEMPLATE for
LEFT SIDE MOUNTING
MINIMUM HOLE
SIZE: 7/64"
DRILL & TAP for 6-32
MINIMUM HOLE
SIZE: 7/64"
DRILL & TAP for 6-32
RECOMMENDED
HOLE SIZE: 3/4"
RECOMMENDED
HOLE SIZE: 5/16"
RECOMMENDED
HOLE SIZE: 5/16"
4-3/16"
8-½”
