This is an abbreviated programming manual addressing basic program settings for an IXG Series system using the

IXG Support Tool.

A complete set of instructions (IXG Operation Manual / IXG Support Tool Setting Manual) can be found at

www.aiphone.com/IXG, along with additional literature and media.

ATTENTION:

IXG SERIES

IP Multi-Tenant Video Intercom

If updating dimensions, be sure to update the GLC layer too.

Please refer to the Product Dimensions Master located here:

H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx

IXG-2C7

8-15 / 16 " 1"

5-13 / 16 "

If updating dimensions, be sure to update the GLC layer too.

Please refer to the Product Dimensions Master located here:

H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx

IX-DV

8-1/ 8 "

4-1/ 2 " 1-3/4"

If updating dimensions, be sure to update the GLC layer too.

Please refer to the Product Dimensions Master located here:

H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx

IXG-DM7

7-3/16 "

1-1/2"1/2"

13 -11/16 "

Quick Start Programming Guide

IXG Support Tool version 5.0.1.0

02/25

Table of Contents

Page 2 General Overview

Page 3-10 Creating a New System

Page 11 Mobile App Integration

Page 12 Property Manager Account Creation

Page 13 Entrance Station Settings

Page 14 Station Partitioning

Page 15 Additional Settings

Page 16-17 IXW-MA(A) Programming

Pages 18-19 Updating Station Firmware

Pages 20-23 Network Security Summary

Page 24 Notes

2 | IXG Quick Start Programming Guide

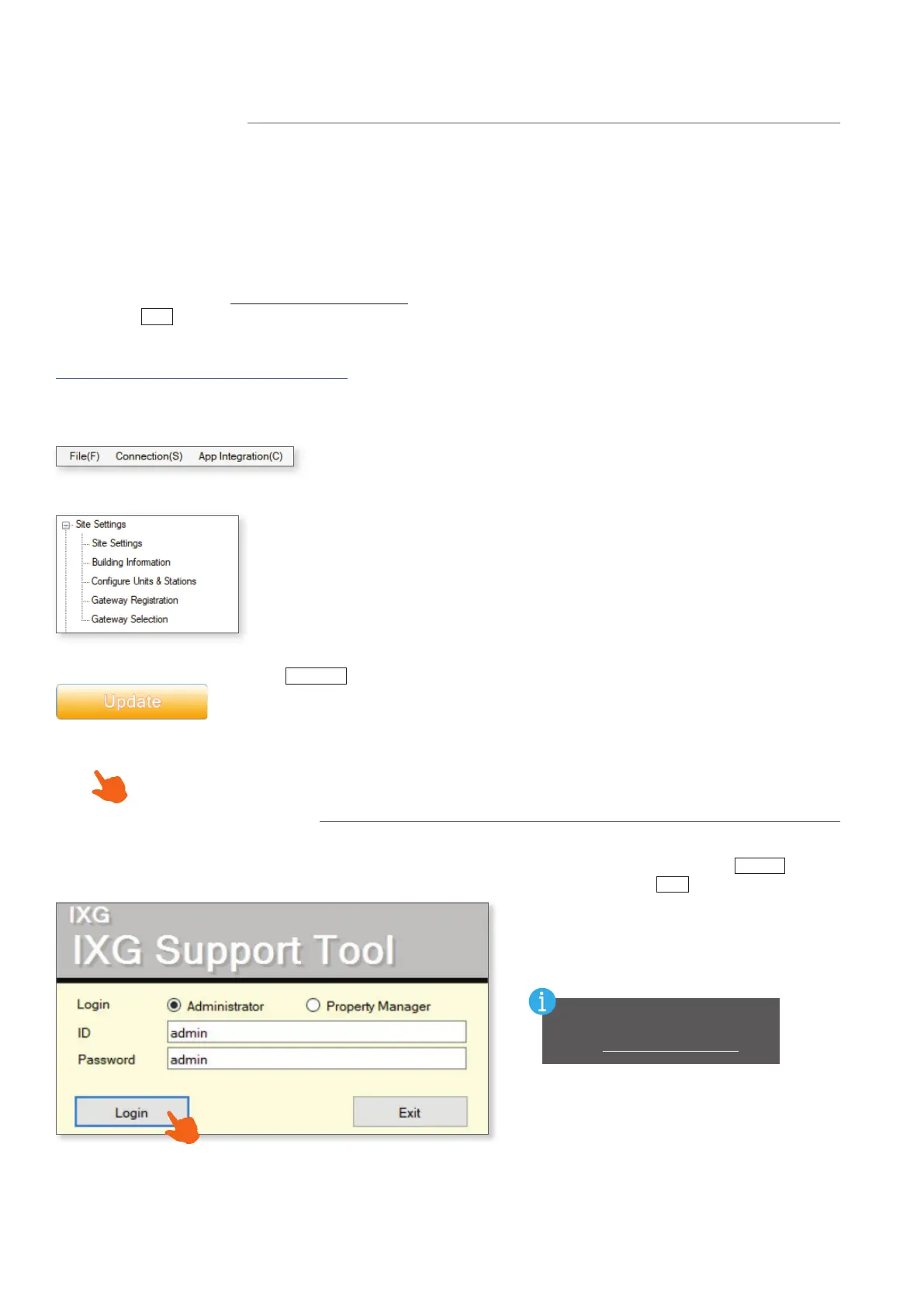

GENERAL OVERVIEW

IXG Support Tool

The IXG Support Tool is designed to batch congure all stations simultaneously. It does so by nding each station

on the network by its MAC address. The IXG Series is designed to function on a managed network. However,

the broadcast method used to nd stations during the programming process requires that stations be in the same

broadcast domain. When possible, it is recommended to place the stations and the programming PC on

the same unmanaged network for initial programming. Once the stations are associated (see page 9), the

stations can be returned to their nal locations for the rest of the programming process.

Once the system conguration has been created, the NIC used by IXG Support Tool can be manually selected in

the top menu under File, IXG Support Tool Settings by using the Select Nic drop down, choosing the proper NIC,

and clicking

The IXG Support Tool and newest rmware updates can be downloaded here:

https://www.aiphone.com/IXG-SupportTool

This menu is located at the top of Support Tool, featuring quick access to

support and integration settings. Use Alt+() to quickly access the menu

options.

Top Menu

Side Menu

This accordion menu is where most station settings are located.

Click + or - to expand or minimize a category.

Hand Icon

Look for the Hand Icon to indicate where to click to select or save a setting.

Update

The

Update

button (which may be labeled as Save in some editions of

IXG Support Tool) is used to save congured settings within Support Tool only.

Clicking the Update button does not upload setting changes to stations. The

process of uploading settings to stations is covered later in this guide.

There are two login options for Support Tool: Administrator and Property Manager. This guide is focused on

Administrator mode, so choose Administrator. The default ID and Password is admin/admin. Click

A prompt will appear to change the password. Enter a password on both lines and click

The admin ID and Password can

be changed later by navigating

to File, Account Management.

Launching Support Tool
