6-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 1 2.5G RJ45 port, 65W
Quick Setup Guide
Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
is in conformity with
In accordance with 2014/30/EU and 2014/35/EU Directive
AirLive Technology Corporation
4F, No.132, Lane 235, Baoqian Rd., Xindian Dist.,
New Taipei City 23145, Taiwan
■
■
CE marking
Name : A van Rossem
Position/ Title : Product Manager
EN 55032:2015+A11:2020
Electromagnetic compatibility (EMC)
■
EN 62368-1:2014+A11:2017
Electromagnetic compatibility (LVD)
Date : Dec 2023Place : Republic of China (Taiwan)
POE-2TX411 AT series
POE-2TX411 AT series
6-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 1 2.5G RJ45 port, 65W
POE-2TX411 AT Series
9-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 100/150W
POE-2TX801 AT Series
POE-GSH402-BT
POE-2TX801 AT series
9-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 100/150W
POE-2TX801 AT series
T yested To Compl
Wi h CC Standat F rds.
F H E CE SEOR OM OR OFFI U
FCC 47 CFR Part 15 Subpart B (Class A), ANSI C63.4:2014
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
AirLive Technology Co ion drporat eclares tha hi evt t s d ice
is in compliance with the ntesse ial require tsmen and
oth l ter re evan provis sion of i / direct ve 2014 30/EU.
Regulatory Approvals
CE Marking Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
CE Statement
This product complies with the 2014/30/EU and 2014/35/EU directives,
including the following safety and EMC standards:
EN 55032:2015+A11:2020
■
Electromagnetic compatibility (EMC)
EN IEC 61000-3-2:2019
■
Electromagnetic compatibility (EMC)
EN 61000-3-3:2013+A1:2019
■
Electromagnetic compatibility (EMC)
EN 55035:2017+A11:2020
■
Electromagnetic compatibility (EMC)
EN 62368-1:2014+A11:2017
■
Electromagnetic compatibility (LVD) - Safety
RoHS Statement
This product complies with RoHS directive 2011/65/EU and amendment
Commission Delegated Directive (EU)2015/863.
IEC 62321-3-1:2013
■
IEC 62321-5:2013
■
IEC 62321-4:2013+AMD1:2017
■
IEC 62321-7-1:2015
■
IEC 62321-7-2:2017
■
IEC 62321-6:2015
■
IEC 62321-8:2017
■
POE-2TX411
POE-2TX801
Quick Setup Guide
Installation Step:
E shngli
EN

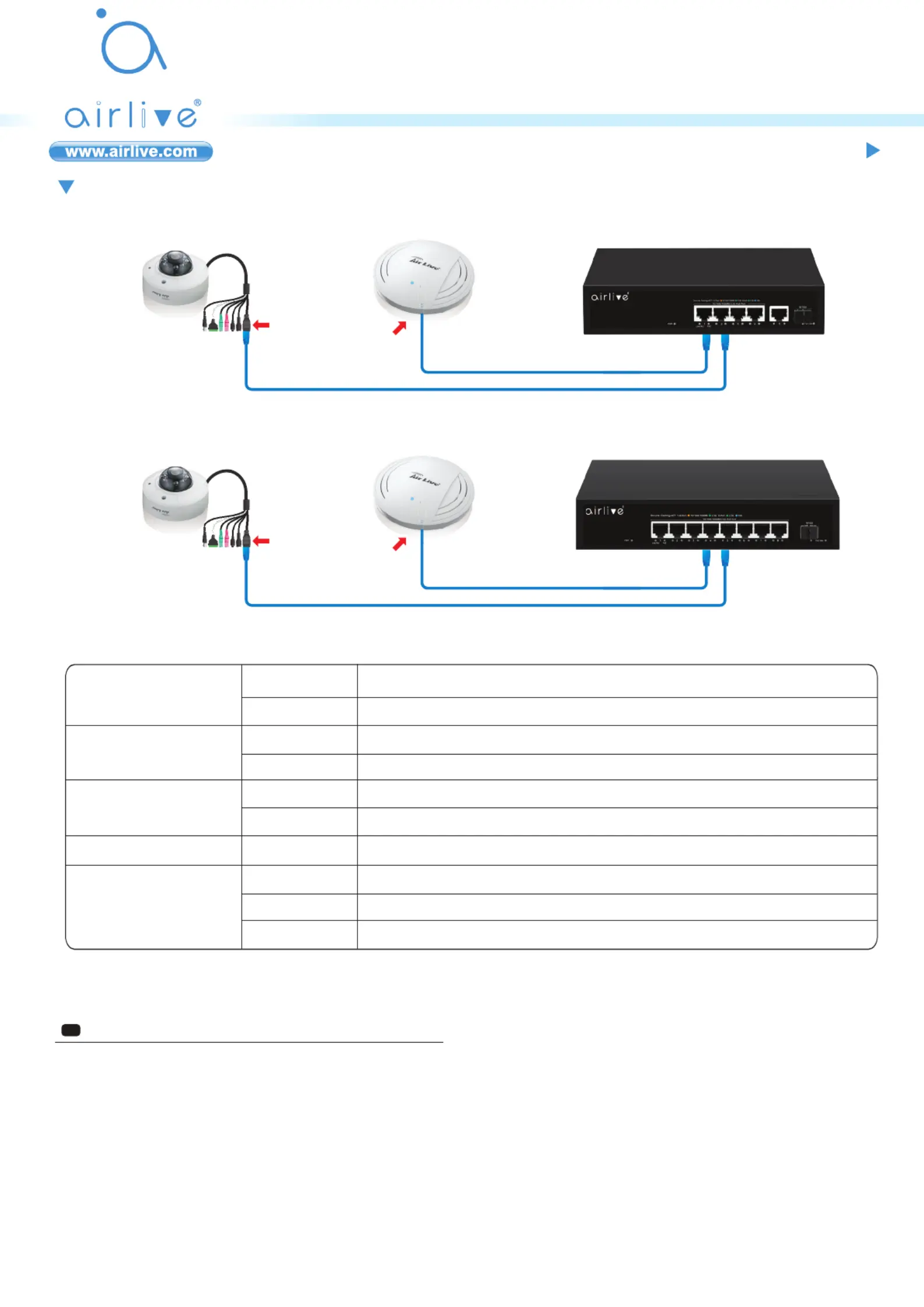

Installation Steps
PoE Port
Figure A
PoE Port
Port 1~4 30W PoE Port
Managed PoE+ Switch
POE-GSH802M
PoE Port
PoE Port
Port 1~8 30W PoE Port
ged PoE+ Switch
POE-GSH802M
Figure B
1. Remove the switch and accessories from the package.
2. Connect power to the switch. Make sure that “Power” LED is on.
3. Connect your IEEE802.3af/at compliant Power Devices (PD)
to Ports 1~4 (POE-2TX411) 1~8 (POE-2TX801) and the Switch will
automatically supply power through these ports (see Figure A/B).
4. Check the Port LED indicator status. When a PoE device is
connected and the port is supplying power, it light on.
5. For more product information visit www.airlive.com.
6-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 1 2.5G RJ45 port, 65W
POE-2TX411 AT series
9-Port 2.5G Multi Gigabit PoE+ Switch
Including 1 10G SFP+ port, 100/150W
POE-2TX801 AT series
POE-2TX411
POE-2TX801
LED DEF INIT NSIO
Power
Link/Act RJ-45
Link/Act SFP+
Red ON
Red Off
Green ON
Blue ON
Green ON
Power is on and normal.
The switch is not receiving power.
The port Status LEDs ON Link Connection 2.5Gbps.
The port Status LEDs ON Link Connection 10Gbps.
The port Status LEDs ON Link Connection 2.5Gbps.
POE
Yellow ON The port Status LEDs ON Link Connection 100/1000Mbps.
POE Max LED
Green OFF
Green Flashing
Green ON
Indicates PoE power usage is less than 90%.
Indicates PoE power usage of 90% ≤ P ≤ 95%.
Indicates that PoE power is used at 95% <P <100%.
Yellow ON The port Status LEDs ON PoE Power is connected.
