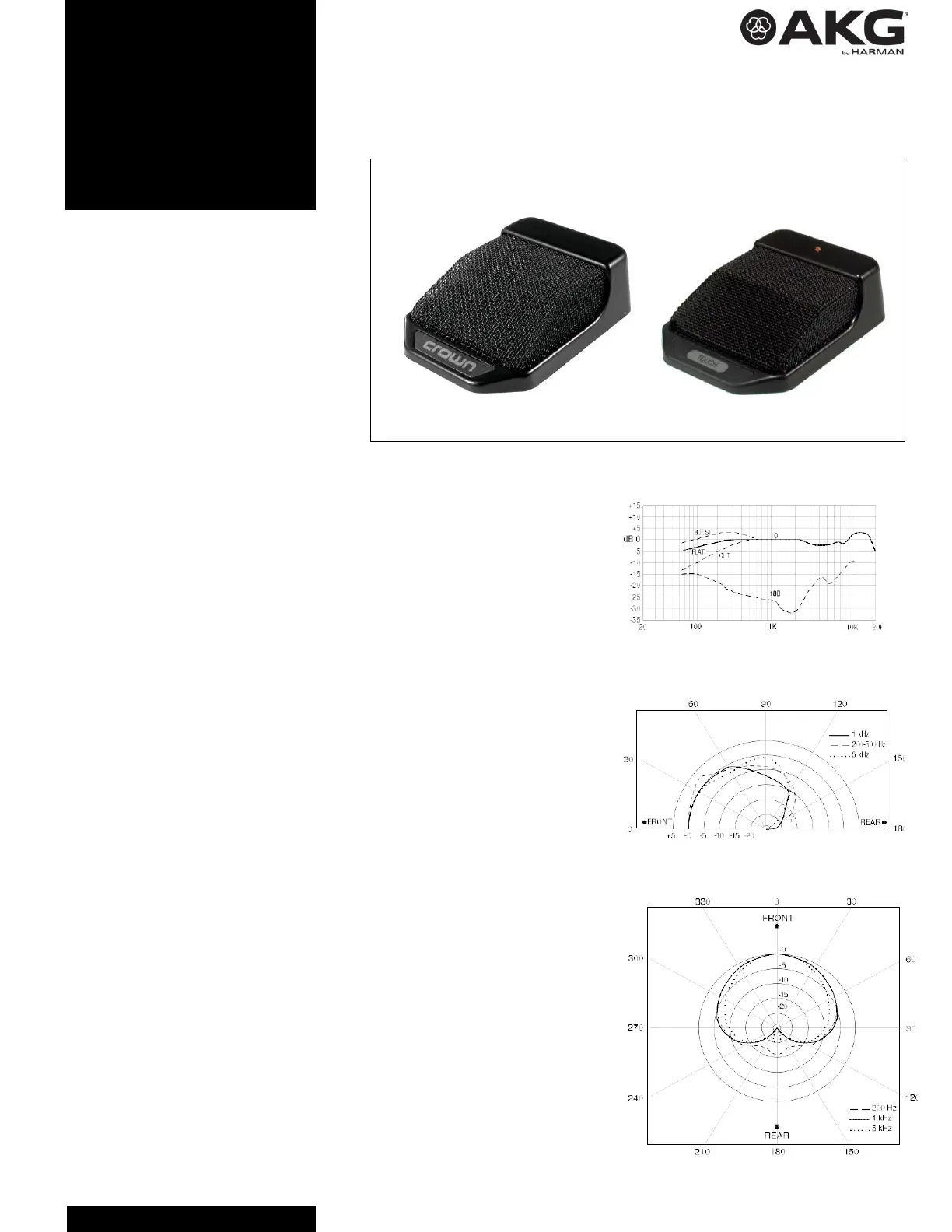

PCC130

PCC130 SW

PHASE COHERENT

CARDIOID

MICROPHONE

he AKG/Crown PCC130 is a surface-mounted

miniature cardioid microphone of profes-

sional quality. This handsomely styled unit is

appropriate for use on the most elegant board-

room table or lectern. Other applications include

churches, courtrooms and teleconferencing.

The PCC130 has the same performance as the

PCC170, but is smaller, so it is less conspicuous

on a conference table. Because of its highly direc-

tional pickup pattern, the PCC130 minimizes

background noise and feedback.

The microphone uses the principle of phase

coherency achieved by mounting a small-diameter

mic capsule very near a boundary. Direct and

reflected sound waves arrive at the mic in-phase,

and add coherently. This enhances sensitivity,

clarity and reach.

Self-contained electronics eliminate the need for

an in-line power module. Powered by 12-48V

phantom power, the PCC130 has a low-imped-

ance balanced output which permits long cable

runs without hum pickup or high-frequency loss.

Capable of withstanding up to 120 dB SPL without

distortion, the PCC130 will never overload in

practical use. Its electret-condenser capsule

provides a wide, smooth frequency response from

50 Hz to 20 kHz. RFI suppression is included. Self-

noise is low and sensitivity is very high. A bass-tilt

switch allows the user to tailor the low-end

response for particular applications.

Permanent mounting is enabled by screw holes in

the base. Engineering attention-to-detail has

assured years of reliable use from this trouble-free

microphone.

The PCC130 SW (right) has a silent-operating

programmable membrane switch that can be

configured for touch ON/OFF, momentary ON

or momentary OFF. A high-intensity LED lights

when the unit is on.

For easy installation, both microphones offer an

XLR connector and a detachable cable.

The bottom of the microphone features a three-

position BASS-TILT switch: FLAT, CUT, and

BOOST. Low-frequency response is adjustable as

shown in Fig. 1.

Installation

Typical placement for each microphone is at arm’s

length from the user. Either place one micro-

phone in front of each person or one between

every two people. The front of the microphone is

indicated by an arrow on the bottom of the base

plate.

If the microphone is used on a lectern, place it on

an open surface, not in a cavity. Otherwise the

frequency response and polar pattern will be

degraded. Set BASS-TILT to BOOST.

Specifications

Type:

Phase Coherent Cardioid

Element:

Electret condenser.

Frequency response (typical):

50 Hz to 20,000 Hz at

30 degrees incidence to surface (see Fig. 1).

Polar pattern:

Half-cardioid (cardioid in the

hemisphere above the mounting surface). See

Figs. 2 and 3.

Impedance:

150 ohms nominal (85 ohms actual),

balanced, (recommended load impedance 1000

ohms or greater).

Open circuit sensitivity (typical):

22 mV/Pa* (–33

dB re 1 volt/Pa).

Power sensitivity:

–30.5 dB re 1 mW/Pa*.

EIA rating:

–125 dBm.

Equivalent noise level (self-noise):

22 dB SPL

typical (0 dB = .0002 dyne/cm

), A-weighted.

S/N ratio:

72 dB at 94 dB SPL.

Maximum SPL:

120 dB SPL produces 3% THD.

Polarity:

Positive pressure on the diaphragm

produces positive voltage on pin 2 with respect to

pin 3

Operating voltage:

Phantom power, 12 to 48 volts

DC on pins 2 and 3 with respect to pin 1.

Current drain:

4 mA nominal.

Connector:

Switchcraft TB3M in model PCC130.

Cable:

15-foot, black, two-conductor shielded cable

with Switchcraft TA3F and A3M connectors.

Switch:

Slide switch for bass cut, bass boost, or flat.

Materials:

High-impact molded plastic and steel

mesh grille.

Finish:

Satin black (PCC130)

Net weight:

3.5 oz. (99 g). Mic and cable: 9.5 oz.

(269 g).

Dimensions:

See Fig. 5.

Optional accessories:

AKG/Crown PH1A phantom

power supply (single channel, battery or AC

adapter powered), AKG/Crown PH4B phantom

power

supply (4 channels, AC powered).

*1 pascal = 10 dynes/cm

= 10 microbars = 94 dB

SPL.

Fig. 1

Frequency Response

Frequency in Hz

Fig. 2

Vertical-Plane

Polar Response

Fig. 3

Horizontal-Plane

Polar Response

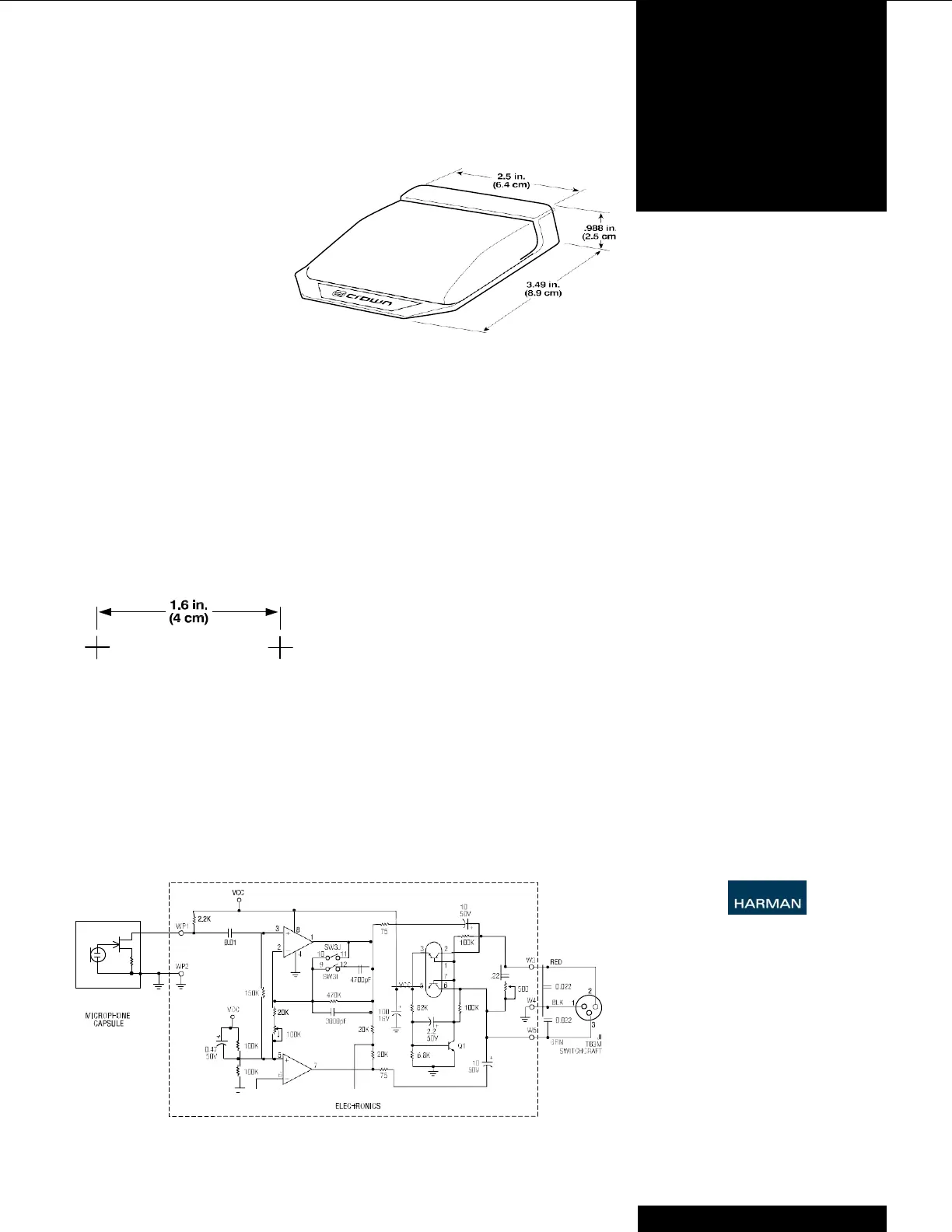

Fig. 5

PCC130

PCC130 SW

The PCC includes two keyhole slots in its base to

accept mounting screws for permanent mounting.

To screw the PCC to a table top, follow this

procedure:

Punch out the keyholes marked on the label

underneath the base plate (use a razor blade,

small screwdriver, etc.).

Using the template below (Fig. 6), mark the

location of two holes in the table where you want

to mount the mic. These holes are 1.6 inch (4 cm)

apart, center-to-center. They are 1.56 inches (3.96

cm) from the rear of the mic.

Fig. 6

Screw two #8 woodscrews (0.27-in. (7-mm)

dia. head) into the table at the locations you

marked.

Architects’ and Engineers’ Specifications

The microphone shall be the AKG/Crown Model

PCC130 or equivalent. The microphone shall be

half-cardioid electret condenser type, utilizing a

subminiature transducer of rugged construction.

The microphone shall employ the principle of

phase coherency achieved by mounting a small-

diameter element very near a boundary, thus

eliminating comb filtering in the audible spectrum.

The microphone will exhibit excellent off-axis

response and gain-before-feedback.

A 15-foot (4.6 m), two-conductor shielded cable

with TA3F and A3M connectors shall be supplied

with the microphone.

Nominal sensitivity shall be 22 mV/Pa. Maximum

SPL shall be 120 dB SPL for 3% THD. Equivalent

noise shall be 22 dBA nominal. Frequency re-

sponse shall be 50 Hz to 20,000 Hz with a uniform

off-axis response, over 20 dB down at the rear

null.

The AKG/Crown PCC130 is specified.

Service

If the microphone does not function properly,

check that it is aimed correctly and is configured

and connected as described in this data sheet.

If there is hum or no signal, first repair or replace

the

cable. If you determine that the microphone

product is defective, return the complete product in

its original packaging to one of the addresses

below

. For further assistance or technical support

call

the international helpdesk at

+43 676 83200 888.

Warranty

AKG/Crown professional microphones are

guaranteed

unconditionally against malfunction

from any

cause for a period of three years from

date of original purchase. See enclosed warranty

sheet

for additional information.

PCC130 Schematic

AKG ACOUSTICS GMBH

LAXENBURGERSTRASSE 254

1230 VIENNA

AUSTRIA

AKG ACOUSTICS, U.S. SERVICE

24950 GROVE VIEW ROAD

MORENO VALLEY, CA 92551

U.S.A

of AKG Acoustics GmbH, registered in the United

States and/or other countries.

Features, specifications and appearance are subject

to change without notice.

www.akg.com
