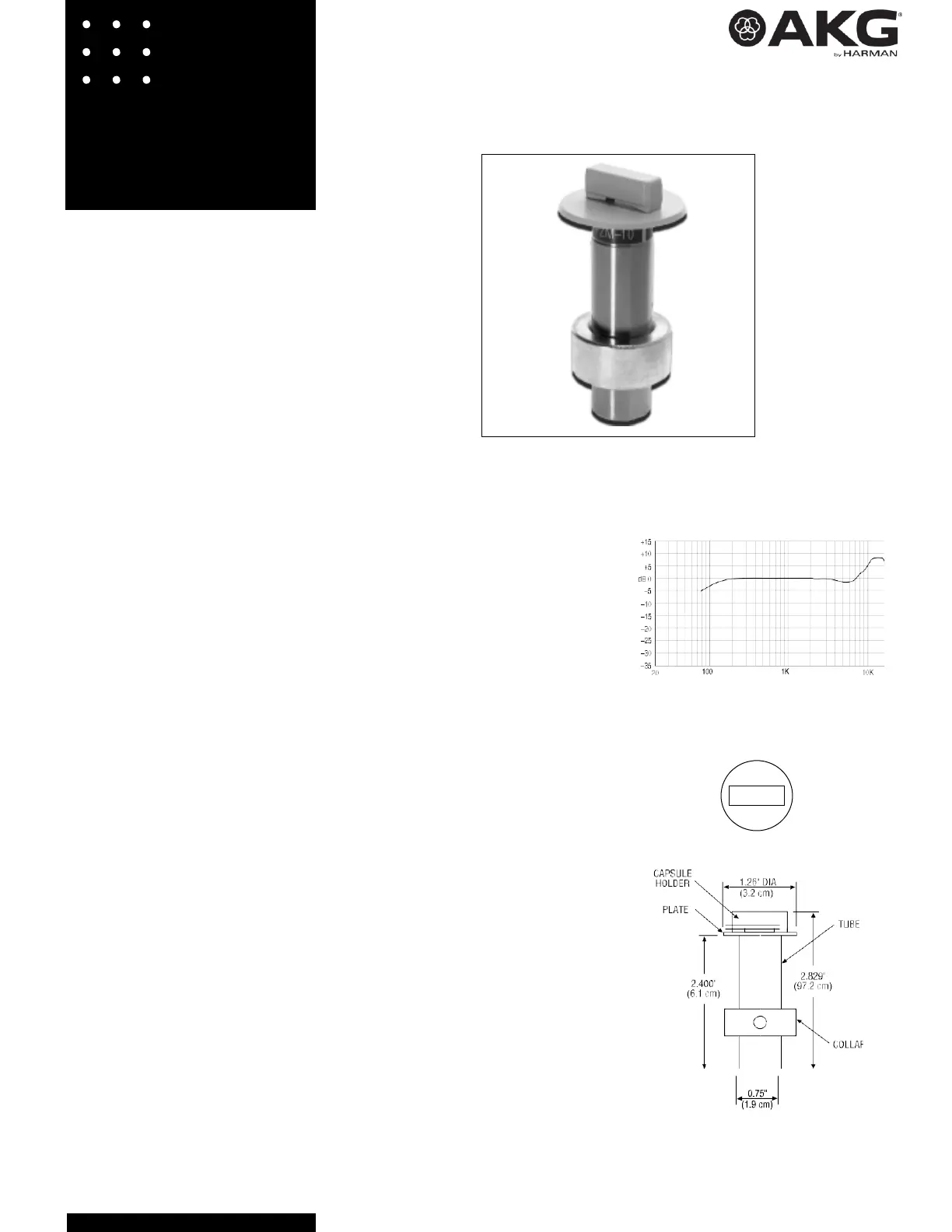

PZM 10 (LL)

he A K G / C r o w n PZM10 is a Pressure

Zone Microphone

designed for

security, surveillance, and conference-

table use.

PRESSUREZONE

MICROPHONE

Since it does not look like a microphone, it is

inconspicuous. The mic’s tubular housing

mounts in a 25/32" diameter hole in a ceiling

panel, wall or table.

Like other Pressure Zone Microphones, the

PZM10 uses a miniature mic capsule

mounted very near a sound-reflecting plate or

boundary, in the Pressure Zone. In this zone,

direct sound from the sound source combines

in phase at all frequencies with reflected

sound off the boundary. The benefits are

many: 6 dB more sensitivity, 6 dB less noise, a

wide smooth frequency response free of

phase interference, excellent clarity and

“reach,” and consistent pickup anywhere

around the mic.

In the PZM10, low frequencies below the

voice range are rolled off to reduce pickup of

air conditioning rumble. The high-frequency

response is boosted slightly to help articula-

tion. Because of its tailored response and PZM

construction, the PZM10 will pick up conver-

sations or other desired sounds with extra

clarity and definition.

The microphone connector is an XLR type

(3-pin pro audio) for easy plug-in installation.

The output is balanced, low impedance, which

allows long cable runs without hum pickup or

high-frequency loss. Powering is by 12 to

48 V phantom power.

The PZM10 LL has a line level output.

The mic’s humbucking transformer and steel

case prevent hum pickup, even near fluores-

cent lights.

Installation

To pick up speech at a small conference table

(about 6 feet square), mount one PZM10 in

the middle of the table. For longer tables, use

one PZM in the middle of every 4 to 6 people.

No person should be more than 3 feet from

the nearest microphone.

1. Please refer to Fig. 2 and identify the parts

shown.

2. Determine where you want to install the

microphone, and drill a 25/32" diameter hole

Specifications

Transducer type: Electret condenser.

Frequency response (typical): 80 Hz to 20,000

Hz. See Fig. 1.

Polar pattern: Hemispherical.

Impedance: 240 ohms, balanced. Recom-

mended minimum load impedance 1000

ohms.

Open circuit sensitivity:

2.5 mV/Pa* (–52 dB V/Pa).

Power sensitivity: –52 dBm/Pa*

Equivalent noise level (self-noise):

26 dB SPL typical (0 dB = 0.0002 dyne/cm

A-weighted.

S/N Ratio: 68 dB at 94 dB SPL.

Maximum SPL: 120 dB SPL produces 3% THD.

Operating voltage: 12 to 48 V phantom power,

positive voltage on pins 2 and 3 with respect

to pin 1.

Polarity: Positive pressure on the diaphragm

produces a positive voltage on pin 2 with

respect to pin 3 of output connector.

Current drain: 400 microamperes.

Output connectors:

PZM10: Ma le XLR type (3-pin pro audio).

PZM10 LL: Line level output,

unterminated cable.

Cable: None supplied. Use 2-conductor shielded

mic cable.

Materials: Steel plate and housing.

Finish: Off-white. May be painted any color; take

care to first seal the opening between the

capsule and boundary plate.

Net weight: 2.6 oz. (73.6 g).

Dimensions: See Fig.2.

Fig. 1

Fig. 2

Frequency Response

Frequency in Hz

there.

* 1 pascal = 10 dynes/cm

= 10 microbars = 94 dB SPL.

3. Obtain some 2-conductor shielded mic

cable, long enough to run from your equip-

ment input to the microphone. If space is tight

behind the mounting surface, obtain a right-

angle female XLR connector. Solder the fe-

male XLR connector onto the cable: shield to

pin 1, hot lead to pin 2, other lead to pin 3.

4. Run the female XLR and mic cable to the

hole.

5. Using a 5/32" Allen wrench, remove the

collar from the microphone. Insert the micro-

phone tube into the hole.

6. Slide the collar onto the mic tube. Pull the

plate tight against the hole and press the collar

tight against the mounting surface. Tighten

the Allen screw in the collar.

7. Plug your mic cable into the microphone.

8. Plug the other end of your mic cable into

one of these devices:

* A mic preamp that supplies phantom power.

* A mixer that supplies phantom power.

* A phantom power supply, such as the A K G /

C r o w n PH4B or PH1A.

Connect the output of the supply to the mic

input of your mic preamp, mixer or recorder.

Architects’ and Engineers’ Specifications

The microphone shall be the A K G / C r o w n

PZM10 or equivalent. The microphone shall

be a electret condenser Pressure Zone

Microphone with a hemispherical polar

pattern. The microphone shall have a tubular

housing which mounts in a 25/32" diameter

hole. Open-circuit sensitivity shall be 2.5

mV/Pa typical. Equivalent noise level shall be

26 dBA typical. Maximum SPL shall be

120 dB for 3% THD. Powering shall be 12-48

V phantom power. Output connector shall be

male XLR-type.

The A K G / C r o w n PZM10 microphone is

specified.

Warranty

A K G / C r o w n professional microphones are

guaranteed unconditionally against

malfunction from any cause for a period of

three years from date of original purchase.

Please refer to the enclosed full warranty

statement for more detail.

Service

If the unit fails to work, first replace or repair

the mic cables and check the power supply. If

you determine that the microphone

product is defective, return the

complete product in its original

packaging to one of the addresses

below. For further assistance or

technical support call the international

helpdesk at +43 676 83200 888.

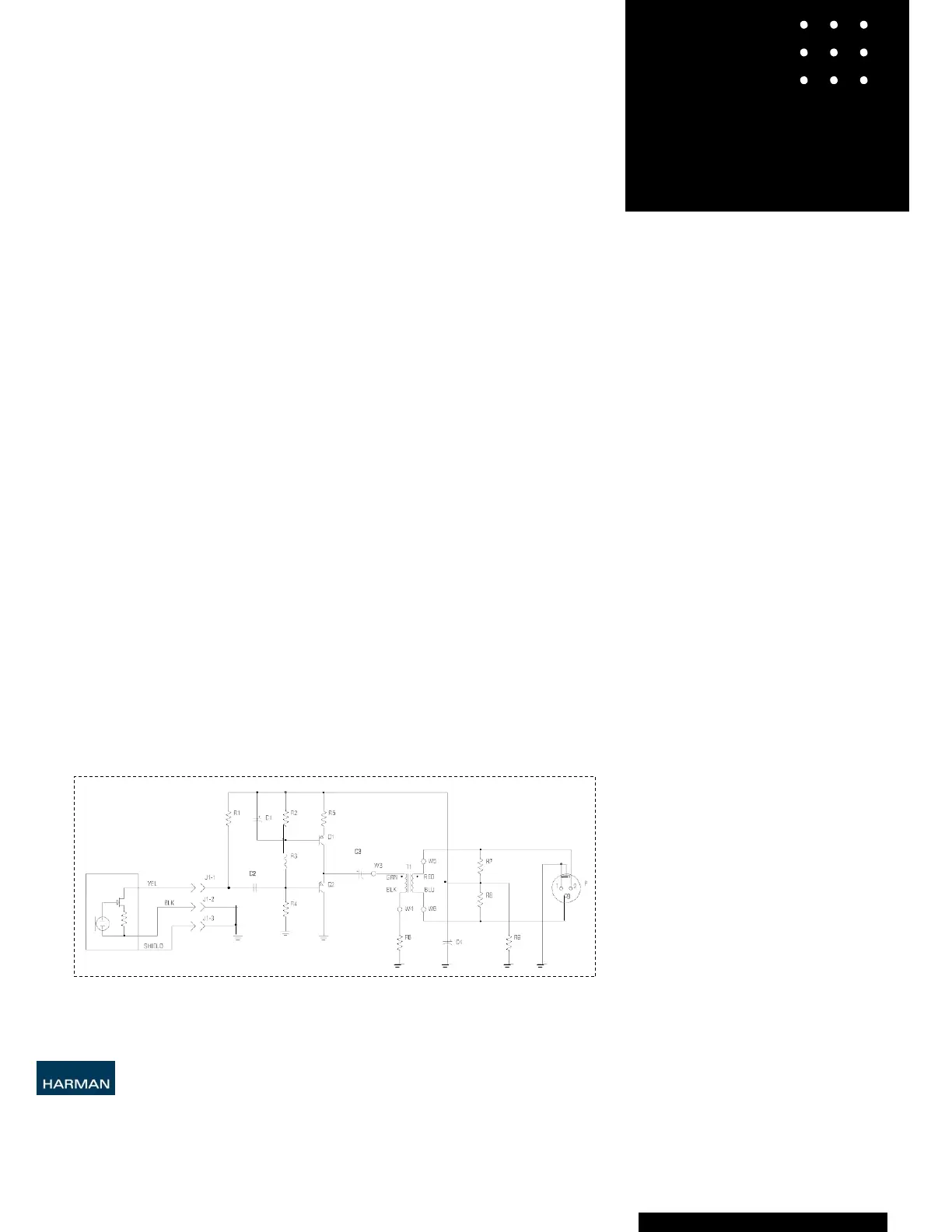

PZM10 Schematic

AKG ACOUSTICS GMBH LAXENBURGER STRASSE 254, 1230 VIENNA/AUSTRIA

AKG ACOUSTICS, U.S. SERVICE 24950 GROVE VIEW ROAD, MORENO VALLEY, CA 92551, U.S.A

and/or other countries.

Features, specifications and appearance are subject to change without notice.

www.akg.com

PZM10 (LL)
