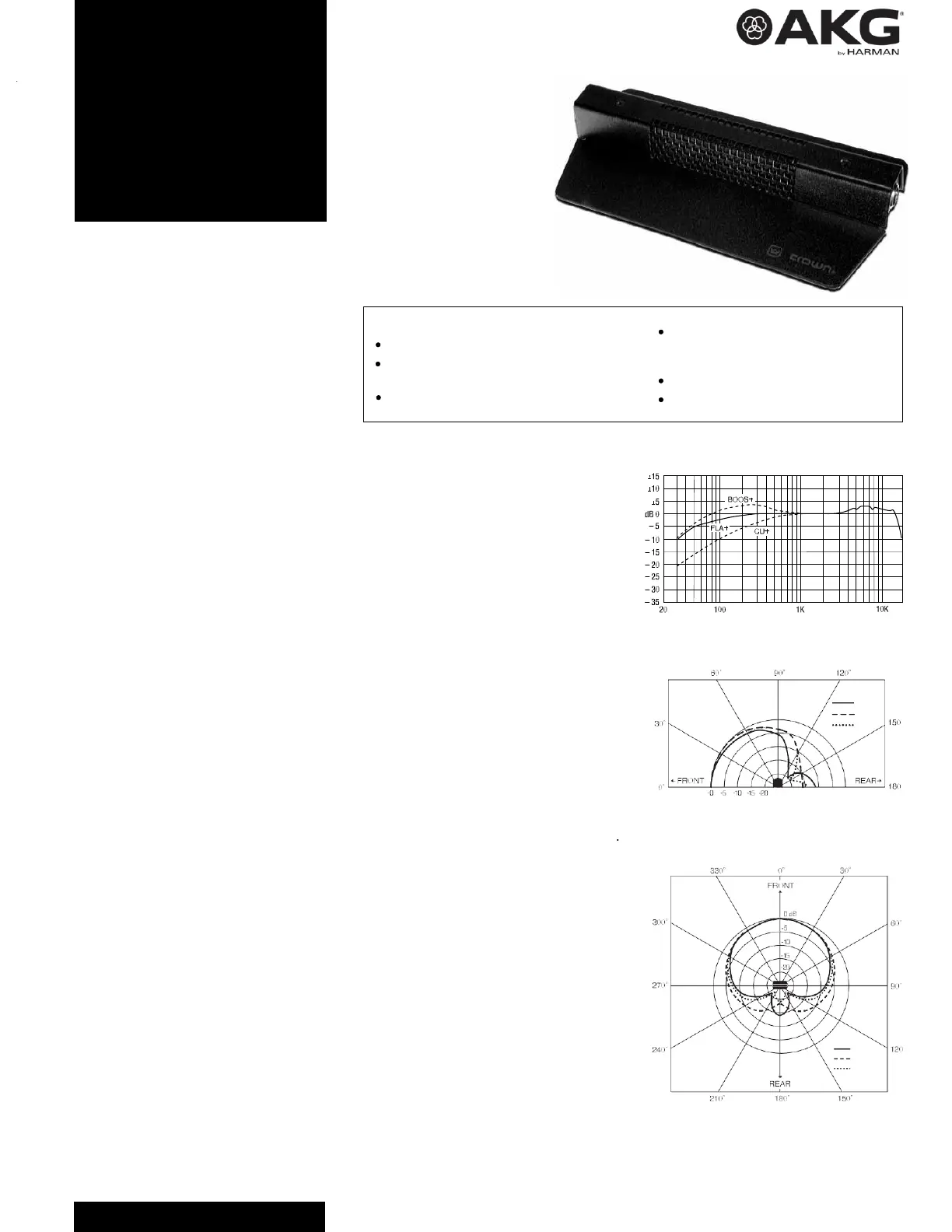

PHASE COHERENT

CARDIOID MICROPHONE

PCC160

he AKG/Crown

PCC160 (Phase

Coherent

Cardioid

) is a surface-

mounted half - supercardioid

microphone intended for professional

applications on stage floors, lecterns,

conference

tables, and news desks—wherever

improved gain-

before-feedback and articulation are important.

Similar to the Pressure Zone Microphone

(PZM

), the PCC is designed to be used on a

relatively large boundary surface. Unlike the PZM,

the Phase Coherent Cardioid uses a subminiature

supercardioid mic capsule. Its directional polar

pattern improves gain-before-feedback, reduces

unwanted room noise and rejects sounds from the

rear. Surface-mounting creates a “half-supercardi-

oid” polar pattern and increases directivity 3 dB.

Since the microphone capsule is placed on a

boundary, direct and reflected sounds arrive at

the diaphragm in-phase. This coherent addition

of direct and reflected waves increases sensitivity

6 dB and prevents phase cancellations. The mic

capsule is small enough to ensure phase coher-

ency up to the highest frequencies in the audible

spectrum, resulting in a wide, smooth frequency

response free of phase interference. Clarity and

reach are also enhanced.

Self-contained electronics eliminate the need

for an in-line preamp box. The PCC160 can be

phantom powered directly from the console or

other remote power source providing 12 to 48

volts. If battery power is required, a battery supply

unit can be inserted anywhere in the mic line right

up to the console or mixer. A “bass tilt” switch

allows the user to tailor the low-end response for

particular applications.

Thanks to its low profile and black finish, the

microphone becomes almost invisible in use. A

side-mounted connector complements the form

factor of the PCC160, allowing the unit to be

placed effectively at the stage edge, at the top of a

lectern or in other tight spots. If desired, the cable

can be hard-wired for bottom entry.

The heavy-gauge, all steel body protects the unit

from accidental abuse. Permanent mounting is

enabled by screw holes in the base. Engineering

attention-to-detail has assured years of trouble-

free use from this reliable microphone.

Capable of withstanding up to 120 dB SPL with-

out distorting, the PCC160 will never overload

in practical use. Its electret condenser capsule

provides a wide, smooth frequency response from

50 Hz to 18 kHz. RFI suppression is included.

Self-noise is low, and sensitivity is very high to

override mixer noise in distant-miking applica-

tions. Output impedance is 150 ohms, balanced.

Features

Industry-standard stage floor microphone

Phase Coherent Cardioid design prevents color-

ation from surface sound reflections

High output overrides mixer input noise

Specifications

Type:

Phase Coherent Cardioid.

Element:

Electret condenser.

Frequency response (typical):

50 Hz to 18,000 Hz at

30 degrees incidence to surface. See Fig. 1.

Polar pattern:

Half-supercardioid (supercardioid in the

hemisphere above the primary boundary).

See Fig. 2 and Fig. 3.

Impedance:

150 ohms nominal (85 ohms actual),

balanced. (Recommended load impedance 1000

ohms or greater.)

Open-circuit sensitivity:

22mV/Pa* (–33 dB re 1

V/Pa*).

Power sensitivity:

–31 dB re 1 milliwatt/Pa*

EIA rating: - 123 dBm .

Equivalent noise level (self noise):

22 dB typical

dB = 0.0002 dyne/cm

), A-weighted.

S/N ratio:

72 dB at 94 dB SPL.

Maximum SPL for 3% THD:

120 dB SPL.

Polarity:

Positive pressure on the diaphragm pro-

duces positive voltage on pin 2 with respect to pin

3 of output connector.

Cable:

15-foot, black, two-conductor shielded cable

with Switchcraft TA3F connector and A3M con-

nector.

Operating voltage:

Standard phantom power

12 to

48 volts DC positive on pins 2 and 3 with respect

to pin 1.

Safe Operating Temperature:

–10° to +50° C or

+14° to +122° F.

Current drain:

4 mA nominal.

Materials:

All steel body construction.

Finish:

black.

Net weight:

11.5 oz. (326 g).

Dimensions:

See Fig. 5.

Optional accessories:

AKG/Crown PH1A phantom

power supply (one channel, battery or AC-adapter

powered).

*1 pascal = 10 dynes/cm

= 10 microbars = 94 dB SPL.

Half-supercardioid polar pattern rejects the

pit orchestra and offers high gain-before-

feedback

Very rugged

Low profile

Fig. 1

Frequency Response

Frequency in Hz

Fig. 2

Vertical Plane Polar Response

1 kHz

200 Hz

4 kHz

Fig. 3

Horizontal Plane Polar Response

1 kHz

200 Hz

4 kHz
