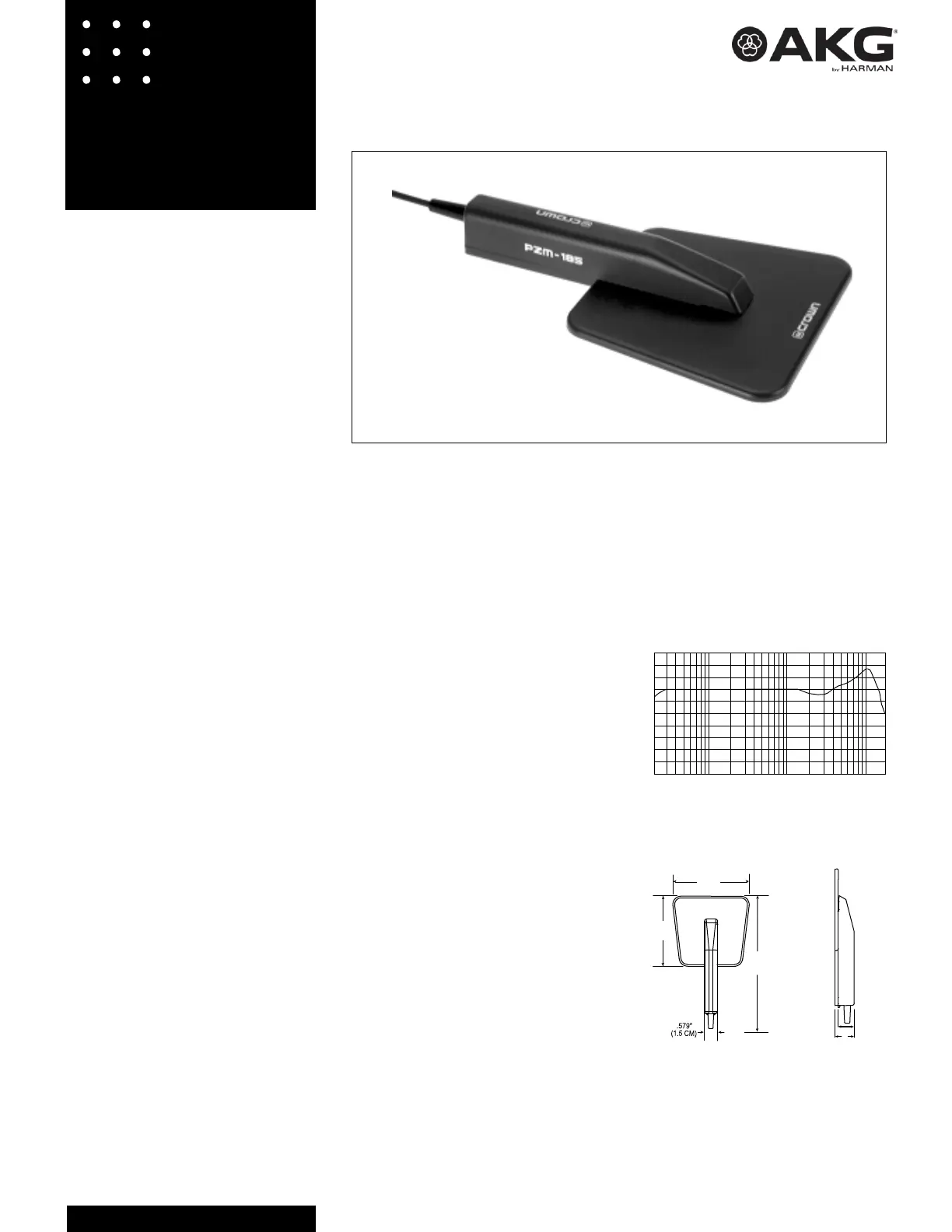

Side 1/2

5.90"

(

15.0 CM)

PRESSURE

ZONE

MICROPHONE

PZM185

he PZM185 is a Pressure Zone Micro-

phone

for general-purpose use. Ideal for

applications such as conferences, group

discussions, interviews, broadcast, home video

production, lectures, and recordings. The mic

can be placed on a large surface such as a

table, floor, wall, or lectern.

The PZM185 is powered either by an internal

AAA 1.5V battery or 12-48 volt phantom power.

The boundary “paddle” can be detached so the

mic will fit in your pocket. Attached to the mic is

an 8-foot (2.438-m) cable leading to a tubular

power module.

The microphone’s low-profile design reduces

“mic fright” and minimizes clutter. It is nearly

invisible on camera. The PZM185 minimizes

pick up of vibration and handling noise.

Its electret condenser capsule provides a wide,

smooth frequency response from 50 Hz to

16 kHz . The mic’s hemispherical polar pattern

allows clear pickup of everyone surrounding

the microphone.

The PZM185 is protected against static and

RFI. The output is balanced, low impedance,

which allows long cable runs without hum

pickup or high-frequency loss.

Like other Pressure Zone Microphones, the

PZM185 uses a miniature mic capsule

mounted very near a sound-reflecting plate or

boundary in the Pressure Zone. In this zone,

direct sound from the sound source combines

Specifications

Element: Electret condenser.

Frequency response (typical): 50 Hz to 16 kHz

(see Fig. 1.)

Polar pattern: Hemispherical (half-omni) on a large

surface.

Impedance: 150 ohms, balanced. Recommended load

impedance 1000 ohms.

Open circuit sensitivity (1.5V battery power):

0.8mV/Pa (–62 dB re 1 volt/Pa* ).

Power sensitivity (1.5V battery power): –59.5 dBm.

EIA sensitivity –154 dBm.

Open-circuit sensitivity (phantom power):

3.2 mV/Pa* (–50 dB re 1V/Pa).

Power sensitivity (phantom power): –47.5 dBm.

EIA sensitivity –142 dBm.

Equivalent noise level (self-noise): 21 dB SPL typical,

A-weighted (0 dB = .0002 dyne/cm

S/N ratio: 73 dB at 94 dB SPL.

Maximum SPL: 120 dB SPL produces 3% distortion

Optional accessories: A K G / C r o w n PH 4B phantom

power supply (4 channels, ACpowered).

A K G / C r o w n PH 1 A phantom power supply

(1 channel, battery or AC powered).

* 1 pascal = 10 dynes/cm

= 10 microbars = 94 dB SPL.

Fig. 1

Frequency Response

+15

+10

dB 0

–5

–10

–15

–20

–25

–30

–35

in phase at all frequencies with reflected sound

off the boundary. The benefits are many: 6 dB

more sensitivity, 6 dB less noise, a wide smooth

frequency response free of phase interference,

excellent clarity and “reach,” and consistent

pickup anywhere around the microphone.

Operating Instructions

You can power the PZM185 either by 12-48

volt phantom power or battery power. To use

phantom power, plug the mic connector into a

phantom power supply or into a mic input that

provides 12-48 volt phantom power.

To use battery power, open the cover

(see Fig. 3) and insert a AAA 1.5V battery.

Please note the correct orientation of the

battery.

If you’re using the microphone on a hard sur-

face, such as a table top, the boundary “paddle”

is not necessary. If you’re using the mic on a

carpet or other sound-absorbing surface, attach

the boundary “paddle” for best results.

with phantom power.

Polarity: Positive pressure on the diaphragm produces

positive voltage on pin 2 with respect to pin 3 of the

output connector.

Cable: 8 foot (2.438m), 2-conductor shielded, perma-

nently attached. No other cable supplied; use 2-

conductor shielded mic cable.

Output connector: 3-pin XLR-type pro audio connector.

Operating voltage: One 1.5-volt size AAA alkaline

battery (Duracell MN2400 or equivalent) or 12 to

48V phantom power (positive voltage on pins 2 and

3 with respect to pin 1).

Battery life: Approximately 45 days.

Current drain: 0.5 mA.

Materials: High-impact plastic housing and steel

power module.

Finish: Satin black.

Dimensions: See Fig. 2.

Weight: 4 ounces (115 grams).

Included accessories: 1.5V AAA battery.

20 100 1K

Frequency in Hz

Fig. 2

3.409"

(8.7 CM)

3.129"

(7.9 CM)

.732"

(1.86 cm)

10K 20K

.607"

(1.5 cm)
