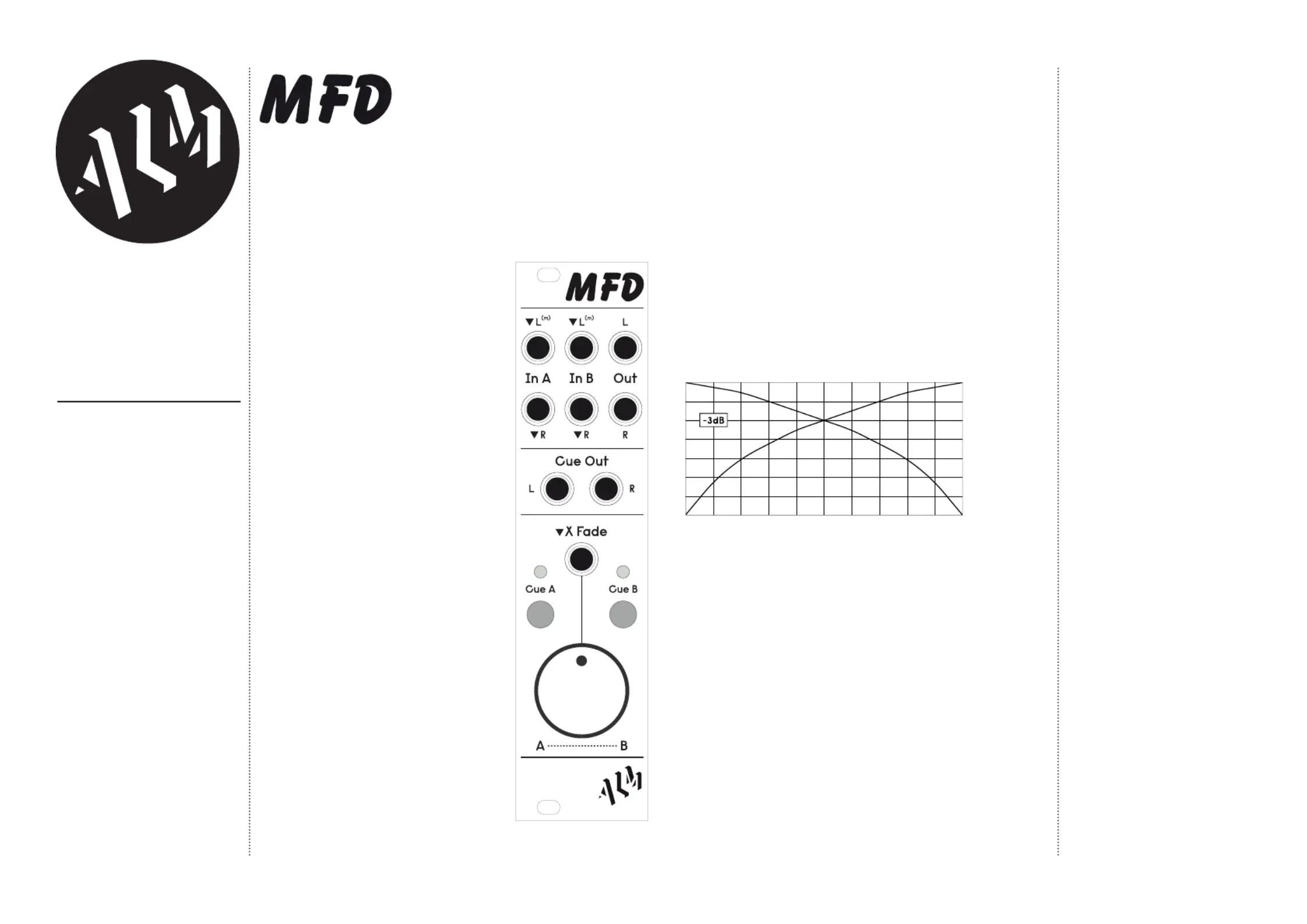

The ‘MFD’ is a 2-channel stereo crossfader designed for live DJ-style mixing and jamming in Eurorack. Two mono or stereo inputs are
mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via
dedicated Cue switches and an output. Voltage control over the crossfade and DC coupling allow for further creative uses such as a high
quality stereo VCA or as a mix processor for either stereo audio signals or CV. The MFD is designed to have very low noise and cross bleed
and employs equal power crossfading for smooth constant level blending between signal sources.
http://busycircuits.com/alm044
TECHNICAL SPECIFICATIONS
Power: +12V 70mA / -12V 70mA
Depth: 32mm
ALM044 / MFD
Limited Warranty
From the date of manufacture this
device is guaranteed for a period of 2
years against any manufacturing or
material defects. Any such defects
will be repaired or replaced at the
discretion of ALM. This does not
apply to;
•Physical damage arising from mis
treating (i.e dropping, submerging,
‘modding’ etc).
•Damage caused by incorrect power
connections.
•Overexposure to heat or direct
sunlight.
•Damage caused by inappropriate or
misuse.
•Use of incorrect or non official
firmware
No responsibility is implied or
accepted for harm to person or
apparatus caused through operation
of this product. By using this product
you agree to these terms.
Support
Need help? Email your questions to
help@busycircuits.com
For the latest news, additional info,
downloads and firmware updates
please visit the ALM website at
busycircuits.com
Follow @busycircuits on Twitter
and Instagram for news, tips and
ideas.
Visit ‘ALM TV’ on Youtube for module
video tutorials and demos.
Module Installation
With your modular synth
powered , connect the 10 pin off
end of the supplied standard
eurorack power connector cable
to the 10 pin power connector on
the rear of the module.
The red stripe on the cable
should be orientated to match
the text ‘RED’ marked on the
rear of the module near the
power connector (this is -12V).
Connect the other 16 pin end of
the cable to your eurorack bus
board (Refer to your bus board
documentation for the correct
orientation).
You are now safe to power
up your modular synth. If the
module fails to power up, check
that you have the power cable
correctly orientated and have
carefully read the manual.
All ALM modules feature reverse
power protection.
ALM044 manual version: 0.1
A & B INPUTS
Stereo L/R signal inputs. Left input
normalised to Right for mono
signals. DC Coupled for use with
audio & CV.
CUE OUT
Stereo Cue output pair for pre
crossfader monitoring of A & B
input signals via a headphone
amp.
X FADE CV INPUT
CV control input for stereo X Fade control. The
X Fade knob acts as an offset to incoming CV
signals. -5V - 5V
X FADE CONTROL
Manual crossfader offset control for blending
stereo A & B input signals.
MAIN OUT
Stereo L/R crossfader outputs.
CUE A & B BUTTONS / LEDS
Latching switches for routing the
A & B input pairs to the Cue Out
for pre crossfader monitoring.
Associated LEDs will light to
show an input is being cued.
