The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates both MIDI clock and 2 Channels of MIDI note,

velocity and gate information to corresponding voltage control signals. The mmMidi is quick to set up and requires minimal conﬁguration.

Easily MIDI control a couple of synth voices, sync clocks to MIDI clock and trigger drum or sample modules with the optional expander.

CLOCK OUTPUT

If a MIDI clock is present a

24 PPQN clock will output from

the p1-x24 jack and a gate from the

Run output. The RUN output

is high when the MIDI clock is

playing. Note, this is the default

clock format ALM’s

Pamelas NEW Workout expects.

CHANNEL SETUP

• Connect mmMidi to your MIDI controller (DAW, keyboard etc - a

MIDI device you can set the channel and send key presses). Set the

required MIDI channel on the controller corresponding to the ﬁrst

voltage output channel of the mmMidi.

• Hold the ‘Learn’ button for approx 1 second until activity light starts

ﬂashing rapidly.

• On MIDI controller press a key so a MIDI note is sent to mmMidi.

The activity light should now ﬂash faster indicating mmMidi has

‘learnt’ the channel.

• Now change the MIDI channel on the controller for the second

voltage output channel and again press a key to send another note.

mmMidi activity LED ﬂashes faster again, acknowledging second

MIDI channel is now set.

• Finally select a third MIDI channel (for optional expander - even if

it’s not present) and press a key on MIDI controller. The LED will stop

ﬂashing and mmMidi is now ready to use with the conﬁgured MIDI

channels. Setup is remembered across power cycles.

NOTE:

→ From the factory mmMidi is conﬁgured to MIDI channels 1,2 & 3.

→ You can cancel setup anytime by pressing ‘Learn’ again for 1 sec.

→ The same MIDI channel number can be used across all outputs.

ACTIVITY LED

Highlights when MIDI activity is

received for conﬁgured

channels 1 & 2.

OUTPUTS

Voltage outputs for

channels 1 and 2.

V/Oct & Velocity are 0-8V range.

Gates are +5V

MIDI TRS INPUT

Use included TRS to DIN adap-

tor cable (Type B) to connect

mmMidi to MIDI controller.

OPTIONAL EXPANDER

The ‘mmT’ is an optional 3HP expander which

connects directly to the ‘expand’ socket on the

rear of the mmMidi using supplied cable. It maps

the third conﬁgured MIDI channel key presses to

corresponding trigger/gate outputs as shown on

the mmT front panel.

It’s useful for controlling drum modules and in

particular the ALM Squid Salmple.

http://busycircuits.com/alm023

TECHNICAL SPECIFICATIONS

Power: +12V 30ma / -12V 0ma

Size: 4HP

Depth: 38mm

Resolution: 12Bit 0-8V via CV

outputs. +5v via gates

ALM023 / mmMidi

Limited Warranty

From the date of manufacture this

device is guaranteed for a period of 2

years against any manufacturing or

material defects. Any such defects

will be repaired or replaced at the

discretion of ALM. This does not

apply to;

•Physical damage arising for mis

treating (i,e dropping, submerging

etc).

•Damage caused by incorrect power

connections.

•Overexposure to heat or direct

sunlight.

•Damage caused by inappropriate or

misuse.

•Use of incorrect or non ofﬁcial

ﬁrmware

No responsibility is implied or

accepted for harm to person or

apparatus caused through operation

of this product. By using this product

you agree to these terms.

Support

Need help? Email your questions to

help@busycircuits.com

For the latest news, additional info,

downloads and ﬁrmware updates

please visit the ALM website at

http://busycircuits.com and follow

@busycircuits on Twitter and Insta-

gram.

Module Installation

With your modular synth

powered connect the 10 pin off

end of the supplied standard

eurorack power connector cable

to the 10 pin power connector on

the rear of the module.

The red stripe on the cable

should be orientated to match

the text ‘RED’ marked on the

rear of the module near the

power connector (this is -12V).

Connect the other 16 pin end of

the cable to your eurorack bus

board (Refer to your bus board

documentation for the correct

orientation).

You are now safe to power up

your modular synth. If the mod-

ule fails to power up check you

have the power cable correctly

orientated and have carefully

read this manual.

Firmware Updates

Firmware updates can be sent over

sysex using a program like ‘Sysex

Librarian’ on Mac or ‘MIDIOX’ on

Windows. Load the ﬁrmware sysex

ﬁle and power on the mmMidi with

‘Learn’ button held down (Activity LED

will light and remain lit indicating it

is ready to receive Sysex data). Re-

lease button and then send ﬁrmware

data from your sysex program. Activ-

ity LED will ﬂash to incate progress.

When all data received mmMidi

will reboot with updated ﬁrmware

installed.

ALM023 manual version: 0.1

mmMidi

LEARN BUTTON

Used for channel setup.

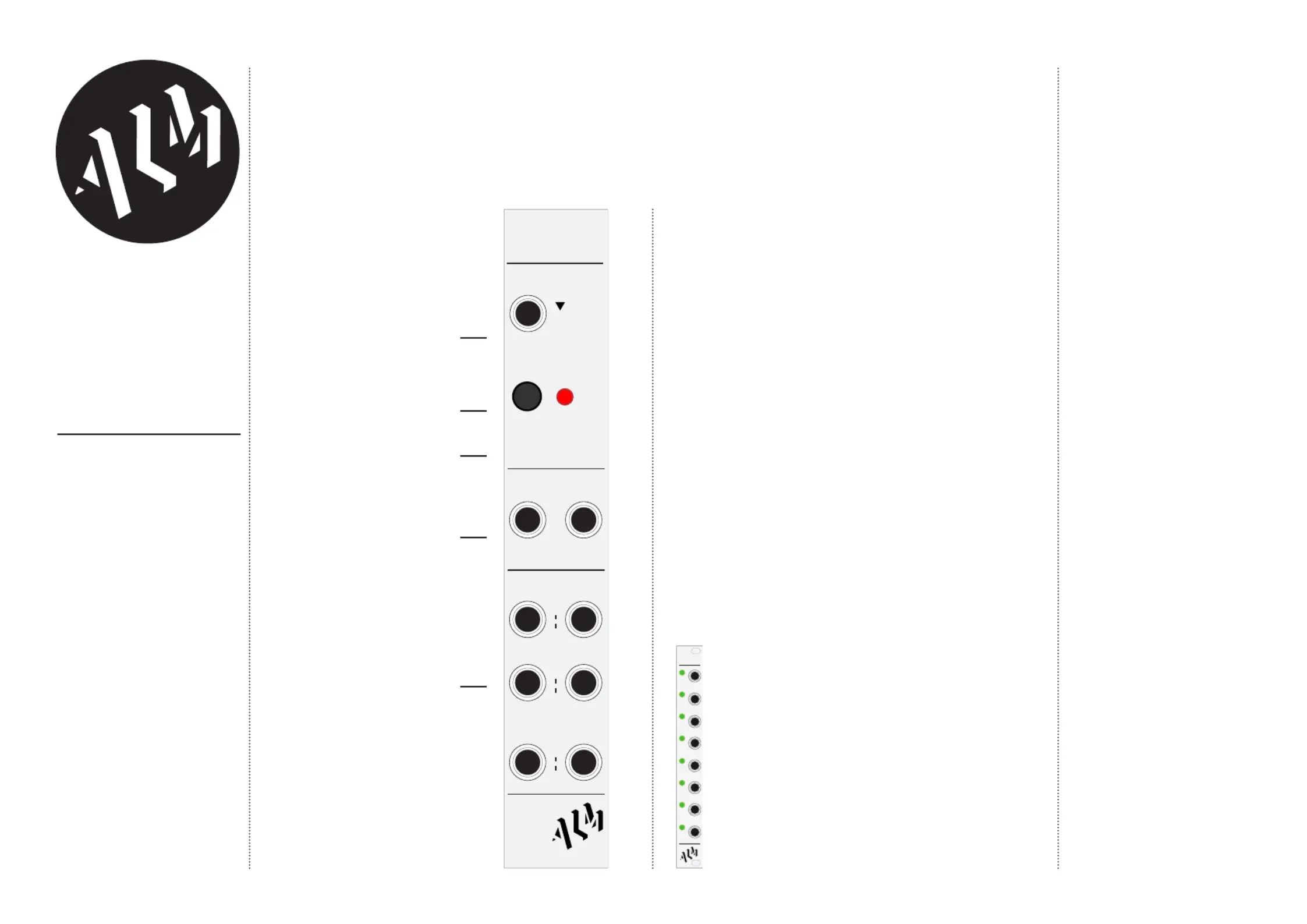

PANEL OVERVIEW

mmT

V/Oct

Velocity

Gates

Learn

Clock

Activity

Run

MIDI

x24

mmMidi
