Side 1/4
- 1 -
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2015
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
1
M965716 Rev. 1.0 (2/16)

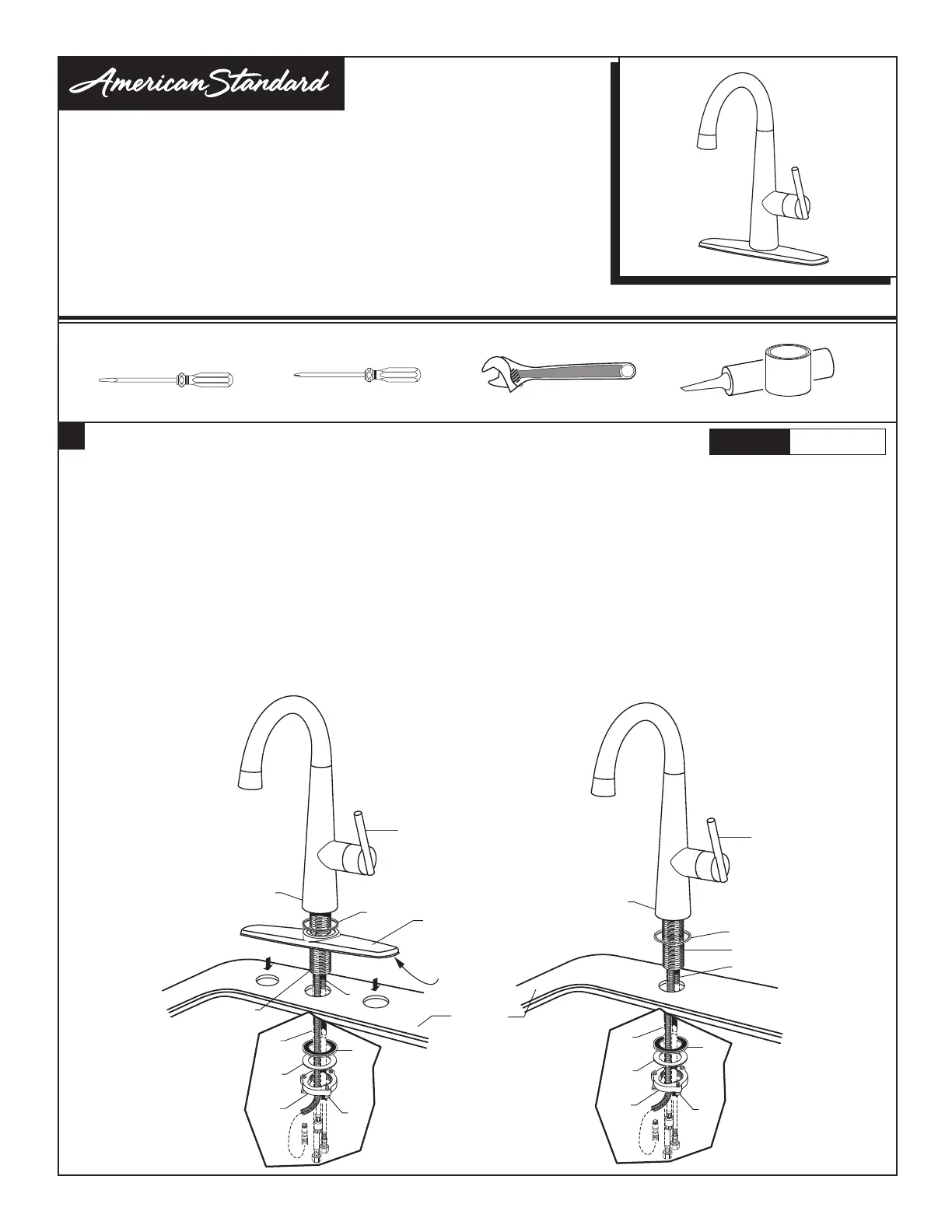

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
EDGEWATER
™
Pull-Down Bar Faucet
INSTALLATION
INSTRUCTIONS
4932.410
Plumbers' Putty or CaulkingAdjustable WrenchPhillips ScrewdriverRegular Screwdriver
Certied to comply with ANSI A112.18.1M
CAUTION
Turn off water at
main supply
BA
(OPTIONAL)
SINK OR
MOUNTING
SURFACE
4
5
8
7
6
7
9
3
2
7
9
PUTTY
SPOUT BASE
SPOUT BASE
2
3
4
5
8
6
7
1
• (A) Installation with ESCUTCHEON (1). (Escutcheon is not supplied with base product). Apply a bead of putty to bottom
edge of ESCUTCHEON with PUTTY PLATE (1). Make certain the SEAL (9) is properly seated in recess of faucet body. Insert
SUPPLY HOSES (2), SPRAY HOSE (7) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting
surface. Follow mounting instructions below to secure faucet to mounting surface.
• (B) Installation less ESCUTCHEON (1). Make certain the SEAL (9) is properly seated in recess of spout base. Insert supply
HOSES (2), SPRAY HOSE (7) and SHANK (3) through mounting hole and seat spout base onto sink or mounting surface.
Do not use putty.
• Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).
• Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside of sink
or mounting surface. Hand tighten LOCKNUT (6).
• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening the screws
slightly each time until all are snug to ensure even pressure.
- 2 -
2
M965716 Rev. 1.0 (2/16)
3

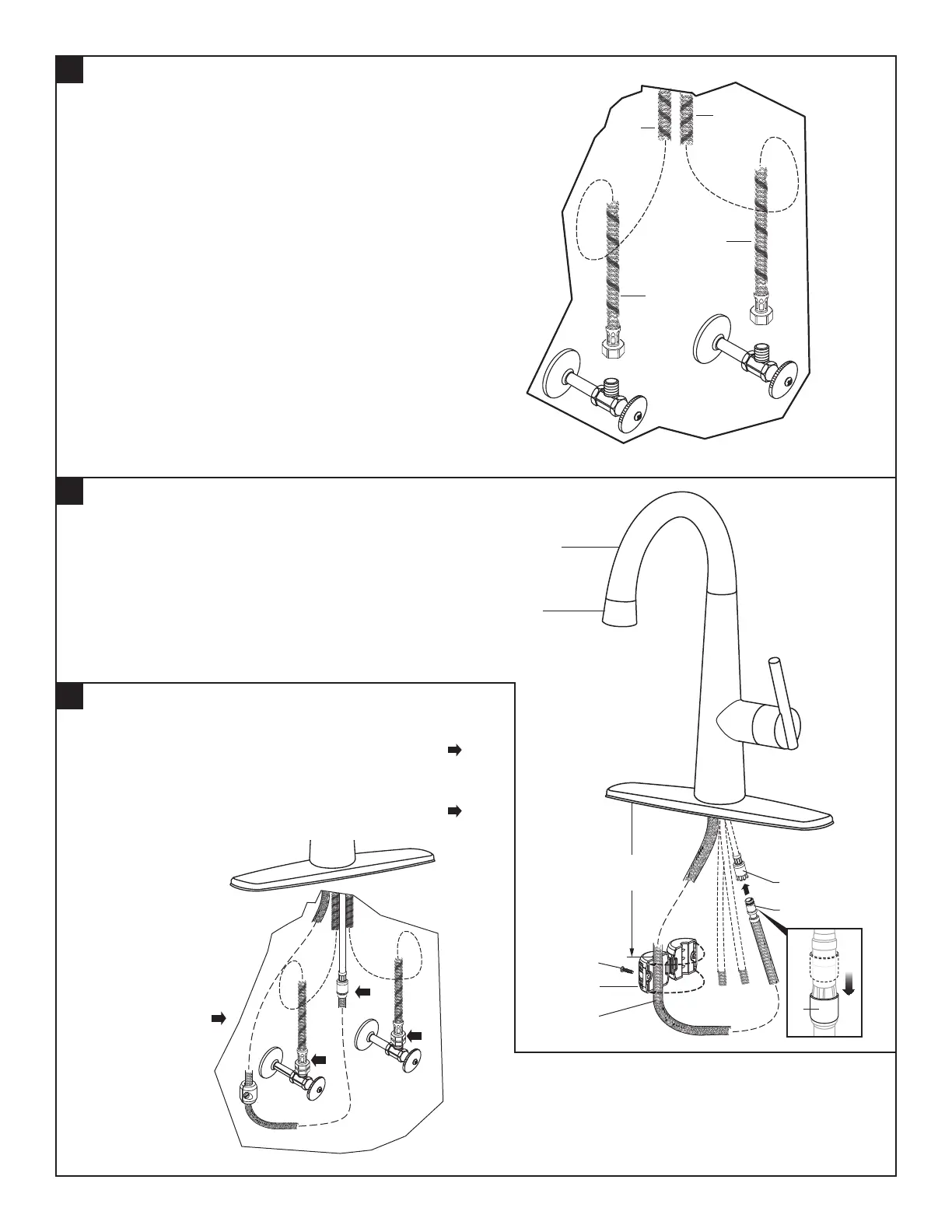

CONNECT SPRAY HOSE & INSTALL WEIGHTS
• Turn off hot and cold water supplies before beginning.
• Connect FLEXIBLE SUPPLY HOSES (1, 2) directly to wall
supplies. Connection on tting supplies are 3/8"
compression. Connect left supply hose (Red Stripe) to Hot
wall supply. Connect right supply hose (Blue Stripe) to Cold
wall supply. Use adjustable wrench to tighten connections.
Do not over tighten.
*
Faucet supplies are 21" long from faucet base.
• Note: If additional supply length is required, installer
must purchase additional parts separately.
• Important: If SUPPLY HOSES (1, 2) are too long,
loop as illustrated to avoid kinking.
MAKE WATER SUPPLY CONNECTIONS
• Push the SPRAY HOSE END (2) into the HOSE
CONNECTOR (1) slide down LOCKING COLLAR (3)
until it snaps into place to secure connection.
• With HAND SPRAY (4) seated in SPOUT (5), install
WEIGHT (7) onto HOSE (6) 21 inches from the underside
of the sink deck and secure with SCREW (8).
6
7
8
21"
(610 mm)
1
2
4
5
3
RED
STRIPE
BLUE
STRIPE
1
2
COLD
HOT
4
CHECK CONNECTIONS FOR LEAKS
• Move HANDLE into “off” position.
• Turn on water supplies and check connections for leaks.
• Operate HANDLE (1) up and down, left and right to
ushwater lines thoroughly.
• Operate HAND SPRAY and check connections for leaks.
CHECK CONNECTIONS
FOR LEAKS
