Side 1/9

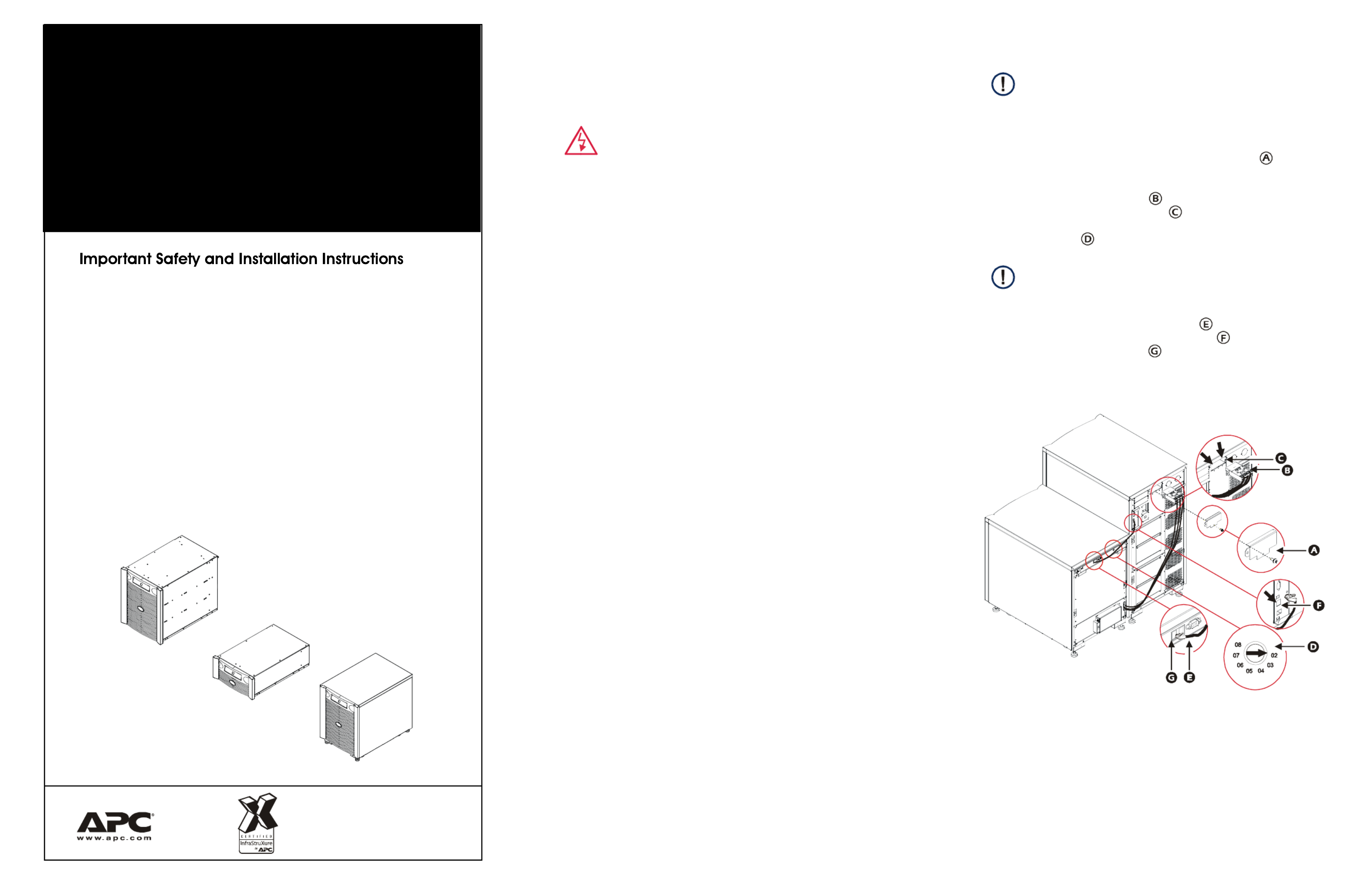

Symmetra LX

Start-Up Guide

Extended Run Cabinets

For use with Symmetra LX UPS models:

990-1873-001 04/2005

200V, 4–8 kVA

208/240V, 4–8 kVA

220/230/240V, 4–8 kVA

200V, 4–16 kVA

208/240V, 4–16 kVA

220/230/240V, 4–16 kVA

READ FIRST

This guide is applicable for the Symmetra LX tower and rack-mount

extended run cabinet models. These units provide extended run time for the

Symmetra LX tower or rack-mount UPS models.

See and retain the product documentation shipped with your system for

other important installation, operation, and maintenance instructions.

Illustrations are representative. The Symmetra LX configuration, including

components and optional APC equipment, may be different from the models

shown in this guide.

prohibited.

APC, the APC logo, InfraStruXure, PowerChute, Smart-UPS and Symmetra

are registered trademarks of American Power Conversion Corporation. All

other trademarks are the property of their respective owners.

9-Battery

Rack-mount

Extended Run

9-Battery

Tower

Extended Run

3-Battery

Rack-mount

Extended Run

Overview

1. Read Safety and General Information Instructions

2. Refer to the UPS Documentation

If installing the Symmetra LX and the Extended Run Cabinet(s),

install according to the instructions in the Symmetra LX Start-Up

Guide shipped with the UPS.

3. Install the Extended Run Cabinet(s)

Perform the physical installation for the extended run cabinet(s).

See the included Symmetra LX Physical Installation Guide.

4. Follow the proceeding Start-Up Instructions

See these instructions once the physical installation for the

Extended Run Cabinet(s) is complete. This section contains

information on how to connect, test, and start the unit.

Electrical

Hazard

• Read, understand and follow ALL safety

instructions contained in the Symmetra LX Safety

Instructions and General Information Guide.

• Failure to follow safety instructions and warnings

could result in equipment damage, serious injury,

or death.

Start-Up Instructions

1. Connect the first Extended Run Cabinet

1.1 Remove the screw and battery connector cover from the

back of the UPS.

1.2 Connect the power cable of the first extended run cabinet

to the UPS battery connector .

1.3 Set the dial of the extended run cabinet to ‘2’.

1.4 Connect the communications cable from the extended run

communications connector on the UPS to the connector on

the extended run cabinet .

Note

The illustrations shown in this section are applicable for the

tower and rack-mount extended run cabinets.

Note

If connecting to a UPS with integrated extended run, set the

dial of the first extended run cabinet to ‘3’ instead of ‘2’.

Produkt Specifikationer

Mærke:	APC
Kategori:	Batteri
Model:	Symmetra LX
Vægt:	29100 g
Produktfarve:	Sølv
Batterispænding:	120 V
Batterikapacitet:	864000 mAh
Pakkevægt:	32280 g
Batteriteknologi:	Blybatterier (VRLA)
Formfaktor:	1U
Opbevaringstemperatur (T-T):	-15 - 45 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 95 %
Driftstemperatur (T-T):	0 - 40 °C
Dimensioner (BxDxH):	210 x 546 x 140 mm
Certificering:	CSA, UL 1778
Batterilevetid:	3 År
Pakkens dimensioner (BxDxH):	286 x 750 x 385 mm
Harmoniseret systemkode (HS):	85079080
Driftshøjde:	0 - 3000 m
