Aruba 500 Series Campus Access Points
Installation Guide
Rev01 | July 2019 1
The Aruba 500 Series campus access points (AP-504 and AP-505) are high-performance, dual-radio wireless
devices that can be deployed in either controller-based (ArubaOS) or controllerless (Aruba Instant) network
environments. These access points deliver high performance concurrent 2.4 GHz and 5 GHz 802.11ax Wi-Fi
functionality with MIMO radios (2x2 in 2.4 GHz, 2x2 in 5 GHz), while also supporting legacy 802.11a/b/g/n/ac
wireless services.
In addition to both Wi-Fi radios, these APs also incorporate a Bluetooth Low Energy (BLE) and Zigbee radio,
supporting a variety of use-cases and services, such as locationing and IoT.
A mount kit (sold separately) is needed to mount the AP. Make sure to purchase the correct mount kit for the
intended deployment of the AP.
Package Contents
Aruba 500 Series access point (with a pre-installed mount bracket)
Hardware Overview
The following sections outline the hardware components of the 500 Series access points.

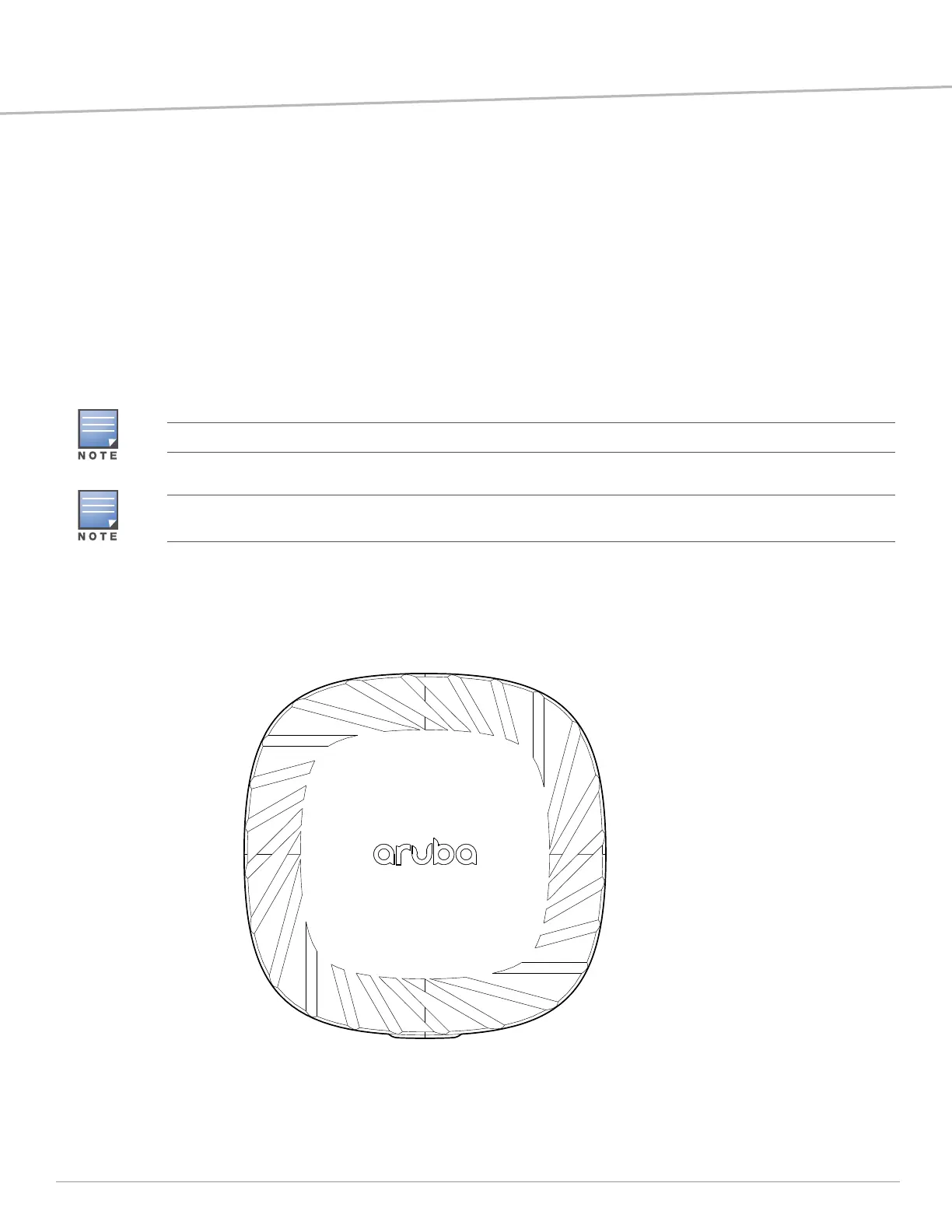

Figure 1 AP-505 Front View
The AP mount bracket attaches to a variety of mount kits (sold separately).
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
2 Aruba 500 Series Campus Access Points | Installation Guide
Figure 2 AP-504 Front View
External Antenna Connectors
The AP-504 access points are equipped with two external antenna connectors located on the front
corners of the access point (see Figure 2). Antenna ports A0 and A1(corresponding with radio chain 0
and 1), are used for both radios and bands (RF signals are diplexed).
!
!
!
!
!
External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other
Aruba-certified technician, using manufacturer-approved antennas only.
The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the
regulatory limit set by the host country/domain.
Installers are required to record the antenna gain for this device in the system management software. A list of
approved antennas can be found at: http://www.arubanetworks.com/assets/og/OG_AP-500Series.pdf.
Les antennes externes pour cet appareil doivent être installées par un professionnel de la mobilité certifié Aruba
(ACMP) ou un autre technicien certifié Aruba, en utilisant uniquement des antennes approuvées par le fabricant.
Les niveaux équivalents de puissance à rayonnement isotrope (EIRP) pour tous les périphériques d'antenne
externe ne doivent pas dépasser la limite réglementaire définie par le pays hôte / domaine.
Les installateurs doivent enregistrer le gain d'antenne pour cet appareil dans le logiciel de gestion du système.
Une liste d'antennes approuvées peut être trouvée à http://www.arubanetworks.com/assets/og/OG_AP-
500Series.pdf.
