AWM-A71 Page 1 of 4

Installation Guide

AWM-A71

710 Arm

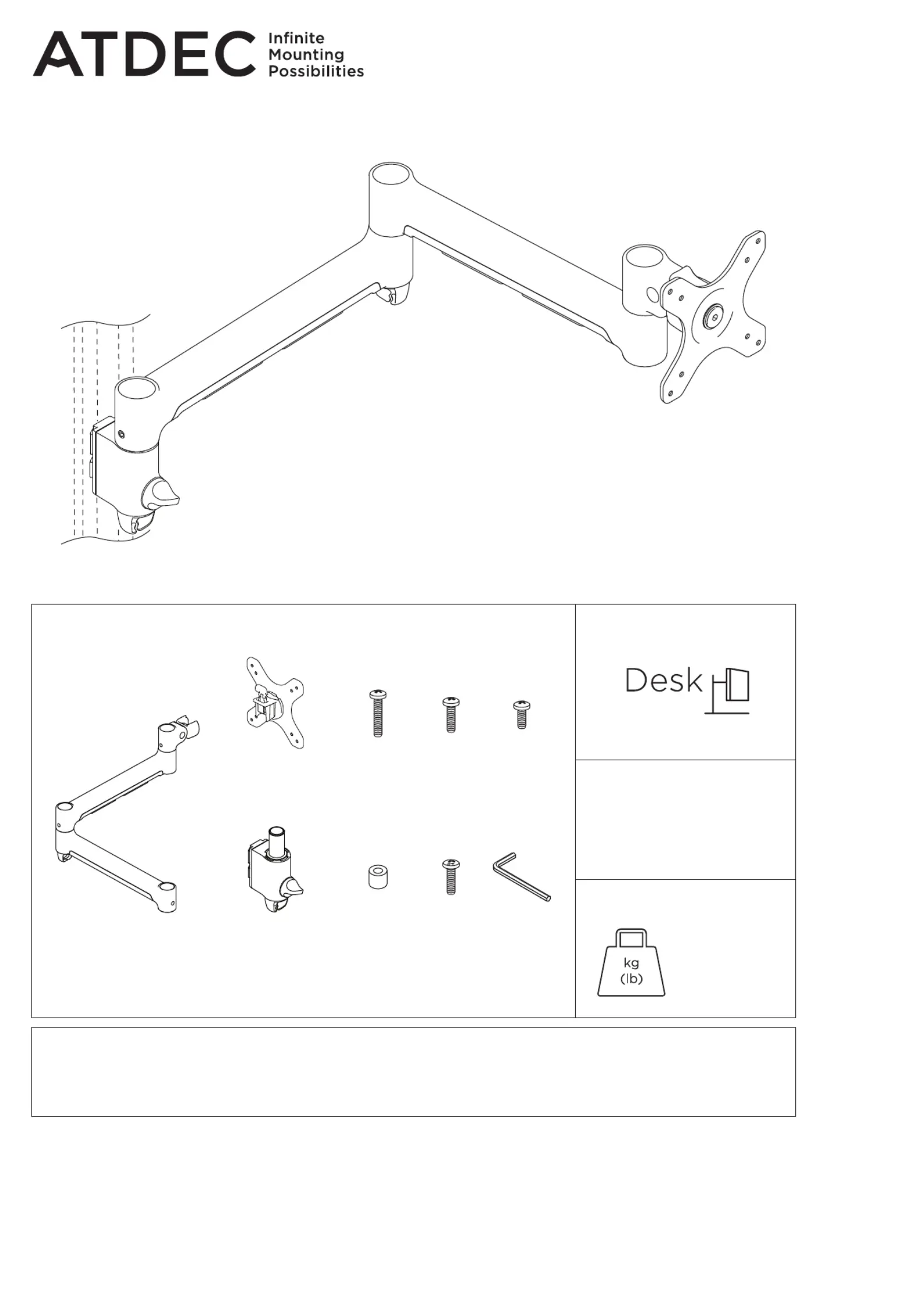

COMPONENT CHECKLIST

REQUIRED TOOLS

Monitor Arm

(x1)

VESA Head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

Security

screw

(x1)

4mm

allen key

(x1)

Post Clamp

(x1)

WEIGHT RANGE

• Phillips Head Screwdriver

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with Atdec AWM Series products.

0 - 9kg

(0 - 20lbs)

AWM-A71 Page 2 of 4

2. Set arm rotation to 180° (optional)

2.1 Remove plastic sleeve

from post clamp.

2.2 Remove rotation ring. Place rotation ring in 2.3

desired position.

Note: rotation ring placement

depends on the position of the clamp

on the post. The tag on the ring

should always face toward the user.

1. Press

2. Lift

Note rotation is set to 360� by default.

180°

360°

Default

Position

Flipped

Position

Tag

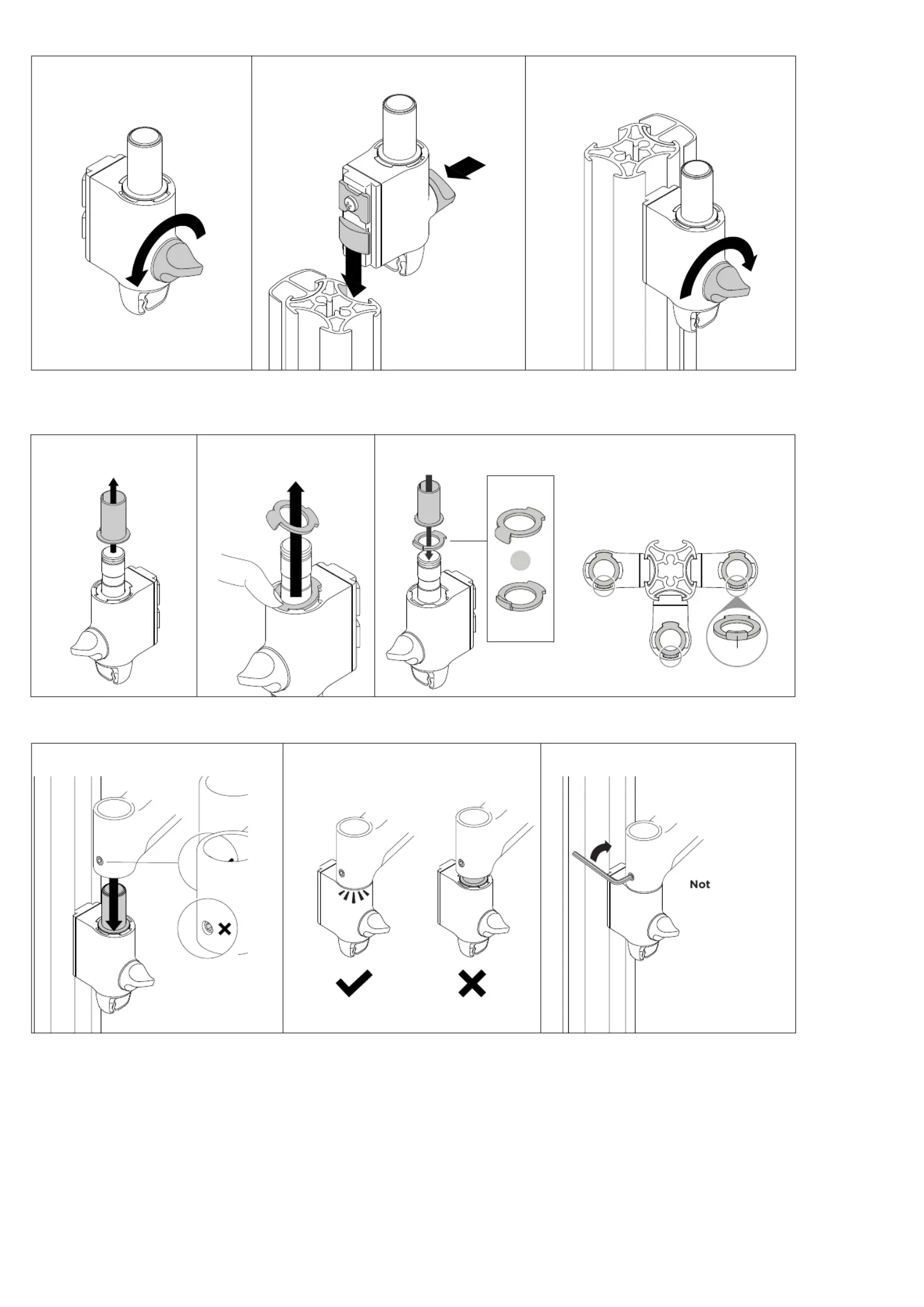

1. Fix clamp to Post or Wall Channel

1.1 Ensure knob is undone. Slide post clamp into channel.1.2

Push knob to

aid insertion

1.3 Hold clamp in desired position on

channel and turn knob to lock in place.

3. Fit arm onto post clamp

e: Check the

arm rotation is

smooth after

tightening.

3.1 Push arm onto shaft. 3.2 Ensure arm is fully pushed onto shaft. 3.3 Tighten joint screw.
