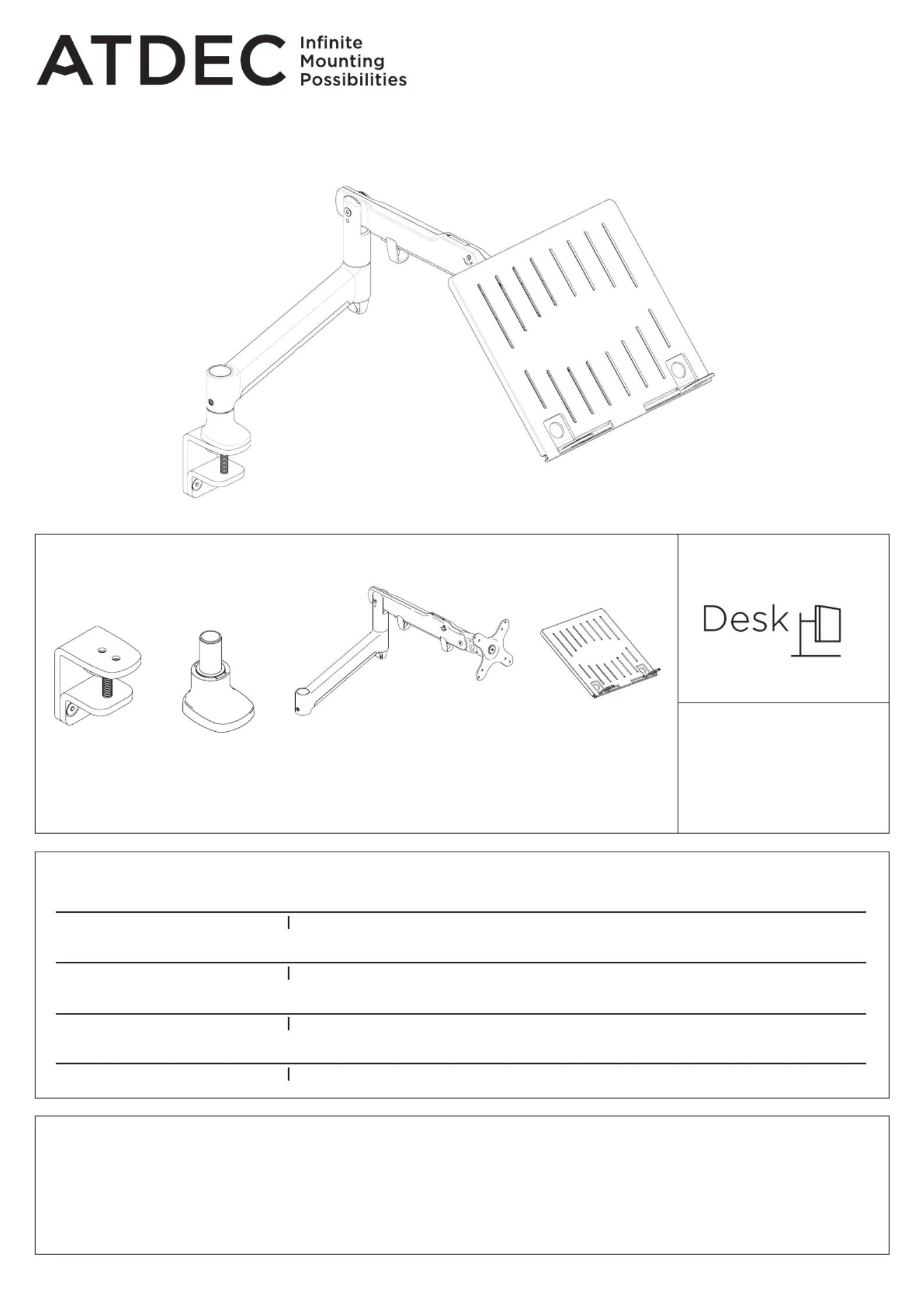

AWMS-NDB-F Page 1 of 7
Installation Guide
AWMS-NDB
AWM Dynamic Notebook Arm
IMPORTANT INFORMATION
!Please ensure this product is installed as per these installation instructions.
!Do not remove/ throw away the plastic cap on the base.
! This product is compatible with Atdec AWM Series products.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed
the capacity of the mount even though the monitor weight may be within the stated range.
! The manufacturer accepts no responsibility for incorrect installation.
CONTENTS
F Clamp
Page 2
Base
Page 3
Dynamic Arm
Page 4
AWM Notebook Tray
Page 4
AWM-FF
Component Checklist + Clamp Installation
AWM-LB
Component Checklist + Base Installation
AWM-AD
Component Checklist + Arm Installation
AWM-HN
Component Checklist + Tray Installation
COMPONENT CHECKLIST
AWM-AD
Dynamic
Arm
(x1)
AWM-HN
AWM
Notebook Tray
(x1)

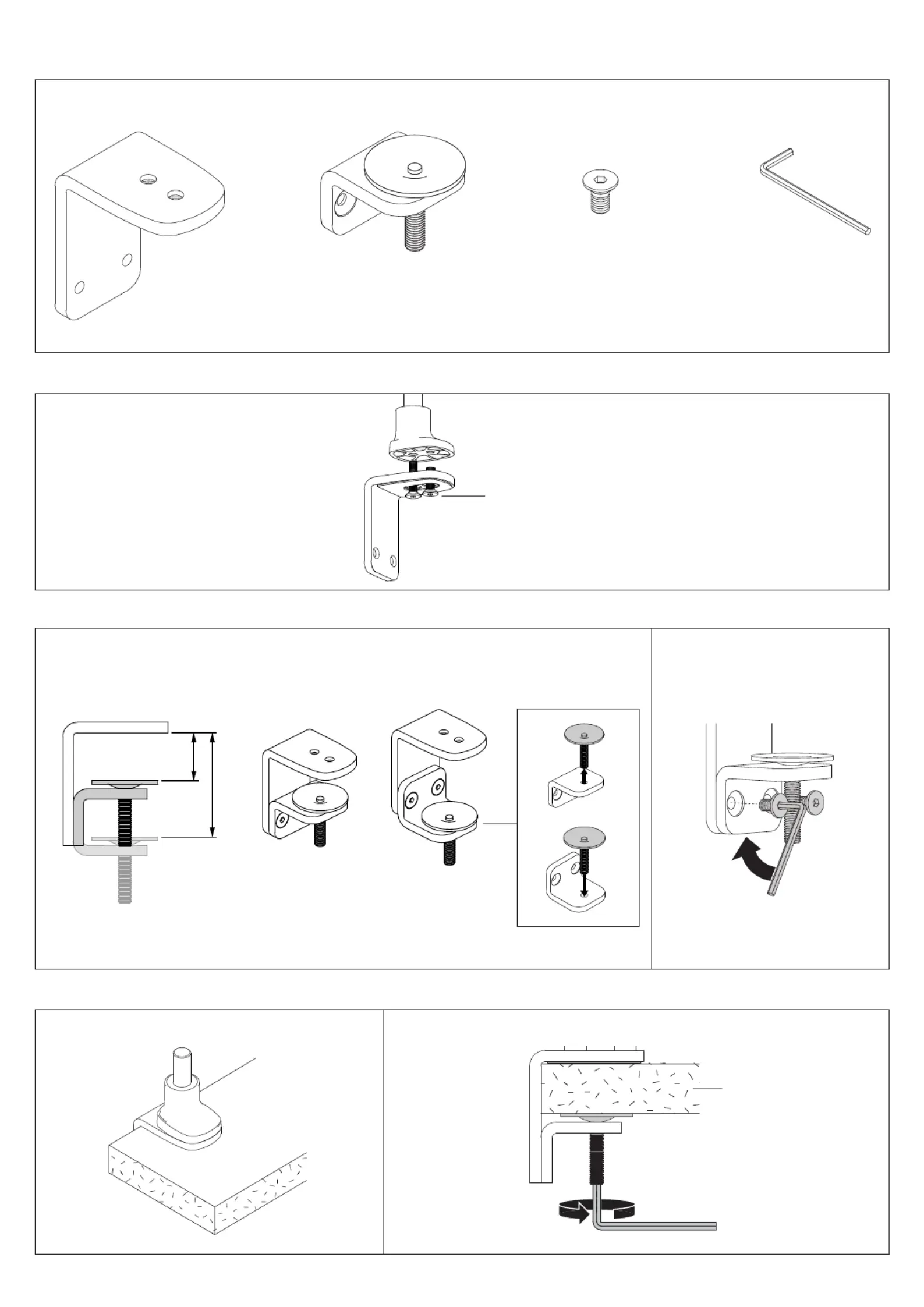

AWM-FF
F Clamp
(x1)
AWM-LB
Base
(x1)
• Phillips Head
Screwdriver
REQUIRED TOOLS
AWMS-NDB-F Page 2 of 7
AWM-FF
F Clamp
COMPONENT CHECKLIST
D
5mm Allen key
(x1)
B
Lower Clamp
(x1)
A
Upper Clamp
(x1)
C
Screw M8 x 16mm
(x2)
1. Attach base to upper clamp
Fasteners
supplied
with base
2. Attach lower clamp to upper clamp
2.1 Measure the worksurface thickness and
choose the suitable lower clamp position
2.3 Attach lower clamp to upper
clamp in the suitable position
using the two provided screws.
(Normal position shown here)
2.2 If using inverted
position change the
screw direction of
the lower clamp
A B
A - Normal
0 - 36mm
(0.00 - 1 ”)
B - Inverted
36 - 79mm
(1 - 3 ) ””Note: If there is only a small gap
behind the worksurface, perform
Step 3.1 before this step.
3. Fit xing to work surface
3.1 Place in desired location on worksurface Screw in pressure plate and 3.2 tighten rmly.
5mm
allen key
Mounting
surface
