Side 1/2

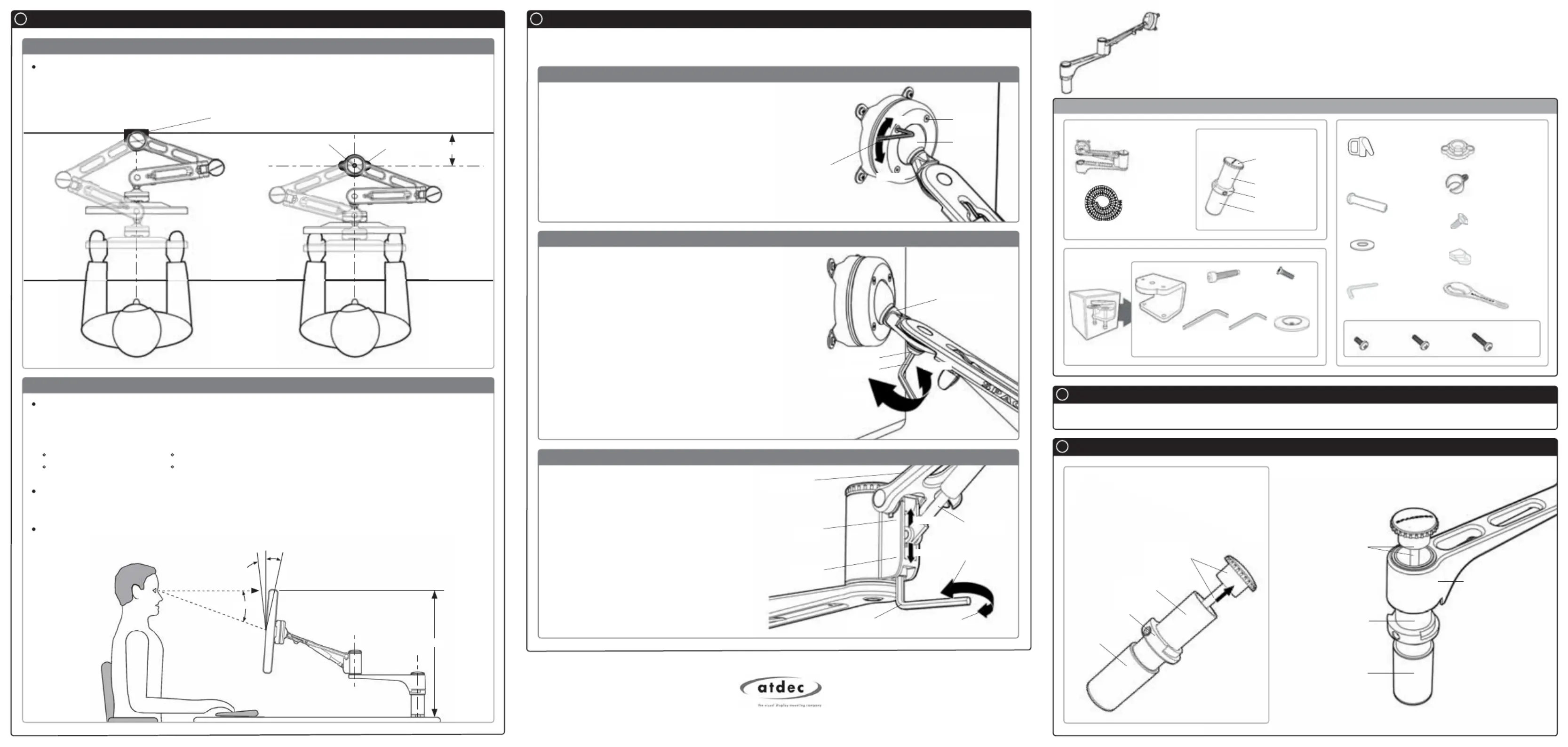

Component Checklist

Installation Instructions

SPACEDEC ACROBAT

ARTICULATED ARM

Single Arm

Articulated Arm

Assembly (x1)

Base Casting (x1)

Cable Wrap

Applicator (x1)

Top Cap Tool (x1)

2.5mm Allen

Key (x1)

16mm Cable

Wrap (x1)

M10 Interscrew (x1)

Cable Clip (x3)

M6x12mm

Countersunk

Screw (x2)

Extension

Clip (x4)

Desk Clamp Box

Desk Clamp

Bracket (x1)

M8 Desk Clamp

Screw (x2)

Pressure

Plate (x2)

Component Checklist

Check you have received all parts against the Component Checklist above.

Bits Box

5mm Allen

Key (x1)

Assembling the Arm

Adjusting the Display

As LCD Manufacturers are constantly releasing new monitor models, Atdec does not accept responsibility if the mounting hole pattern does not comply with the

international VESA standards. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice.

Published: 29.03.11

Installation Complete

14 Gauge Self

Tapping Screw (x2)

B.1. Disassemble the Tube Assembly

In order to attach the Articulated Arm to the

tube assembly you will need to remove the

Top Cap and Threaded Rod as shown:

B.2. Assemble the Articulated Arm

Assemble the Articulated Arm as shown:

Top Cap and

Threaded Rod

Arm Assembly

Internal Tube Post

Spacer

Tube

Top Cap and

Threaded Rod

Internal

Tube Post

Spacer

Tube

Collar

Mounting Fasteners

M4x10mm

Screw (x4)

M4x12mm

Screw (x4)

M4x16mm

Screw (x4)

Tube Assembly (x1)

Threaded Rod

and Top Cap (x1)

Collar

Inner Tube Post

Spacer Tube

Washer (x1)

H.1. Adjusting the Ball Joint Resistance

The Acrobat Articulated Arm comes factory set to support 6kg displays. Adjust the arm to suit the weight of your

display as shown in the following steps:

Depending on the weight of the monitor, it may

be necessary to make adjustments to the Ball Joint

Mechanism. If the monitor doesn’t hold its position or

is too resistant, adjust the four tension screws located

around the Ball Joint (see diagram on the right) using

the supplied 2.5mm Allen Key.

Check the

display, and then adjust again if necessary.

NOTE: Be sure to adjust screws evenly.

Tighten

Loosen

Tension

Screws (x4)

Ball Joint

2.5mm

Allen Key

H.2. Adjusting the Pivot Head Resistance

It is possible to control the amount of resistance in the

Pivot Head to suit your display.

To increase the resistant of the Pivot Head to suit heavier

displays, use the 5mm Allen Key supplied in the Desk

Clamp Box to tighten the interscrew in a clockwise

direction.

To decrease the resistance of the Pivot Head to suit

lighter displays, loosen the interscrew in an

anti-clockwise direction.

NOTE: It is recommended the Pivot Head be left

at the factory setti

ng for best performance.

Pivot Head

Interscrew

5mm Allen Key

Loosen

Tighten

H.3. Adjusting the Articulated Arm/Gas Strut Resistance

3kg

Monitor

9kg

Monitor

Arm

Raise Gas

Strut to suit

lighter display

5mm

Allen key

Gas Strut

Lighter

Heavier

Lower Gas Strut to

suit heavier display

4mm Allen

Key (x1)

Ergonomic Guidelines

H.3.1. Depending on the weight of the monitor, it

may be necessary to adjust the arm. This can be

done by using the 5mm Allen Key supplied in the

Desk Clamp Box.

H.3.2. If the arm tends to automatically rise or fall

when the display is attached, it will be necessary

to make small adjustments to the gas strut. (see

diagram on the right)

H.3.3. If the arm tends to rise, the gas strut

position should be raised. If the arm tends to fall,

the gas strut position shou

ld be lowered.

Ergonomists recommend that the optimal position of your screen should be slightly below eye level.

When looking at the screen’s centre the user should have a downward visual angle of approximately

10°-20°. As a guide, the height (h) of your display should approximately be as follows:

Tall Male (Max): 560mm (22”) Tall Female (Max): 520mm (20

2”)

Short Male (Min): 368mm (14

2”) Short Female (Min): 356mm (14”)

For visual comfort, a viewing distance (d) between 500mm (19

2”) to 750mm (29

2”) is

recommended.

Angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15°

backward tilt.

Desk Clamp

15°

5°

HORIZONTAL SIGHT LINE (d)

CENTRE OF SCREEN

10°-20°

Recommended Viewing Distance / Height

Recommended Mounting Position

50mm (2”)

When mounting the Spacedec Acrobat Articulated Arm, ensure the correct focal distance can be

achieved for ultimate visual comfort (Refer to Recommended Viewing Distance / Height below)

Desk Clamp Bolt Through

(h)

15mm Hole (

”)

Base Casting

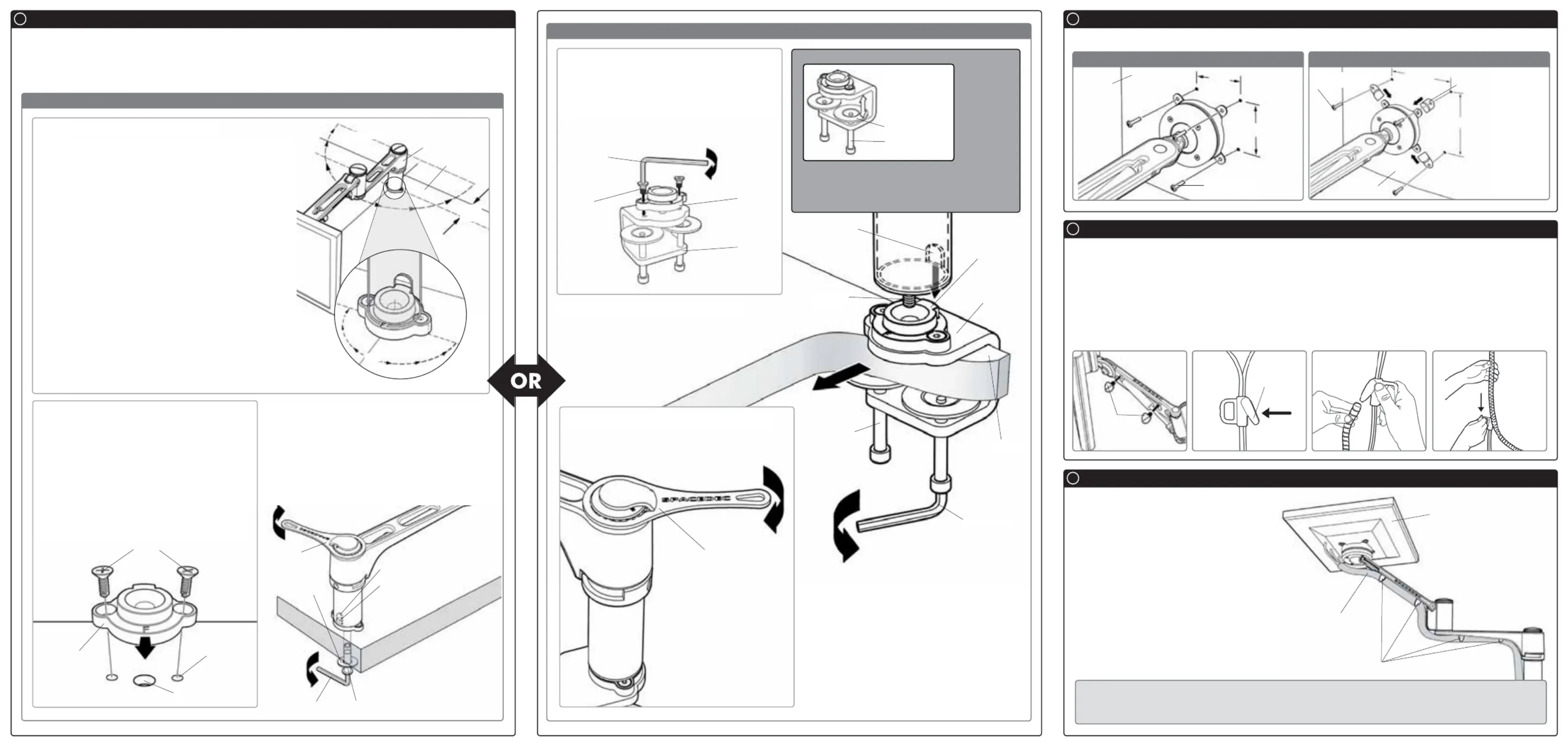

C.1. Bolt Through

Mounting Options

C.2. Desk Clamp

There are two Mounting Options: Desk Clamp and Bolt Through

To use the Bolt Through system (Suits desktop thicknesses of 12mm-40mm [

”-1

”]) follow the Bolt

Through instructions at

C.1. To use the Desk Clamp (Suits destop thicknesses of 12mm-38mm [

”-1

”])

follow the Desk Clamp instructions at

C.2.

Attaching the Display

Direct Mount Configuration

75mm x 75mm (3” x 3”) mounting hole pattern 100mm x 100mm (4” x 4”) mounting hole pattern

Installing Cable Management

Attaching the Cable Wrap to the Arm

E.1. Push the four supplied Cable Clips into the holes on the underside of the arm as shown in diagram

E.2. Feed the cables into the Cable Wrap Applicator.

E.3. Insert the Cable Wrap Applicator into the Cable Wrap as shown.

E.4. Squeeze the nose of the Applicator and place inside the Cable Wrap ensuring that the opening edges

of the Cable Wrap face towards the nose of the applicator as shown in diagram.

F.1. Position the display at its highest possible

position to ensure that there is sufficient

cabling at the end of the arm so the cables

are not stretched or pulled out when the

display is moved.

F.2. Clip the cable wrap into the four Cable

Clips as shown in diagram.

Cable Clips

Display at

highest point

E.1.

Push in

Clips

NOTE:

Ensure that

the flat side of

each Extension

Clip sits against

the back of the

display

Extension Clip

4x12mm or

4x16mm Screws

Display

4x10mm

Screws

C.1.1. Base Casting

The Articulated Arm is limited to 180° rotation. This is

determined by the location of the Base Casting, as shown.

When mounting the Base Casting, ensure that the

Articulated Arm is free to achieve its full 180° range of

movement.

If mounting the Base Casting in a 90° corner, position the

casting to ensure that the Articulated Arm can only make

contact with one side of the corner.

The Base Casting should be mounted no less than

50mm (2”) from the edge of the desk.

C.1.2. Drill Mounting Hole

Position the Base Casting on the desk in the

desired location ensuring that the letter “F”

faces the user. Using the base casting position,

locate and mark the holes (x3) for drilling.

Drill the holes and then secure the Base

Casting to the desk using the supplied 14

Gauge Self Tapping Screws (x2).

C.2.1. Assemble Desk Clamp

Place the Base Casting on top of the Desk

Clamp ensuring the “F” is facing towards the

user. Using the 4mm Allen Key, attach the Base

Casting to the clamp by inserting the supplied

M6x12mm Countersunk Screws (x2) into the

holes in the Base Casting as shown.

BEFORE PROCEEDING TO THE NEXT STEP PLEASE NOTE:

Articulated Arm will only work when a display is properly installed.

DO NOT adjust tension screws or gas strut until your display has been attached.

14 Guage

Self Tapping

Screw

Desktop

3mm Hole

(

”)

15mm Hole (

”)

Base

Casting

User

C.1.3. Installing the Articulated Arm

Insert the M10 Interscrew up through the hole in the

work surface.

Using both hands, secure the M10 Interscrew with

the 5mm Allen Key and use the other hand to

tighten the Threaded Rod into the Interscrew with

the supplied Top Cap Tool.

C.2.2. Attaching the Desk Clamp

Place the Desk Clamp in the desired position on the

edge of the dektop and secure in place using the

supplied 5mm Allen Key as shown in diagram.

C.2.3. Attaching the Articulated Arm

Use the Top Cap Tool to tighten the Threaded

Rod into the Base Casting as shown.

Top Cap Tool

NOTE:

Desk Clamp Assembly is

Suitable for square edged desks only

DESK CLAMP ADJUSTMENT RANGE

NOTE:

It is

recommended

that the Desk

Clamp be

attached to

the rear or

side edge of

the work

surface

Adjust the Desk Clamp to suit your desk

thickness by turning the M8 Desk Clamp Screw

with the supplied 5mm Allen Key.

Suits 12mm (

”) to

38mm (1

”) thick

Work Surfaces

Pressure Plate (x2)

M8 Desk Clamp

Screw (x2)

Nose

E.2. E.3. E.4.

Tighten

Firmly

12mm

Countersunk

Screws (x2)

Base

Casting

4mm

Allen Key

Desk

Clamp

Assembly

Tighten

Firmly

Cable Wrap

100mm

(4”)

100mm (4”)

75mm

(3”)

75mm (3”)

Display

5mm Allen Key

Top Cap

Tool

Tighten

Firmly

Tighten Firmly

Washer

M8 Desk

Clamp

Screw

Desk

Clamp

Assembly

Threaded

Rod

5mm Allen Key

Tighten

Firmly

Towards User

Desktop

Base

Casting’s

Tongue

Inner Tube

Slot

NOTE:

When attaching the

Articulated Arm,

ensure the Base

Casting’s Tongue

is inserted into the

Inner Tube Slot as

shown in C.2.2.

Articulated

Arm

50mm

(2”)

180° Rotation

Desktop

180°

NOTE:

Ensure the Base

Casting’s Tongue is

inserted in to the Inner

Tube Slot when securing

the arm assembly

Inner Tube Slot

Base

Casting’s

Tongue

M10 Interscrew

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	SD-AT-DK-S
Produktfarve:	Sølv
Længde:	610 mm
Skærmstørrelse kompatibilitet:	12/24 "
Maksimal vægtkapacitet:	9 kg
Drejevinkel:	40 °
Minimum kompatibilitet med tabletskærmstørrelse:	12 "
