Installation Instructions

TH-3070-CTL

TH-3070-CTS

TH-3070-CTLW

TH-3070-CTSW

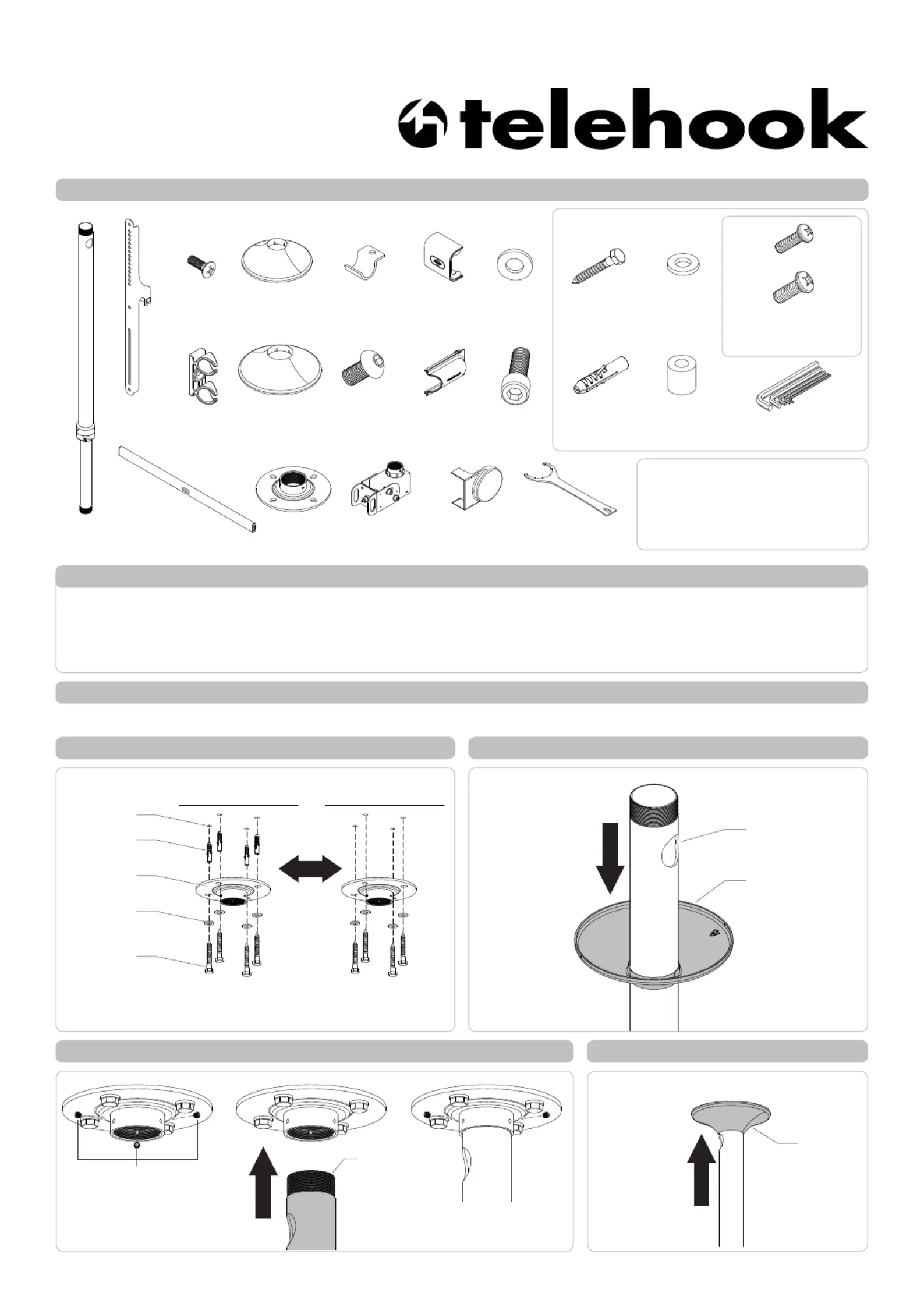

Component Checklist

Ceiling Tilt Short Mount / Ceiling Tilt Long Mount

Mounting

Cover

Horizontal Rail

M6/M8

Spacer (x4 each)

2mm/2.5mm/3mm

5mm/8mm Allen Key

M10 Coach

Bolt (x4)

Nylon

Anchor (x4)

HARDWARE

Display Mounting

Screws (x4 each)

M6x16mm/30mm/45mm

M8x16mm/30mm/50mm

Tools Required:

• Power Drill

• 7mm(0.25”) Drill Bit

• 12mm(0.5”) Masonry Drill Bit

• Phillips head screw driver

• 17mm(0.7”) Socket Wrench or Shifter

Mounting

Bracket (x2)

Pole

Assembly

Ceiling Cover

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.

! This product supports a maximum load of 65kg (143lbs.).

! This product has a universal mounting hole pattern that suits a broad range of TV’s:

From 200-800mm in width and 200-500mm in height.

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Install Mounting Plate to the ceiling

Using the Mounting Plate as a template, mark and drill 4 holes.

NOTE: Drilled hole sizes,

For Masonry Ceiling, Ø12mm (0.5”) and 70mm (2.75”) deep.

For Timber Ceiling, Ø7mm (0.75”).

Masonry Ceiling

Timber Ceiling

Drilled Holes

Nylon Anchor

Mounting Plate

M10 Washer

Coach Screw

Step 3. Install Mounting Cover

PUSH

Pole Assembly

Mounting Cover

Step 4. Attach Pole Assembly to Base Plate

Remove the three set

screws using the supplied

3mm Allen Key.

Set Screws

INSERT

Insert the three set screws

using the supplied 3mm

Allen Key to secure.

4A 4B 4C

Pole Assembly

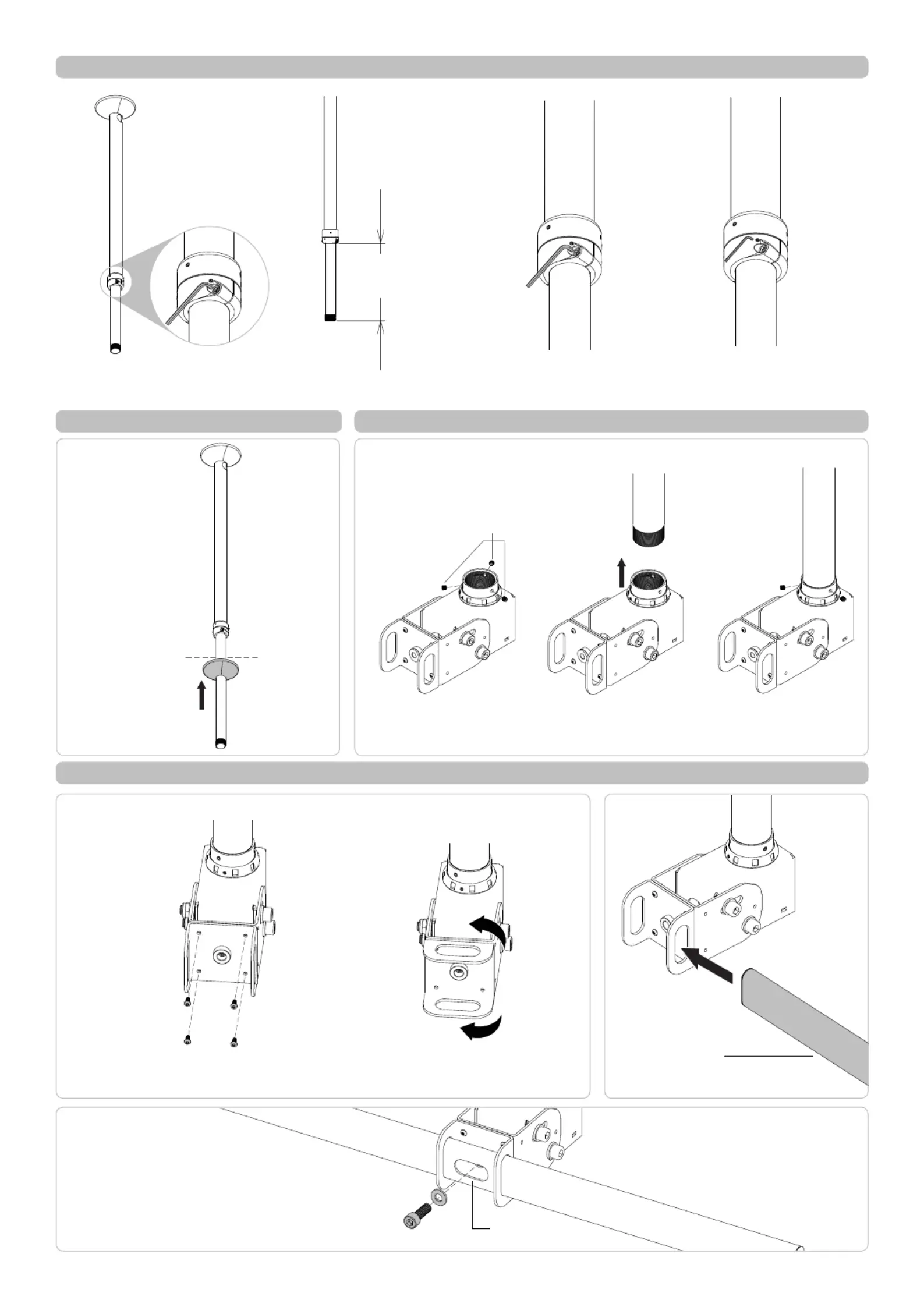

Step 5. Position Mounting Cover

PUSH

Mounting

Cover

Mounting

Plate

Bracket Locking

Plate (x2)

M8x15mm

Screw (x2)

Cable

Clip (x2)

M4x12mm

Screw (x2)

Clamp Cover

Bottom

Clamp Cover

Middle

Clamp Cover

Side (x2)

Head Clamp

Assembly

Tightening Tool

M6/M8/M10

Washer (x4 each)

M10x30

Screw

M10

asher

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Vægophæng
Model:	Telehook TH-3070-CTSW
Produktfarve:	Hvid
Pakkevægt:	12000 g
Husmateriale:	Aluminium, Steel
Monteringstype:	Loft
Pakkens dimensioner (BxDxH):	930 x 300 x 150 mm
Højdejustering:	Ja
Hældningsvinkelområde:	-10 - 20 °
Rotationsvinkel:	360 °
Maksimal vægtkapacitet:	65 kg
Højdejusteringsområde:	550 - 900 mm
Antal understøttede skærme:	1
Montering interface kompatibilitet (min.):	200 x 200 mm
Montering interface kompatibilitet (maks.):	800 x 500 mm
