Side 1/2

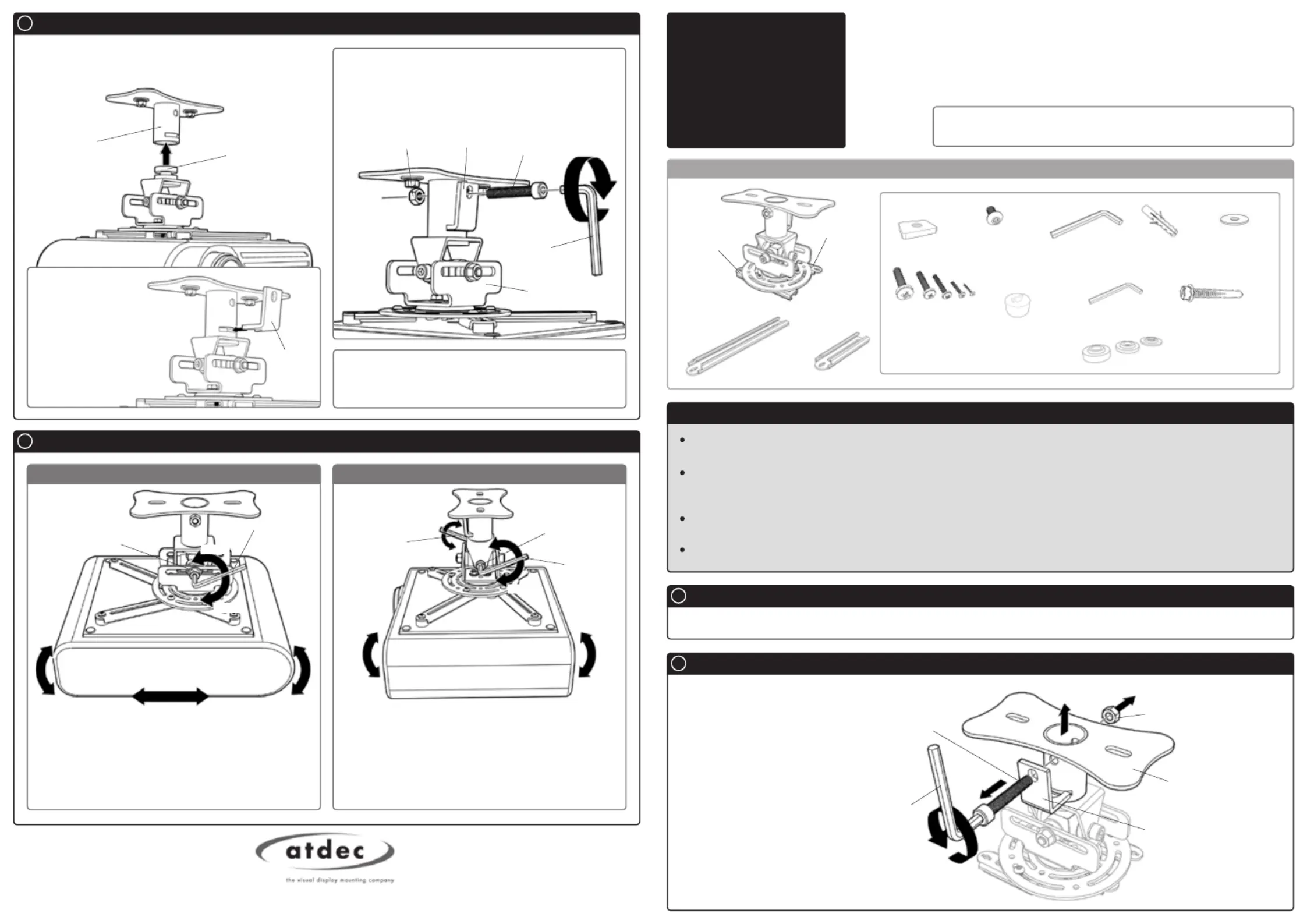

Component Checklist

Roll / Shift Adjustment

Component Checklist

Check you have received all parts against the Component Checklist above.

Bits Bag

WARNING

WARNING: This bracket supports up to 15kg (33lbs).

DO NOT overload this bracket.

Ensure the Ceiling can support the total weight of the Projector and the Universal Flush Mount.

All bolts and screws must be used at the designated points in the installation instructions to prevent damage

to the projector, or personal injury.

DO NOT install near air conditioner vents or where there is excessive dust or smoke.

Ensure the projector is mounted so that it is not possible for excessive loads to be placed on the bracket.

Extension Brackets

150mm (x2)

Extension Brackets

75mm (x2)

Square Nut (x8)

Cross Recessed Screws

M2.5x15 (x4)

M3x15 / M3x20 (x4 each)

M4x15 / M4x20 / M4x25 (x4 each)

M5x15 / M5x20 / M5x25 (x4 each)

M6x15 / M6x20 / M6x25 (x4 each)

M5x10mm

Socket Button

Cap Screw (x4)

Spacer

Large (x4)

Medium (x4)

Small (x4)

6mm Allen

Key (x1)

Bottom

Spacer (x4)

Flush Mount

Assembly (x1)

Nylon Anchor

Plug (x2)

Washer

20mm (x2)

10mm (x4)

8mm (x4)

14 Gauge Coach Screw (x2)

Allen Key

6mm

M8x50mm

Socket Cap

Screw

M8 Nyloc Nut

Ceiling Plate

Locking Hook

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 22.03.07©

F.1.

Connect the Shaft to the Ceiling Plate as shown

below.

Installation Instructions

TELEHOOK

UNIVERSAL PROJECTOR FLUSH MOUNT

Please read these

instructions before

commencing installation

as faulty installation could

result in injury. Atdec

assumes no responsibility

for faulty installations.

IMPORTANT

Removing the Ceiling Plate from the Flush Mount Assembly

Attaching the Flush Mount Assembly to the Ceiling Plate

Adjusting the Projector

Installation Complete

F.3.

Tighten the Locking Hook with the M8x50mm

Socket Cap Screw and the M8 Nyloc Nut that

was previously removed.

F.2.

Insert the

Locking Hook

into the slot in

the Ceiling Plate

to lock the Flush

Mount Assembly.

Ceiling Plate

Locking

Hook

M8 Nyloc Nut

M8x50mm

Socket Cap

Screw

Locking

Hook

6mm

Allen Key

Flush Mount

and Projector

M8x15mm

Screw

6mm

Allen Key

6mm

Allen Key

Remove the Ceiling Plate from

the Flush Mount Assembly as

shown.

Pitch Adjustment

Loosen

Tighten

3mm Allen

Key (x1)

To make Roll/Shift adjustments, first ensure the

weight of the projector is supported. Then loosen

the M8x65mm Screw with the supplied 6mm Allen

Key, and adjust to your desired position.

Re-tighten the screw firmly.

To make Pitch adjustment, first ensure the weight

of the projector is supported. Then loosen both

M8x15mm Screws with the supplied 6mm Allen

Key, and adjust to your desired position.

Re-tighten both screws firmly.

6mm

Allen Key

M8x65mm

Screw

Loosen

Tighten

SHIFT

Shaft

Extension

Brackets

100mm (x2)

Extension

Brackets

50mm (x2)

Tip: When the projector requires servicing, remove

the projector via this easy disconnection point to

save time.

Pitch

Roll Roll

Centre of

Flush Mount

Centre of Gravity

Extension Bracket

Bottom Spacer

Spacer

Recessed Mounting Hole

D.1.

Pick up the projector using both of your index fingers.

Move your fingers along the side of the Projector (follow

Step 1) until it is level. Remember the balance point.

D.2.

Repeat this process for the perpendicular side

(follow Step 2)

D.3.

Where both balance points meet is the Centre of Gravity

of your projector. Use a pencil to mark this point.

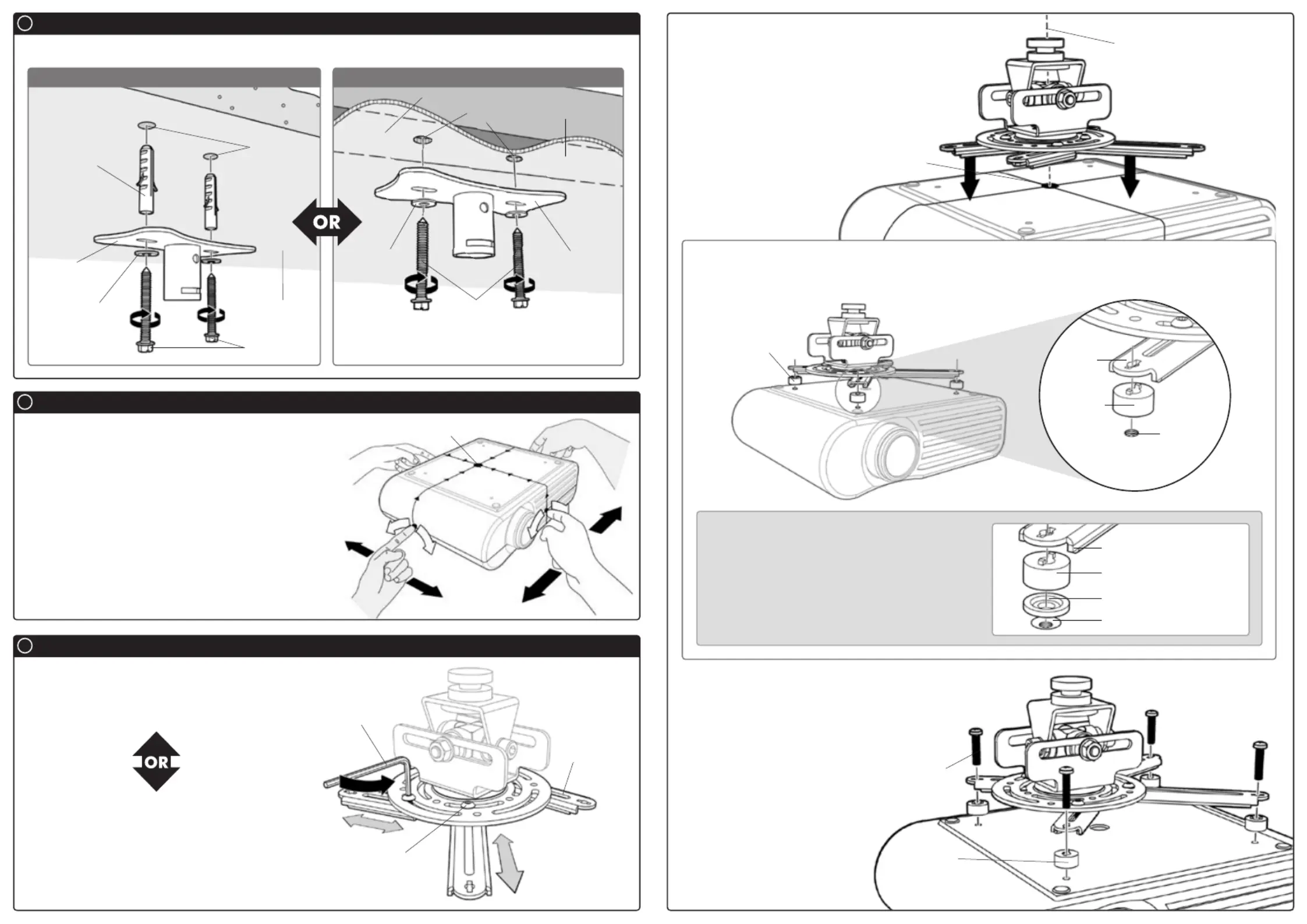

Choose the appropriate installation procedure depending on your ceiling type.

Installing the Ceiling Plate

Finding the Center of Gravity of the Projector

Attaching the Flush Mount Assembly to the Projector

Nylon

Anchor

Plug

Centre of Gravity

M5x10mm

Bracket Screws

3mm

Allen Key

Extension

Bracket

E.1.

Loosen the M5x10mm Screws using the supplied

3mm Allen Key until you can slide the extension

brackets freely, as shown.

You may need to replace the attached Extension

Brackets with the additional longer brackets

supplied in the package, to suit the mounting

hole configuration of your projector.

E.3.

Place the Bottom Spacers in between the Extension Brackets and the Projector, and align the mounting

holes as shown below.

E.4.

Select the correct Mounting Screws

from the Bits Bag and firmly screw

the Flush Mount Assembly onto your

Projector.

Once this is done, the Projector

Flush Mount Assembly is ready to be

mounted onto the Ceiling Plate.

Bottom

Spacers

Bottom

Spacer

Extension

Bracket

Mounting

Hole

Mounting Screws

Bottom Spacer

E.2.

Place the Flush Mount Assembly over the

Projector and align the centre of the Flush Mount

with the Centre of Gravity marked previously on

the Projector.

Step 1

Step 2

NOTE:

Ensure the screws

are securely fixed

into the Timber Beam

Ceiling

Mount

Washer

14 Gauge

Coach Screw

Masonry

Ceiling

8mm

(

”)

Holes

Timber

Beam

Washer

14 Gauge

Coach Screw

Ceiling

Plate

Plaster

Board

3mm (

”)

Holes

Tighten

Masonry Plaster Board

NOTE

If your mounting holes are recessed

into the projector, you may need to use

the additional Spacers supplied in the

Bits Bag. Please select the appropriate

Spacers according to the design of your

projector.
