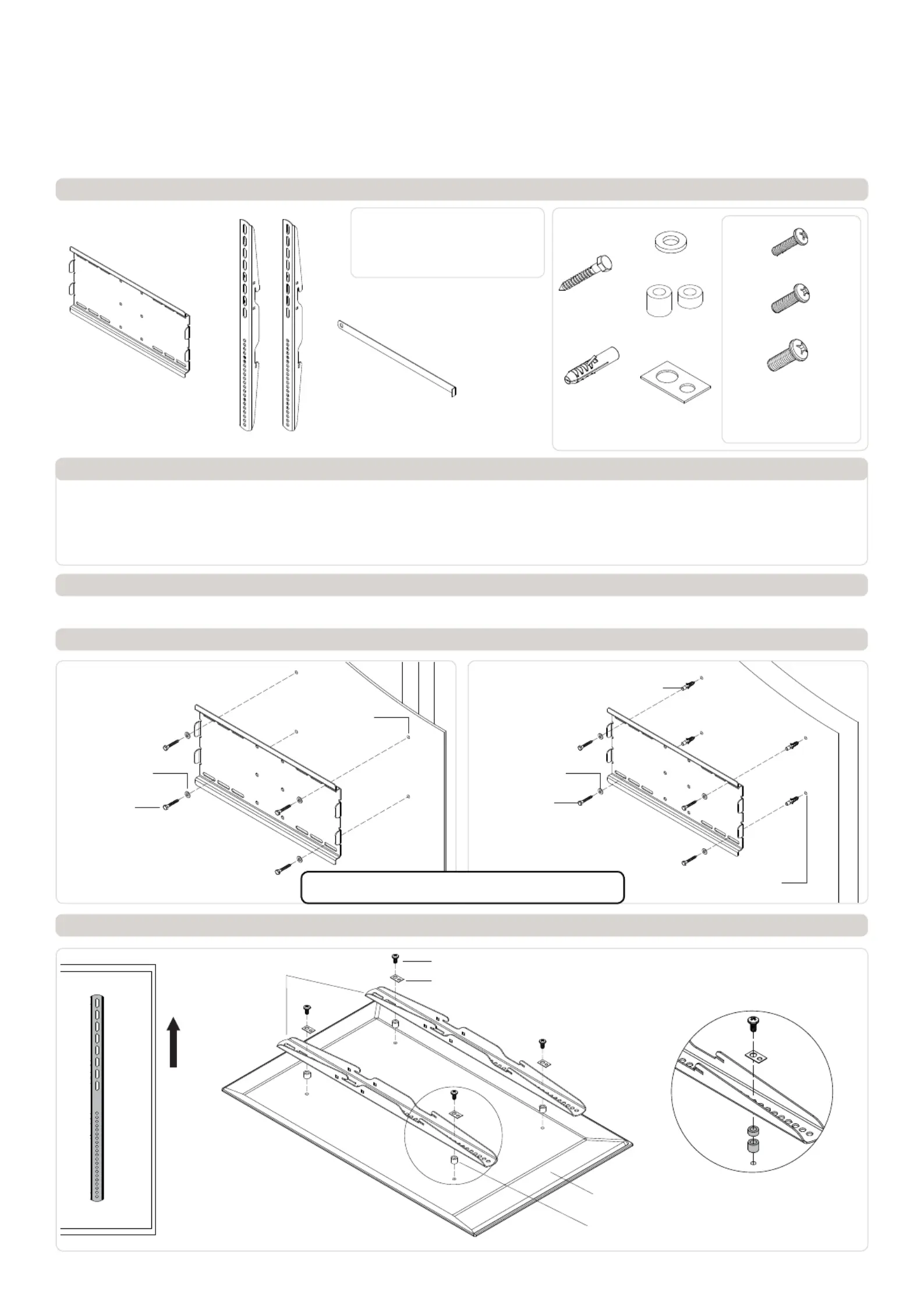

Side 1/2

(Optional) Spacer

Back of Display

Washer

Display Mounting Screw

Mounting Brackets

TH-3070-UFP

Component Checklist

Flat Screen Fixed Portrait Wall Mount

Rectangular

Washer (x4)

Security Bar

M6 Coach

Bolt (x4)

Nylon

Anchor (x4)

HARDWARE

Display Mounting

Screws (x4 each)

M5x14mm

M8x20mm/30mm

! IMPORTANT - Install Flat Screen Portrait Wall Mount as per installation instruction.

! This product supports a maximum load of 70kg (154lbs.).

! This product supports Screen Mounting Hole Configurations: From 200mm to 600mm wide

and from 200mm to 400mm high.

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

M6 Washer (x4)

Wall Plate

Step 2. Attach Wall Plate to the Wall

Timber Stud Masonry Wall

NOTE: Use a stud finder to accurately

locate the center of the stud. Ensure

that all screws fix securely into the stud.

Coach Bolt

Nylon Anchor

Step 3. Attach Mounting Brackets to Display in Portrait Position

Ø4.5mm x 55mm

deep Drilled Hole

Ø10mm x 60mm

deep Drilled Hole

M6 Washer

Coach Bolt

M6 Washer

Mounting Brackets (pair)

Big/Small

Spacer (x4/x8)

M6x14mm/30mm

Use appropriate washers to level uneven

and recessed rear screen surfaces

Tools Required:

• Power Drill

• 4.5mm(0.18”) Drill Bit

• 10mm(0.39”) Masonry Drill Bit

Slots should be at the

top of the display

Slots

Holes

Tips Spirit Level LEVEL 1.Please use a to ensure plate is .

2.Use the Wall Plate as a .drilling template

Installation Instructions

Angle the screen as

shown and position

so the hook is above

the bracket

Drop the hook

onto the bracket to

engage and gently

lower the screen

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 18

.07.13 ©

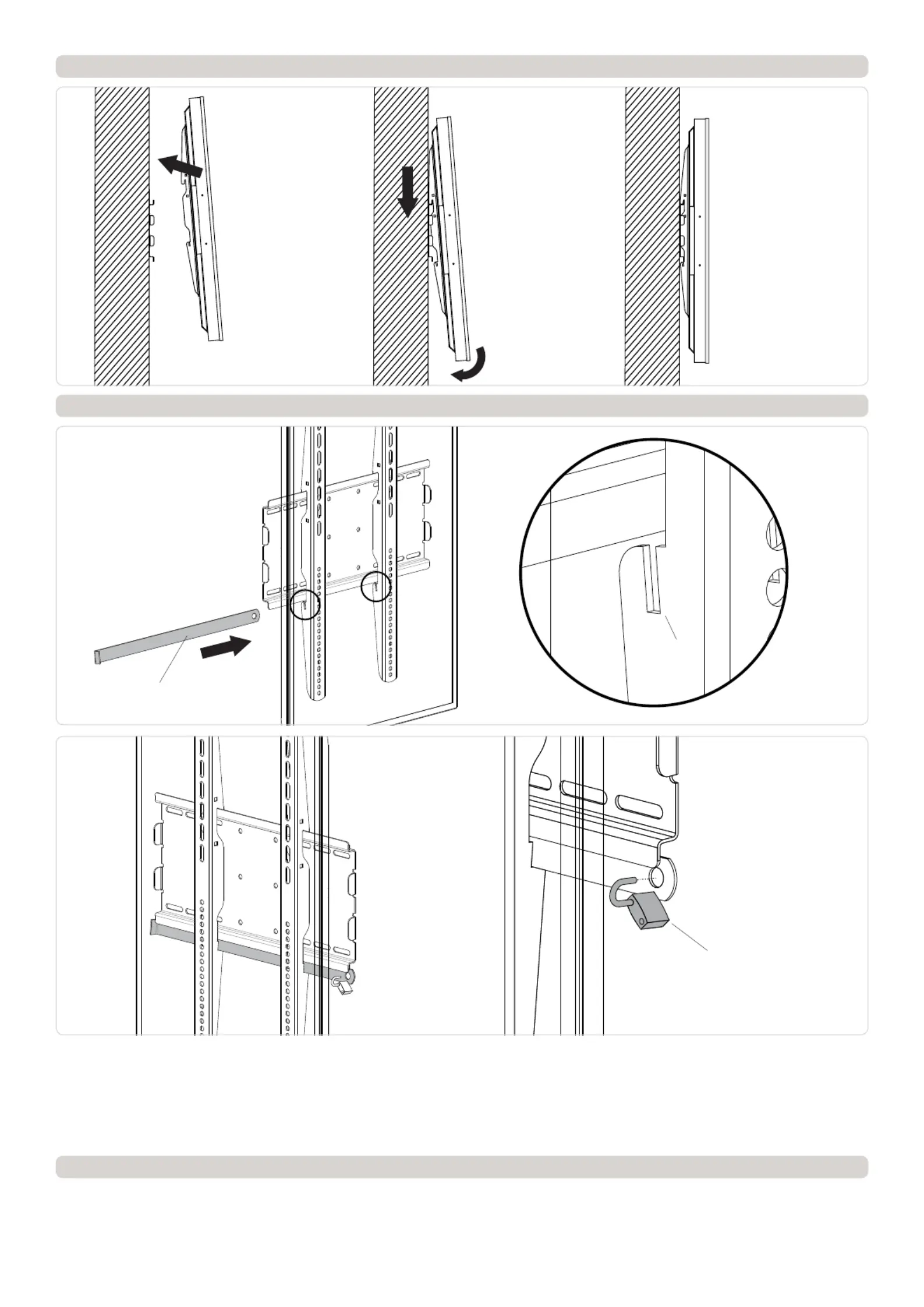

Step 5. Security

Security Bar

Insert the Security Bar into

the slots on the Mounting

Brackets with the tab

facing outwards.

Step 5a

Step 5b

Secure with a Pad

Lock.

Step 4. Mount the Display to the Wall

Slot

Pad Lock

(not supplied)

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Vægophæng
Model:	Telehook TH-3070-UFP
Bredde:	455 mm
Dybde:	223 mm
Produktfarve:	Sort
Monteringstype:	Væg
Maksimal vægtkapacitet:	70 kg
Maksimal skærmstørrelse kompatibilitet:	- "
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	200 x 200 mm
Montering interface kompatibilitet (maks.):	400 x 400 mm
