Side 1/2

Bits Bag

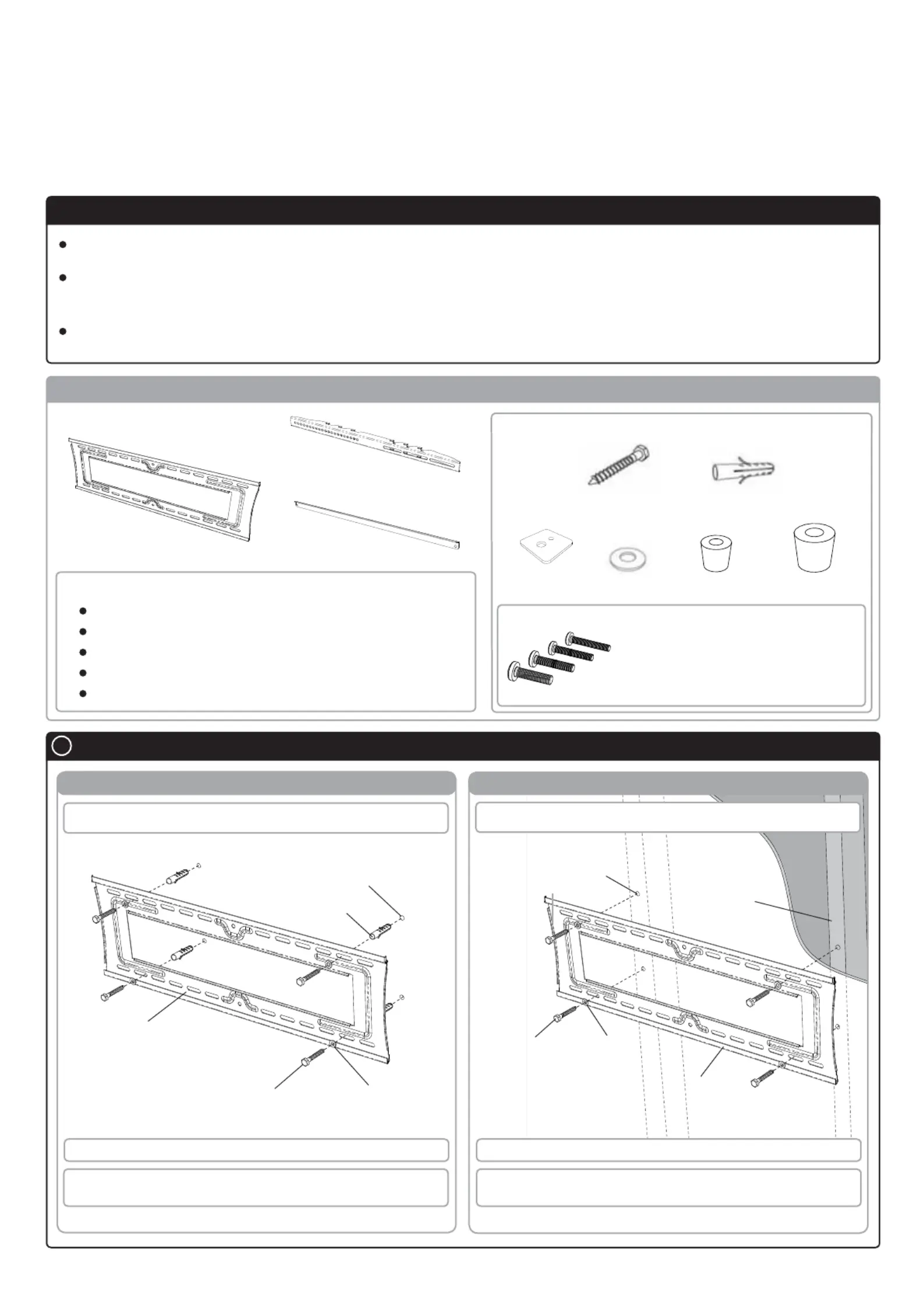

Component Checklist

Display Bracket (x2)

Wall Plate

Important Notes

TOOLS REQUIRED:



Power Drill



12mm (

”), 10mm (

”) or 7mm (

”) Drill Bit



Phillips Head Screw Driver



Spirit Level



17mm (

”) Socket Wrench or Shifter

Supports a maximum load of 150kgs (330lbs).

Suits displays with mounting hole patterns from 200mm to 800mm wide (8”-31.5”) by 200mm to 600mm

high (8”-23.5

”).

The manufacturer does not accept responsibility for incorrect installation.

Security Bracket

Mounting Screws

M8x15mm / M8x35mm / M8x45mm (x4 each)

M6x15mm / M6x35mm / M6x45mm (x4 each)

M5x15mm / M5x35mm / M5x45mm (x4 each)

M4x15mm / M4x35mm / M4x45mm (x4 each)

Cross Recessed Screws

Coach

Screw (x4)

Masonry Wall

Plug (x4)

Washer (x4)

Multi

Washer (x4)

Mounting the Wall Plate

13mm Spacer

Bush (x4)

20mm Spacer

Bush (x4)

Masonry Wall Timber Stud Wall

Note: Ensure the Wall Plate is mounted with the folded tabs point

upwards

Note: Ensure the Wall Plate is mounted with the folded tabs point

upwards

TIP: Use a spirit level to ensure the wall plate is horizontal TIP: Use a spirit level to ensure the wall plate is horizontal

Use a stud finder to precisely locate the timber stud and ensure that the

mounting holes are located in the centre of the stud

It is recommended when mounting directly into masonry wall, that the

mounting holes are positioned as far apart as possible.

12mm (0.5”) hole

Masonry Wall Plug

Wall Plate

Coach Screw Washer

7mm (0.25”) hole

Coach Screw Washer

Wall Plate

Timber stud

Installation Instructions

Flat Screen Wall Mount | Fixed

TH-40100-UF

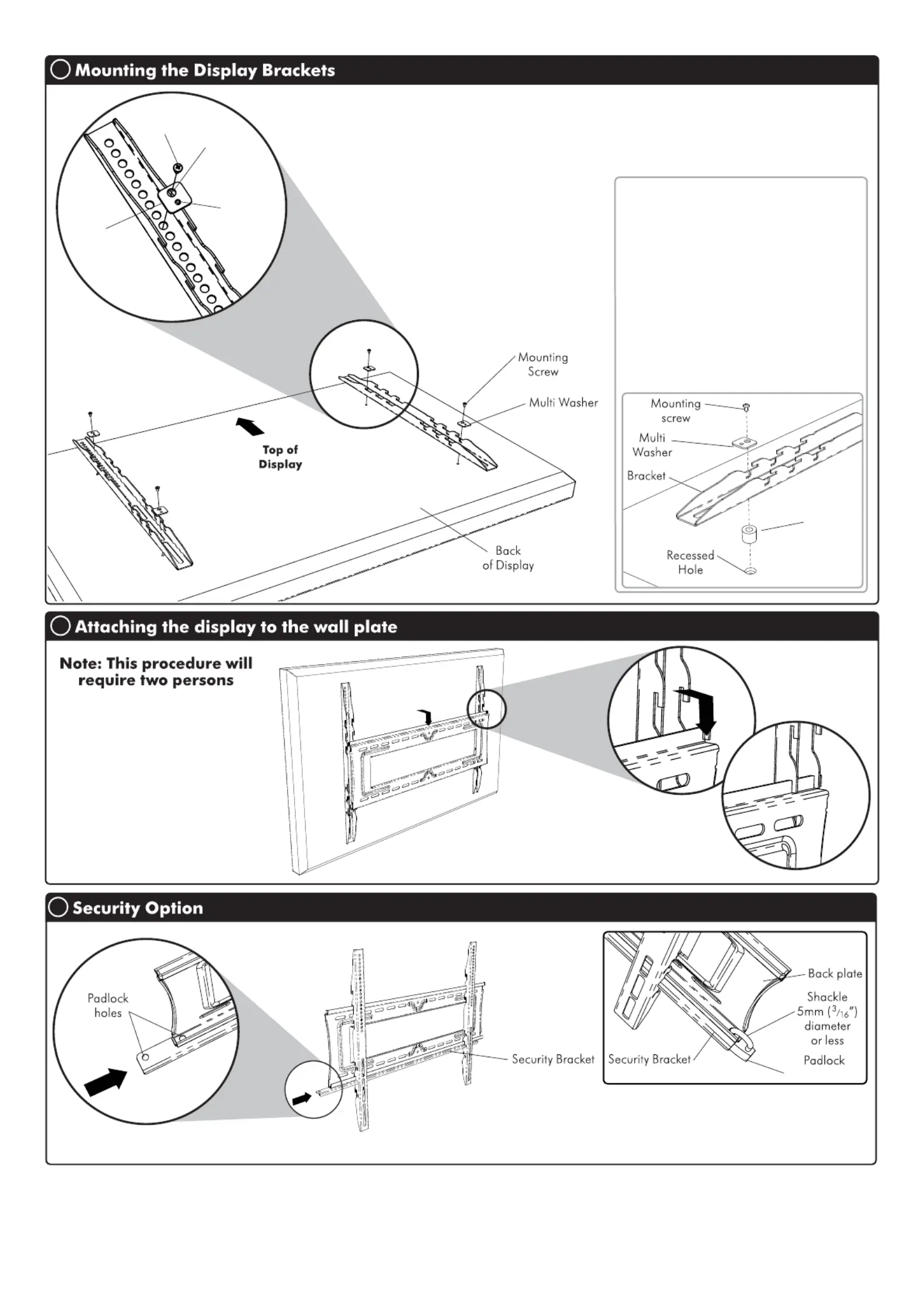

Recessed Mounting Holes

Multi

Washer

M6 & M8

Screw Hole

M4 & M5

Screw Hole

Mounting

screw

When attaching the Brackets ensure

that both are vertically aligned.

Ensure that the tightest fitting hole

in the multi washer is used when

attaching the mounting screw.

For additional security, it is suggested that a Padlock is

attached through the Security Bracket and the Wall Plate

on either side as shown. The Padlock (not supplied) should

have a shackle diameter no larger than 5mm (

”).

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacture reserves the right to alter specifications without notice. Published: 12.12.13©

E.2.

E.1.

(not supplied)

With the Brackets attached

to the display, lift the display

and hook the brackets onto

the Wall Plate as shown.

There are three height

positions to choose from in

50mm (2”) increments.

Spacer

Bush

If the mounting holes are recessed

into the back of the display, use

the appropriate Spacer Bushes

provided to pack the recessed hole.

Please note the 13mm Spacer

Bushes can only be used with M4,

M5, and M6 Mounting screws.

Ensure the brackets are securely

fixed to the display.

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Vægophæng
Model:	Telehook TH-40100-UF
Produktfarve:	Sort
Panel montering grænseflade:	200 x 200,400 x 400,600 x 600,800 x 800 mm
Monteringstype:	Væg
Maksimal vægtkapacitet:	150 kg
Maksimal skærmstørrelse kompatibilitet:	- "
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	200 x 200 mm
Montering interface kompatibilitet (maks.):	800 x 800 mm
