Masonry Wall

- Drill two 10mm (0.4”) diameter holes, 50mm (2”) deep.

- Secure the Mounting Plate to the wall using the Coach

Bolts and Concrete Anchors supplied.

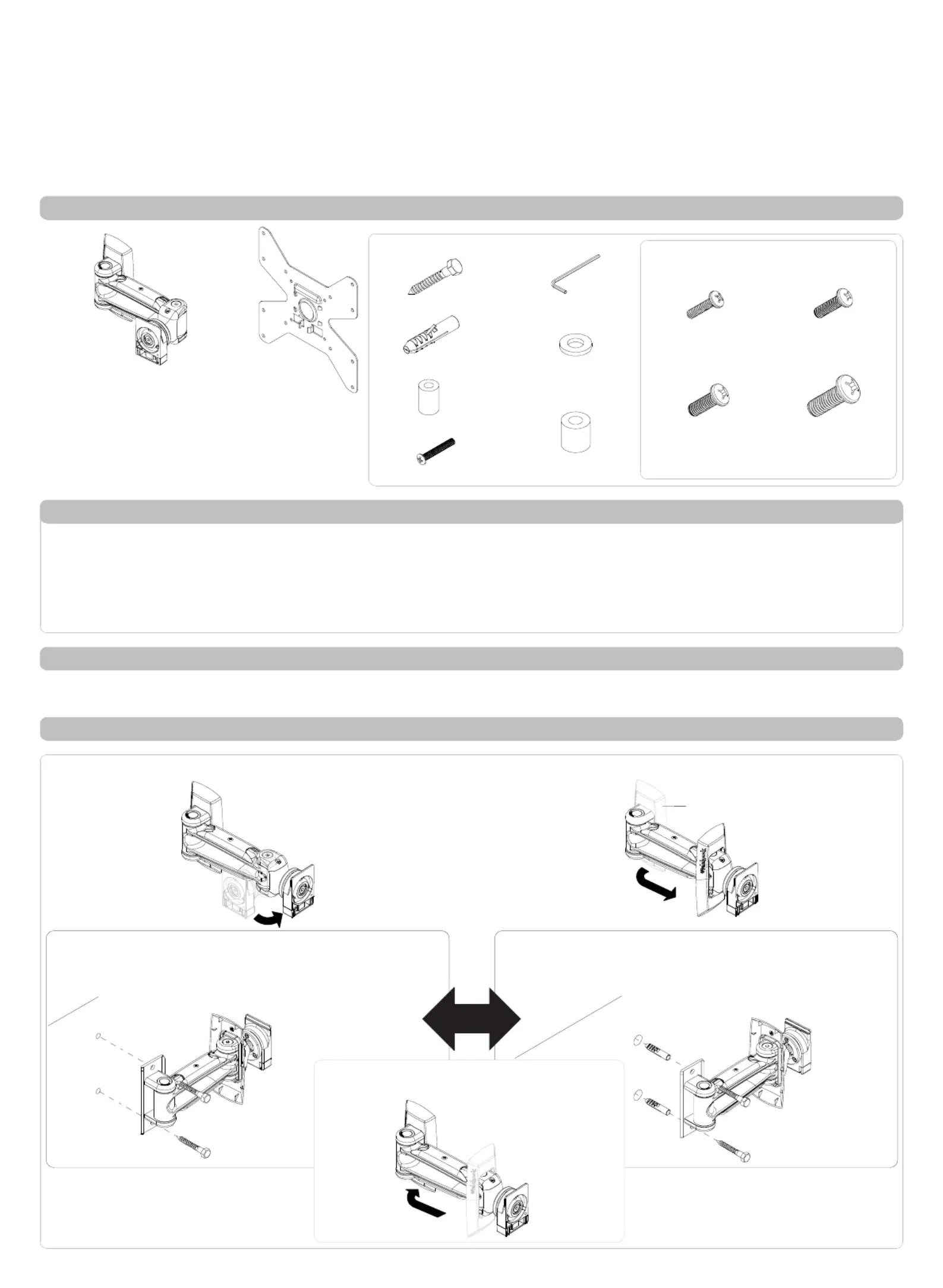

Component Checklist

Coach Bolt (x2)

Concrete Anchor (x2)

M4/5 Spacer (x4)

Security Screw (x1)

3mm Allen Key

M4x16/25mm

(x4 each)

M5x16/25mm

(x4 each)

M6x16/30mm

(x4 each)

TH-1032-VFM

Flat Screen Wall Mount / Full Motion

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and Hardware above.

Step 2. Attaching Arm to the Wall

! IMPORTANT - Install 1032 Flat Screen Wall Mount as per Installation Instructions.

! This product supports a maximum load of 25kg (55lbs).

! This product supports VESA mounting hole configurations: VESA plate, 75x75mm, 100x100mm, 200x100mm,

and 200x200mm.

! The manufacturer accepts no responsibility for incorrect installation.

Display Mounting Screws

Hardware

Tools Required:

Power Drill

•

6mm (0.25”) Drill Bit

•

10mm (0.4”) Masonry Drill Bit

•

Phillips-head Screwdriver•

13mm (0.5”) Socket Wrench or Shifter

•

Remove the Arm from the packaging and open fully.

Un-clip the Wall Plate Cover and slide down the arm.

Slide the Wall Plate Cover back along

the arm, and push flat against the wall.

Wall Plate Cover

M4/M5 Washers

(x4 each)

M6/8 Spacer (x4)

M8x16/30mm

(x4 each)

Arm Assembly VESA Plate

- Drill two 6mm (0.25”) diameter holes, 50mm (2”) deep.

- Secure the Mounting Plate to the wall using the Coach

Bolts supplied.

Timber Stud Wall

Back of Display

Mounting Screws (x4)

Washers (x4)

VESA Plate

Choose appropriate Mounting Screws and

Washers from the Hardware supplied

to suit your Display.

Installation Complete

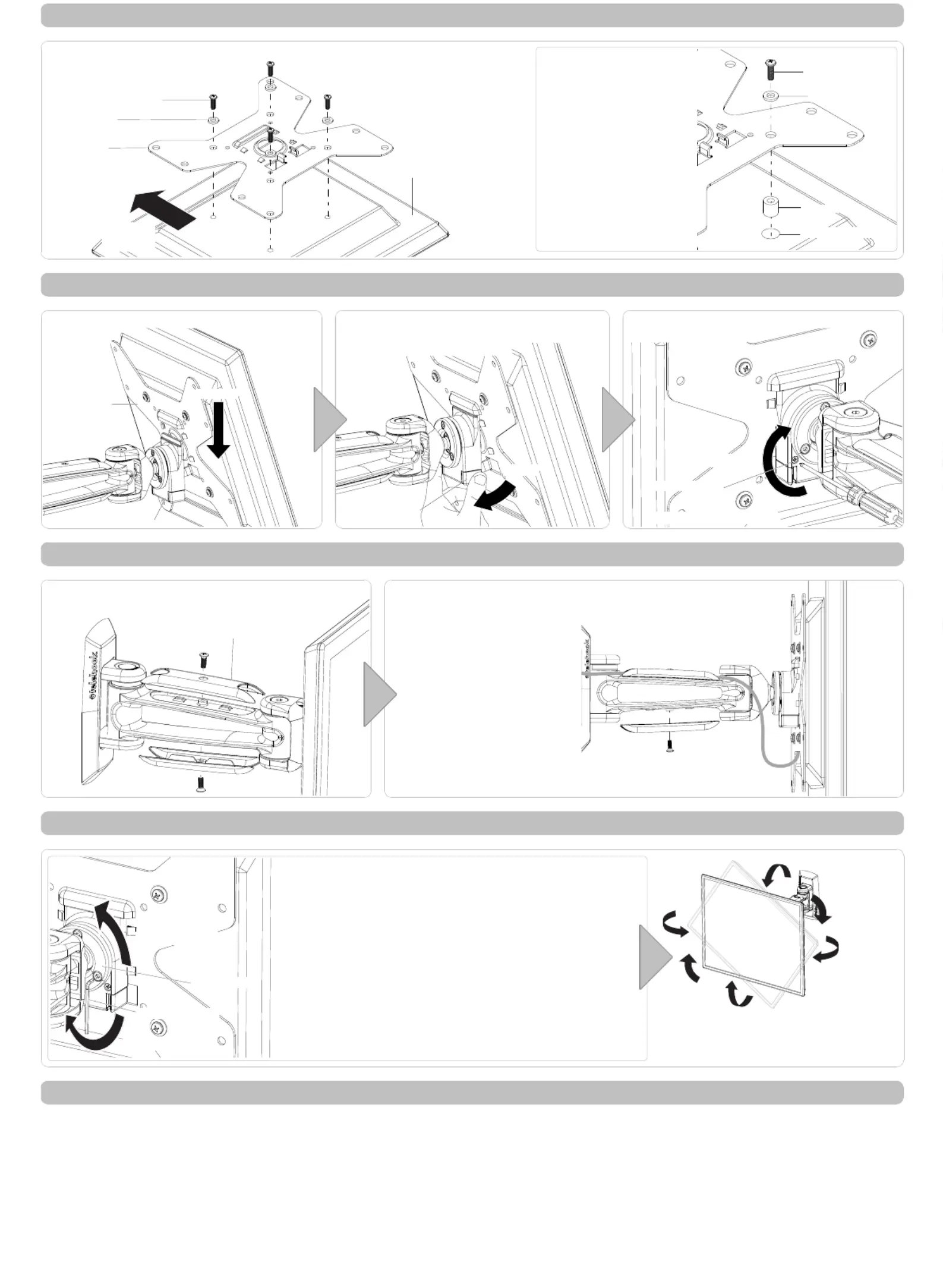

Step 4. Attaching your Display to the Arm

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 01.10.15 ©

Step 3. Attaching the VESA Plate to your Display

Step 5. Cable Management

Step 6. Final Adjustment

Washer

Mounting Screw

Recessed Mounting

Holes or Display with a

Curved Rear Panel

If the Mounting Holes are

recessed into the back of the

Display, or the Display has a

curved rear panel, use the

appropriated Spacer Bushes

supplied to pack the

Mounting Holes.

Note: Ensure the VESA

plate is securely fixed

to the display.

VESA Plate

VESA Ball Mount

Ball Mount.

Insert the Security Screw, and tighten using the

Phillips-head Screwdriver.

TIGHTEN

Security Screw

Remove the Cable Covers as required using a Phillips-head

Screwdriver.

Cable Cover

Connect cables to your Display, and route along the arms.

Re-attach the Cable Covers to hold the Cables in place.

TIP: Leave enough slack in the cables

to allow full movement at the joints.

LOOSEN (-kg)

TIGHTEN (+kg)

Rotate the Display as desired, locking the

Display into position by tightening the

Tension Plate.

+/- 20°

angular tilt

360° infinite

horizontal rotation

Display

Top of Mounting Hole

Spacer

Hook the top of the VESA Plate onto the VESA

HOOK

Press and hold the Release Buttons. Gently push

bottom of VESA Plate into VESA Ball Mount.

Release Buttons to lock in place.

PUSH

Release Button Phillips-head Screwdriver

3mm Allen Key

Tension Plate

Position your Display to the desired viewing angle using the 40°

angular movement allowed by the VESA Ball Mount.

If the display does not hold its position, or is too

resistant, adjust the Tension Plate located at the

rear of the VESA Ball Mount.

To make any adjustments, use the 3mm Allen Key

supplied. Apply half a turn at a time to each screw

on the Tension Plate to adjust evenly.

Check the display, and then adjust again if necessary.
