Side 1/2

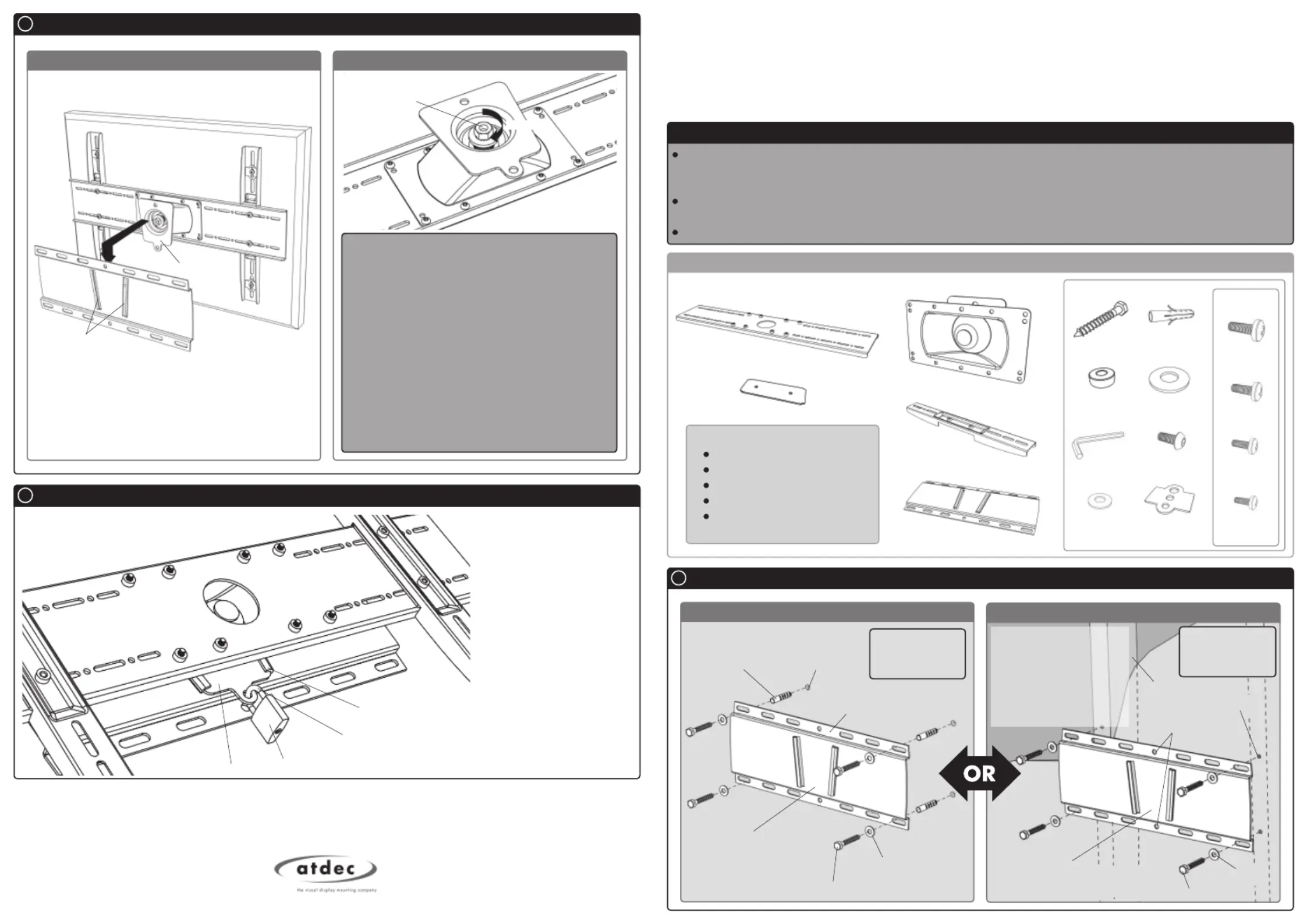

Component Checklist

Bits Box

Mounting

Screws

Installation Instructions

TELEHOOK

30”-50” UNIVERSAL ROTATING WALL MOUNT

Attaching the Display to the Wall Plate

Mounting the Wall Plate

Masonry Wall

Timber Stud Wall

Adjusting the Pivot Head to suit the weight of the

Display

The Pivot head is factory set to hold

approximately 35kgs (77lbs). If the display is not

holding its position when placed on the wall it

may be necessary to remove the display from

the wall and tighten the M12 Hex Nut on the

back of the Pivot Head using a 17mm (

”)

socket wrench or shifter. To achieve a one-touch

effortless adjustment setting it is advised that the

nut be tightened at half turns and re-tested, until

the desired friction is achieved. Alternatively the

M12

Hex Nut can be over tightened in order to

lock the display in position.

Bracket (x2)

Pivot Head

Extension Plate

Wall Plate

Bracket Plate (x2)

Coach

Screw (x4)

Masonry Wall

Plug (x4)

Large

Washer (x4)

Multi

Washer (x4)

Spacer

Bush (x4)

M6x16mm Socket

Drive Screw (x12)

M8x20mm

Phillips Head

Screw (x4)

M6x16mm

Phillips Head

Screw (x6)

M5x16mm

Phillips Head

Screw (x6)

Allen Key

Small

Washer (x4)

Large Washer

Masonry

Wall Plug

Wall Plate

12mm (

”)

Hole

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

Note: Ensure the Wall Plate

is mounted with the narrow

end of the Mounting Slot

at the bottom.

Coach Screw

Note: Ensure the Wall Plate is

mounted with the narrow end of the

Mounting Slot at the bottom.

Large

Washer

Coach Screw

8mm (

”)

Hole

Timber

Stud

With the mount attached to the display, lift the

display and slide the Back Plate into the Mounting

slots to ensure a secure connection.

Tighten

M12 Hex Nut

Security Option

For additional security,

it is suggested that a

Padlock be attached to

the Back plate as shown.

The Padlock (not supplied)

should have a shackle

diameter no larger than

4mm (

”).

Padlock

Note: This procedure will require two persons

Back Plate

Mounting

Slots

Mounting Slot

Note: For demonstration purposes, the display

has been omitted from the image below.

Back plate

Shackle 4mm (

”)

diameter or less

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 02.05.12 ©

Important Notes

TOOLS REQUIRED:

Power Drill

12mm or 8mm Drill Bit

Phillips Head Screw Driver

Spirit Level

17mm (

”) Socket Wrench

or Shifter

The Telehook 30-50 Universal Rotating Wall Mount supports flat panel displays from 30” (76cm) to 50” (127cm)

and supports a maximum load of 85kgs (187lbs).

This product is factory set to support 35kgs (77lbs), and will need to be adjusted if the display is heavier or lighter.

The manufacturer does not accept responsibility for incorrect installation.

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

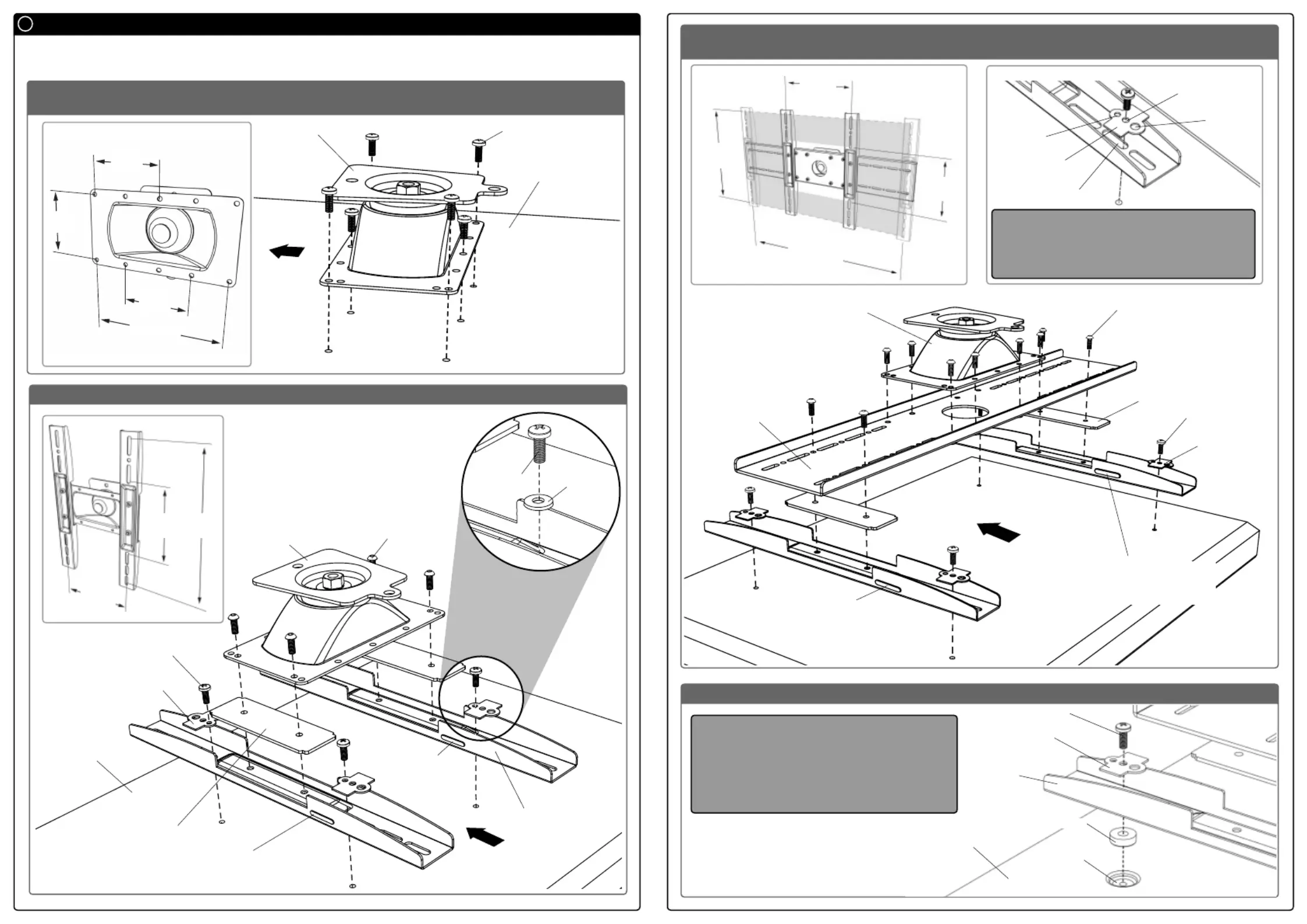

C.1. Attaching the Display to the Wall Plate

C.2. Pivot Head Load Capacity Adjustment

M4x16mm

Phillips Head

Screw (x6)

Centre Holes

Note: It is recommended to

mount the Wall Plate by firmly

fixing the four Coach Screws

into two studs. However, if the

weight of the display is less than

50kgs (110lbs), it is possible to

mount the Wall Plate to one stud

by fixing the two Coach Screws

through the two Centre holes.

Note: For demonstration purposes, the wall

has been omitted from the above image.

TH-30-50-RW /
