Side 1/2

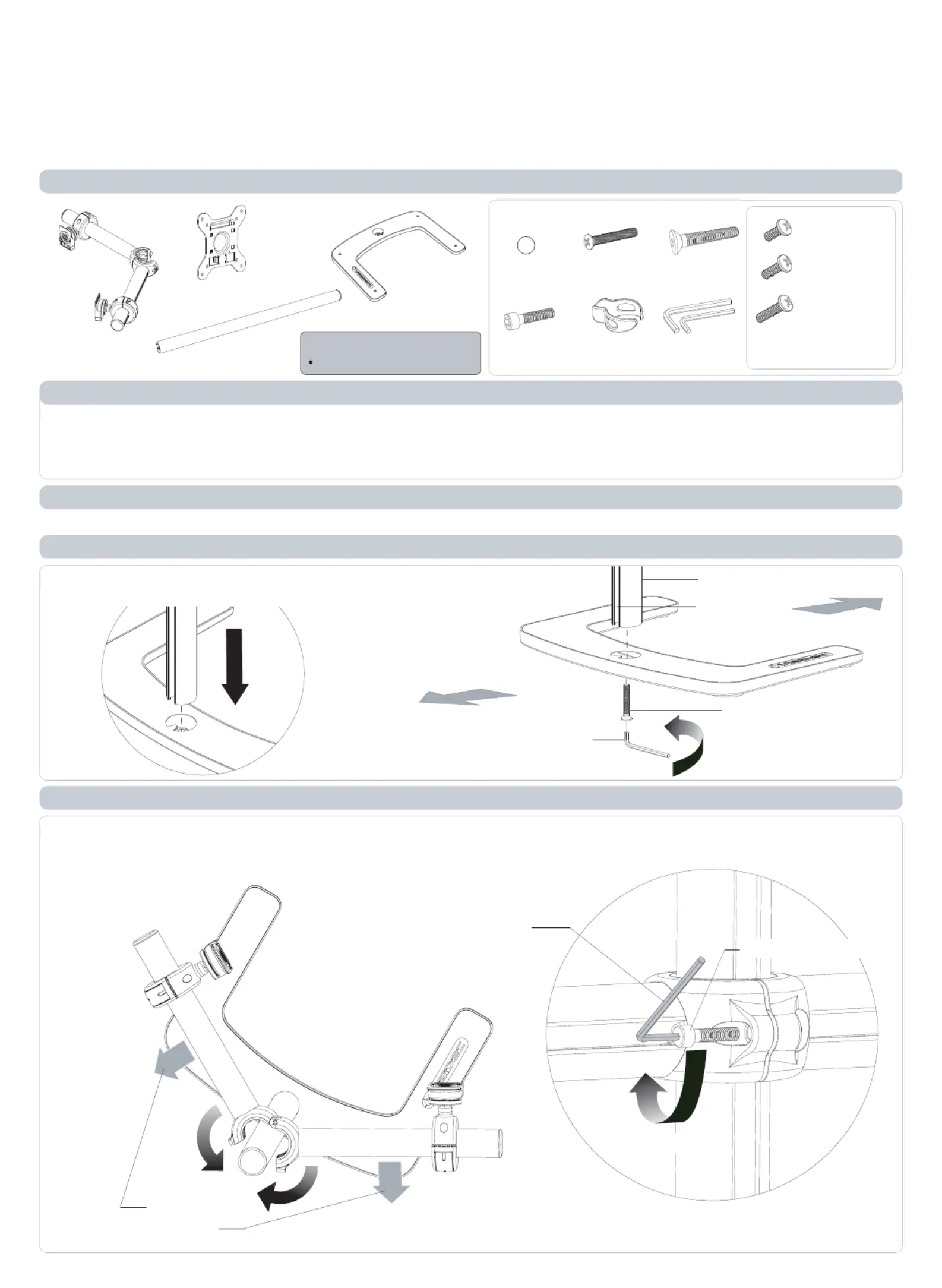

Component Checklist

VFS-Q

IMPORTANT INFORMATION:

Step 1. Check Components

Step 2. Attach Upright Pole to Base

! IMPORTANT - Install Freestanding/Quad as per Installation Instructions.

! Each Quickshift Donut supports a maximum weight of 12kg (26.5lbs).

! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.

Display Mounting

Screws

Hardware

Check you have received all parts against the component checklist and Hardware above.

M4x12mm (x16)

VESA Plate (x4)

M4x10mm (x16)

M4x16mm (x16)

(Optional)

Security Screw (x4)

Cable Ball

(x8)

Cable Clip (x4)

5/3mm Allen

Key (x1 each)

Installation Instructions

Freestanding

Quad

Base

Upright Pole

TOOLS REQUIRED:

Phillips Head Screw Driver

M8x50mm

Screw (x1)

Step 3. Attach Horizontal Support

Cable Slot

USER

BACK

TIGHTEN

FIRMLY

Upright Pole

M8x50mm Screw

5mm Allen Key

Attach the Upright Pole to the Base as shown

below. Ensure the Cable Slot faces towards the rear.

! The manufacturer accepts no responsibility for incorrect installation.

Horizontal

Support (x2)

Clamp the Horizontal Support around the Upright Pole at the required height. Ensure the

Slots in all the Poles are facing to the rear. Tighten support using the M6x25mm Cap

Screw and 5mm Allen Key supplied.

M6x25mm

Cap Screw (x2)

Cable slot to

face back

CLAMP

HOLD SUPPORT IN PLACE

TIGHTEN

M6x25mm Cap Screw

5mm Allen Key

Cable

Clips

LOOSEN

TIGHTEN

Top of

Display

There are two mounting hole configurations:

• 75 x 75mm

• 100 x 100mm

from the Hardware supplied to suit

your Display.

Mounting Screws (x4)

VESA Plate

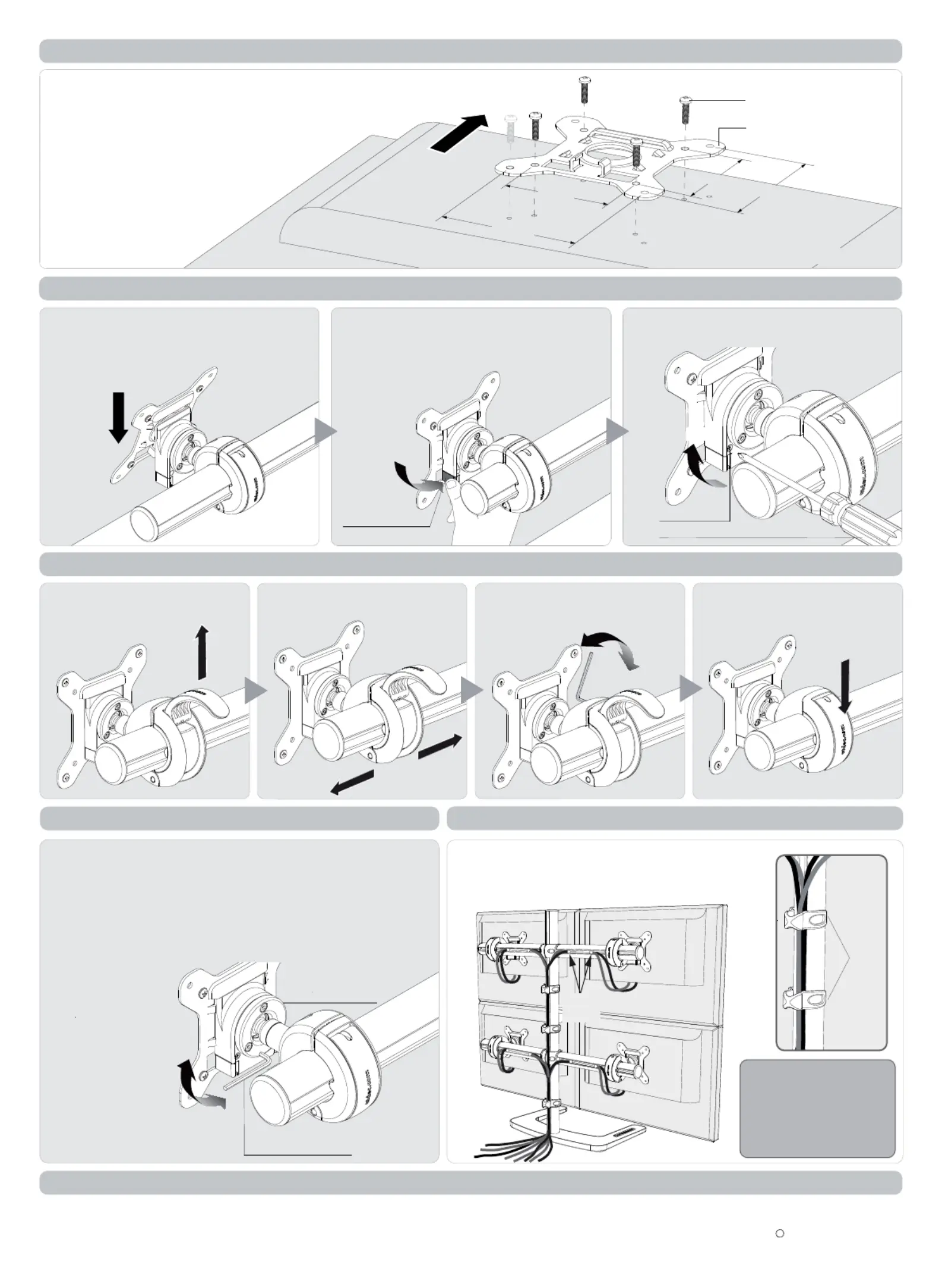

Step 4. Attach the VESA Plate to your Display

100mm

75mm

100mm

Back of Display

(Repeat steps 4 to 7 for each Display)

Installation Complete

No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 01

.09.12

Step 5. Attach your Display to the Quickshift Donut

HOOK

Back of Display

Quickshift Mount.

Hook the top of the VESA plate onto the

Press and hold the Release Buttons. Gently

push bottom of VESA Plate into Quickshift

Mount. Release Buttons to lock in place.

Release Button

Phillips-head Screwdriver

OPEN

Slide the Quickshift Donut to

desired position.

Close the lever to lock the

Quickshift Donut in place.

(Optional) Insert the Security Screw, and

tighten using a Phillips-head Screwdriver.

If necessary, adjust the tension

between the Donut and the Pole

using the 5mm Allen Key supplied.

TIGHTEN

PUSH

Step 7. Adjust the VESA Ball Mount

Security Screw

Open the lever to loosen the

Quickshift Donut.

SLIDE

TIGHTEN (+kg)

LOOSEN (-kg)

3mm Allen Key

Tension Plate

Step 6. Adjust the Position of the Quickshift Donut

Step 8. Cable Management

Connect cables to your Displays, routing them down the

rear of the poles. Push the cables into the slots, using

either the Cable Balls or Cable Clips to secure them to the

pole as shown.

Note: Ensure enough slack

is left in cables to allow for

movement. When the slot in

each pole cannot be used,

use the supplied Cable Clips

to secure the display cables.

Position your Display to the desired viewing angle using the ±20°

tilt allowed by the VESA Ball Mount. To make any adjustments,

use the 3mm Allen Key supplied. Apply half a turn at a time to

each screw on the Tension Plate to adjust evenly. If the display

does not hold its position, or is too resistant, adjust the Tension

Plate located at the rear of the VESA Ball Mount. Check the

display, and adjust again if necessary.

Cable

Balls

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	VFS-Q
Monteringstype:	Gulv
Højde (efter britisk standard):	30 "
Maksimal vægtkapacitet:	12 kg
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	100 x 100 mm
