Safety Instructions

Please read carefully before installing or operating.

• Read all instructions carefully

• Heed all warnings

• Assure that the speaker is securely mounted

• Always assure amplifier power is off before making any connections

• Keep instructions for future reference

• Should any questions arise after reading this document, please call Atlas Sound Tech Support at 800-876-3333

Hearing Damage

CAUTION: All professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to

avoid exposure to excessive levels that can cause permanent hearing damage.

Suspension and Mounting

Installing speaker systems requires training and expertise. Improper speaker installation may result in injury, death, equipment damage, and legal

liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the place of

installation.

Legal requirements for overhead installation vary by municipality, please consult the Building Inspector office before installing any product and

thoroughly check any laws and bylaws prior to installation. Installers that lack the skills, training, and proper ancillary equipment to install a speaker

system should not attempt to do so.

Installation

1. Run the wiring from the power amplifier to the location desired for mounting the ALA Series speaker.

2. Attach the lower wall bracket to the wall. Use a level to be certain that the wall bracket is straight. Secure the wall bracket to the wall. Be sure to

use the appropriate wall anchors when attaching the bracket. Use all four screw holes for maximum integrity and safety.

Note: Hardware for attaching the wall bracket to the wall is not included.

ALA10T

Installation Instructions

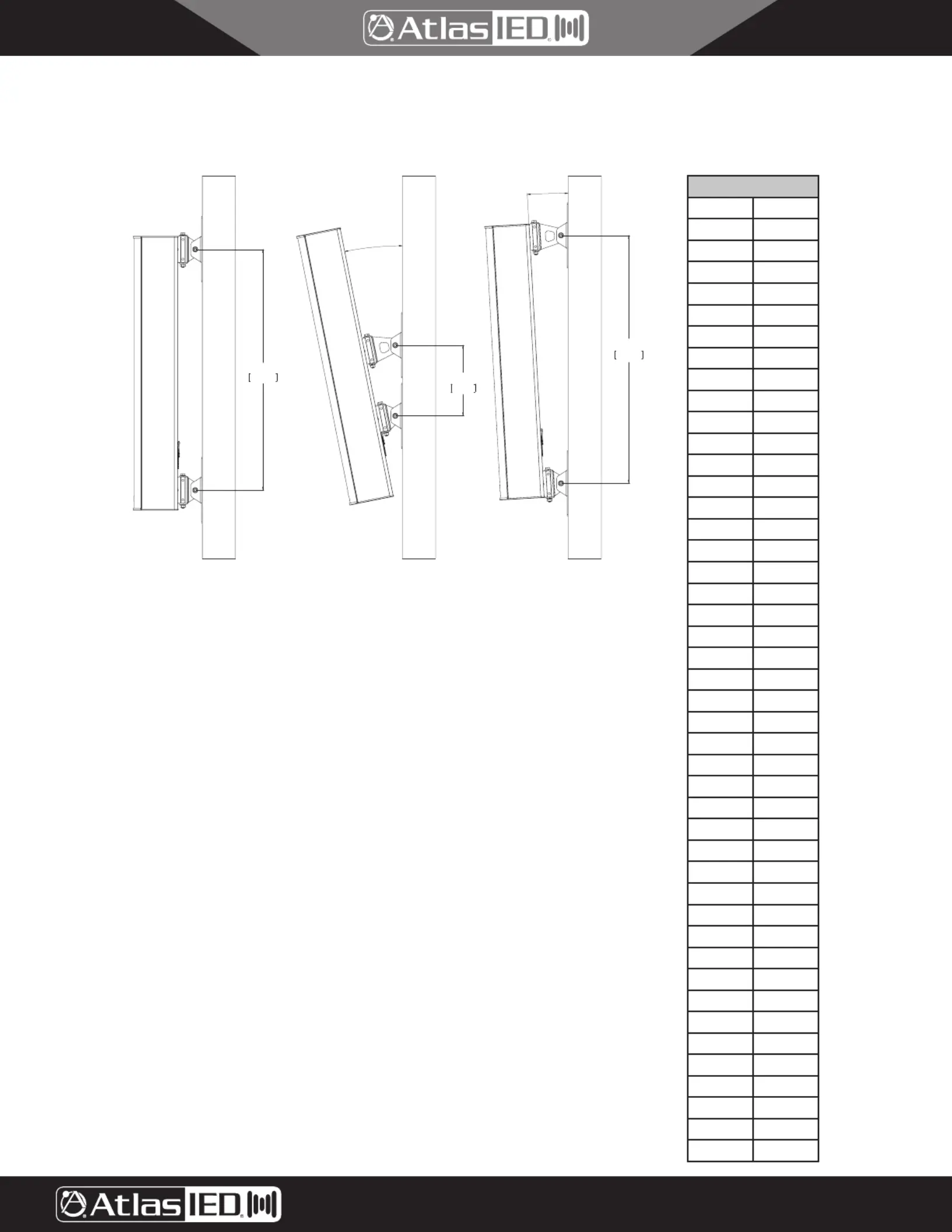

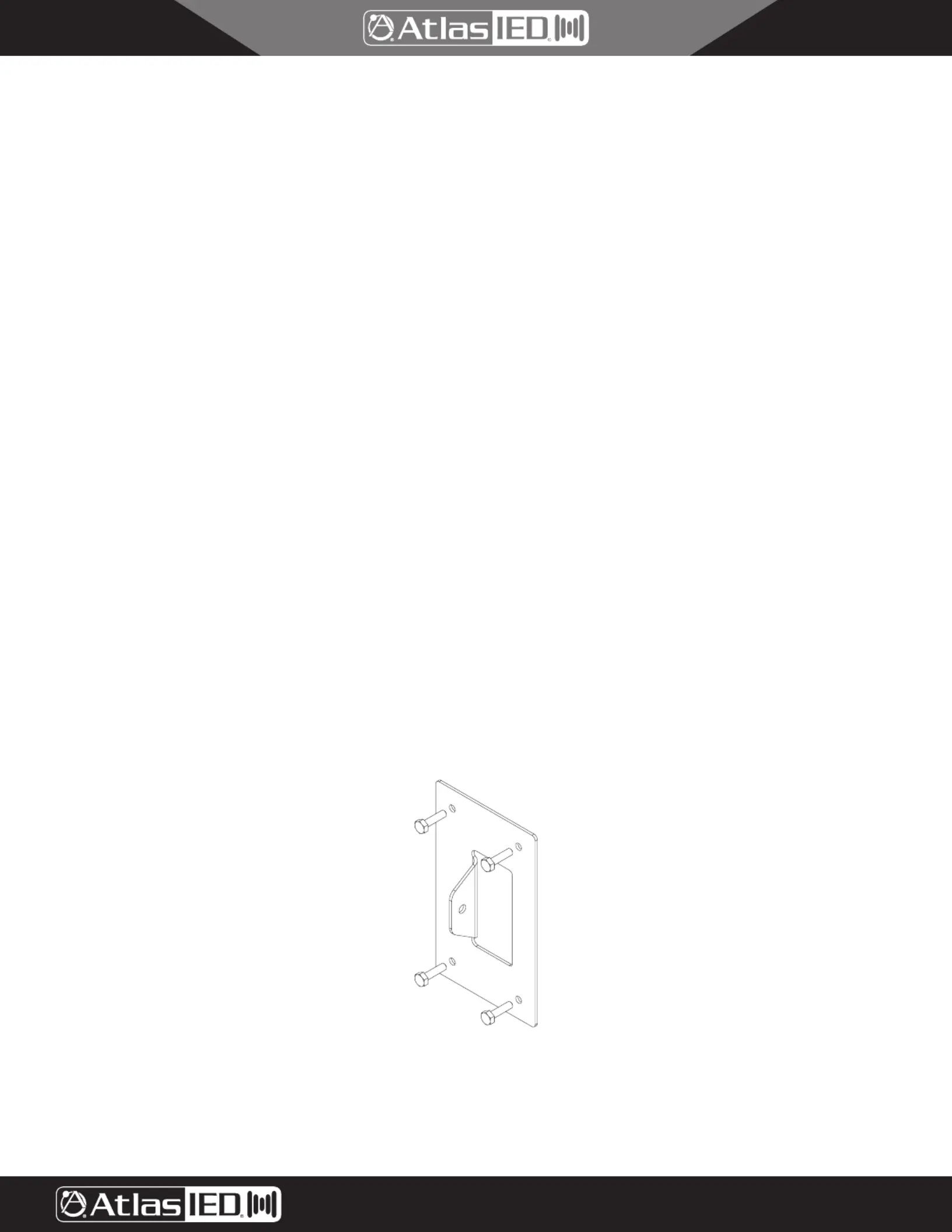

Fig. 1

Produkt Specifikationer

Mærke:	Atlas
Kategori:	Højttaler
Model:	ALA10T
Kode for international beskyttelse (IP):	IP32
Bredde:	117 mm
Dybde:	137 mm
Højde:	835 mm
Produktfarve:	Sølv
Bluetooth:	Ingen
Udgangseffekt (RMS):	600 W
Husmateriale:	Aluminium
Anbefalet brug:	Universel
Frekvensområde:	125 - 20000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Stand-mountable, Wall-mountable
Antal drivere:	14
Driver diameter:	76 mm
Diskanthøjttaler:	Ja
Antal drivere til diskant:	4
Sensitivitet:	96 dB
Delefrekvens:	3500 Hz
Diskant diameter:	25 mm
Forstærker:	Ingen
Mid-range driver diameter:	76 mm
Mid-range driver diameter (britisk mål):	3 "
Antal mellemtoneenheder:	10
