FAP82T

Installation Instructions

ATS001530 RevF 2/08

FAP82T

Installation

Instructions

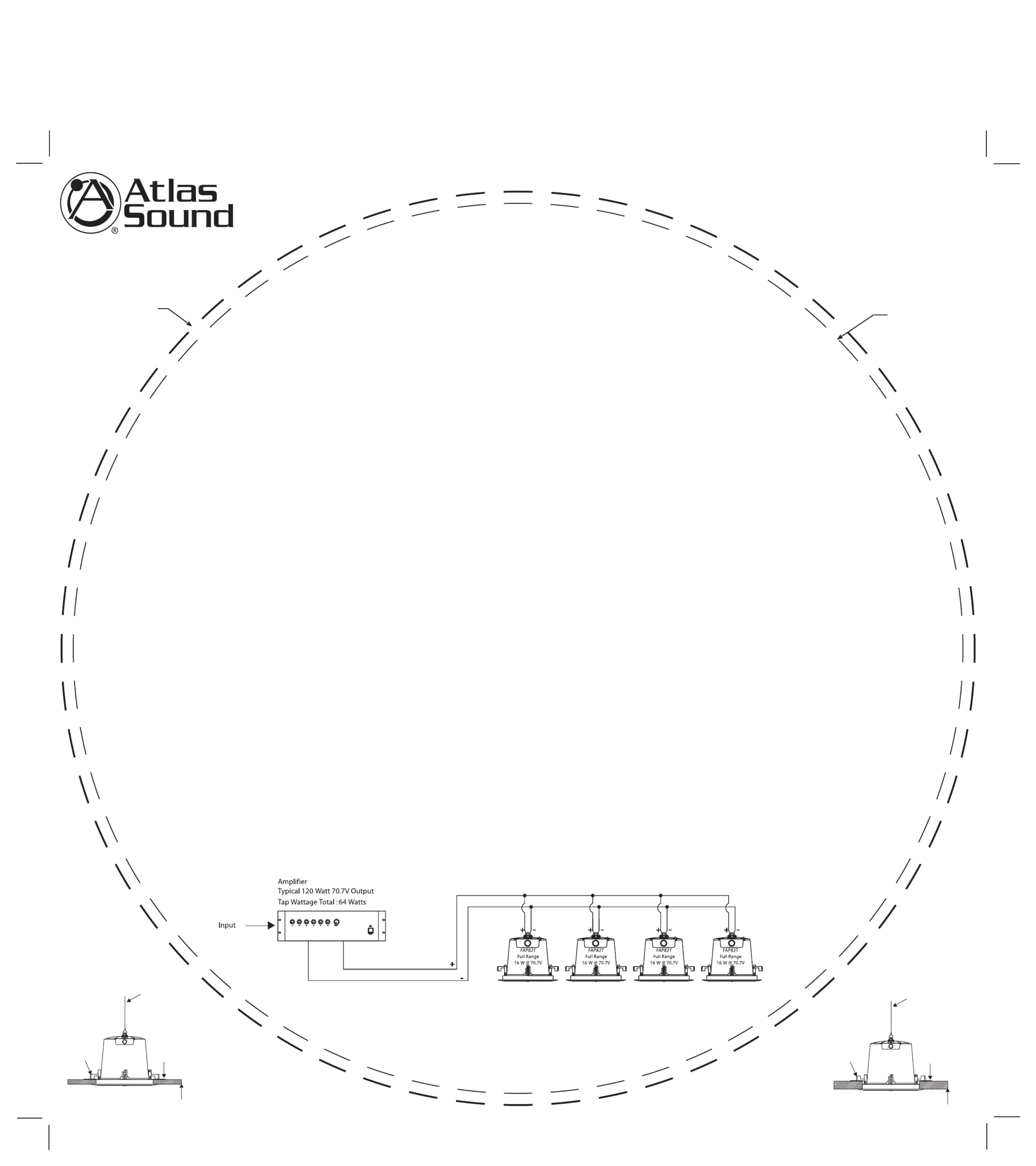

Mounting

Template

⁄8" Dia.

The Atlas Sound Strategy II Series

assembles and mounts easily

into existing construction drop ceiling or drywall materials.

Painting

Shield

⁄4" Dia.

DROP TILE CEILING INSTALLATION

1. Remove 2' x 2' or 2' x 4' tile.

2. Align the adjustable dual rail and C-ring assembly on rear of tile in desired position.

3. Using template provided; mark the cutout circle in the desired mounting location, 14" dia. mounting hole.

4. Affix C-ring assembly to rails using screws provided and position assembly on rear of ceiling tile.

Replace tile into grid making sure that formed ends of tile bridge rails engage T-bar tile support rails.

5. Bring service loop from rear of tile, through tile bridge C-ring to access panel located on side of enclosure.

Terminate the service loop to Phoenix style connector provided (please note polarity). Combination knockouts are

provided to facilitate conduit. A UL recognized conduit connector should be used to terminate conduit.

Connection cavity is not intended for use as a junction box.

6. Insert enclosure through front of tile. Using standard #2 Phillips screwdriver or screw-gun, tighten

(4) dogleg assemblies until they engage C-ring assembly. DO NOT OVER-TIGHTEN DOG LEG SCREWS.

7. Adjust front mounted switch to desired wattage tap setting or 8 *. (See important note regarding 8Ω Ω operation)

8. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

9. For safety and seismic considerations a suspension ring is integrated into input panel section of unit. Atlas Sound strongly suggests that

a support wire be installed from this support point to a suitable anchor point above ceiling grid. In drop tile applications, this wire can

usually be installed from an adjacent tile access near speaker location.

DRY WALL (“HARD DECK”) INSTALLATION

1. Using template provided; mark the cutout circle in the desired mounting location, 14" dia. mounting hole.

2. Place tile bridge rails and C-ring through hole. Use V-shaped edge of C-ring to align tile bridge assembly above ceiling

(alignment screws provided are not required for this type of installation)

3. Bring service loop from rear of tile, through tile bridge C-ring to access panel located on side of enclosure. Terminate the service loop to

Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit. A UL recognized conduit connector

should be used to terminate conduit. Connection cavity is not intended for use as a junction box.

4. Insert enclosure into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten (4) dogleg assemblies until they engage the C-ring assembly.

DO NOT OVER-TIGHTEN DOG LEG SCREWS.

5. Adjust front mounted switch to desired wattage tap setting or 8 *. (See important note regarding 8 Ω Ω operation)

6. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

New Construction (Drywall Ceilings)

Use of optional FAP82-TR

new construction bracket essentially reserves speaker mounting location prior to drywall installation in new construction. The

bracket mounts between 16" or 24" OC studs and includes a

⁄ " downward lip to provide a template for drywall installers to cut around. For final installation, 8

please follow instructions below. Note: tile bridge components are not used in new construction applications where new construction bracket is utilized.

1. Bring service loop through hole in ceiling provided by pre construction bracket to access panel located on side of Enclosure.

Terminate service loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

2. Insert speaker assembly into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten (4) dog leg assemblies until they engage ring provided

on new construction bracket. DO NOT OVER-TIGHTEN DOG LEG SCREWS.

3. Adjust front mounted switch to desired wattage tap setting or 8 * (See important note regarding 8 Ω Ω operation)

4. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

NOTE: Dog legs will accommodate ceiling material thickness up to 1

⁄ " as shipped from factory. 4

For thicker ceiling materials (up to 2") simply unscrew and flip dog legs as shown.

DO NOT OVER-TIGHTEN DOG LEGS IN EITHER CONFIGURATION.

NOTE: *DO NOT USE 8 SETTING WITH 70.7V/100V SYSTEMS.Ω

*DO NOT OVERPOWER IN 8 Ω CONFIGURATION.

AMPLIFIER OUTPUT SHOULD NOT EXCEED

70 W RMS @ 8 PER SPEAKERΩ

FAP82-TR NOT TESTED OR EVALUATED BY UNDERWRITERS LABORATORIES (UL)

A UL RECOGNIZED CONDUIT CLAMP MUST BE USED FOR CONDUIT CONNECTIONS. CABLE CONNECTION CAVITY IS NOT INTENDED TO BE USED AS A JUNCTION BOX.

FREQUENCY RESPONSE: 80 Hz -20 kHz (± 5 dB)

SENSITIVITY: 89 dB (1 W/1 M)

Typical Parallel Hookup of Full Range 70.7/100V Speakers

Auxiliary Suspension Point

Dog Leg

In Normal

Position

Tile Bridge

Ceiling Material up to 1

⁄4

Auxiliary Suspension Point

Dog Leg

In Inverted

Position

Tile Bridge

Ceiling Material up to 2

Produkt Specifikationer

Mærke:	Atlas
Kategori:	Højttaler
Model:	FAP82T
Dybde:	323 mm
Antal pr. pakke:	1 stk
Produktfarve:	Hvid
Pakkevægt:	10210 g
Antal højttalere:	1
Udgangseffekt (RMS):	60 W
Frekvensområde:	55 - 20000 Hz
Impedens:	8 ohm (Ω)
Højttaler, placering:	Kan monteres på væggen
Sensitivitet:	90 dB
