Side 1/4

1/4

AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners.

All specs are subject to change without notice. ATS005451 RevA 4/16

Safety Instructions

Please read carefully before installing or operating.

• Read all instructions carefully

• Heed all warnings

• Assure that the speaker is securely mounted

• Always assure amplifier power is Off before making any connections

• Ensure that all electrical equipment is properly grounded

• Keep instructions for future reference

• Should any questions arise after reading this document, please call AtlasIED Tech Support at 800-876-3333

Hearing Damage

CAUTION: All professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to

avoid exposure to excessive levels that can cause permanent hearing damage.

Mounting

Mounting loudspeaker systems require training and expertise. Improper rigging of a suspended loudspeaker may result in injury, death, equipment

damage, and legal liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the

place of installation.

A 5:1 design factor is a generally accepted minimum standard. However, legal requirements for overhead suspension vary by municipality. Please

consult your local safety standards office before installing any product. We also recommend thoroughly checking any laws and bylaws prior to

installation.

Loudspeakers flown in theaters, nightclubs, conference centers, or other places of work and entertainment must be provided with an independent,

correctly rated and securely attached secondary safety — in addition to the principle suspension point(s). This secondary safety must prevent the

loudspeaker from dropping more than 6" should the principle suspension device fail. If you lack the skills, training, and proper ancillary equipment to

suspend a loudspeaker system, do not attempt to do so.

For additional information regarding the suspension of loudspeakers or to purchase rigging materials, please contact our friends at Allen Products, Inc.

1635 E. Burnett St. Signal Hills, CA 90755

www.adapttechgroup.com

Telephone (562) 424-1100 and Fax (562) 424-3520

FS12T Series

Installation Instructions

2/4

AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

All specs are subject to change without notice. ATS005451 RevA 4/16

Installation via Mounting Bracket (Included)

General considerations and hardware recommendations:

CAUTION: FS12T Series models weigh as much as 50 pounds (22.7 kg) – model FS12T-66. A fall from almost any height could result in serious injury

or death. Assure that the loudspeaker is firmly mounted to an object that can handle its weight. Remember that wind will add considerable torque to

the point of attachment. The mounting surface the FS12T loudspeaker is being attached to should be able to handle five or more times the weight of

the FS12T loudspeaker (7x is recommended for locations subject to high wind forces).

Whenever the loudspeaker is mounted to a surface using the bracket, the installer must ensure that the surface is capable of safely and securely

supporting the load. The hardware employed must be safely and securely attached both to the loudspeaker and the surface in question, using only the

mounting holes. A general rule for soft surface installations (wood beams) is to multiply the corresponding working load limit by 75%; the result will be

an approximate working load strength.

Use thread locking compound for all installations.

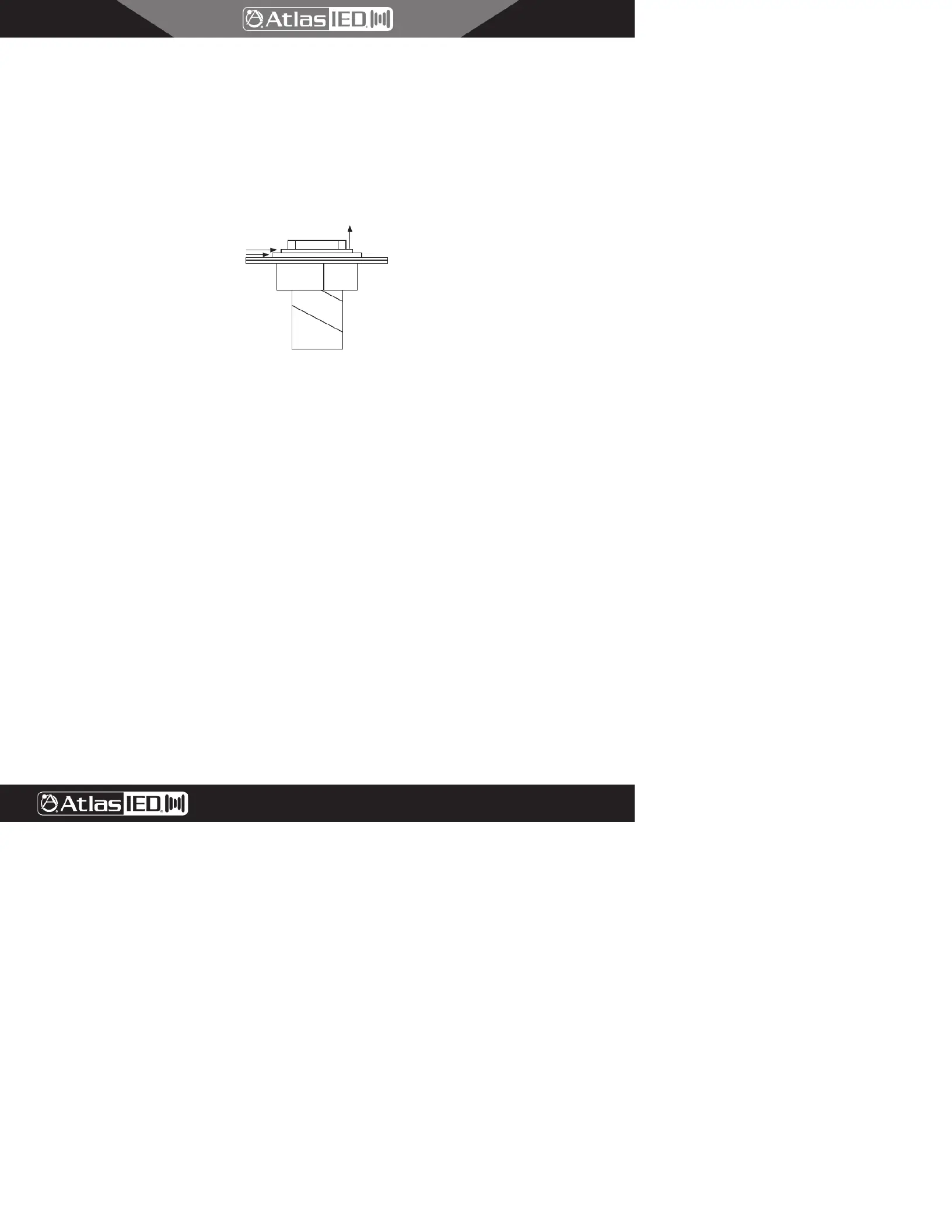

CAUTION: Mount the speaker such that the shear force is at a right angle to the mounting bolts, and as close to the connection, as shown:

When mounting the FS12T loudspeaker to a solid surface use the proper bolts, washers, and lock washers (stainless steel A193 grade B8 is

recommended for high strength outdoor installations). Do not substitute mismatched bolts and washers.

The FS12T loudspeaker may be mounted to a pole or scoreboard. For such mounting, contact the light pole or scoreboard manufacturer for proper

instructions. If mounting to another surface, such as a beam, see the diagram on page 3. When in doubt contact a qualified structural/mechanical

engineer for approval of the mounting materials and methods.

Mounting

CAUTION: Mounting the FS12T loudspeaker requires two people, unless it is possible to safely clamp the loudspeaker in position for alignment before

mounting.

The bracket may be removed from the loudspeaker for installation convenience. When re-attaching loudspeaker to bracket be sure to tightly secure

loudspeaker mounting bolts. A semi-permanent thread locking compound should also be used in this operation.

1. Choose the center mounting hole or any two of the 10mm bracket mounting holes best suited for the surface you are mounting to. For best

stability using 2 holes is recommended.

2. When using these mounting holes 10mm (stainless steel A193 grade B8 hardware is recommended for high strength outdoor installations).

Stainless flat and lock washers must also be used. Remember to use semi-permanent thread locking compound on threads.

3. Use the dimensions noted on the illustration to mark the points for drilling holes.

4. Choose appropriately sized bit and drill holes.

5. Attach loudspeaker bracket, using bolt, flat washer, and lock washer as shown and re-attach loudspeaker to bracket.

6. Secondary (safety) suspension point: Use a load rated cable or steel chain (capable of holding the loudspeaker should it come loose from the

primary mounting point). This cable or chain assembly should be attached to and secured to the mounting surface via approved, load rated

hardware.

Tension Force

Lock Washer

Shear Force

Flat Washer

Produkt Specifikationer

Mærke:	Atlas
Kategori:	Højttaler
Model:	FS12T-SUB
Kode for international beskyttelse (IP):	IP45
Bredde:	469 mm
Højde:	497.8 mm
Vægt:	18600 g
Produktfarve:	Grå
Udgangseffekt (RMS):	- W
Frekvensområde:	47.5 - 130 Hz
Lydtryksniveau (maks.):	124 dB
Forbindelsesteknologi:	Trådløs
Højttaler, placering:	Ceiling-mountable, Wall-mountable
