Installation Guide
AT-HDR-EX-70-2PS
4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70-2PS
The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides
HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters)
for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no
latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-
2PS delivers a cost-eective solution for HDMI extension, with locally powered transmitter and
receiver endpoints as well as surface mounting hardware for discreet installation.
The HDR-EX-70-2PS is ideal for residential applications with the latest as well as emerging 4K/
UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats,
and color space formats supported in the HDMI 2.0a specication, plus the ability to pass
metadata for HDR content. The HDR-EX-70-2PS includes Atlona’s award-winning 10 year limited
product warranty and customer support services, so that integrators can specify, purchase, and
install with condence.
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70-2PS for the latest
rmware updates and Installation Guide.
1 x AT-HDR-EX-70-2PS-TX
1 x AT-HDR-EX-70-2PS-RX
4 x Mounting brackets
8 x Mounting screws
2 x 5 V DC power supplies
1 x Installation Guide
Package Contents
2
Installation Guide
AT-HDR-EX-70-2PS
FW
AT-HDR-EX-70-2PS-TX
POWER
LINK
DC 5V HDBaseT OUT HDMI IN
ON
1
FW
UNIT HDBaseT
FW
AT-HDR-EX-70-2PS-RX
POWER
LINK
DC 5V HDBaseT IN HDMI OUT
ON
1
FW
UNIT HDBaseT

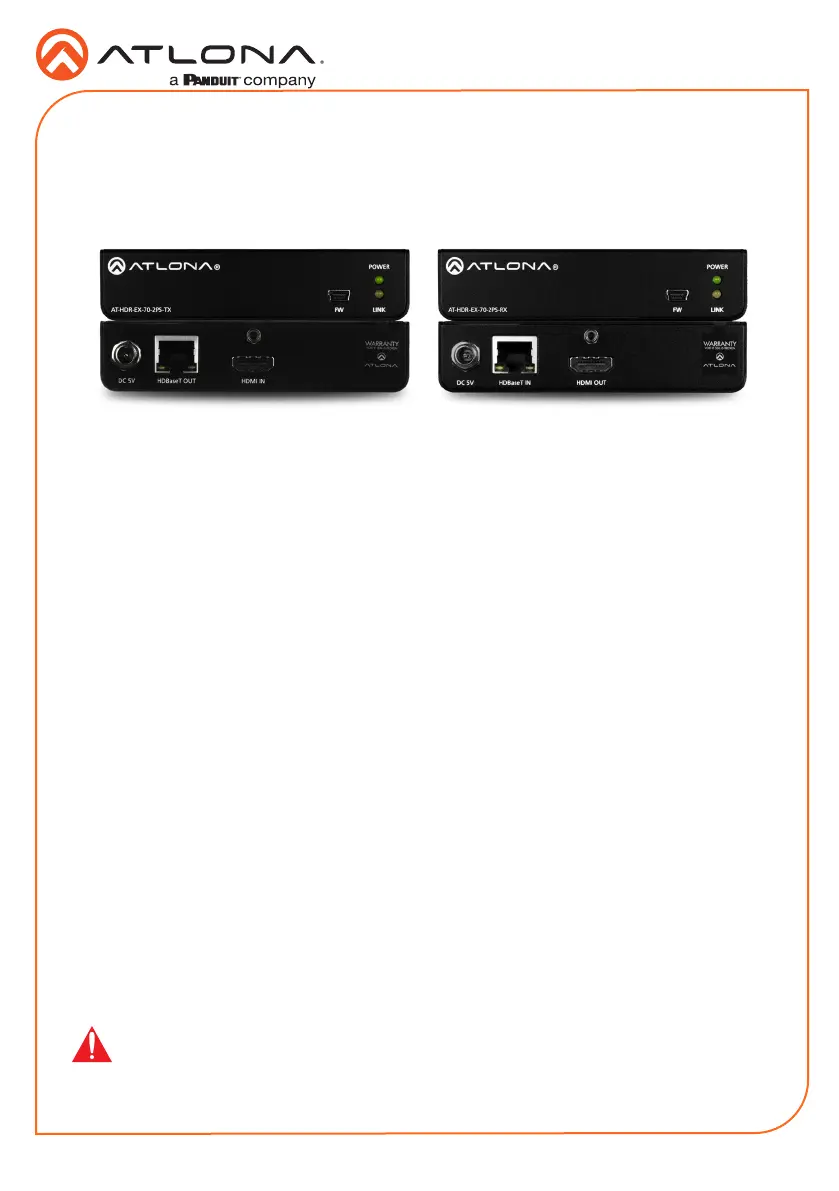

Panel Descriptions
1 FW
Connect a mini-USB to USB-A type
cable from this port to a computer, to
update the rmware. Refer to Updating
the Firmware, on page 5, for more
information.
2 POWER
This LED indicator glows solid green
when the unit is powered. Refer to
LED Indicators, on page 4, for more
information.
3 LINK
This LED indicator indicates the link status
between the transmitter and the receiver.
Refer to , on page 4, for LED Indicators
more information.
4 DC 5V
Connect the included power supply to this
power receptacle.
5 HDBaseT OUT
Connect an Ethernet cable from this port
to the port on the receiver.HDBaseT IN
6 HDMI IN
Connect an HDMI cable from this port to a
UHD/HD source.
7 HDBaseT IN
Connect an Ethernet cable from this
port to the port on the HDBaseT OUT
transmitter.
8 HDMI OUT
Connect an HDMI cable from this port to
an UHD/HD display.
9 FW (UNIT / HDBaseT)
Set this switch to the position to UNIT
update the rmware. Refer to Updating
the Firmware, on page 7, for more
information. For normal operation
or for HDBaseT cable testing, set to
the position. See HDBaseT Testing
HDBaseT Signal Integrity, on page 5, for
more information.
Transmitter
Front Front
Rear Rear
Bottom Bottom
Receiver
4 45 76 8
2
9 9
21 13 3
