Installation Guide
AT-OME-EX-TX-WP-E
Omega™ 4K/UHD
Wallplate Transmitter for HDMI with HDBaseT Output and
USB
AT-OME-EX-TX-WP-E

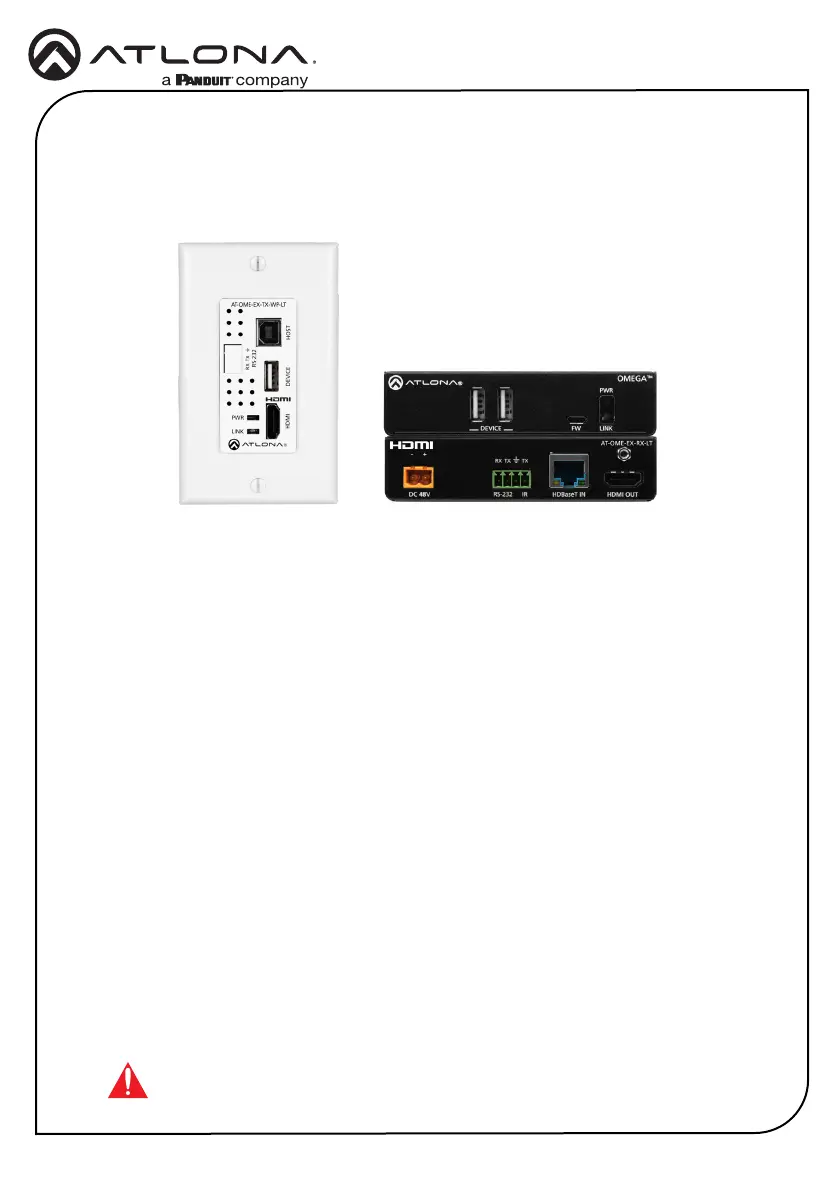

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus
embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed
for commercial installations in Europe, and includes interchangeable EU and UK faceplates and
brackets. Part of the Omega™ Series of integration products for modern AV communications
and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control
signals. With a matching HDBaseT receiver, the integrated USB extension addresses the
challenge of connecting between USB devices at remote locations, and is ideal for software
video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB
2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone,
or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as
switchers with HDBaseT inputs.
* The AT-OME-EX-TX-WP-E is not compatible with the AT-UHD-HDVS-300 system for extending
USB.
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-TX-WP-E for
the latest rmware updates and User Manual.
1 x AT-OME-EX-TX-WP-E
1 x White EU wallplate
1 x White UK wallplate
1 x 3-pin captive screw connector
2 x Mounting screws
1 x Installation guide
Package Contents
2
Installation Guide
AT-OME-EX-TX-WP-E
OMEGA T M AT-OME-EX-TX-WP-EU
HDMI HUB
LINK
PWR
HOST
4
1
6 7
2
3
5

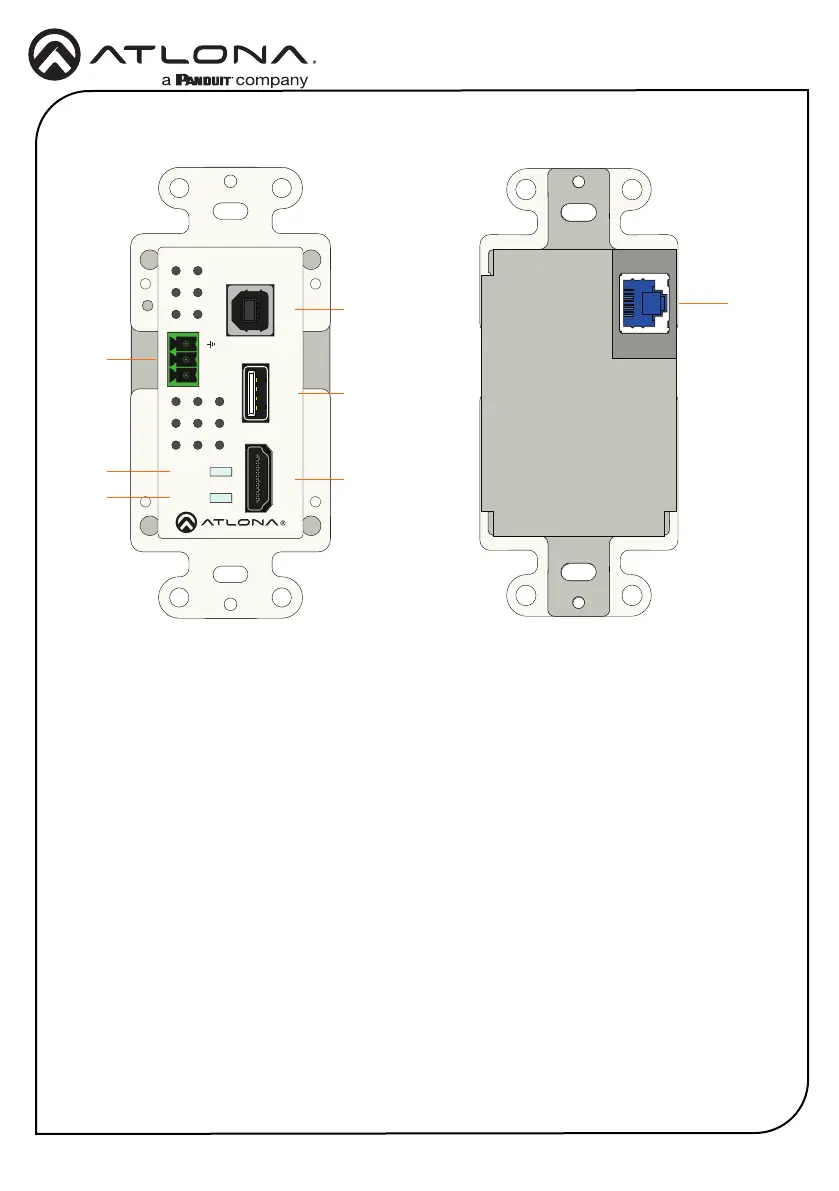

RS-232
RX T X
HDBaseT OUT
1 HOST
Connect a USB cable from the computer
to this port.
2 PWR
This LED indicator glows solid green
when the unit is powered. Refer to
LED Indicators (page 6) for more
information.
3 LINK
This LED indicator glows solid amber to
indicate that the HDBaseT signal integrity
is good. Refer to LED Indicators (page
6) for more information.
4 HDMI
Connect an HDMI cable from this port to a
UHD/HD source.
5 HUB
Connect up to two USB devices, such as
a speakerphone and keyboard, to these
ports.
6 RS-232
Connect an RS-232 control system to this
port. Connect the included 3-pin captive
screw block to this receptacle. Refer to
RS-232 (page 3) for more information.
7 HDBaseT OUT
Connect a category cable from this port to
the port of the AT-OME-EX-HDBaseT IN
RX or other PoE-compatible receiver.
NOTE: Note that the AT-OME-EX-TX-WP-EU and AT-OME-EX-TX-WP-UK are
functionally identical, except for the size of the wallplate. The AT-OME-EX-TX-
WP-EU is shown above.
