Side 1/12
1
Installation Guide
AT-OPUS-70C-KIT
4K/UHD HDMI
®
Over HDBaseT TX with Control and PoE
AT-OPUS-70C-KIT

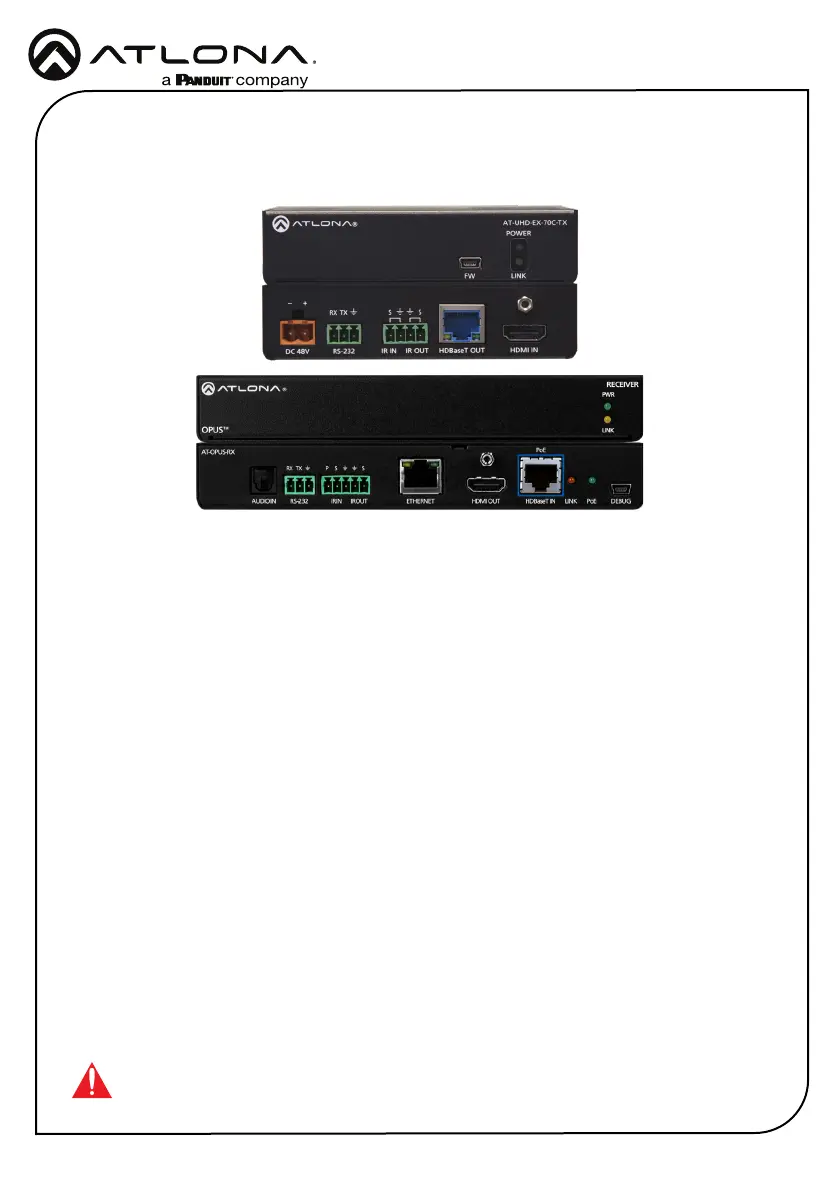

The Atlona AT-OPUS-70C-KIT is an HDBaseT
™
transmitter/receiver kit for HDMI transmission
up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over
Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded
multi-channel audio and remote 48V power for the receiver. HDCP 2.2 compliance ensures
compatibility with the latest copy protection requirements and EDID communication is supported.
Included brackets allow the devices to be surface mounted on furniture or behind a display.
For higher density applications, the transmitter’s compact enclosure allows four to be mounted
in a single 1U rack tray, and they support power chaining for powering multiple units from one
power supply. The AT-OPUS-70C-KIT is ideal for use in residential or commercial point to point
applications that require HDBaseT signal transmission over greater distances than HDMI
®
can
support.
IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-70C-KIT for the latest
rmware updates and Installation Guide.
AT-UHD-EX-70C-TX
1 x AT-UHD-EX-70C-TX
2 x Mounting brackets
4 x Mounting screws
1 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 2-pin captive screw connector
1 x 48 V / 0.83 A DC power supply
AT-OPUS-RX
1 x AT-OPUS-RX
2 x Mounting brackets
4 x Mounting screws
1 x IR Emitter
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
Package Contents
2
Installation Guide
AT-OPUS-70C-KIT
POWER
LINKFW
AT-UHD-EX-70C-TX
DC 48V
-
+
RS-232
RX TX
SS
HDBaseT OUT
HDMI IN
IR OUTIR IN

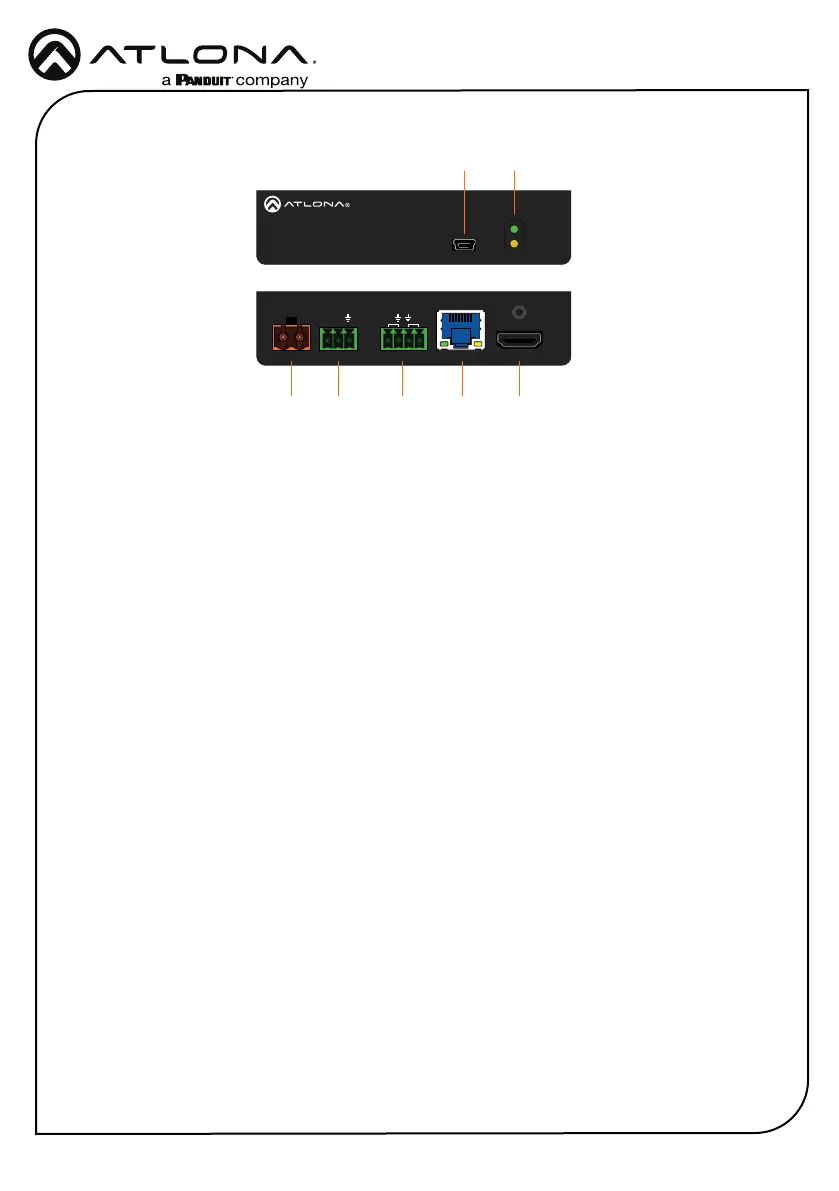

Panel Descriptions (AT-UHD-EX-70C-TX)
1 FW
Connect a mini-USB to USB-A type cable
from this port to a computer, to update
the rmware.
2 POWER / LINK
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
3 DC 48V
Connect the included power supply to this
port.
4 RS-232
Bidirectional control port, used for pass
through of commands to or from the
receiver.
5 IR IN / IR OUT
Connect an IR receiver to the IR IN port.
Connect an IR emitter from the IR OUT
port to the included 4-pin captive screw
connector.
6 HDBaseT OUT
Connect an HDBaseT cable from this port
to the HDBaseT IN port on the receiver.
7 HDMI IN
Connect an HDMI cable from a source to
this port.
1
3 4 5 6 7
2
