Installation Guide

AT-RON-448

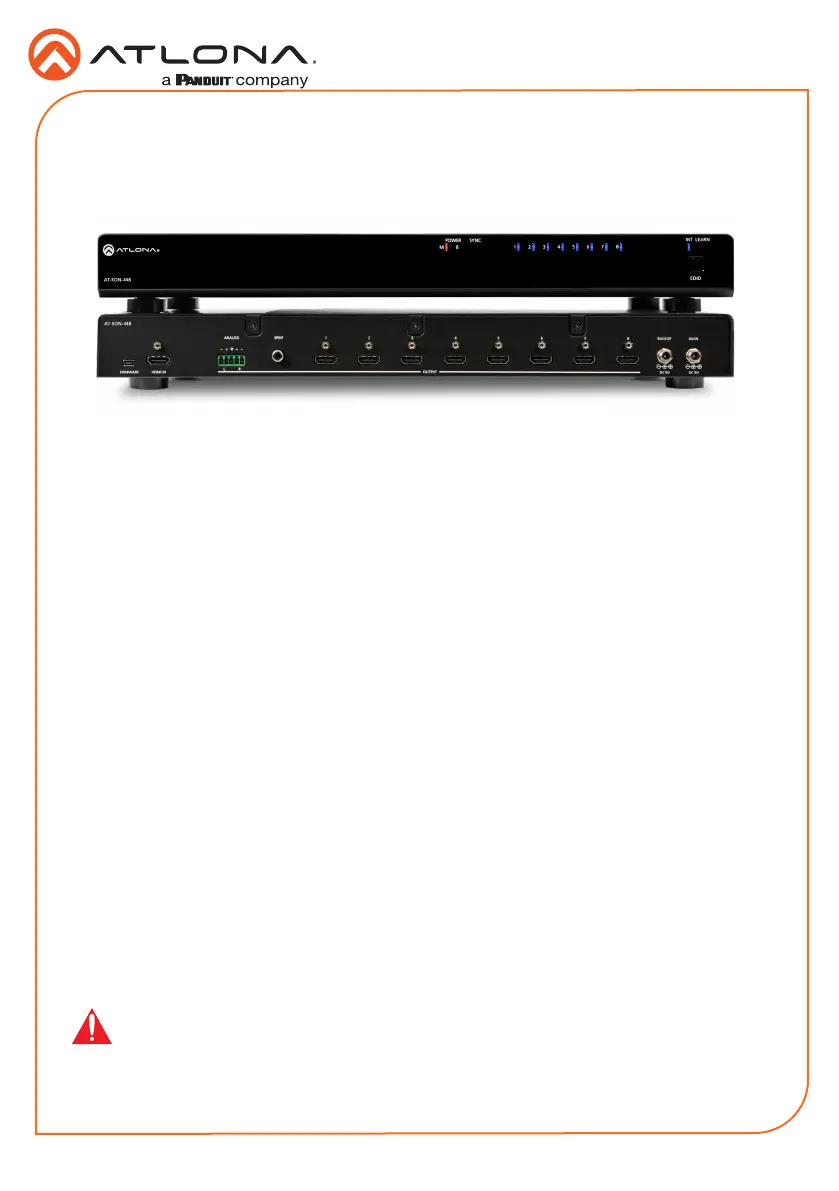

4K HDR Eight-Output HDMI Distribution Amplier

AT-RON-448

The Atlona Rondo™ series are HDMI distribution ampliers for high dynamic range (HDR)

formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma

sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications

requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are

compatible with all video resolutions, audio formats, and color space formats supported in the

HDMI 2.0a specication, plus the ability to pass metadata for HDR content. The Rondo Series

HDMI distribution ampliers include EDID management features, front panel LED indicators

for power and signal status, and the capability to cascade several units without compromising

performance.

Package Contents

1 x AT-RON-448

1 x 5 V DC power supply

1 x Captive screw connector, 5-pin

2 x Rack ears

4 x Rubber feet

4 x Screws

1 x Installation guide

IMPORTANT: Visit http://www.atlona.com/product/AT-RON-448 for the latest rmware

updates.

Installation Guide

AT-RON-448

AT -RON-448 EDID

INT LEARN

1 2 3 4 5 6 7 8

SYNCPOWER

OUT PUT

1234

DC 5V

BACKUP

DC 5V

MAINANALOG S/PDIF

HDMI IN

AT-RO N-448

L R

5678

1 POWER

This M LED indicator will glow solid

red when the power supply is MAIN

connected. The LED indicator will glow B

solid red when a backup power supply

is connected to the BACKUP power

receptacle.

2 SYNC

This LED indicator will glow solid blue

when an active source is detected on the

HDMI IN port.

3 Output Indicators

These LED indicator will glow solid blue

when a display or other sink device is

connected to the ports.HDMI OUT

4 INT

This LED indicator glows solid blue when

the unit is using the built-in EDID.

5 LEARN

This LED indicator glows solid blue when

the unit is in “EDID learn” mode.

6 EDID button

Press this button to switch between

“internal” and “learn” modes.

7 FW

Connect a mini USB cable to this port to

update the rmware.

8 HDMI IN

Connect an HDMI cable from this port to a

UHD/HD source.

9 ANALOG

Connect the included 5-pin captive screw

connector to this port to de-embed the

input audio to an analog output device.

10 SPDIF

Connect an RCA-type cable from this port

to de-embed the input audio to a digital

output device.

11 HDMI OUT 1 - 8

Connect an HDMI cable from each of

these ports to a display or other sink

device.

12 DC 5V

Two power receptacles are provided:

BACKUP and MAIN. If not using power

supply redundancy, connect the included

power supply to the power MAIN

receptacle. If using a backup power

supply (not included), then connect the

backup power supply from the BACKUP

power receptacle to an electrical outlet

that is on a dierent circuit than the main

power supply. Additional power supplies

can be purchased through Atlona.

31 2 4

87 910

Panel Descriptions

11 12
